Acre Intrusion 2 Door Kit – Includes Expander, Reader And SPC OSDP Converter
The Acre Intrusion 2 Door Kit simplifies system expansion and provides a comprehensive access control solution for managing up-to two entry points. This convenient kit offers a combination of advanced features, easy installation, and user-friendly operation, making it an ideal choice for various security applications.
Key Features:
- Simplified System Expansion: The Acre Intrusion 2 Door Kit offers a complete solution for adding access control to two doors, eliminating the need to purchase components separately.
- Intrusion System Control: The Acre Intrusion system offers a robust array of options for system control. Each door can be configured to arm and disarm the system, with additional features to prevent accidental arming.
- Enhanced Security with Smart Card Technology: Mifare Classic cards provide a secure and reliable method for user authentication.
- Advanced Door Control Functionality: The SPCA210.100 expander manages door locking, unlocking, and access events for two doors.
- Flexible Programming Options: The expander allows for customised programming of zones, outputs, and LED indicators for optimal system configuration.
- Standalone Operation Capability: The expander can store up to 512 user cards for continued operation even in case of communication loss with the main control panel.

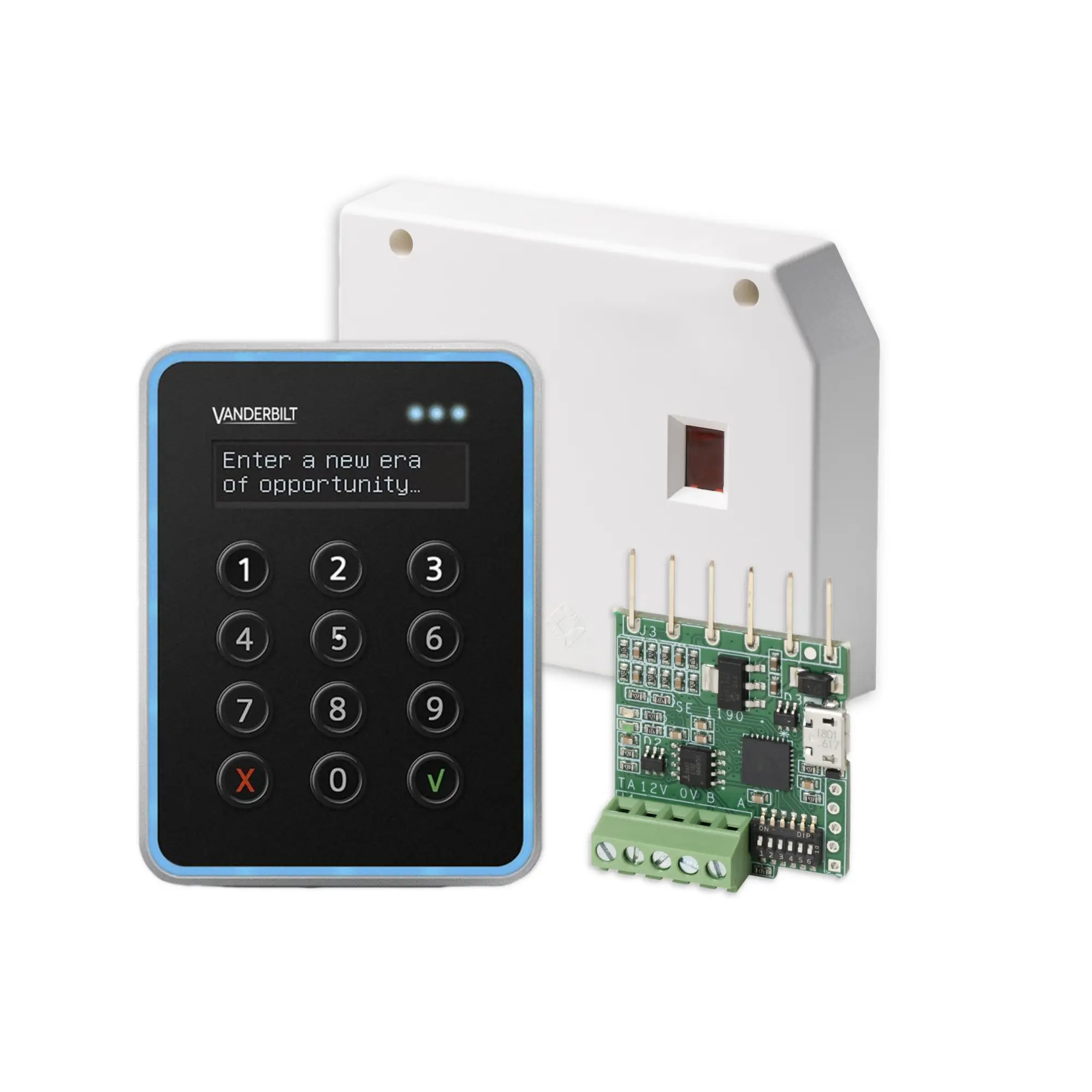

The Acre Intrusion 2 Door Kit Includes:
- 1x VR40S-MF Smart Card Reader: Provides secure and convenient access control using Mifare Classic cards.
- 1x SPCA210.100 2-Door Expander: Intelligently manages entry and exit points for two doors.
- 1x OSDP Converter PCB: Ensures compatibility between the reader and the expander.
Full Description
All-Inclusive Package for Simplified System Expansion
The Acre Intrusion 2 Door Kit provides a comprehensive solution for expanding your security system’s access control capabilities. When combined with the Acre Intrusion panel, offers customers a low cost access functions to their intrusion system. . This convenient kit includes all the necessary components to manage access for two doors, offering a streamlined and cost-effective way to enhance security in your residential or commercial property.
Key Features:
- Simplified System Expansion: The Acre Intrusion 2 Door Kit offers a complete solution for adding access control to two doors, eliminating the need for separate component purchases.
- Enhanced Security: Mifare credential technology provides a secure and reliable access control method.
- Flexible Configuration: Programmable zones, outputs, and reader profiles allow for customisation based on specific security needs.
- Standalone Operation: The expander can store up to 512 cardholder credentials for continued operation even in case of communication loss to the control panel.
- Easy Installation: The kit components are designed for user-friendly installation.
The Acre Intrusion 2 Door Kit Includes:
- SPCA210.100 2-Door Expander: Provides advanced door control functionality for two entry doors or one entry/exit door.
- VR40S-MF Smart Card Reader: Enables secure access control using Mifare Classic cards or credentials.
- OSDP Converter PCB: Ensures compatibility between the reader and the expander for seamless system integration.
Component Breakdown:
- SPCA210.100 2-Door Expander:
- Supports Wiegand or Clock & Data reader interfaces.
- Offers 4 LED control outputs for visual access status indication.
- Includes 4 zones for monitoring door position and opening/closing.
- Provides 2 relay outputs for door lock control.
- Features an onboard buzzer for door-related alerts.
- Stores up to 512 cardholders for standalone operation.
- Full Data Sheet
- VR40S-MF Smart Card Reader:
- Reads Mifare credentials for secure access control (MIFARE Classic; MIFARE Plus (UID only); MIFARE DESFire EV1; MIFARE DESFire EV2/EV3 (to EV1 conditions only)).
- Features tri-colour LED indicators and a multi-tone buzzer for user feedback.
- Offers a multi-colour light frame for clear access status display.
- Includes a high-quality backlit keypad for user interaction.
- Provides a graphical OLED display for enhanced user experience.
- See Data Sheet.
Benefits for Security Professionals:
- Streamlined System Integration: The Acre Intrusion 2 Door Kit offers a pre-configured solution for fast and easy system expansion.
- Increased Security and Control: Mifare technology and programmable features enhance overall access management.
- Cost-Effective Solution: The all-inclusive kit eliminates the need for separate component purchases.
- Improved User Experience: The VR40S reader offers intuitive interaction through keypad and display.
Ideal Applications:
- Residential Properties: Provides secure access control for entry doors and garages.
- Small and Medium-Sized Businesses: Offers a scalable solution for managing access in offices, retail stores, or other commercial spaces.
- Multi-Unit Buildings: Enables secure access control for apartment buildings or gated communities.
Product Specifications
Brand | ACRE |
---|---|
Series | Acre Intrusion, SPC |
Kit | Yes |
Reader and Card Technology | MIFARE, DESFire |
Device Type | Expander, Keypad |
Operating Temperature | -40°C to 70°C |
Protection Rating | IK08, IP54 |
Grading and Compliance | Grade 4 |
SKU | SPC-A210/VR40 |
