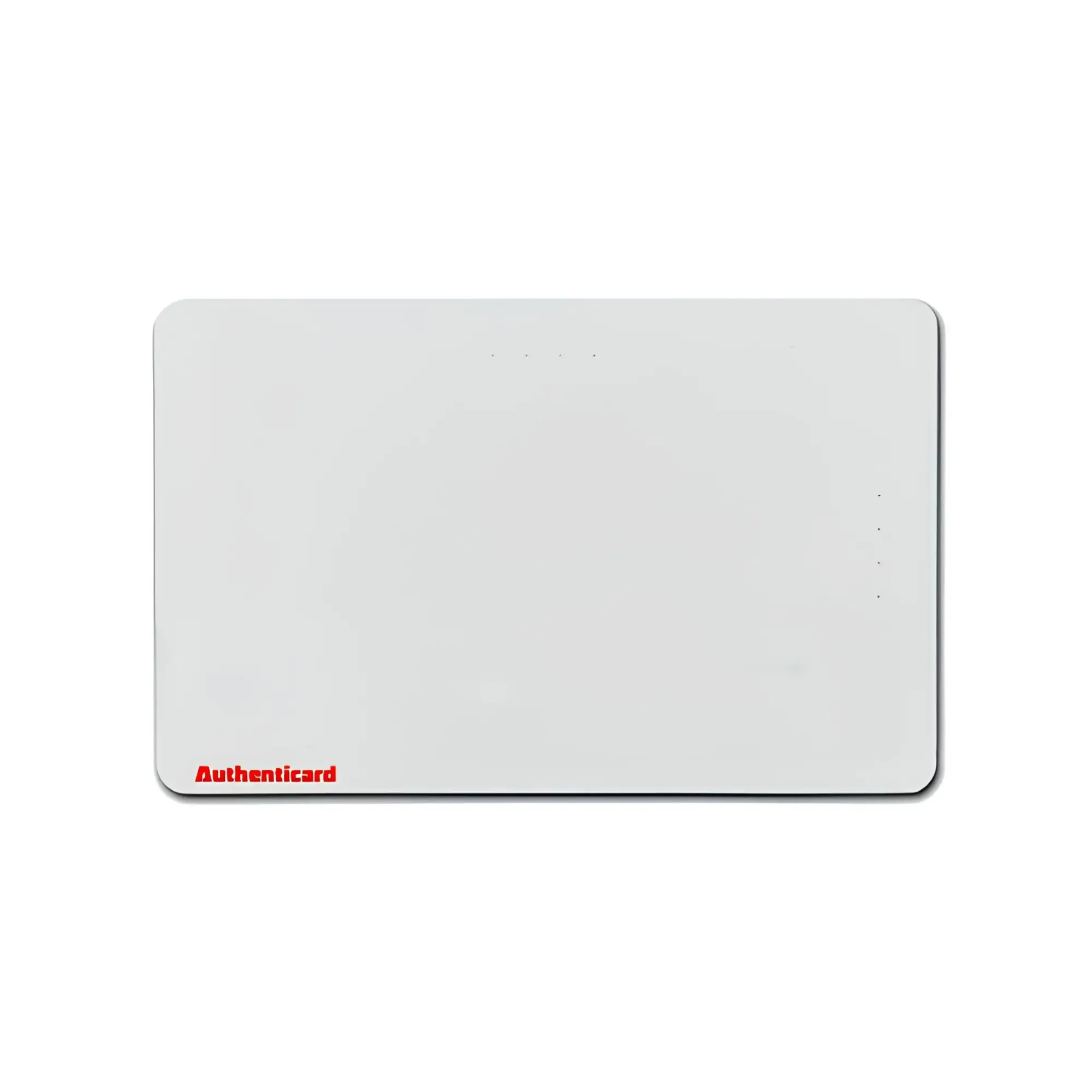

Authenticard ISO PVC MIFARE S70 EV1 4K Card with Optional HiCo Magstripe

Full Description

ISO Standard PVC Card with Optional HiCo Magstripe

The Authenticard Programmable ISO PVC MIFARE S70 EV1 4K Card offers a significant 4KB memory capacity, making it ideal for applications requiring more data storage than the S50 1K variant. Built on the reliable MIFARE Classic EV1 platform and conforming to the ISO standard for size, this PVC card is compatible with most direct-to-card printers and can be optionally equipped with a High Coercivity (HiCo) magnetic stripe for added functionality.

Key Features of the Authenticard MIFARE S70 EV1 4K Card:

• MIFARE Classic S70 4K Chip: Provides a larger 4KB memory, organized into 40 sectors, suitable for multi-application use cases.
• ISO/IEC 7810 ID-1 Standard: Standard credit card size (85.6mm × 54mm) ensures compatibility with a wide range of readers and printers.
• Durable PVC Construction: Offers a robust and long-lasting card material commonly used for ID and access cards.
• MIFARE EV1 Generation: Features improved security, performance, and energy efficiency compared to earlier MIFARE Classic versions.
• 4-Byte NUID (Non-Unique Identifier): Each card has a 4-byte serial number for identification. While not globally unique, it’s suitable for many access control systems.
• Programmable: Ready for encoding data and access permissions as required by the application.
• Optional HiCo Magnetic Stripe: Allows for dual interface functionality, compatible with magnetic stripe readers in addition to contactless MIFARE readers. HiCo stripes offer greater durability against magnetic damage.
• Printable Surface: Optimised for printing on most direct-to-card printers for custom personalisation.

Technical Specifications:

• Chip Type: MIFARE Classic S70 4K EV1 Card Chip
• Memory Capacity: 4 Kilobytes (4096 bytes)
• Memory Organization: 40 sectors (32 sectors of 4 blocks, 8 sectors of 16 blocks, 16 bytes per block)
• Identifier: 4-Byte NUID (Non-Unique Identifier)
• Contactless Technology: 13.56 MHz
• Standard: ISO/IEC 7810 ID-1, ISO/IEC 14443 Type A
• Material: PVC
• Optional: High Coercivity (HiCo) Magnetic Stripe
• Dimensions: 85.6mm × 54mm
• Thickness: Standard ISO card thickness

Benefits:

• Increased Memory: 4KB capacity allows for storing more data for multiple applications.
• Enhanced Security and Performance: EV1 generation offers improvements over legacy MIFARE Classic.
• Wide Compatibility: ISO standard size ensures broad reader and printer compatibility.
• Dual Interface Option: HiCo magstripe provides backward compatibility and additional functionality.
• Durable and Printable: PVC material is robust and suitable for custom printing.
• Versatile Applications: Ideal for access control, payment systems, loyalty programs, and more.

Ideal Applications:

• Access control systems requiring higher memory for user credentials or additional data.
• Multi-application cards (e.g., access control + cashless vending + time & attendance).
• Public transportation ticketing systems.
• Loyalty and membership programs with extensive data storage needs.
• Identification cards with optional magnetic stripe functionality.
