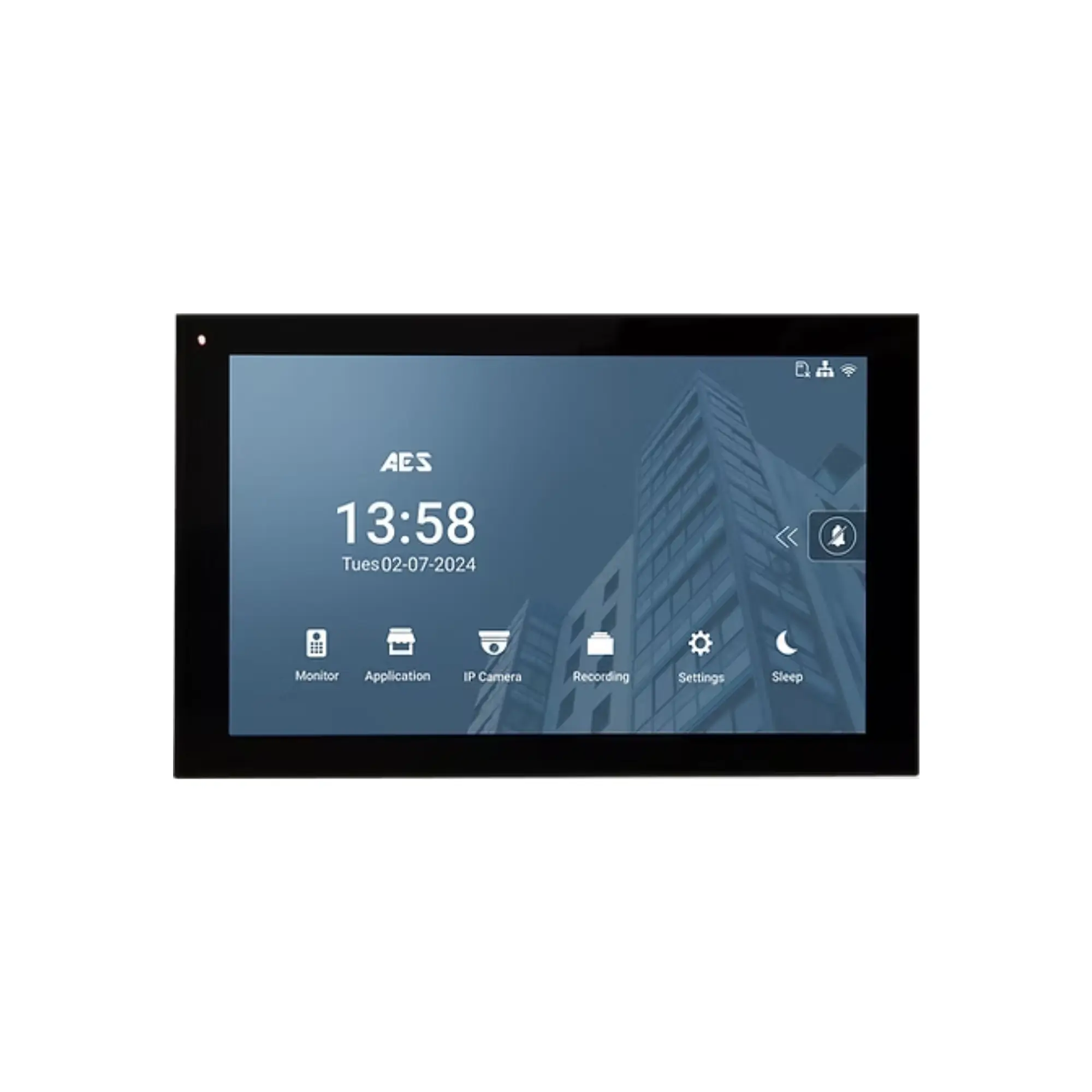

AES OPYN-MON – 7” IPS TFT Android Touchscreen Monitor
The AES OPYN-MON is a sophisticated 7-inch IPS TFT Android touchscreen monitor, designed as a key accessory for the OPYN system. This monitor provides a vivid display and versatile connectivity, making it an ideal internal unit for managing your OPYN video intercom and access control solutions.
Key Features:
- 7-inch IPS TFT Android Touchscreen: The AES OPYN-MON offers a clear and vibrant display with a 1024×600 resolution for an intuitive user experience.
- Android 12 Operating System: Provides a familiar and flexible platform, allowing for Android app integration.
- Versatile Mounting Options: Designed for flush or wall-mounted installation, with an option for desk mounting via a separately sold bracket.
- Comprehensive Connectivity: the AES OPYN-MON supports both Wi-Fi (2.4GHz & 5GHz, 802.11 b/g/n) and Ethernet (IEEE 802.3) for reliable network connection.
- SIP Integration: Seamlessly integrates with SIP-based VoIP systems for enhanced communication capabilities.
- IP Camera Integration: Allows for viewing and management of integrated IP cameras.
- Full Duplex Audio: Features an echo cancellation algorithm for clear, two-way audio communication.
- Video Codec Support: Compatible with H.264 and H.265 video codecs for efficient video streaming.
- SD Card Storage: Supports 8GB to 128GB SD cards for local storage (e.g., video messages, recordings).
- PoE (802.3af) or 12-15V DC Power: Offers flexible power supply options for simplified installation.
- Durable Construction: Made with glass and ABS materials, with CE-RED, FCC, and ROHS approvals.
Full Description
Integrated Monitor with SIP, IP Camera, and App Support for OPYN Systems
The AES OPYN-MON is a sophisticated 7-inch IPS TFT Android touchscreen monitor designed as an essential accessory for the AES OPYN intercom system. Boasting a crisp 1024×600 resolution, this monitor offers versatile installation options, supporting flush or wall-mounted setups, with a desk mount bracket available separately. It seamlessly integrates with a range of IP-based functionalities, making it a central hub for communication and security.
Key Features of the AES OPYN-MON:
- 7-inch IPS TFT Android Touchscreen: The AES OPYN-MON provides a vibrant and responsive display with a 1024×600 resolution for clear visuals.
- Android Operating System (Android 12): Enables integration with various Android applications, extending functionality.
- SIP Integration: Allows for seamless communication within SIP-based IP intercom systems.
- IP Camera Integration: View feeds from compatible IP cameras directly on the monitor.
- Wi-Fi & Ethernet Connectivity: Offers flexible network connection options (802.11 b/g/n for 2.4GHz & 5GHz Wi-Fi, and IEEE 802.3 Ethernet).
- Full Duplex Audio: Ensures clear two-way communication with echo cancellation.
- SD Card Storage: Supports 8GB to 128GB SD cards for potential media storage or recordings.
- Versatile Installation: Designed for flush or wall mounting, with an optional desk mount bracket.
- Robust Build: Constructed from glass and ABS materials for durability.
Technical Information:
- Screen Type: 7” IPS TFT Android Touchscreen
- Screen Resolution: 1024×600
- Operating System: Android 12
- System Memory: 2GB DDR
- Internal Storage: 16GB FLASH
- Video Codec: H.264/H.265
- Audio Streaming: Full duplex with echo cancellation algorithm
- Audio Codec: G.711U & G.711A
- Wi-Fi: 802.11 b/g/n, 2.4GHz & 5GHz
- Ethernet: IEEE 802.3
- Supported Protocols: TCP/UDP/RTP/RTSP/HTTP/SIP
- Power Supply: 12-15V DC / 48V PoE (802.3af)
- SD Card Storage: 8-128GB
- Operating Temperature: -10°C ~ +55°C
- Materials: Glass & ABS
- Approvals: CE-RED, FCC, ROHS
- See Full Data Sheet
Benefits of the Opyn Touchscreen Monitor:
- Intuitive User Experience: The Android touchscreen interface provides ease of use.
- Centralised Control: Manage intercom calls, view IP camera feeds, and access apps from one device.
- Flexible Connectivity: Choose between wired Ethernet or wireless Wi-Fi for network connection.
- High-Quality Audio and Video: Clear communication and sharp display for enhanced security.
- Scalable: Integrates seamlessly as an accessory to existing OPYN kits.
- Durable Design: The AES OPYN-MON is built to withstand various operating conditions.
Ideal Applications:
- Residential homes utilising the OPYN video intercom system.
- Commercial properties requiring advanced IP-based intercom and surveillance integration.
- Any installation seeking to enhance their OPYN system with a central, interactive display.
Product Specifications
| Brand | AES |
|---|---|
| Mounting | Flush Mount, Surface Mount |
| Power Requirement | 12-15 VDC, PoE |
| Operating Temperature | -10°C to 55°C |
| Monitor or Handset Type | Video Touchscreen |
| Monitor Size | 7" Touch-Screen |
| Colours | Black |
| SKU | AES-OPYN-MON |
