Alarmtech VD 500: Grade 3 Seismic Detector
The Alarmtech VD 500 is a high-performance, Grade 3 certified seismic detector engineered to provide reliable intrusion detection and exceptional immunity to false alarms. Designed for critical security applications, it effectively detects attempts to penetrate solid objects using explosives, diamond drills, cutting discs, grinding tools, and thermal tools.
Key Features:
- Grade 3 Certified: The Alarmtech VD 500 meets stringent security standards, ensuring high reliability and performance in demanding environments.
- Advanced Digital Signal Processing (DSP): Utilises a sophisticated detection algorithm to deliver superior performance and high immunity to external disturbances.
- Triple Detection Channels:
- Integration Channel: Detects subtle, weaker signals.
- Count Channel: Monitors for a series of events (up to 4 counts).
- Explosion Channel: Identifies strong, short-duration signals characteristic of explosive attempts.

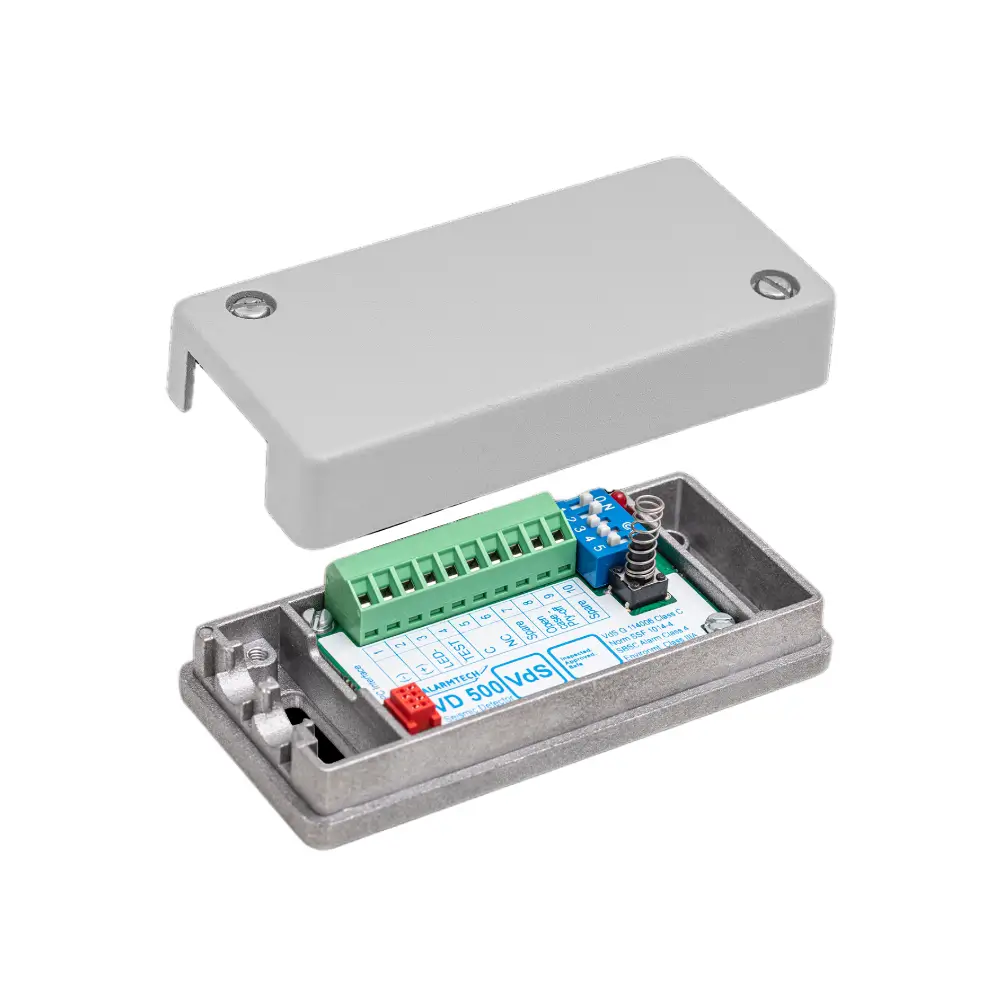

- Adjustable Sensitivity: Sensitivity and object type (e.g., steel, concrete) are easily selected via a DIP switch for optimal performance.
- Temperature Sensor: Triggers an alarm if the temperature reaches 75°C or increases at a rate of 6°C/minute, providing early fire detection capability.
- Tamper Protection: Equipped with safeguards against attempts to break or open the detector housing.
- Self-Test Generator: Includes a separate input for testing and verifying the detector’s functionality.

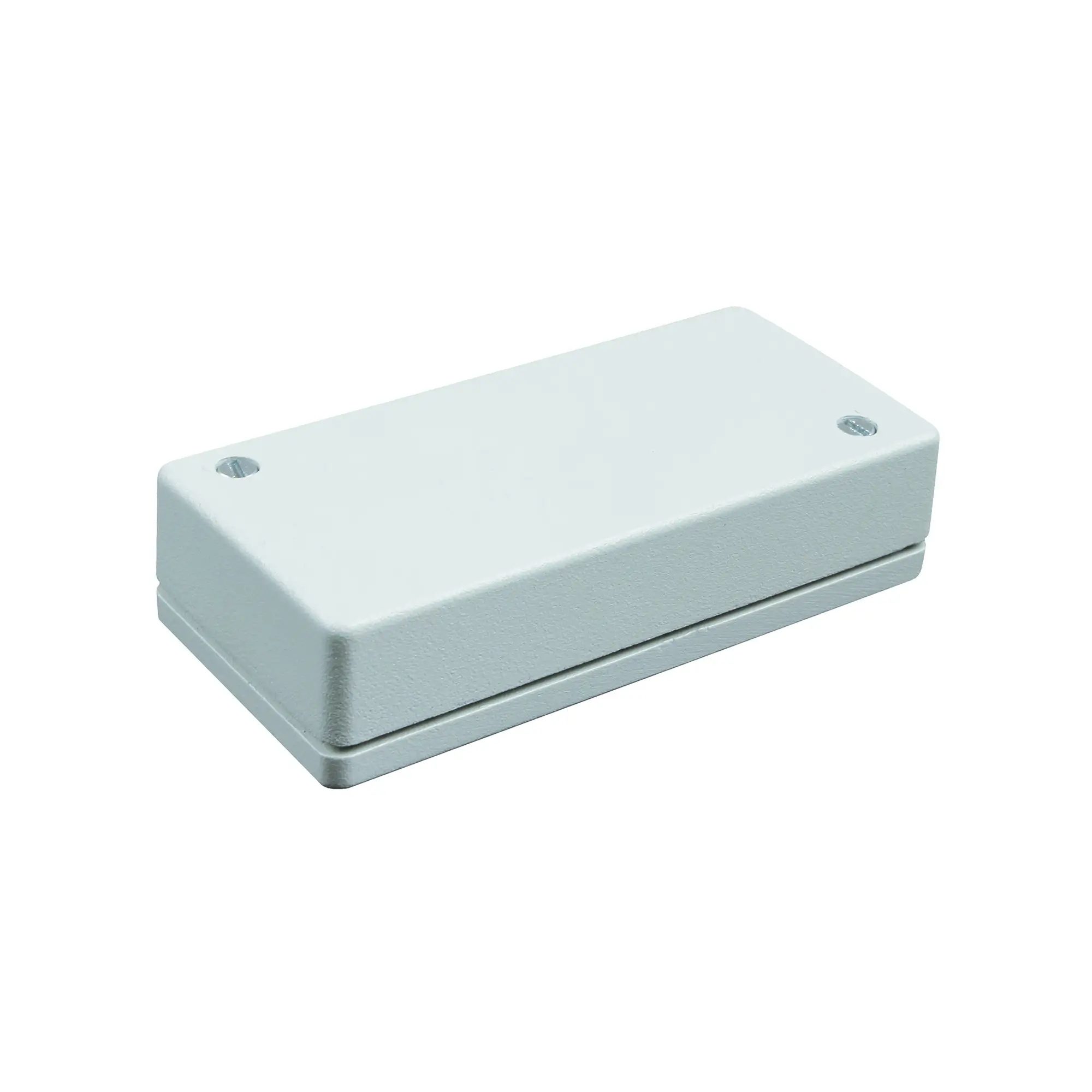

- Compact Size: Small dimensions (86 x 41 x 23 mm) allow for installation in confined spaces.
- Wide Operating Temperature Range: Functions reliably from -40°C to +70°C.
- IP43 Housing Protection: Provides protection against solid objects larger than 1mm and spraying water.
- Low Current Draw: Efficient power consumption in both standby (7.5 mA) and alarm (8.4 mA) states.
Full Description
Advanced Intrusion Detection with Digital Signal Processing for Safes, ATMs & More
The Alarmtech VD 500 is a cutting-edge Grade 3 seismic detector designed to provide exceptionally reliable intrusion detection with high immunity to false alarms. Ideal for mounting on robust objects like firearm cabinets, payment terminals, ATMs, safes, and concrete walls, it excels at detecting attempts using explosives and mechanical tools such such as diamond drills, cutting discs, grinding, and thermal tools.
Key Features Of The Alarmtech VD 500:
- Reliable Intrusion Detection: The Alarmtech VD 500 has been specifically engineered to detect vibrations caused by various intrusion methods, including explosives and sophisticated mechanical tools.
- Digital Signal Processing (DSP): Utilises an advanced detection algorithm for high performance and superior immunity to external disturbances, minimizing false alarms.
- Three Detection Channels:
- Integration Channel: Detects weak, continuous signals.
- Count Channel: Registers up to 4 distinct events, useful for analysing repetitive attacks.
- Explosion Channel: Identifies strong signals of short duration, indicative of explosive attempts.
- Adjustable Sensitivity: Sensitivity and object type (steel or concrete) can be configured via a DIP switch to optimise performance for the specific protected asset.
- Compact Size: Small dimensions (86 x 41 x 23 mm), Alarmtech VD 500 allows for installation in confined or limited spaces.
- Temperature Sensor: Triggers an alarm at 75°C or a rapid temperature increase of 6°C/min, providing early warning of potential thermal attacks.
- Tamper Protection: Equipped with robust tamper detection against attempts to break or open the detector’s housing.
- Self-Test Generator: Includes a self-test function with a separate input for easy testing and maintenance.
- High Immunity: The Alarmtech VD 500 is designed for robust performance even in environments with significant background noise.
Technical Specifications:
- Approvals: F&P, FG, NBÚ SK Typ 3, VdS G 114006 Class C (Grade 3 certified)
- Supply Voltage: 8 – 30 VDC
- Alarm Output: NC (Normally Closed)
- Operating Temperature: -40°C to +70°C
- Housing Protection Class: IP43
- Dimensions (L x W x H): 86 x 41 x 23 mm
- Current Draw (Standby): 7.5 mA
- Current Draw (Alarm): 8.4 mA
- Download Data Sheet
Installation Recommendations:
- Firm Mounting: Ensure the detector is firmly secured to the contact surface for optimal detection.
- Concrete/Brick Walls: Always use the MP 500 mounting plate with anchor bolt when mounting on concrete and brick walls.
- Severe Environments: For indoor or outdoor installations in harsh conditions, utilise the WH 400 housing with integrated heaters to maintain suitable temperature and humidity.
Benefits of the Alarmtech VD 500:
- Exceptional Reliability: Grade 3 certification and advanced DSP ensure precise detection with minimal false alarms.
- Versatile Application: Ideal for securing a wide array of high-value assets and structures.
- Robust Protection: Detects various intrusion methods, including sophisticated tools and explosives.
- Enhanced Safety: Integrated temperature sensor and tamper protection provide additional layers of security.
- Flexible Installation: Compact size and specific mounting accessories make it adaptable to different environments.
Ideal Applications:
- Firearm cabinets
- ATMs and payment terminals
- Safes and strong rooms
- Vaults and secure storage facilities
- Shipping Containers (See a recent case study)
- Concrete walls and structures requiring enhanced intrusion detection
- Data centres and server rooms
- Museums and art galleries (on display cases or secure structures)
Product Specifications
| Dimensions | 86 × 41 × 23 mm |
|---|---|
| Brand | Alarmtech |
| Device Type | Seismic Detector |
| Grading and Compliance | Grade 3 |
| Operating Temperature | -40°C to 70°C |
| Power Requirement | 8 – 30 VDC |
| Protection Rating | IP43 |
| SKU | AMT-VD500 |
