Alarmtech VD 500-Z1: Grade 3 Seismic Detector with Armoured Cable and Junction Box

Full Description

High-Security Seismic Detection with Integrated Armoured Protection

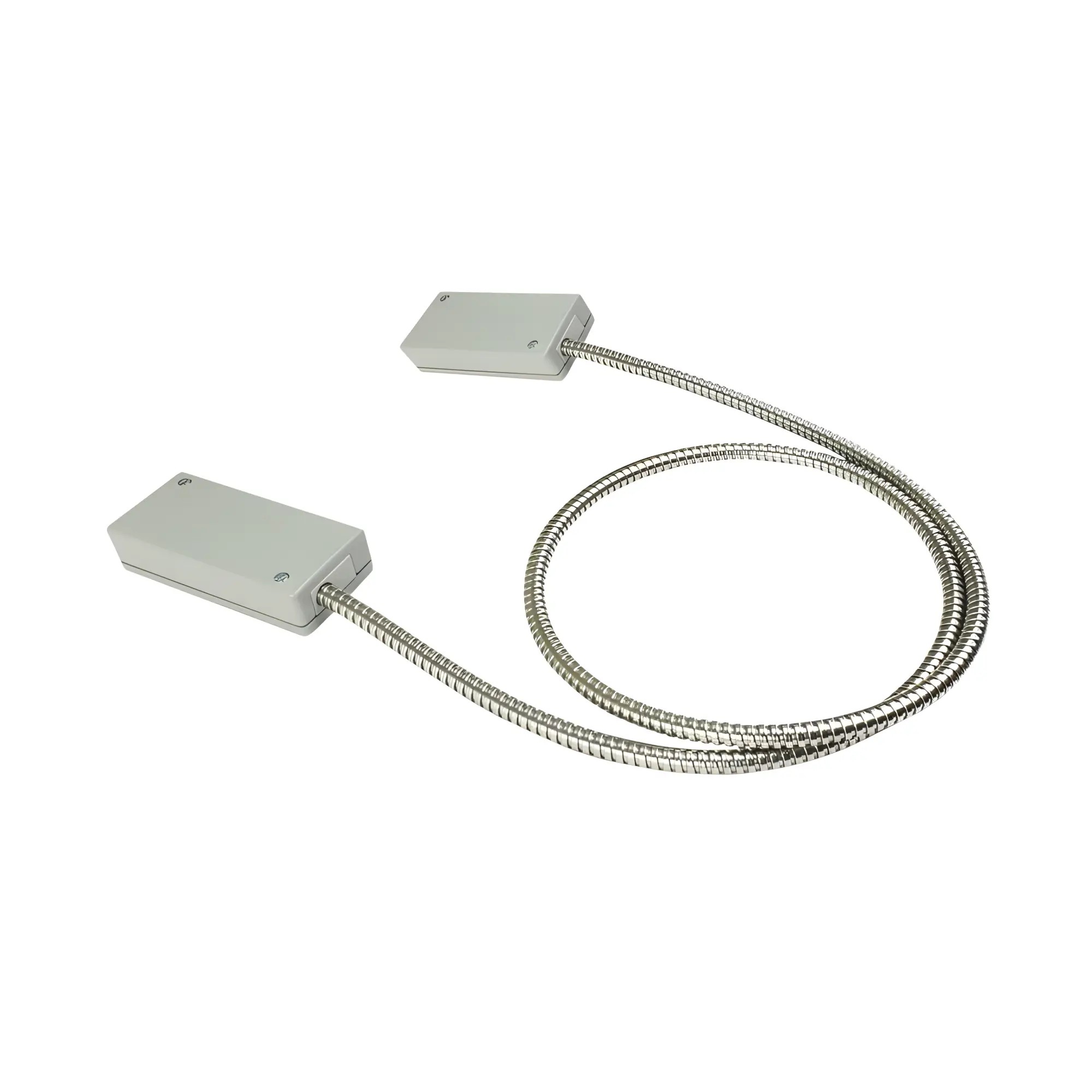

The Alarmtech VD 500-Z1 is a professional-grade seismic detector designed to protect high-value assets like ATMs, safes, and firearm cabinets from sophisticated intrusion attempts. This comprehensive kit includes the VD 500 detector, a stainless steel flexi-tube (MC T4), and a JB 50 junction box, providing a complete, ready-to-install security solution. Utilising advanced Digital Signal Processing (DSP), the VD 500-Z1 effectively identifies the unique vibrations caused by explosives and mechanical tools, including diamond drills and thermal cutting equipment, while maintaining a high immunity to environmental noise.

Key Features of the Alarmtech VD 500-Z1:

• Triple-Channel Detection: The system monitors three distinct channels to ensure no threat goes unnoticed:
  • Integration Channel: Detects weak, persistent signals.
  • Count Channel: Tracks up to four distinct events.
  • Explosion Channel: Instantly detects high-intensity, short-duration signals.
• Advanced DSP Technology: Features a digital algorithm that provides superior detection performance while filtering out false alarms caused by ambient vibrations.
• Environmental Monitoring: Equipped with an integrated temperature sensor that triggers an alarm if the temperature reaches 75°C or rises at a rate of 6°C per minute, protecting against thermal lances and fire.
• Armoured Protection: The “Z1” kit specifically includes stainless steel armoured cabling (MC T4) and a JB 50 junction box, ensuring the wiring is as secure as the detector itself.
• Tamper & Self-Test: Includes comprehensive tamper protection against opening or prying the housing, along with a separate input for a self-test generator to verify operational status remotely.
• Precision Sensitivity: Settings for sensitivity and the specific object type (steel or concrete) are easily selected via an internal DIP switch.

Technical Specifications:

• Supply Voltage: 8 to 30 VDC
• Current Draw (Standby): 7.5 mA
• Current Draw (Alarm): 8.4 mA
• Alarm Output: Relay, NC (Normally Closed)
• Alarm Contact Rating: 35 VDC / 100 mA
• Tamper Protection: Micro-switch, NC (35 VDC / 50 mA)
• Housing Protection Class: IP 43
• Operating Temperature Range: -40°C to +70°C
• Humidity: Maximum 95% RH (non-condensing)
• Detection Radius: Up to 5 metres (depending on surface material)
• Dimensions: 86 mm x 41 mm x 23 mm
• Weight: 228 grams (detector only)
• Manufacturers Data Sheet

Approvals & Certification:

• Security Grade: Grade 3 (EN 50131 compliant)
• VdS Certification: Class C
• SBSC Certification: Class 4 (13-573)
• NBU Certification: Type 3 (Secret)
• Environmental Class: IIIA

Ideal Applications of the VD 500-Z1:

• Financial Institutions: ATMs, payment terminals, and night deposits.
• Secure Storage: Safes, strongrooms, and firearm cabinets.
• Infrastructure: Protection of concrete walls and heavy-duty vaults.
• High-Value Assets: Ticket machines and automated vending systems in public spaces.

The Alarmtech VD 500-Z1 provides a professional, “all-in-one” high-security solution. Its combination of Grade 3 seismic sensing, armoured cable, and advanced DSP filtering ensures that your most critical assets are protected against the most sophisticated intrusion methods.
