Authenticard “Designer” Keypad Reader Range

Authenticard “Designer” Series UK Wallswitch Reader & Keypad

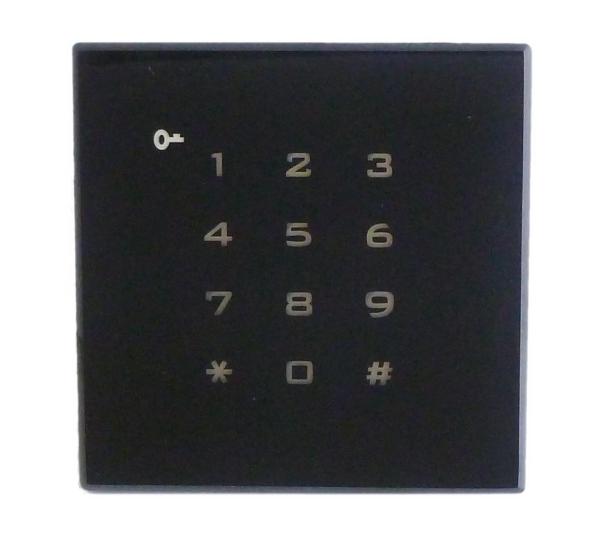

The Authenticard “Designer” series of readers is designed for semi-flush flush-mounting to a UK / EU flush back box. The reader features an attractive high-gloss black finish with multi-colour LED annunciator key symbol and beeper for audible and visible user feedback.
Output is industry-standard Wiegand data with the programming format passed through from a programmed card with “4-bit burst” keypad data configuration as standard for compatibility with most good access control systems.
The “Designer” keypad reader is available in the following technology versions:
  • D-KEYPAD-125, 125KHz Proximity Technology to read EM, Authenticard and HID proximity cards & tags plus 4 bit burst keypad output.
  • D-KEYPAD-CSN, 13,56MHz Contactless Smart Card Technology to read the CSN/UID of MIFARE or DESFire cards/tags plus 4 bit burst keypad output.

Dimensions (Front): 85mm x 85mm x 8mm
Dimensions (Back): 58mm (W) x 63mm (H) x 23mm (D)
Power Supply: 10-15 VDC @ 120mA (maximum)
Operating Temperature: -10C to 60C

Product Specifications

Brand

Authenticard

Colours

Black

Frequency

125 KHz, 13.56 MHz

Construction

Plastic

Output Protocol

Wiegand

Technology

DESFire, MIFARE, Proximity

Power Requirement

10-15 VDC

Keypad

Integral Keypad

D-KEYPAD Variations

MIFARE UID/Sector / MIFARE Plus full UID / DESFire full UID, 125KHz Proximity

SKU D-KEYPAD-CSN, D-KEYPAD-125
