BAS-IP AA-07FBI: Multi-Resident Entrance Panel with Facial Recognition

Full Description

Vandal-Resistant Multi-Apartment Panel with Face Recognition and Induction Loop

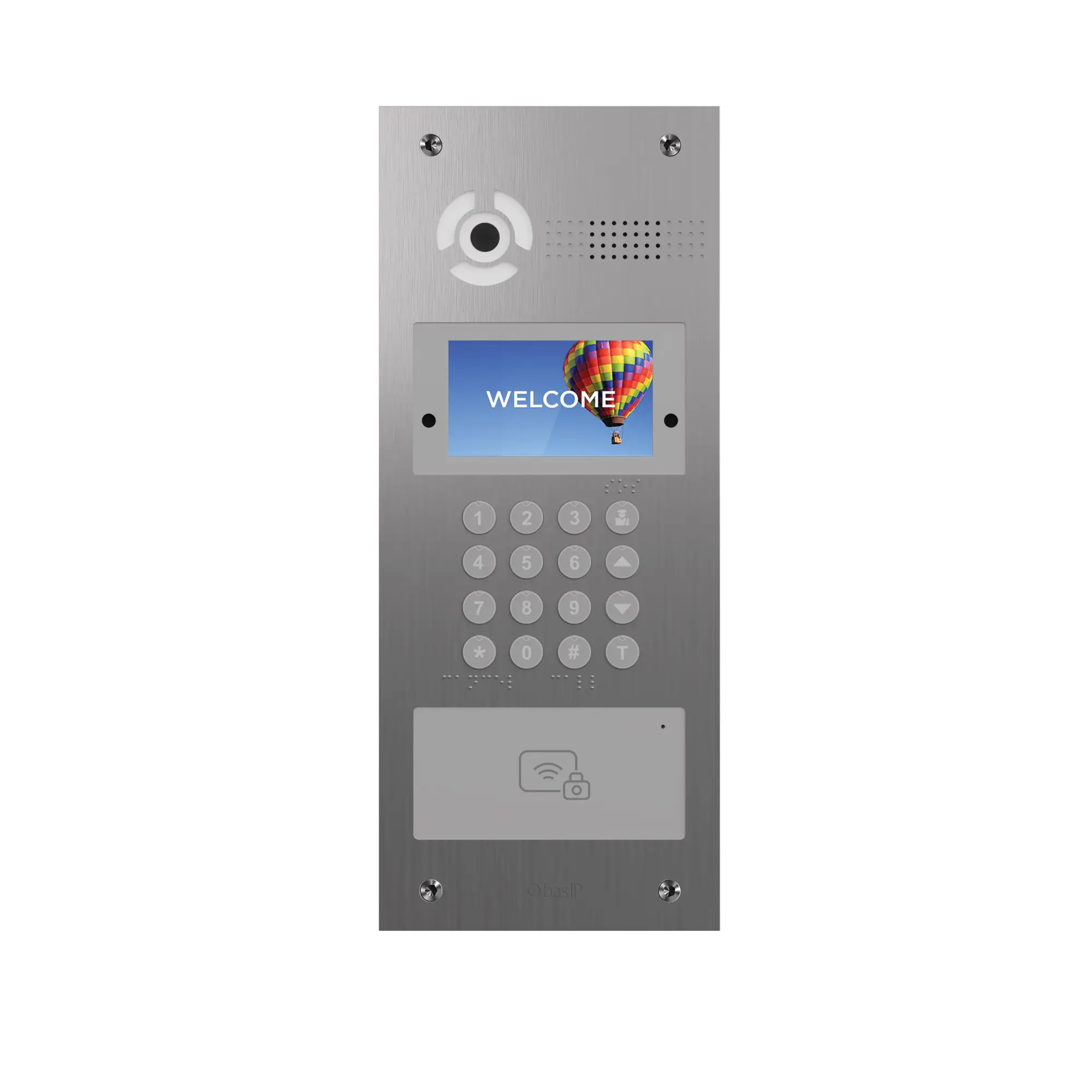

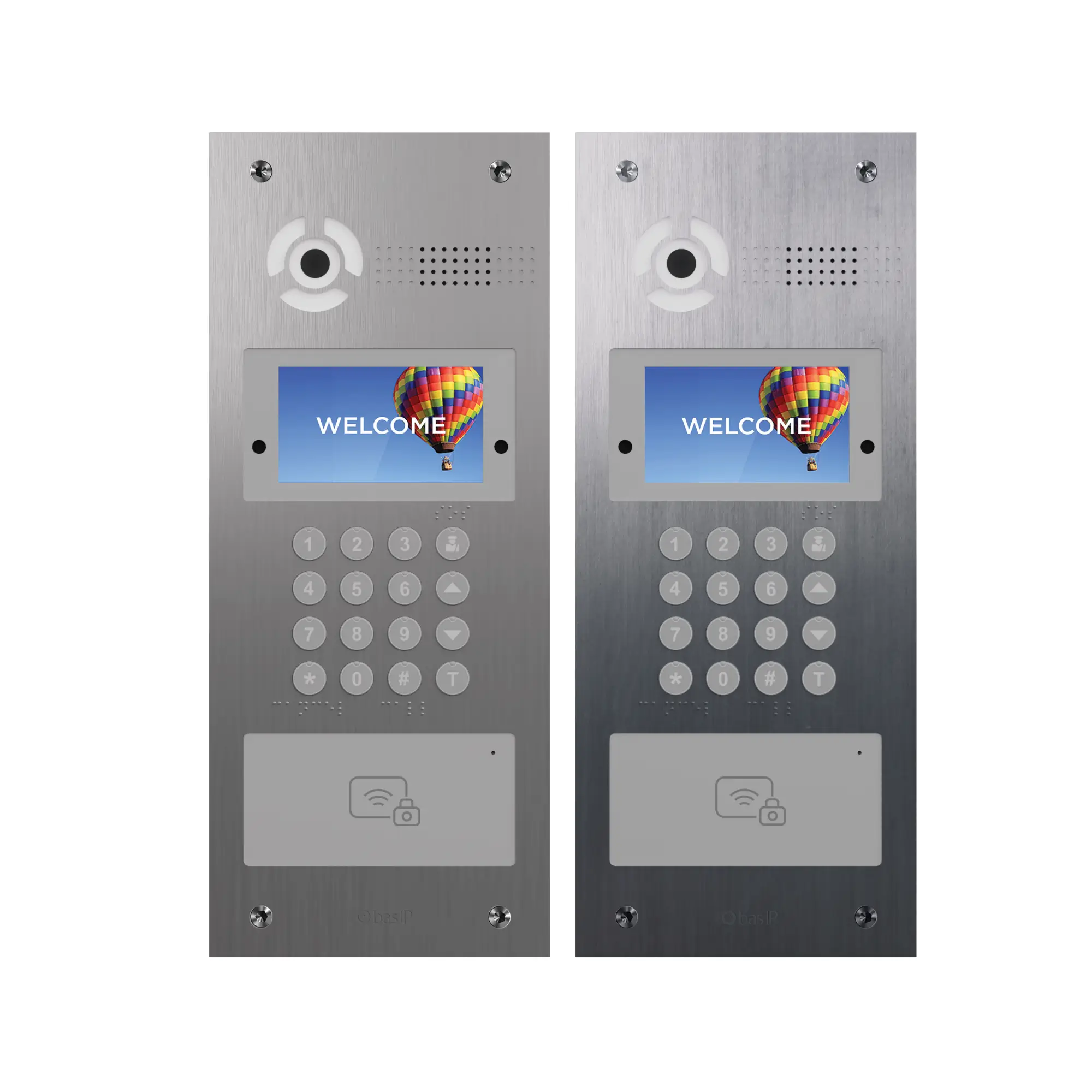

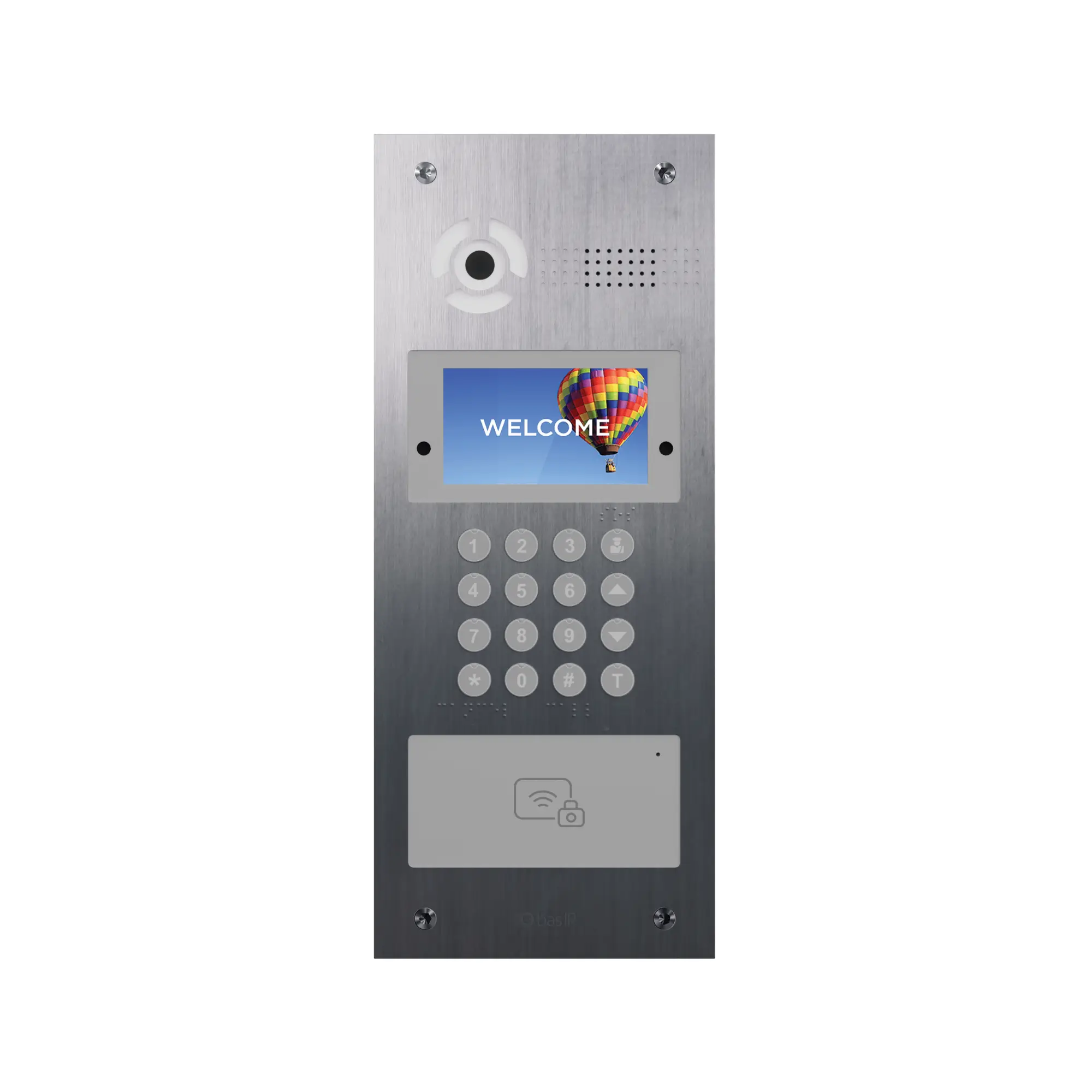

The BAS-IP AA-07FBI is a robust and intelligent multi-resident entrance panel engineered for superior access control in modern buildings. Accredited by Secured By Design, this panel boasts a durable stainless steel (AISI 304) 3mm thick front panel for enhanced vandal resistance. It integrates advanced features such as face recognition, support for BAS-IP UKEY mobile access, a backlit TFT color screen, and a high-resolution IP camera with wide viewing angles. Crucially, the AA-07FBI also provides external induction loop connectivity for the hearing impaired, ensuring accessibility for all residents. It’s available in Stainless Steel (BAS-IP AA-07FBI-SS) and Silver (BAS-IP AA-07FBI-S) finishes.

Key Features Of The BAS-IP AA-07FBI:

• Vandal-Resistant Construction: Front panel made from 3mm thick stainless steel (AISI 304), providing exceptional durability and resistance against physical damage.
• Integrated Face Recognition: Offers advanced biometric access control for convenient and secure entry.
• BAS-IP UKEY Mobile Access Support: Enables residents to use their smartphones for entry via Bluetooth (BLE) and NFC technologies.
• 4.3″ Backlit TFT Colour Screen: Provides clear visual feedback to visitors and displays directories.
• High-Resolution IP Camera: A 1/3″ camera with 2 MP resolution delivers Full HD (1920×1080) video output (H.264 Main Profile) with a wide 110° horizontal viewing angle.
• Enhanced Night Vision: Equipped with 6 LEDs and a minimum illumination of 0.01 LuX for clear visibility in low-light conditions.
• Exceptional Durability (IP65): Boasts an IP65 degree of protection, ensuring complete resistance to dust and protection against high-pressure water jets.
• Wide Operating Temperature: Functions reliably in extreme temperatures from -40°C to +65°C.
• Flexible Power Options: Supports both +12 V DC and Power over Ethernet (PoE IEEE802.3af) for versatile installation.
• External Induction Loop Connectivity: Features a dedicated Socket (female) TRS output for connecting an external induction loop, providing a low-frequency audio signal (1.2V; 8.2 kOhm) for the hearing impaired.
• Backlit Mechanical Buttons: Ensures tactile feedback and visibility in any lighting condition.
• Extensive Access Control Methods: Supports multiple secure entry options:
  • From the indoor monitor
  • By guest link
  • By QR code
  • By access code (PIN)
  • By multi-format card (EM-Marin, Mifare)
  • By license plate recognition
  • By Face ID
  • From the BAS-IP Intercom app
  • From the UKEY app
  • From the web interface
• Multi-Format Card Reader: Compatible with a vast array of Mifare (Ultralight, Classic, Plus, DESFire) and EM-Marine card formats, as well as BLE and NFC.
• Wiegand Integration: Built-in Wiegand output for card, key fob, and UKEY identifiers (26 to 80 bits). Can send Face ID, QR-Code, and PIN-Code to other controllers via the optional SH-12 module.
• Multi-Lingual Interface: Graphical and web interfaces available in English, Ukrainian, Spanish, Polish, Dutch, Turkish, French, Danish, Portuguese, German, and Russian.
• Duplex Talk Mode: Provides clear two-way audio communication.
• Concierge Button: Dedicated shortcut button for direct calls to the concierge.
• Customisable Melodies: Offers 4 polyphonic call melodies with the ability to customise them for different actions.

BAS-IP AA-07FBI Technical Specifications:

• Panel Type: Multi-apartment
• Screen: 4.3’’ TFT, colour with backlight
• Camera: 1/3″, 2 MP resolution
• Viewing Angle: 110° (horizontal)
• Video Output: Full HD (1920×1080), H.264 Main Profile
• Night Backlight: 6 LEDs
• Minimum Illumination: 0.01 LuX
• Protection Class: IP65
• Operating Temperature: -40°C to +65°C
• Power Consumption: 6.5 W (active), 3.6 W (standby)
• Power Supply: +12 V DC and PoE IEEE802.3af
• Body Material: Stainless steel
• Installation Dimensions: 140×350×60 mm (flush mounting)
• Panel Size: 155 × 375 × 55 mm
• Installation Type: Flush, surface with BR-AA bracket (sold separately)
• Keypad: Backlit mechanical buttons
• External Induction Loop Output: Low-frequency Audio signal 1.2V; 8.2 kOhm (TRS Socket)
• Access Control: Multi-format reader with UKEY technology (EM-Marin, Mifare, Bluetooth, NFC)
• Wiegand Output: 26, 32, 34, 37, 40, 42, 56, 58, 64, 80 bits.
• SH-12 Module Support: Wiegand input (26-130 bits), Wiegand output for all identifier types (26-130 bits).
• Authentication: Separate password for settings and web interface
• Talk Mode: Duplex
• Optional Features: SIP P2P, built-in relay

Benefits:

• Superior Security & Durability: The BAS-IP AA-07FBI has been awarded Secured By Design accreditation and robust stainless steel construction offer exceptional protection against vandalism and environmental factors.
• Comprehensive Access Solutions: Diverse range of access methods, including advanced biometrics (face recognition) and mobile access (UKEY), cater to modern security demands.
• Enhanced Accessibility: Dedicated output for external induction loops ensures the system is user-friendly for individuals with hearing impairments.
• Future-Proof Technology: Incorporates cutting-edge features and mobile integration for long-term relevance.
• Flexible Integration: Wiegand output and optional SH-12 module allow for seamless connection to existing access control systems.
• User-Friendly Interface: Clear display, backlit mechanical buttons, and multi-lingual support enhance user experience.
• Remote Management: Convenient management and configuration via the web interface.

Ideal Applications:

• Flats and Multi-Occupancy residential buildings and complexes.
• Commercial office buildings and business parks seeking robust and aesthetically pleasing access control.
• Healthcare facilities and public buildings where accessibility for all users is paramount.
• Any property requiring a high-security, feature-rich entrance panel with advanced biometric and mobile access capabilities.
