BAS-IP AA-14FBIS: Multi-Apartment Touchscreen Entrance Panel

The BAS-IP AA-14FBIS is a state-of-the-art multi-apartment touchscreen entrance panel, renowned for its sophisticated design, robust functionality, and enhanced security features, including being awarded Secured By Design status. Available in elegant Black (BAS-IP AA-14FBIS-B) and Silver (BAS-IP AA-14FBIS-S) finishes, this panel provides a premium and secure entry experience for modern residential and commercial complexes.

Key Features:

  • Large 10.1’’ IPS Touchscreen Display: Features a vibrant, colour IPS display with backlight and heating.
  • High-Resolution Camera: Equipped with a 1/3″ sensor and 2 MP resolution camera.
  • Enhanced Night Vision: Includes 6 IR LEDs for clear night-time viewing.
  • Robust & Weatherproof (IP65): Built with a durable aluminium body and an IP65 degree of protection.
  • Multiple Access Control Methods: Offers an extensive array of convenient and secure ways to open the lock
  • Power over Ethernet (PoE) & 12V DC: Flexible power options for simplified installation.
  • Hearing Impaired Support: Includes an output for connecting an external induction loop
  • Supports up to 30,000 users: (10,000 Face IDs and 20,000 other identifiers (such as cards, UKEY, access codes, QR codes, and license plates)).

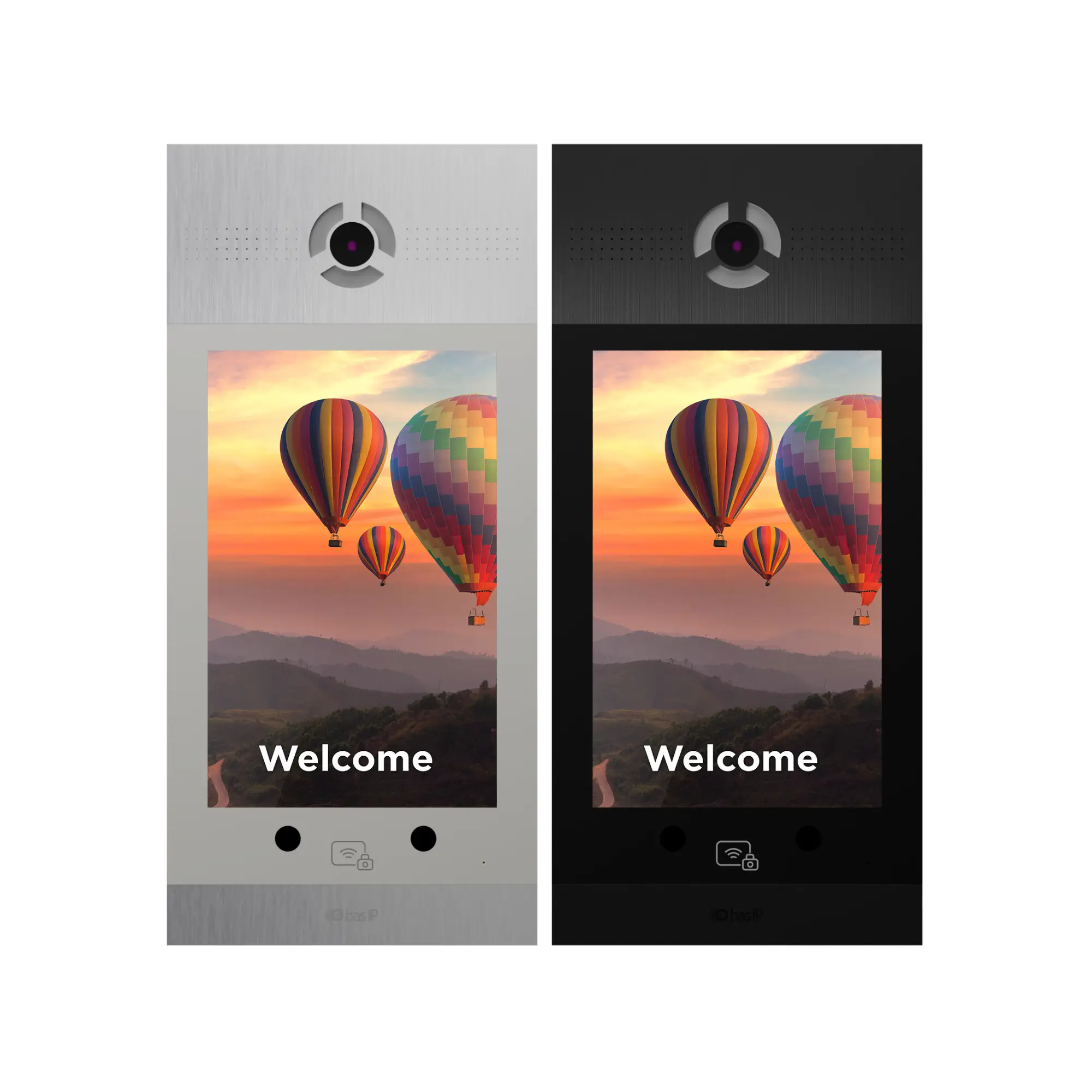

Please Select From The Following Colours:

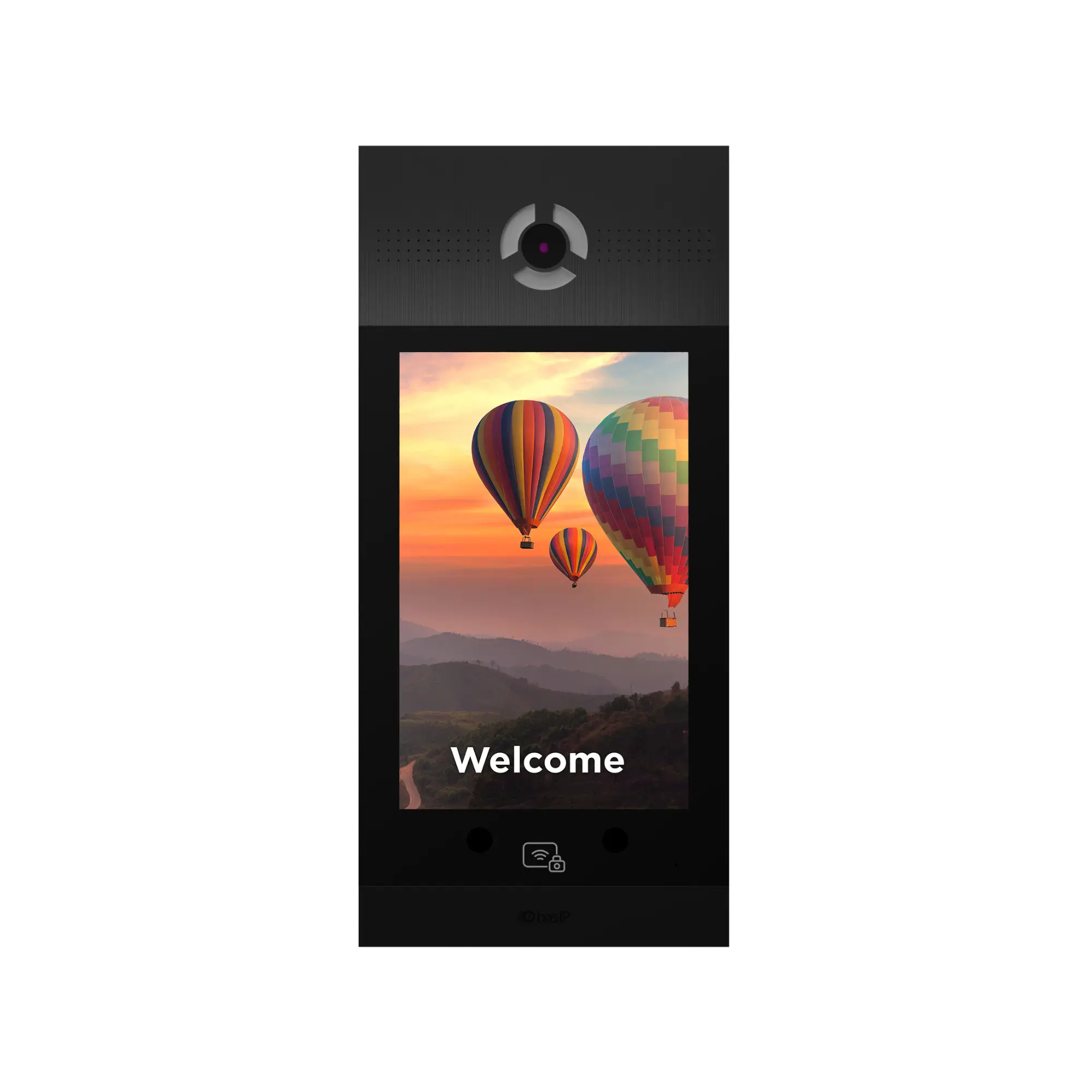

  • BAS-IP AA-14FBIS-B: Black Finish

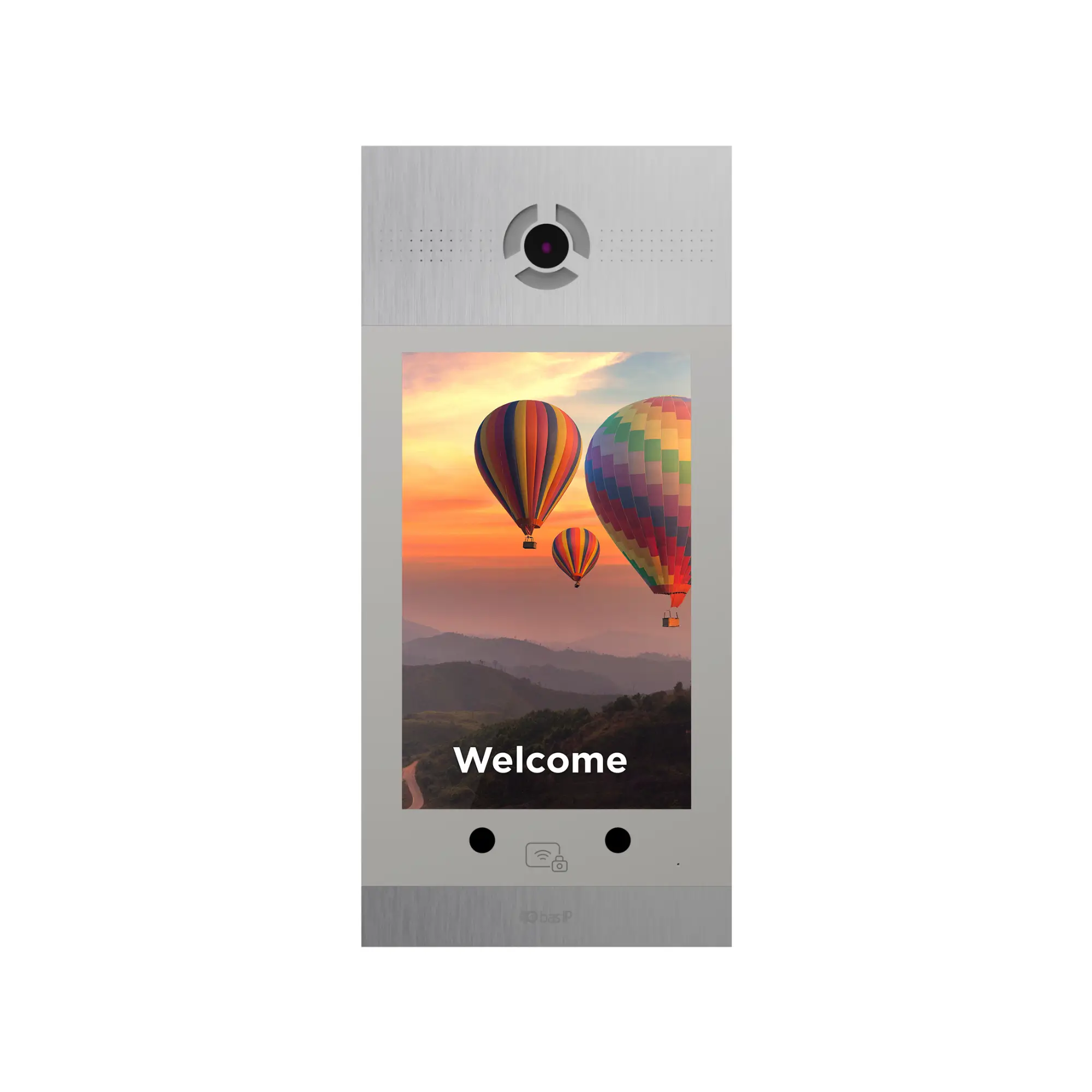

  • BAS-IP AA-14FBIS-S: Silver Finish

Full Description

Awarded Secured By Design Status: Advanced Intercom For Flats and Businesses

The BAS-IP AA-14FBIS is a cutting-edge multi-apartment touchscreen entrance panel that sets a new standard for building access. Proudly awarded Secured By Design status, this panel combines robust security with intuitive user experience. Featuring a large 10.1″ IPS color display with heating and an ultra-wide 176° viewing angle camera, it offers crystal-clear video communication. Available in black (BAS-IP AA-14FBIS-B) and silver (BAS-IP AA-14FBIS-S), the AA-14FBIS provides a vast array of access methods, including advanced face recognition and multi-format card reading, making it ideal for modern residential and commercial properties.

Key Features of the BAS-IP AA-14FBIS:

  • 10.1″ IPS Touchscreen Display: Large, vibrant color display with backlighting and heating, ensuring excellent visibility and responsiveness in all weather conditions.
  • High-Resolution Camera: A 1/3″ camera with 2 MP resolution delivers Full HD (1920×1080) video output (H.264 Main Profile) with an impressive 176° horizontal viewing angle for comprehensive visitor identification.
  • Enhanced Night Vision: Equipped with 6 LEDs and a minimum illumination of 0.01 LuX for clear visibility even in low-light conditions.
  • Extreme Weather Durability (IP65): Boasts an IP65 degree of protection, making it highly resistant to dust and water ingress. Operates reliably across a wide temperature range of -40°C to +65°C.
  • Flexible Power Options: Supports both +12 V DC and Power over Ethernet (PoE IEEE802.3af) for simplified installation.
  • Robust Aluminium Body: Ensures vandal resistance and long-term durability.
  • Extensive Access Control Methods: Offers a wide range of secure entry options:
    • From the indoor monitor
    • Via guest link
    • QR code
    • Access code (PIN)
    • Multi-format card reader (EM-Marin, Mifare)
    • Number plate recognition
    • Face recognition
    • Via BAS-IP Intercom, BAS-IP Link, and BAS-IP UKEY apps
    • From the web interface
  • Multi-Factor Authentication: Supports combining multiple access methods for enhanced security.
  • UKEY Technology Support: Compatible with Bluetooth (BLE 2.4 GHz Bluetooth 4.x, 5.x) and NFC (13.56 MHz ISO 14443/15693) for seamless mobile access.
  • Wide Card Format Compatibility: Reads numerous Mifare and EM-Marine card types (detailed list below).
  • Wiegand Integration: Built-in Wiegand output for card, key fob, and UKEY identifiers (26 to 80 bits). Supports Wiegand bypass mode and can send other identifiers (Face ID, QR-Code, Pin-Code) via the optional SH-12 module.
  • Hearing Impaired Support: Includes an output for connecting an external induction loop (available for AA-14FBIS) for accessibility.
  • Multi-Lingual Interface: Graphical interface in English, Ukrainian, Spanish, Polish, Dutch, Turkish, French, Danish, Portuguese, German, and Russian, with a web interface in several key languages.
  • Two-Way Talk Mode: Provides clear audio communication between visitor and resident.
  • Concierge Button: Dedicated shortcut button for direct calls to the concierge.
  • Polyphonic Melodies: Offers 4 different call melodies.

BAS-IP AA-14FBIS Technical Specifications:

  • Panel Type: Multi-apartment Touchscreen
  • Display: 10.1’’ IPS, colour with backlight and heated
  • Camera: 1/3″, 2 MP resolution
  • Viewing Angle: 176° (horizontal)
  • Video Output: FullHD (1920×1080), H.264 Main Profile
  • Night Lights: 6 LEDs
  • Minimum Illumination: 0.01 LuX
  • Degree of Protection: IP65
  • Temperature Range: -40°C to +65°C
  • Power Consumption: 6.5 W (active), 3.6 W (standby)
  • Power Supply: +12 V DC and PoE IEEE802.3af
  • Body Material: Aluminium
  • Size for Installation (Flush): 172×373×58 mm
  • Panel Size: 180×400×45 mm
  • Installation Type: Flush mounting, Wall mounting with BR-AA14 bracket (sold separately)
  • Keyboard Type: Touch
  • External Induction Loop Output: Low-frequency Audio signal 1.2V; 8.2 kOhm (TRS Socket)
  • Access Control: Multi-format reader with UKEY technology
  • Supported Card Formats: Mifare Ultralight (C, EV1), Mifare Classic (1K, 4K, EV1), Mifare Plus (2K, 4K, SE 1K, S, X), Mifare DESFire (EV1, EV2, EV3 UID only, Light UID only), EM-Marine (ISO, Clamshell, Original EM4200, TK4100), BLE (Bluetooth 4.x, 5.x), NFC (ISO 14443/15693), 125 kHz (ASK and FSK).
  • Wiegand Output: 26, 32, 34, 37, 40, 42, 56, 58, 64, 80 bits (bypasses QR, Face, PIN unless SH-12 module is used).
  • SH-12 Module Support: Wiegand input (26-130 bits), Wiegand output for all identifier types (26-130 bits).
  • Authentication: Separate password for settings, WEB – interface
  • Talk Mode: Two-way
  • Optional Features: SIP P2P, built-in relay, proximity sensor, open API, software support Link.

Benefits:

  • Superior Security: Secured By Design status, multi-factor authentication, and diverse access methods provide robust protection.
  • Exceptional User Experience: Large, intuitive touchscreen, clear audio/video, and multiple language support enhance usability for residents and visitors.
  • Future-Proof Technology: Advanced features like face recognition, QR code access, and UKEY mobile access cater to evolving security needs.
  • Extreme Durability: IP65 rating and wide temperature range ensure reliable performance in challenging outdoor conditions.
  • Flexible Integration: Wiegand output and optional SH-12 module allow seamless integration with existing access control systems.
  • Accessibility: Support for external induction loops accommodates users with hearing impairments.
  • Remote Management: Allows for convenient management and configuration via the web interface.

Ideal Applications:

  • High-end residential apartment buildings and complexes.
  • Luxury condominiums and multi-dwelling units.
  • Commercial office buildings and business parks.
  • Mixed-use developments.
  • Any property requiring a sophisticated, secure, and user-friendly multi-apartment intercom solution with advanced access control features and a premium aesthetic.

Product Specifications

Weight 3480 g
Dimensions 180 × 45 × 400 mm
Brand

BAS-IP

Protection Rating

IP65

Mounting

Flush Mount

Operating Temperature

-40°C to 65°C

Number of Users

10,000+

Colours

Black, Silver

Power Requirement

12 VDC, PoE

System Type

Video

Device Type

Entrance Panel

Construction

Aluminium

Keypad

Touchscreen

Monitor Size

10.1" Touchscreen

SKU BAS-IP AA-14FBIS-B, BAS-IP AA-14FBIS-S
