bright blue / Lite Blue web-based controller for up to 32 doors
Vanderbilt VBB bright blue / Lite Blue Web-Based Controller for up to 32 Readers

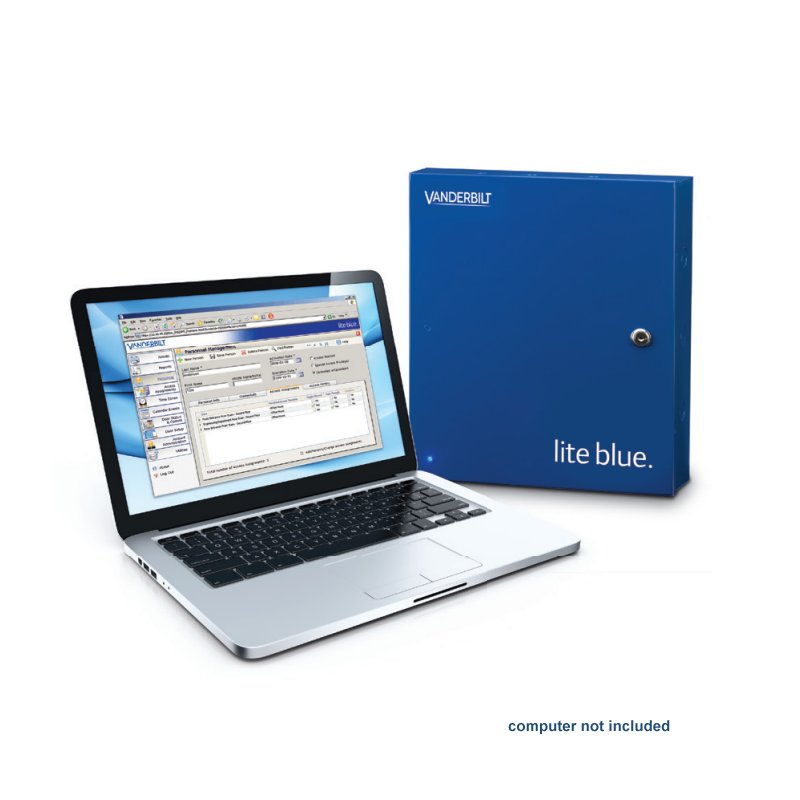

The bright blue Controller from Vanderbilt Industries is a powerful web based controller for up to 32 doors/readers. On-board web server software allows administration from any network connected PC via your choice of internet web browser.
KEY FEATURES:
|
Supports up to 5000 users
|
Holiday and Event Scheduling
|
|
|
User Groups
|
Comprehensive Reporting
|
|
|
Time Zones with Multiple Time Intervals
|
Anti-Passback
|
|
|
Three Log-On Access Levels (User, Operator, Administrator)
|
Door Status Monitoring
|
|
|
Web-Based System Management (Built-In Web Server)
|
Flash-upgradeable Firmware
|
|
|
Unlimited Door Groups
|
System Backup Facility
|
|
|
Video Integration Ready
|
Manual Door Overrides
|
|
|
Input/output mapping for lift control and CCTV control
|
||
|
Supports reader interfaces connected via RS485 and TCP/IP networks
|
||
|
Supports magnetic stripe, proximity and smart card technologies
|
| Specifications | |
| Power Requirement: | 12 – 24 VDC ±10% @ 250mA (excluding peripheral devices) |
| Microprocessor: | 32-bit 200 MHz NET+ARM |
| Operating System: | Linux |
|
Memory:
|
64MB flash memory and 64MB SRAM
8 GB flash drive for system storage
|
| Encryption: | SSL |
| Web Browsers Supported: |
Internet Explorer v7.0 – 9.0
FireFox v3.0 – 6.0
|
| Connectivity: | Ethernet 10/100 Base-T |
| TCP/IP: | Supports dynamic (DHCP) or static IP addressing |
| Enclosure Dimensions (inches): | 14 x 14 x 3.5 (W x H x D) |
|
PCB Dimensions (inches):
|
11.5 x 11.5 (W x D) |
| Environmental: | 0°C – 30°C 10%-90% ambient humidity (non-condensing) |
Product Specifications
| Brand | ACRE |
|---|---|
| Construction | Metal |
| Mounting | Surface Mount |
| Power Requirement | 12-24 VDC, 200 mA |
| Access Control System Type | Networked |
| SKU | VBB |
