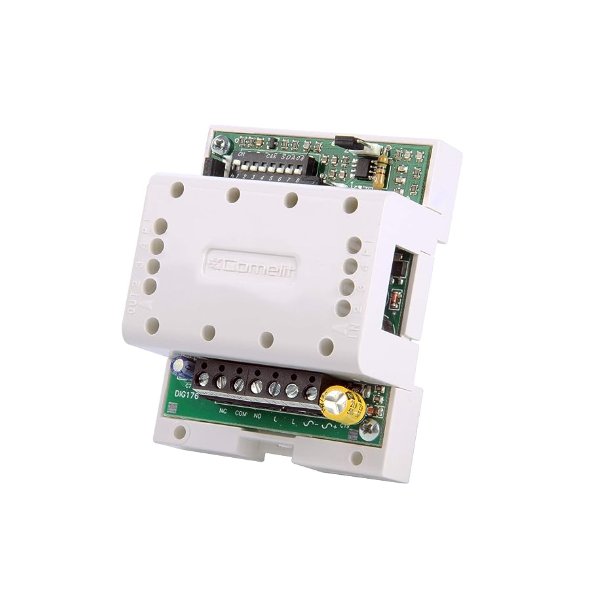

Comelit 1256 Relay for Simplebus 1 and 2
Intelligent Simplebus device for controlling an on-board changeover relay (12-24 VAC/VDC – 10A max). For use and programming of the function required, follow the indications given in the technical documentation. Product for use in Comelit Simplebus system. Power supply: 12 VAC or 20 VDC. Dimensions: 66 x 85 x 35mm (4 DIN modules). Line branch terminal part number 1214/2C in equipment.
DIN-rail mounting (4 module width).
Product Specifications
| Dimensions | 85 × 66 × 35 mm |
|---|---|
| Brand | Comelit-PAC |
| Output Relays | 1 |
| Construction | ABS |
| Colours | White |
| Operating Temperature | -10°C to 40°C |
| Mounting | DIN-Rail |
| SKU | COM-1256 |
Downloads
Manufacturer's Datasheet
1.03 MB
