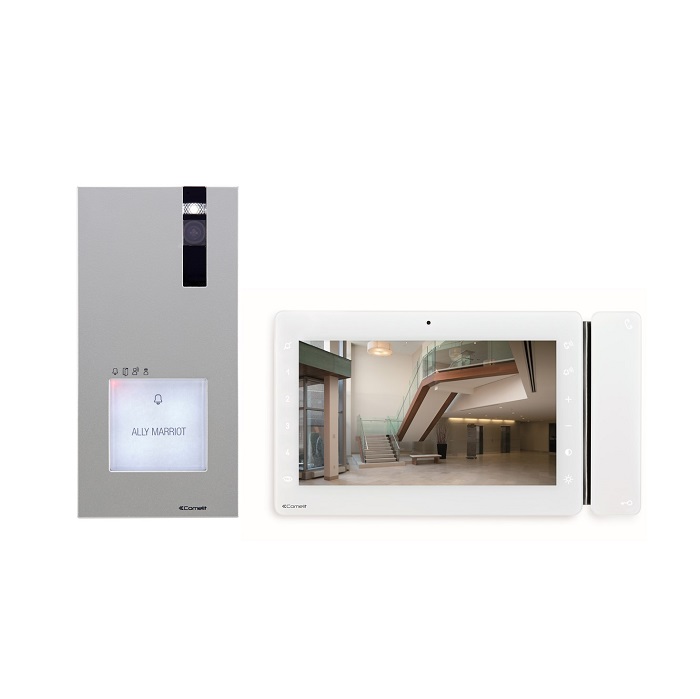

Comelit 8461X 1-Way 2-Wire “Hands Free” Video Entry System with 7” MAXI Monitor

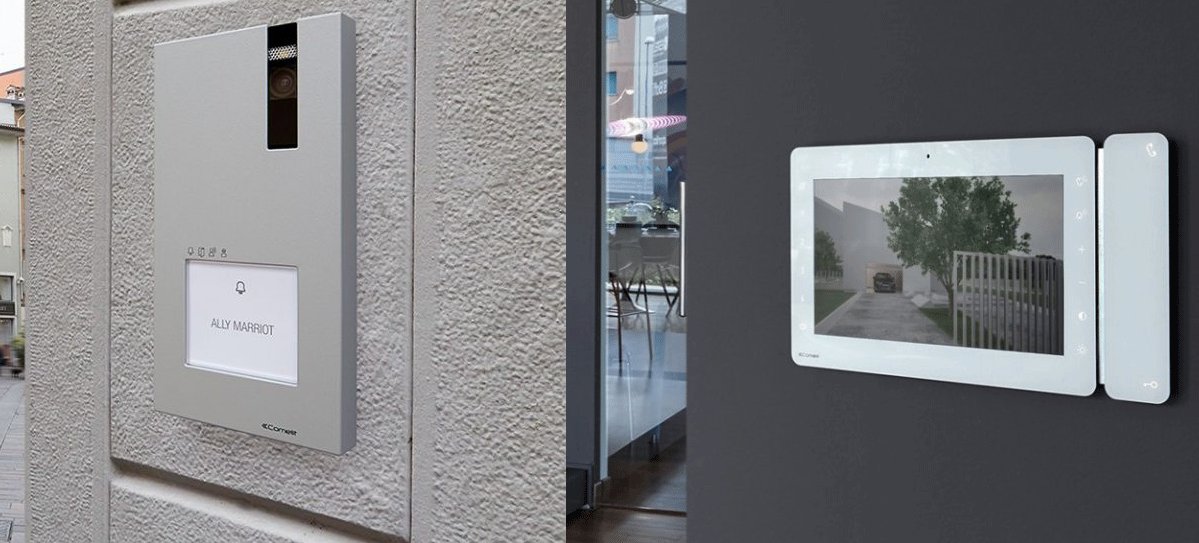

Quadra series wall-mounted external video entry unit with mechanical button. Die-cast aluminium faceplate, wide-angle colour camera and a single LED for night-time lighting. Indicator LED for call sent, lock-release activated, audio activated and system busy. Adjustment for speaker volume and audio balance. Power supply derived from bus line.

Also available with induction loop feature – please select 8461X/BM version when ordering.

Full Description

Comelit 2-Wire Simplebus Video Door Entry System Comprising Of:

  • p/n 4893 Quadra-series 1-way wall-mounted external door panel
  • p/n 1209 DIN-Rail 33VDC power supply unit – features overload and short circuit protection. Two separate continuous outputs: one to power the external door panel and electric lock, and the other to power the internal monitor. Input voltage 110-240 VAC. Dimensions: 106x62x89mm
  • 6801W Icona-series Maxi 7″ colour monitor with 7″ 16:9 screen
    • hands-free full-duplex audio
    • touch sensitive controls
    • brightness, contrast and audio volume control
    • ringtone volume adjustment, choice of different melodies.
    • control buttons for lock-release and audio enable/disable with relative indicator LEDs, plus 6 further buttons for self-ignition, privacy service and other programmable functions.
    • Manages floor door calls and call repeat as standard. Complete with 2 x 8-position DIP-switches for user code programming and button programming.
    • Equipped with riser distribution terminal Art 1214/2C.
    • Dimensions: 223x124x25mm
      • Please note that this monitor can only be used in Comelit 2-wire Simplebus2 systems
  • p/n 6817 flush-mounted box
  • p/n 6820 wall bracket
  • p/n 1214/2C distribution terminal
  • p/n 1216 line closure terminal for simplebus

Product Specifications

Weight 950 g



Surface Mount

Protection Rating

IK08, IP54

Operating Temperature

-25°C to 55°C

Output Relays



Aluminium Alloy, Polycarbonate


Grey, White

Door Release Output

12V AC or DC


Standard Comelit 8461X Kit, Comelit 8461X/BM Kit with Induction Loop Feature

SKU COM-8461X/BM, COM-8461X
