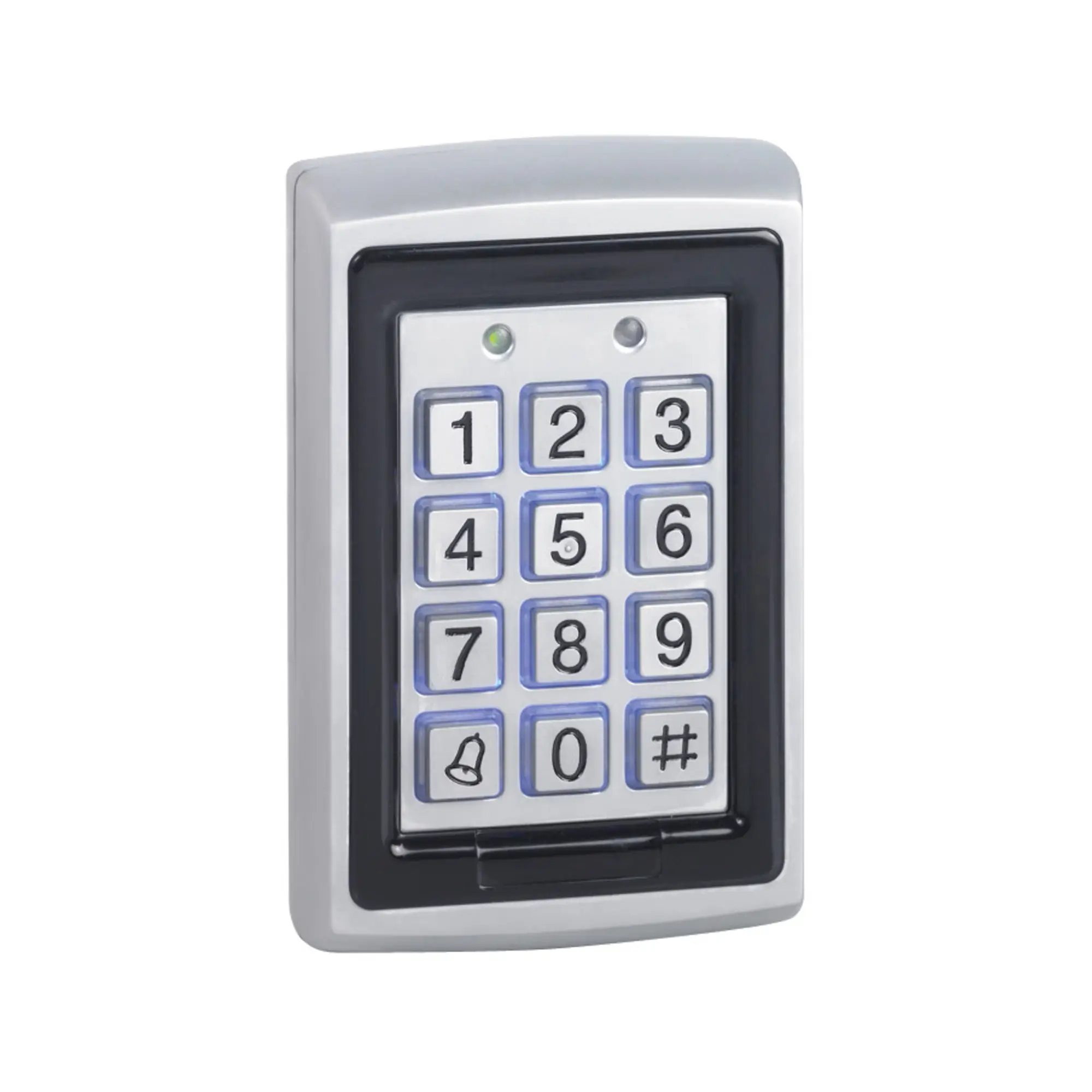

DG500 Illuminated Weather-Resistant Keypad & Proximity Reader For Up To 500 Users

The DG500 is a comprehensive single door access control solution that delivers exceptional security, user convenience, and weatherproof durability. This versatile system is ideal for various applications, offering a simple and effective way to manage access control for up to 500 users. With its user-friendly interface, programmable features, and robust construction, the DG500 is the perfect choice for securing your premises with confidence.

Key Features:

  • Up to 500 Users: Manage access for a large number of users with ease.
  • Dual Access Methods: Provides entry via PIN codes or proximity cards/fobs for user convenience.
  • Built-in Proximity Reader: Eliminates the need for separate readers, simplifying installation.
  • 2 Programmable Relays: Offers flexibility for controlling door locks and other access points.
  • Selectable Open Time (1-99 Seconds): Program the door unlocking duration based on your specific needs.
  • Latching Mode (Optional): Keeps the door unlocked until a specific action is taken (available on auxiliary relay only).
  • Vandal Resistant: Built to withstand harsh conditions and attempted tampering.
  • Tamper Sensor: Triggers an alert if the unit is tampered with.
  • Illuminated Keypad: Improves visibility in low-light conditions.
  • LED Status Indication: The DG500 provides clear visual feedback on system status.
  • Button Press Beep Confirmation: Offers audible confirmation for user actions.
  • Cast Alloy Case (Stainless Steel Colour): Provides a sleek and durable design.

Full Description

All-Weather Security and User Convenience in a Single, Powerful Unit

The DG500 is a standalone access control solution offering a perfect blend of security, versatility, and user-friendliness. This illuminated keypad and proximity reader enables convenient entry via PIN codes or access cards/fobs for up to 500 users.

Key Features:

  • Up to 500 Users: Manage access for a large number of users with ease.
  • Dual Access Methods: The DG500 provides entry via PIN codes or proximity cards/fobs for user convenience.
  • Built-in Proximity Reader: Eliminates the need for separate readers, simplifying installation.
  • 2 Programmable Relays: Offers flexibility for controlling door locks and other access points.
  • Selectable Open Time (1-99 Seconds): Program the door unlocking duration based on your specific needs.
  • Latching Mode (Optional): Keeps the door unlocked until a specific action is taken (available on auxiliary relay only).
  • Vandal Resistant: Built to withstand harsh conditions and attempted tampering.
  • Tamper Sensor: Triggers an alert if the unit is tampered with.
  • Illuminated Keypad: Improves visibility in low-light conditions.
  • LED Status Indication: Provides clear visual feedback on system status.
  • Button Press Beep Confirmation: Offers audible confirmation for user actions.
  • Cast Alloy Case (Stainless Steel Colour): Provides a sleek and durable design.

Benefits of the DG500:

  • Enhanced Security: Manages access control effectively with multiple user options and a robust build.
  • Increased Convenience: Offers user-friendly access through PIN codes or proximity cards.
  • Simplified Installation: The all-in-one design eliminates the need for separate readers.
  • Versatile Configuration: Programmable relays and selectable open time provide flexibility for various access control needs.
  • Improved Durability: Vandal-resistant construction and weatherproof design ensure long-lasting performance.
  • Peace of Mind: Tamper sensor and clear status indication enhance system security.

Ideal Applications:

  • Office Buildings: Secure entrances, exits, and sensitive areas.
  • Retail Stores: Control access to employee entrances and storage areas.
  • Educational Facilities: Restrict access to classrooms, dormitories, and restricted areas.
  • Hospitals and Healthcare Facilities: Safeguard patient care areas and control access to vital equipment.
  • Leisure and Hospitality Facilities: Manage entry to staff areas and secure equipment storage.

Technical Specifications:

  • Input Voltage: 12VDC
  • Current Draw: 130mA @ 12V
  • Relays: COM, NO, NC (2A max)
  • Dimensions: 120mm (H) x 76mm (W) x 27mm (D)
  • Proximity: EM format, 26 bit / 125kHz

Product Specifications

Weight 430 g
Dimensions 120 × 76 × 27 mm
Brand

Smart R Distribution

Colours

Stainless Steel

Construction

Cast Alloy

Frequency

125 kHz (RFID)

Keypad

Illuminated Keypad

Mounting

Surface Mount

Number of Users

500

Output Relays

2

Power Requirement

12 VDC, 130 mA

Annunciation

Green LED, Red LED

SKU SR1-DG-500
