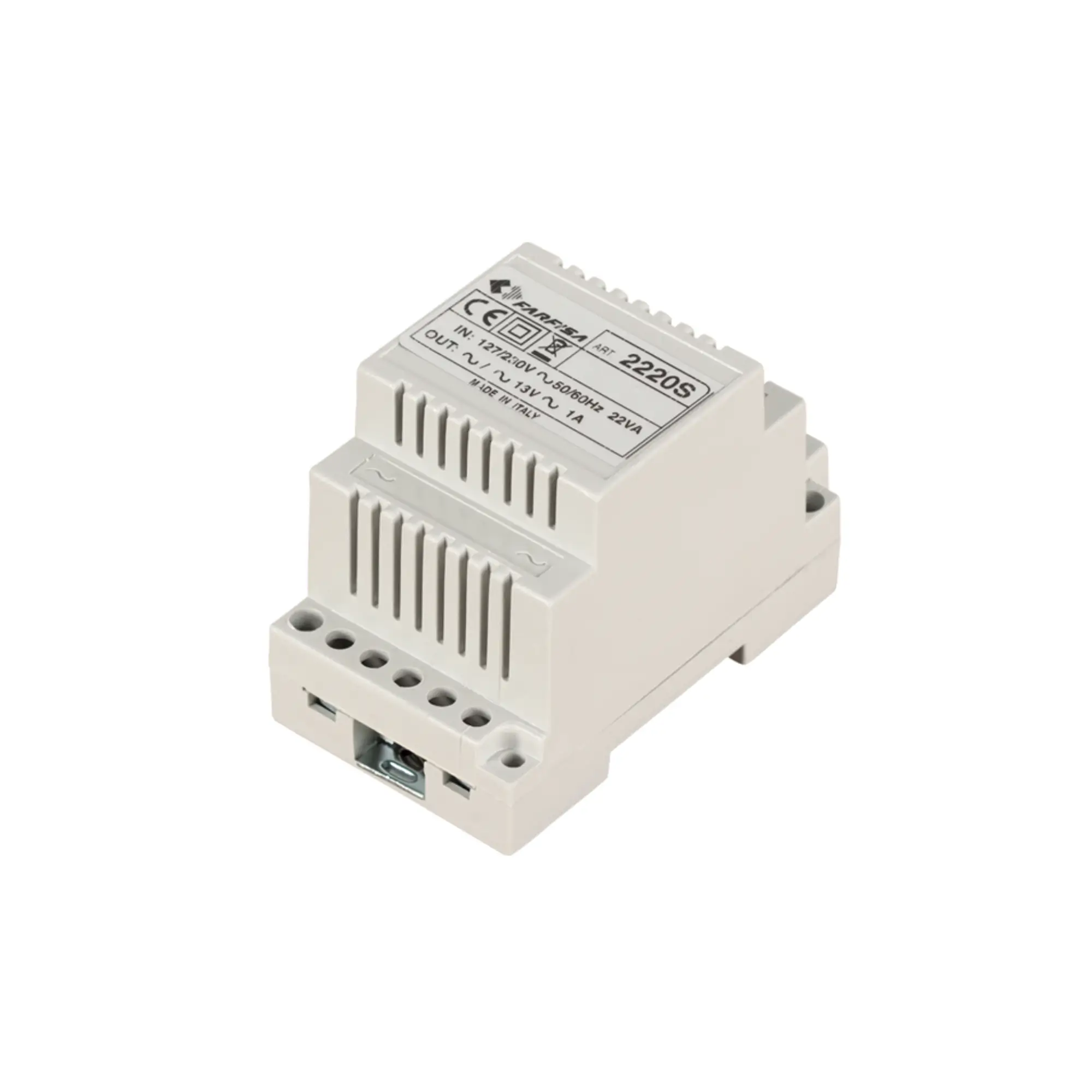

Farfisa 2220S – DIN-Rail Power Supply for DUO system

Full Description

Compact 3-Module DIN-Rail Power Supply with Overload and Short-Circuit Protection

The Farfisa 2220S is a dedicated power supply unit designed to provide reliable power to Farfisa’s DUO intercom system, supporting both conventional and digital external door stations. This compact unit is designed for easy installation on a DIN rail and offers essential protection against overloading and short circuits.

Key Features of the Farfisa 2220S:

• Specifically for DUO System: Ensures compatibility and optimal performance with Farfisa DUO intercom systems.
• Supports Conventional and Digital Door Stations: Versatile power supply for various DUO system configurations.
• Output 13 Vac/1A: Provides the required voltage and current for DUO system components.
• Protected Against Overloading: Prevents damage from excessive current draw.
• Protected Against Short Circuits: Safeguards the power supply and connected devices from short circuits.
• Compact 3 DIN Modules: Space-saving design for easy integration into electrical panels.
• Dual Mounting Options: Fits on a standard DIN bar or can be mounted using 2 expansion plugs.

Technical Specifications:

• Model: 2220S
• System Compatibility: Farfisa DUO System
• Supported Door Stations: Conventional and Digital
• Mains Voltage: 127V or 220-230VAC
• Frequency: 50 ÷ 60 Hz
• Power Consumption: 22VA
• Output Voltage: 13Vac ± 1
• Maximum Output Current: 1A
• Operating Temperature: 0°C to +40°C
• Maximum Admissible Humidity: 90% RH
• Housing: 3 DIN modules
• Mounting: DIN bar or 2 expansion plugs

Benefits:

• Reliable Power: Provides stable and consistent power for your DUO intercom system.
• System Compatibility: Specifically designed for seamless integration with Farfisa DUO.
• Essential Protection: Overload and short-circuit protection ensures system safety and longevity.
• Easy Installation: DIN-rail mounting simplifies setup within electrical enclosures.
• Compact Design: Saves valuable space in electrical panels.
• Flexible Mounting: Offers alternative mounting option with expansion plugs.

Ideal Applications of the Farfisa 2220S:

• Powering Farfisa DUO intercom systems in residential buildings.
• Supplying power to DUO intercom systems in commercial properties.
• Providing power for both conventional and digital Farfisa door stations within a DUO system.
