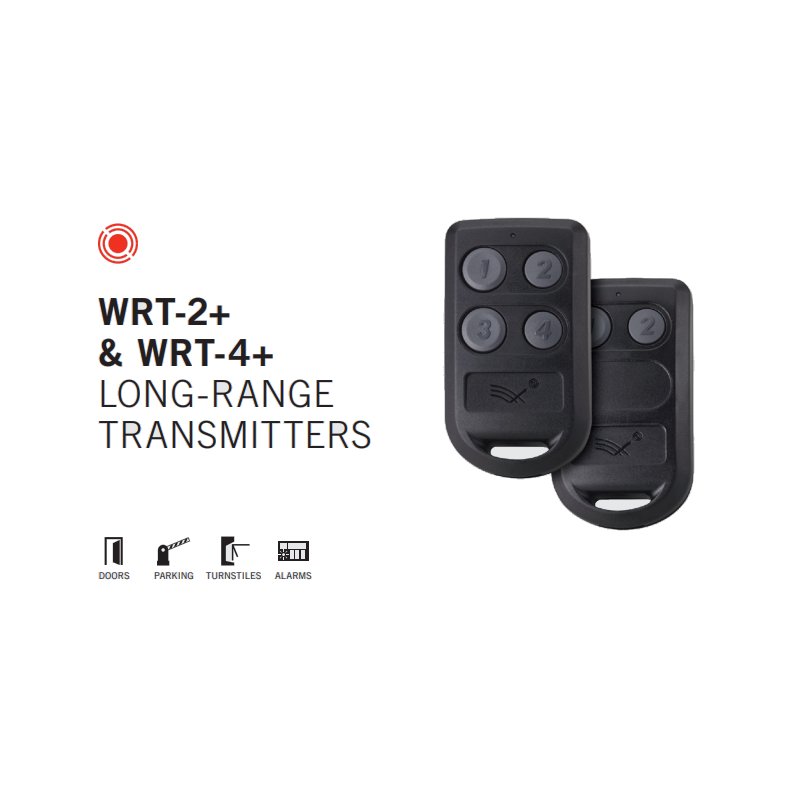

Farpointe Data Ranger WRT Long-Range Transmitters

Ranger from Farpointe Data sets the electronic security benchmark for high frequency, long-range identification Receivers and Transmitters.

Ranger Transmitters are active devices powered by a commonly-available CR2032 coin cell which is user-replaceable (tip: a 20p coin fits the snap-on transmitter cover perfectly!) and can be optionally equipped with a potted proximity or contactless smartcard module so that the transmitter can be used as a conventional access control fob once in the building!

The WRT transmitters are available in 2-button and 4-button versions and there are also options for if a passive credential is also required – please select your choice when placing your order.

  • IP67-rated for outdoor use
  • Transmitter times-out when button is held down continuously preventing battery drain and potential interference with other transmitters
  • Rolling-code security combined with sophisticated encryption provide best-in-class security
  • Farpointe Data MAXSecure encoding for additional security

Product Specifications

Weight 20.0 g
Dimensions 63.5 × 37 × 14.2 mm

Farpointe Data


125 KHz, 13.56 MHz, 433 MHz

Protection Rating


Power Requirement

CR2032 Battery

Operating Temperature

-40°C to 50°C


ABS, Polycarbonate

Form Factor

Long Range Transmitter

Reader and Card Technology

Proximity (125 kHz), EM Proximity (125 kHz), HID Prox (125 kHz), MIFARE, DESFire, Long Range


CSN (Chip Serial Number), Secure Sector, Unprogrammed, Custom, Open, Multi-Factor

SKU WRT-2+, WRT-2+B, WRT-2+EM, WRT-2+H, WRT-2+S1, WRT-4+, WRT-4+EM, WRT-4+H, WRT-4+S1
