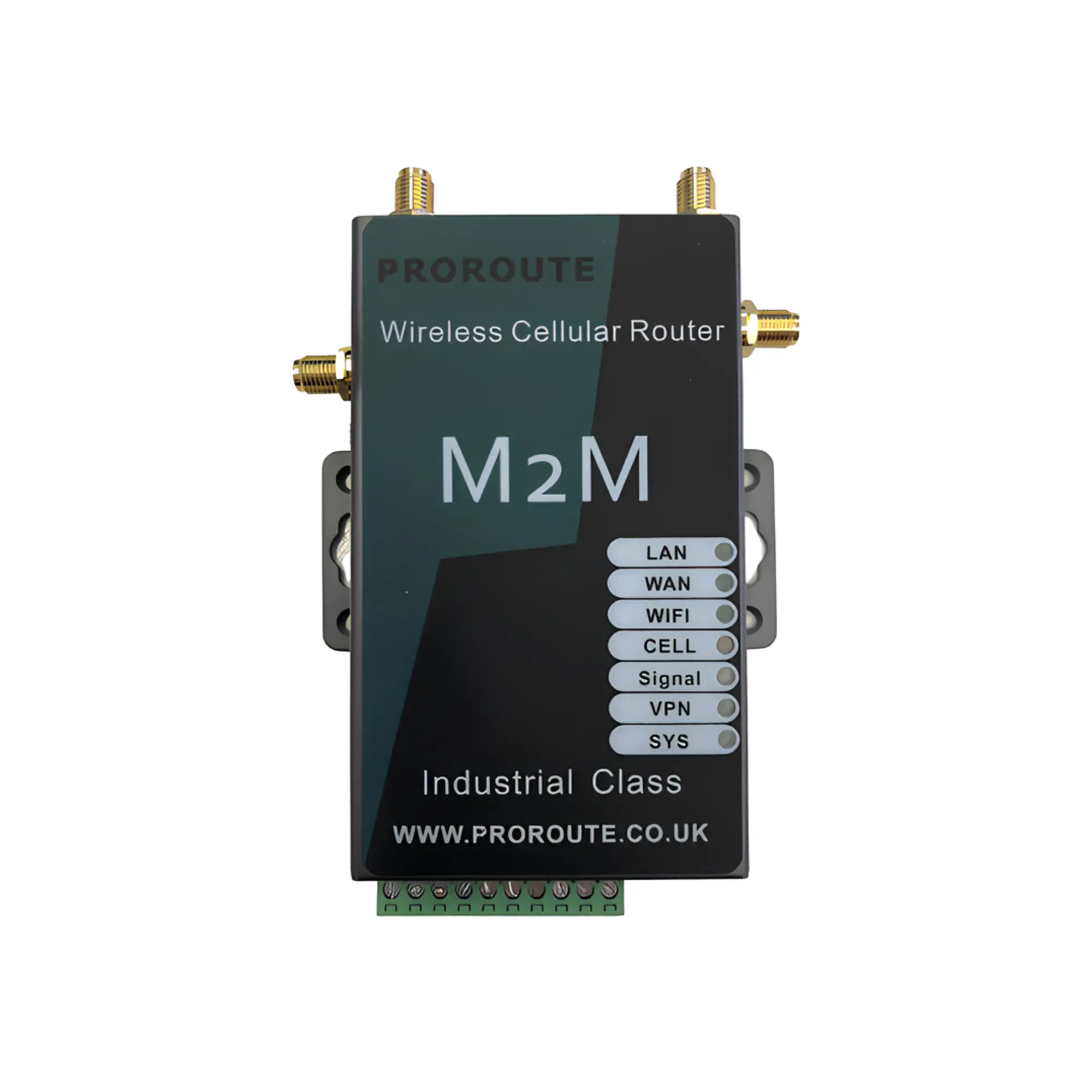

Proroute H685 – Compact Industrial M2M 4G Router with RJ45 Ethernet and WiFi
The Proroute H685 is a compact industrial-grade M2M 4G LTE CAT6 router, designed for high-speed mobile broadband applications. With carrier aggregation, RJ45 Ethernet, and WiFi connectivity, it ensures reliable, secure, and remote network access. Ideal for IoT, remote monitoring, and industrial automation, the H685 supports VPN, firewall security, and multiple SIM options for ultimate flexibility.
Key Features:
- High-Speed LTE-Advanced CAT6 Connectivity – Supports 4G LTE speeds up to 300Mbps with carrier aggregation for faster, more stable connections.
- Industrial-Grade Design – Compact, rugged metal housing, wide temperature tolerance, and low power consumption for reliable operation in harsh conditions.
- Flexible Connectivity Options – Features 1 x LAN port, 1 x WAN port (convertible to LAN), WiFi 802.11b/g/n, and dual SMA antenna connectors.
- Secure Remote Access & VPN Support – Built-in IPSec, PPTP VPN, firewall, and NAT for secure network access.
- Fixed IP SIM Compatibility – Works seamlessly with Fixed IP SIM cards for remote monitoring and secure device access.
- Multi-Carrier & Global Frequency Support – Supports multiple LTE/3G bands, making it compatible with major networks worldwide.
- SMS/Voice Control – Allows SMS-based remote management, including status checks, reboots, and alarm notifications.
- Advanced Firewall & Network Security – Stateful Packet Inspection (SPI), VPN pass-through, RADIUS authentication, and more.
- Reliable Power Management – 7V-30V DC input, low power consumption, and wide voltage tolerance for flexible deployment.
- Easy Configuration & Management – Web-based interface, SNMP support, and syslog logging for simplified remote management.
Full Description
Compact Industrial M2M 4G LTE Router with WiFi & Ethernet
The Proroute H685 4G LTE-Advanced CAT6 Router is a robust, industrial-grade M2M router designed to provide high-speed mobile broadband connectivity with carrier aggregation for enhanced performance and stability. Featuring WiFi, RJ45 Ethernet, VPN security, and advanced firewall features, the H685 is the perfect solution for remote monitoring, IoT applications, and industrial networking.
With support for 4G Fixed IP SIM cards, the router enables reliable remote access and secure network connectivity, making it an ideal choice for industrial automation, CCTV, digital signage, and more. Its rugged design, compact form factor, and wide operating temperature range make it a versatile solution for demanding environments.
Technical Specifications of the Proroute H685 3G/4G LTE-Advanced CAT6 Modem:
4G LTE Connectivity
- Modem: LTE-Advanced CAT6
- Peak Download Rate: 300 Mbps
- Peak Upload Rate: 50 Mbps
- Frequency Bands:
- LTE: 800/900/1800/2100/2600 MHz
- WCDMA/3G/HSPA+: 900/2100 MHz
- EDGE/GPRS/GSM: 900/1800/1900 MHz
- Antenna Diversity & MIMO Support: Yes
WiFi & Network Interfaces
- WiFi: 802.11b/g/n
- LAN Ports: 1 x RJ45 10/100M Ethernet Port
- WAN Port: 1 x RJ45 10/100M (can be converted to LAN)
Security & VPN
- VPN Support: IPSec, PPTP (Client Mode)
- Firewall Features: NAT, SPI, VPN Pass-through, RADIUS authentication, DMZ, ALG
- Encryption: 64/128-bit WEP, WPA, WPA2
Antennas & SIM Support
- Cellular Antennas: 2 x SMA (Main & AUX)
- WiFi Antennas: 2 x SMA
- SIM Slot: Supports 1.8V/3V UIM/SIM cards
Configuration & Management
- Web Interface: Supports Chrome, Firefox, Safari, Edge, Internet Explorer
- Remote Management: SNMP, SYSLOG, SMS control
- Dynamic Routing: BGP, OSPF
Power & Environmental
- Power Supply: DC 7V-30V (Typical: 9V 1A)
- Power Consumption: Idle: 15mA@9VDC, Max: 250mA@9VDC
- Operating Temperature: -35°C to 75°C
- Storage Temperature: -40°C to 85°C
- Humidity: 5% to 95% (non-condensing)
Physical Dimensions
- Size: 120mm x 82mm x 23mm
- Weight: 400g (Router Only), 800g (Packaged)
Package Contents
- 1 x Proroute H685 4G Router
- 1 x CAT5 Ethernet Cable
- 1 x UK Mains Power Adapter
- 2 x Cellular Antennas (Mag Mount & Elbow Joint)
- 2 x WiFi Antennas (Mag Mount & Elbow Joint)
- 1 x Quick Start Guide
Why Choose the Proroute H685?
The Proroute H685 CAT6 Industrial Router is a compact, powerful, and reliable networking solution for M2M, IoT, and remote connectivity applications. With carrier aggregation, VPN security, WiFi, and multiple SIM options, it delivers unmatched flexibility and performance for industrial users. We recommend this router for use with ACT365 systems.
Product Specifications
| Weight | 800 g |
|---|---|
| Dimensions | 120 × 23 × 82 mm |
| Brand | PROroute |
| Device Type | 4G Router |
| Operating Temperature | −35°C to 75°C |
| Power Requirement | 7 – 30 VDC |
| Indicators | CELL, LAN, Signal, SYS (Activity), WAN, WiFi |
| SKU | ACT365-H685-4G |
