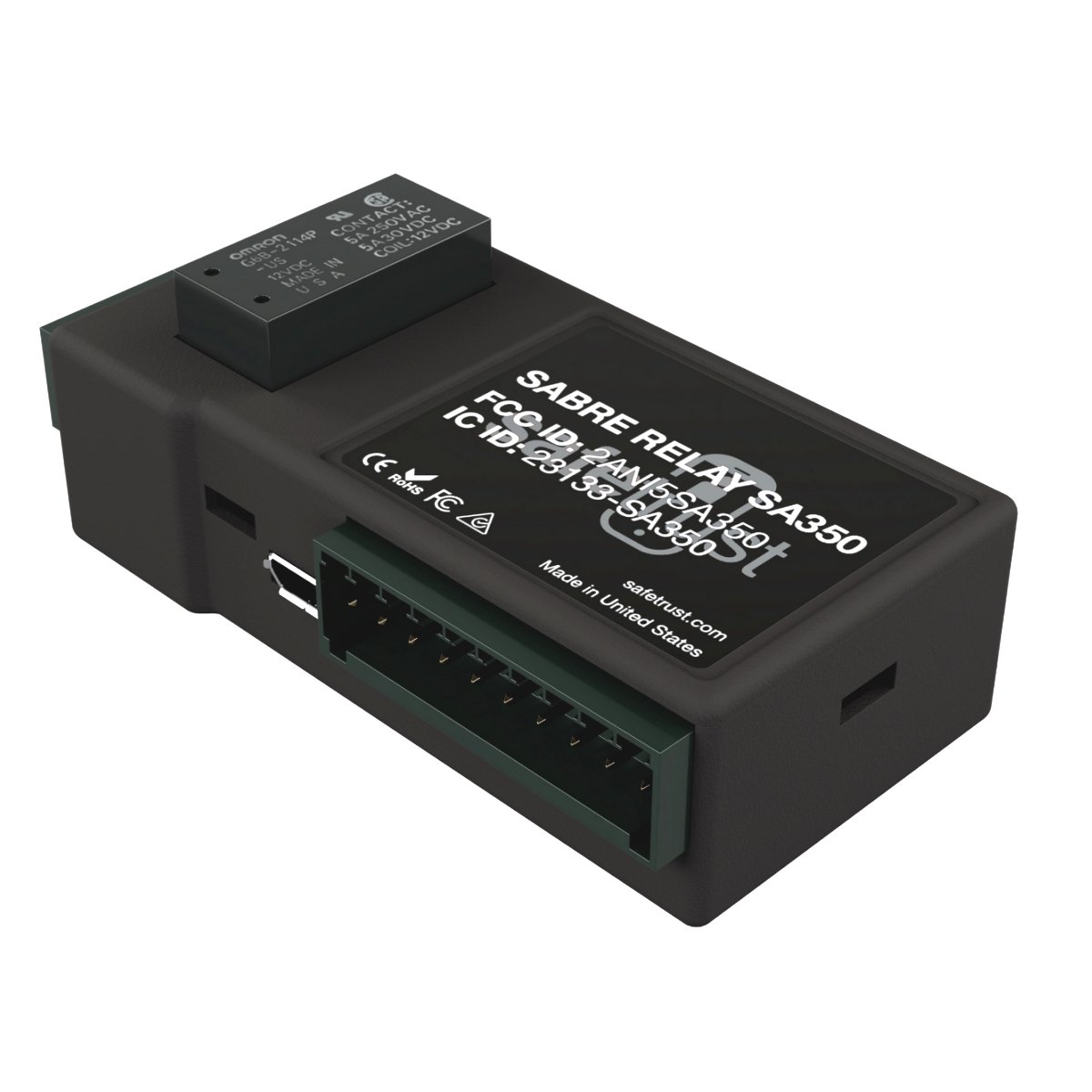

Safetrust SA350 Sabre Relay

Upgrade your readers, not your entire system.

The SABRE RELAY is a combination Bluetooth Low Energy (BLE) virtual credential reader with access controller management capabilities.

Ideally suited for parking garages, remote buildings and single door offices where no existing cabling or reader infrastructure exists, the RELAY module enables users to gain access using Virtual Credentials stored inside the Safetrust Wallet on their mobile phone.

Download the datasheet below for more information about the SABRE RELAY.

Full Description

Combination Reader Controller.png

Combination Reader Controller

Complete BLE reader and controller functionality, perfect for parking garages, single door businesses and remote buildings.

Multiple I/O Interfaces

Includes 24v / 12v relay, 5v input / output trigger, internal/ external antennas, Wiegand, RS-485, and optional Wi-Fi module.

OTA (Over-the-air configuration)

Firmware updates and configuration management can be made over-the-air through the Safetrust Wallet application or optional Wi-Fi module.
Configurable Extended Range.png

Configurable Extendable Range

Activation range can be configured based on environmental requirements. Where additional range is required, the module supports the use of external antennas for both the BLE and optional Wi-Fi interfaces.
Online Offline.png

Online / Offline Operation

The Credential Manager provides regular data exchanges to the Safetrust Wallet application and the SABRE RELAY, eliminating the need for constant online connectivity for authentication.

Product Specifications

Dimensions 65 × 30 × 12 mm



2.4 GHz – 2.48 GHz

Power Requirement

12 VDC, 65 mA

Output Protocol

Form C Relay, OSDP, OSDP v2 Secure Channel, RS-485, TTL 5V, Wiegand

SKU 8820-000


Manufacturer's Datasheet

1021.07 KB
