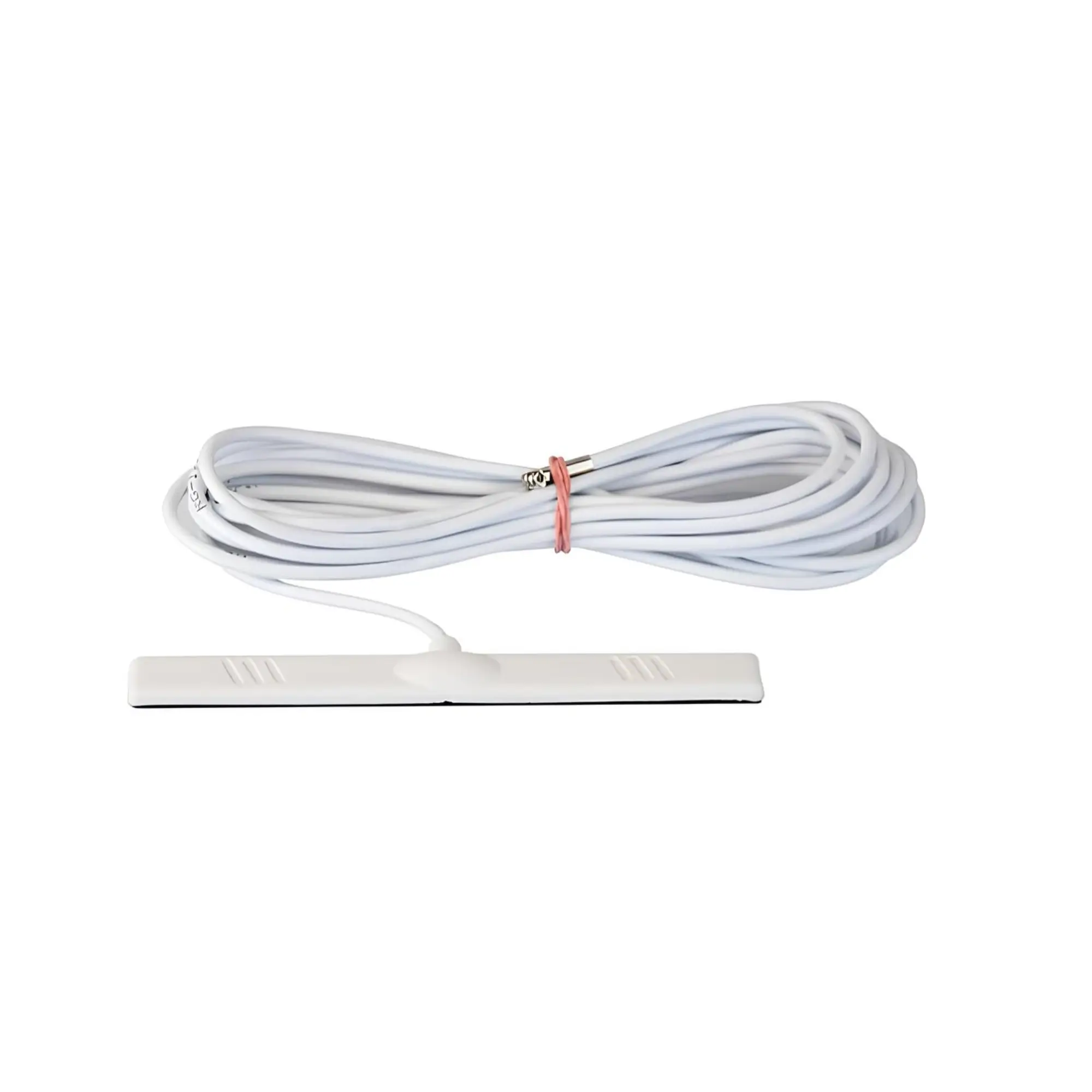

Scantronic COM-ANT-01: External Antenna for GSM Transmitter

Full Description

Reliable Signal Boosting for Critical Alarm Communications

The Scantronic COM-ANT-01 is a professional-grade external antenna specifically engineered to enhance the performance of Eaton Scantronic intrusion systems. For installers dealing with sites where signal strength is compromised, such as basements, metal-clad buildings, or remote locations, this antenna provides the necessary gain to maintain a stable link to the Alarm Receiving Centre (ARC) or cloud services.

Seamless Compatibility & Integration Designed primarily for the COM-DATA-4G-WIFI and COM-DATA-4G-SD communication modules, this unit operates across a wide frequency spectrum (800MHz to 1900MHz), covering standard 2G, 3G, and 4G bands. Its robust design allows for flexible positioning away from the control panel to capture the strongest possible network signal.

Installation & Build Quality Weighing just 45g with a compact footprint, the COM-ANT-01 is unobtrusive yet durable. It features a clean white finish that blends easily with most commercial and residential exteriors. For system integrators, adding this high-gain antenna is a cost-effective way to prevent communication failures and reduce revisit times due to poor network coverage.

Why Buy From Smart R Distribution? We stock genuine Eaton Scantronic parts, ensuring full warranty protection and compatibility. Our technical team is on hand to support trade installers with system design and integration advice.

Key Features Of The Scantronic COM-ANT-01

• Broad Spectrum Support: Operates effectively on 800MHz, 850MHz, 900MHz, 1800MHz, and 1900MHz frequencies.
• Enhanced Signal: Significantly improves reception for cellular alarm communicators in poor coverage areas.
• Dedicated Compatibility: Optimised for use with Scantronic COM-DATA-4G and COM-SD-GSM modules.
• Discreet Design: Compact white profile (150mm depth) for tidy professional installations.
• Lightweight Build: Weighs only 45g, minimising mounting stress.
• RoHS Compliant: Fully compliant with environmental safety standards.

Technical Specifications

• Manufacturer: Eaton (Scantronic)
• Part Number: COM-ANT-01
• Operating Frequencies: 800MHz, 850MHz, 900MHz, 1800MHz, 1900MHz
• Dimensions: 150mm (Depth) x 15mm (Height) x 50mm (Width)
• Weight: 45g
• Colour: White
• Compatibility: Scantronic COM-DATA-4G, COM-SD-GSM
• Warranty: 2-Year Limited Warranty

Benefits

• Reduces False Failures: Prevents polling failures caused by intermittent signal drops.
• Versatile Mounting: Allows the antenna to be moved to a location with better reception than the main panel.
• Future Proof: Supports frequency bands used by modern 4G networks as well as legacy 2G.
• Professional Finish: Matches the aesthetic standards expected in commercial security installs.

FAQs

Which Scantronic modules is the COM-ANT-01 compatible with? This antenna is specifically designed for the COM-DATA-4G and COM-DATA-4G-SD transmitters, ensuring optimal impedance matching and signal gain for these devices.

When should I use an external antenna like the COM-ANT-01? You should install this antenna if the main alarm panel is located in an area with poor cellular reception (e.g., a basement, server room, or metal cabinet) to route the signal capture to a location with better network coverage.

Does this antenna support 4G frequencies? Yes, the COM-ANT-01 supports a frequency range including 800MHz and 1800MHz/1900MHz, which covers the primary bands used for 4G/LTE cellular communication in the UK.
