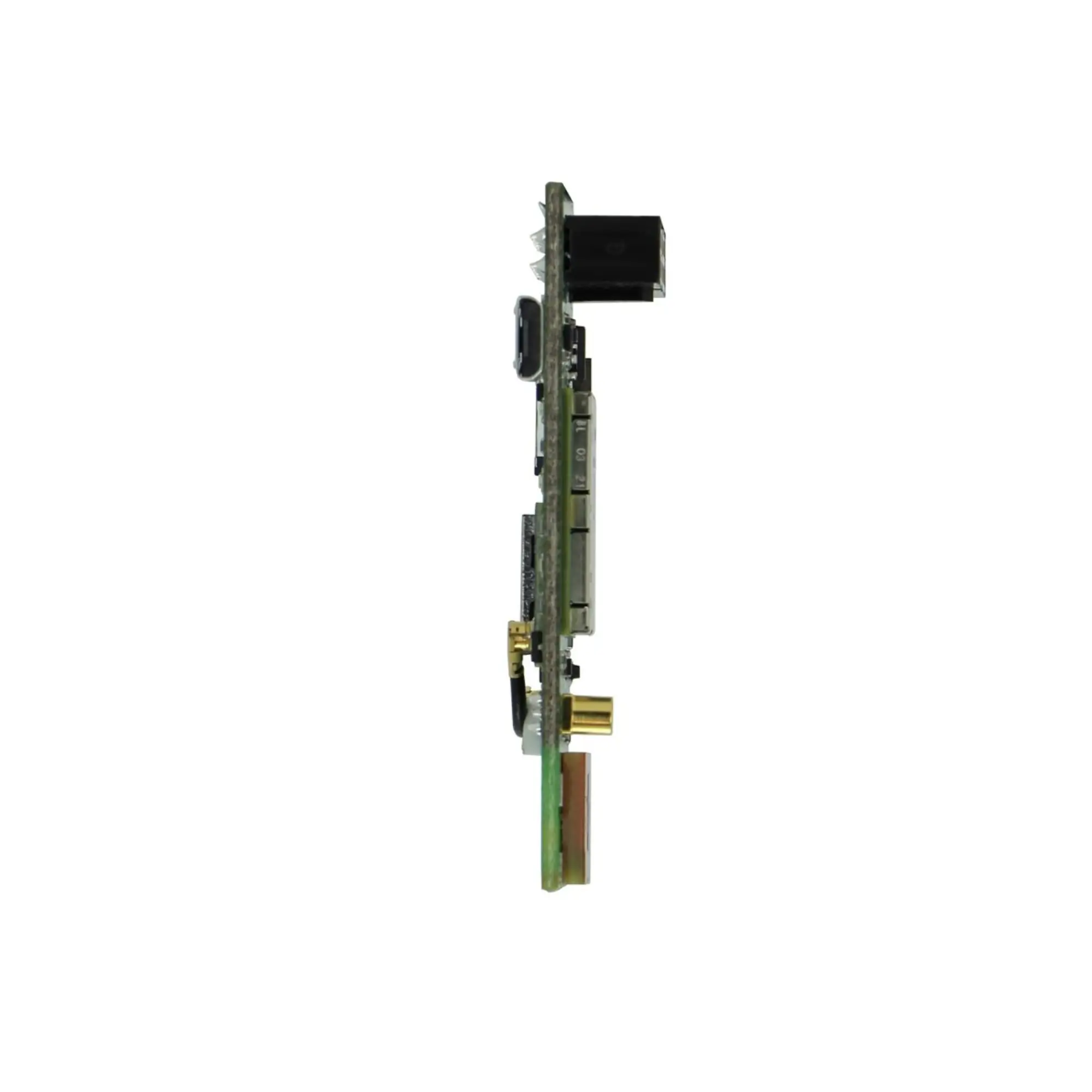

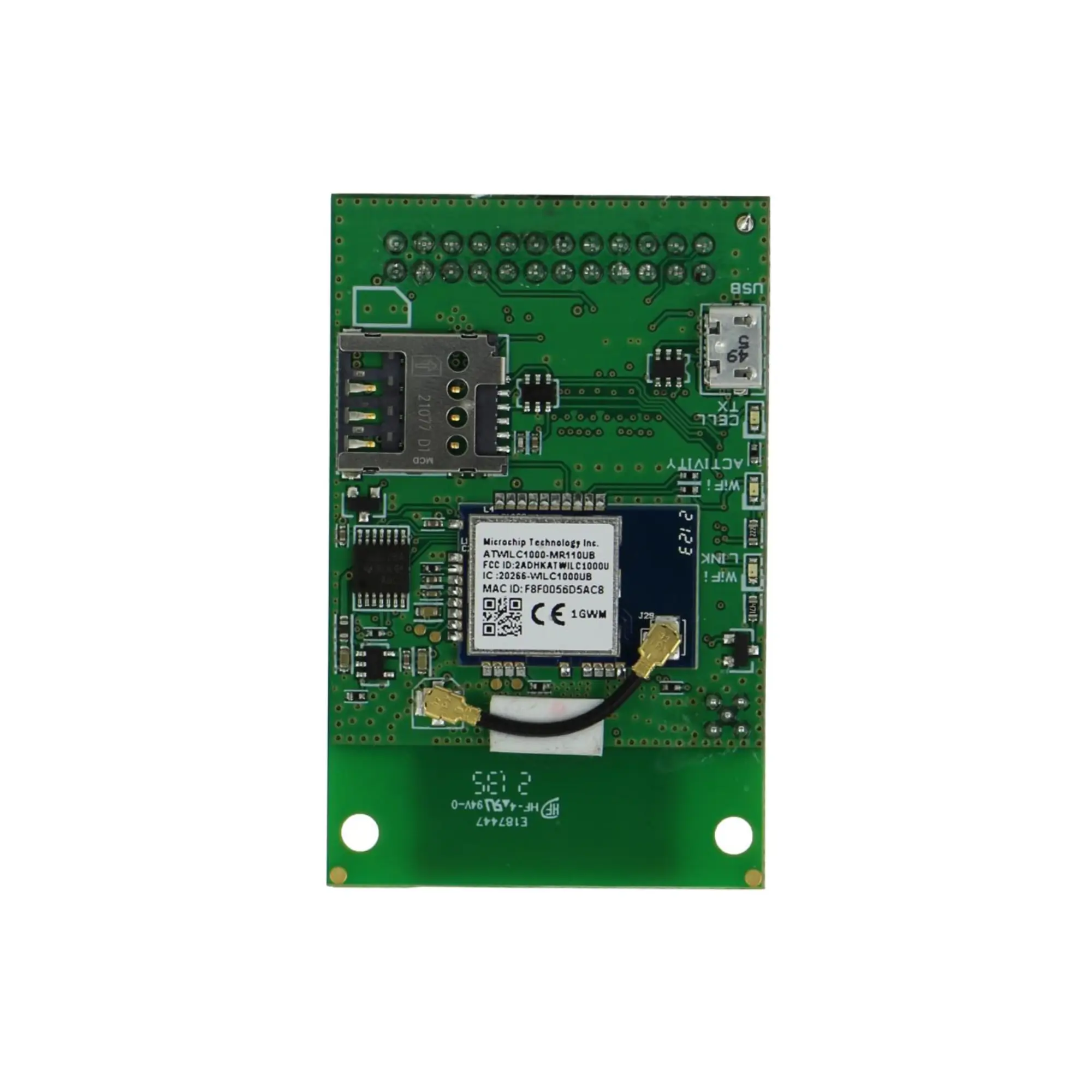

Scantronic COM-DATA-4G-WIFI: Plug On Communicator for Data, Wi-Fi and GSM

Full Description

Unrivalled Reliability with the COM-DATA-4G-WIFI Dual-Path Communicator

For security installers where system uptime is non-negotiable, the Scantronic COM-DATA-4G-WIFI delivers the ultimate communication solution. This plug-on module ensures that your installed Eaton alarm panels maintain a constant connection to the Alarm Receiving Centre (ARC) and the SecureConnect app platform, even if one path fails.

By combining the low-cost speed of a site’s existing Wi-Fi network (2.4GHz) with the dependable backup of multi-band 4G/2G cellular technology, this unit automatically switches paths to guarantee signal delivery. This dual-path functionality is essential for maintaining compliance with professional standards requiring redundant communication.

Seamless Integration and Professional Compliance Utilising the same compact, plug-on design as the standard COM-DATA-WIFI, this model easily mounts to compatible Scantronic panel PCBs (like the i-on range). It boasts broad cellular compatibility, supporting a wide range of UK frequencies (including 700/800/900/1800/2100/2600MHz).

Rated to EN 50131 Grade 2 and achieving ATS SP2, the COM-DATA-4G-WIFI provides the confidence installers need for critical residential and commercial installations (Environmental Class II). Its lightweight and low-power design make it a simple, powerful upgrade.

Trade Support from Smart R Distribution We are the UK trade source for professional Eaton security components. Contact our technical sales team for advice on SIM card requirements or panel compatibility to ensure your dual-path installation is seamless.

Key Features Of The Scantronic COM-DATA-4G-WIFI

• Dual-Path Redundancy: Provides automatic failover between Wi-Fi and 4G/2G for maximum reliability.
• Plug-on Installation: Fast, clean mounting directly onto compatible Scantronic panel PCBs.
• Wide Cellular Band Support: Operates across multiple UK frequencies (700MHz to 2600MHz).
• SecureConnect™ Ready: Enables full remote system control and push notifications via the cloud app.
• Professional Grading: Compliant with EN 50131 Grade 2 and ATS SP2 standards.
• Ultra-Compact: Minimal footprint (64 x 40 x 11 mm) and lightweight (17g).

Technical Specifications

• Manufacturer: Eaton (Scantronic)
• Part Number: COM-DATA-4G-WIFI
• EAN: 5060096857426
• Mounting: Plug-on
• Connectivity: Wi-Fi (2.4GHz) and 4G/2G GSM Cellular
• Cellular Frequencies: 700/800/900/1800/2100/2600MHz
• Security Grade: EN 50131 Grade 2
• ATS Rating: SP2
• Environmental Class: Class II
• Power Supply: 12V DC (min/max)
• Current Consumption: 15mA (Normal), 240mA (Max)
• Dimensions: 64mm (H) x 40mm (W) x 11mm (D)
• Weight: 17g
• Operating Temp: -10°C to +55°C

Benefits

• Zero Communication Downtime: Guarantees signal delivery via the available path, ideal for high-risk sites.
• Meets High Standards: Satisfies insurance and regulatory requirements for dual-path monitoring.
• Simplified Stocking: One module covers both IP and GSM needs.
• Future Proof: Supports modern 4G LTE bands, ensuring longevity of the installation.

FAQs

What is the ATS SP2 rating? ATS (Alarm Transmission System) SP2 (Security Performance 2) means the communicator is capable of reporting a fault in the primary communication path (e.g., the Wi-Fi connection) to the ARC within 100 seconds when the system is unset, ensuring maximum reliability.

Does this module require external antennas? While the COM-DATA-4G-WIFI has integrated antennas, for optimum performance in poor signal environments (like metal cabinets or basements), you should consider adding:

• COM-ANT-01 (External GSM Antenna) for the 4G/2G signal.
• COM-ANT-02 (External WiFi Antenna) for the Wi-Fi signal.

Do I need a separate SIM card for the 4G path? Yes, to enable the cellular backup path, a compatible 4G SIM card from your chosen provider is required and must be fitted into the module.
