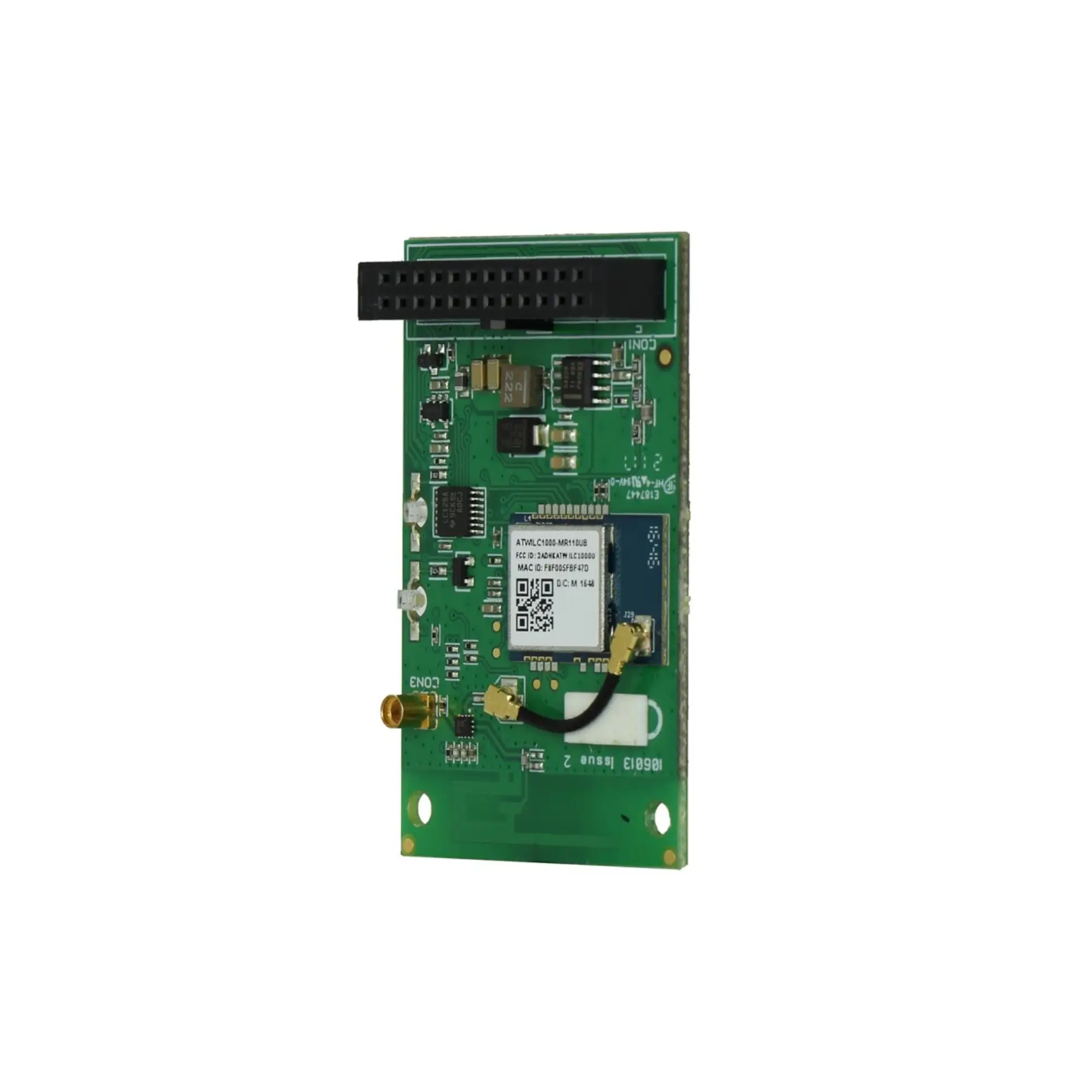

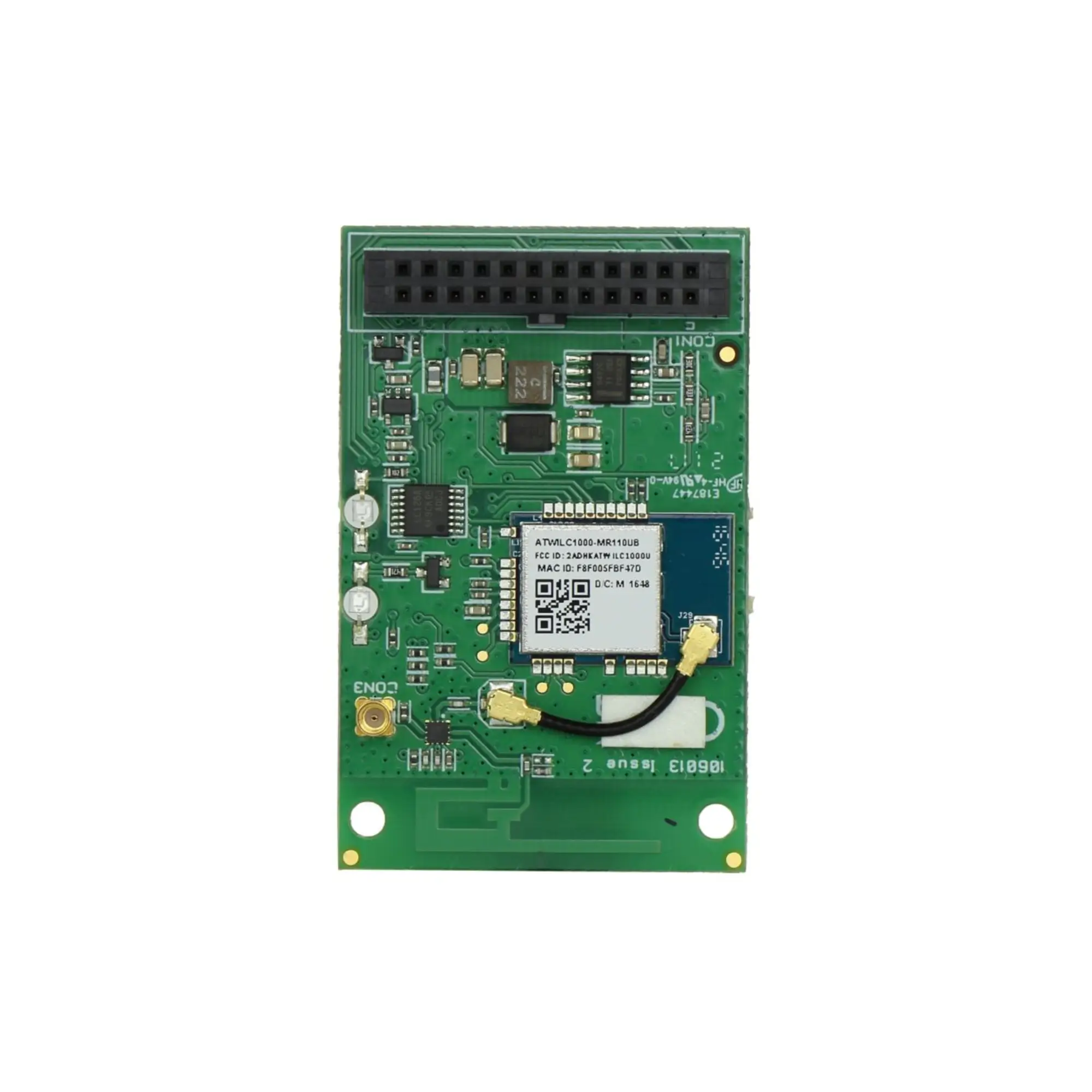

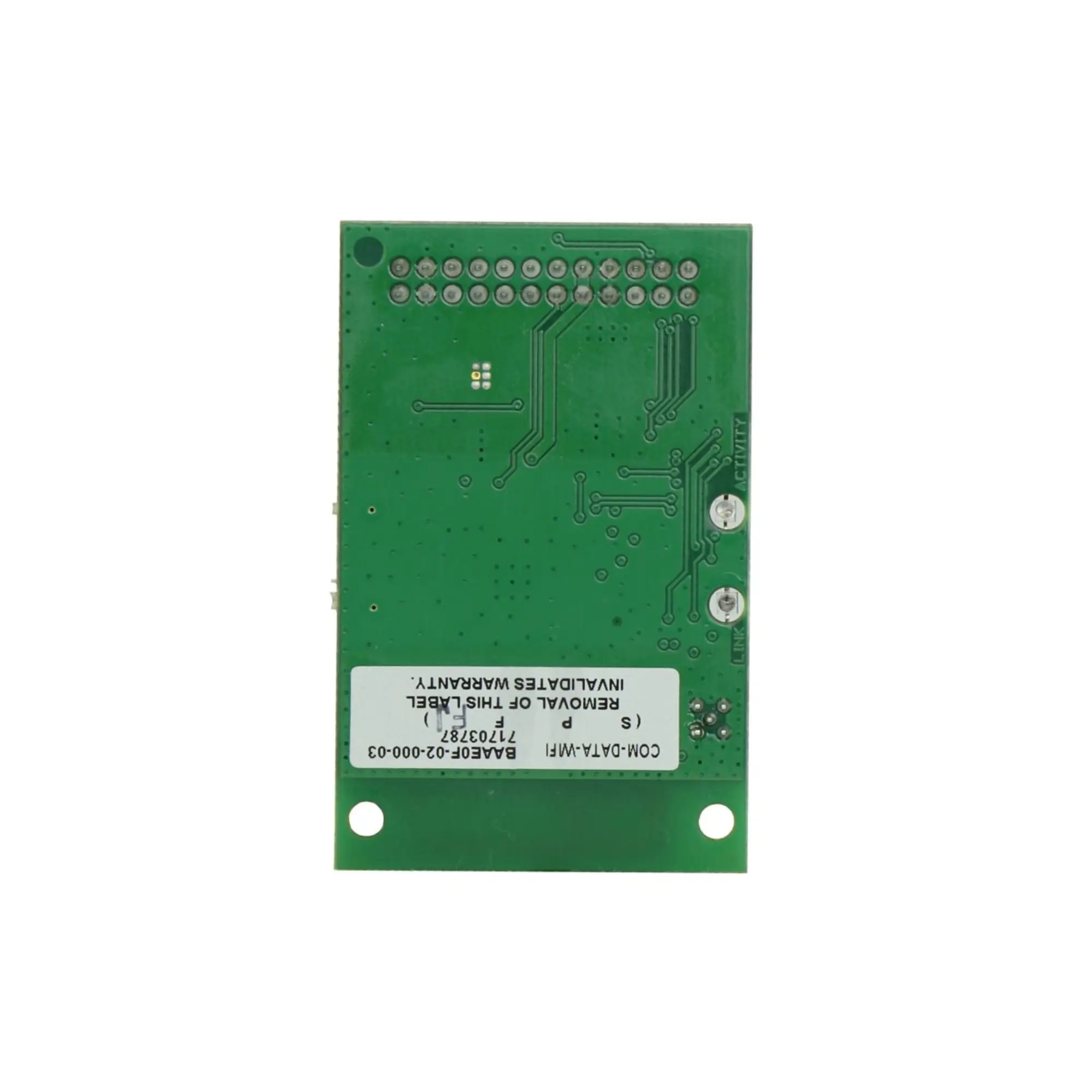

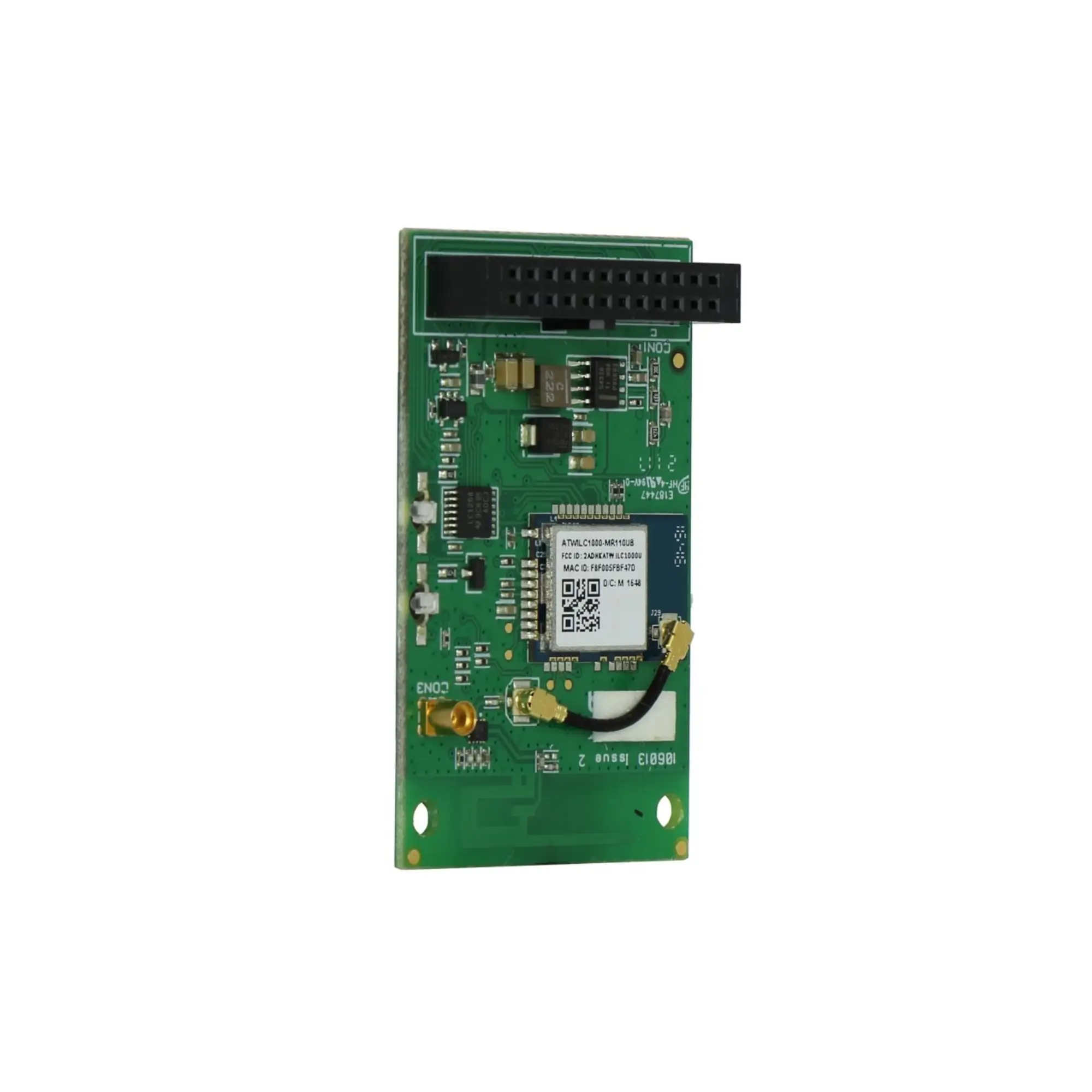

Scantronic COM-DATA-WIFI: SecureConnect Wi-Fi Cloud Communicator

Full Description

Seamless Cloud Connectivity for Eaton Intruder Systems

The Scantronic COM-DATA-WIFI is an essential upgrade for modern security installations, bridging the gap between Eaton’s trusted alarm panels and the powerful SecureConnect™ cloud platform. Designed for installers who need a fast, wire-free networking solution, this plug-on module connects directly to the panel’s PCB, utilizing the site’s existing 2.4GHz Wi-Fi network.

Unlock Smart Control & Monitoring Once installed, the COM-DATA-WIFI enables full compatibility with the Eaton SecureConnect app, allowing end-users to set and unset their alarm, view system status, and receive push notifications from anywhere. For system integrators and ARCs, it provides a reliable data path for monitoring and remote maintenance.

Professional Grade Performance Despite its tiny footprint (just 64 x 40 x 11 mm), this communicator is built to professional standards. It is EN 50131 Grade 2 compliant and achieves an ATS rating of SP2, making it suitable for most residential and light commercial applications (Environmental Class II). Its low power consumption (nominally 15mA) ensures minimal impact on the system’s power budget.

Why Buy From Smart R Distribution? We are an authorised Eaton distributor, supplying genuine Scantronic components to the UK trade. Our team offers expert technical support to help you configure SecureConnect systems efficiently.

Key Features Of The Scantronic COM-DATA-WIFI

• Plug-on Design: Connects directly to the control panel PCB for a tidy, cable-free installation inside the enclosure.
• SecureConnect™ Enabled: Unlocks app control, push notifications, and remote cloud management.
• Wi-Fi Connectivity: Uses standard 2.4GHz Wi-Fi, eliminating the need to run Ethernet cables to the router.
• Grade 2 Security: Fully compliant with EN 50131 Grade 2 and Environmental Class II standards.
• Low Power Consumption: Operates efficiently with a normal current draw of just 15mA.
• Compact Footprint: Ultra-small size fits easily within compatible panel housings.

Technical Specifications

• Manufacturer: Eaton (Scantronic)
• Part Number: COM-DATA-WIFI
• EAN: 5060096857235
• Connection Type: Plug-on (Panel PCB)
• Connectivity: Wi-Fi (2.4GHz)
• Security Grade: EN 50131 Grade 2
• ATS Rating: SP2
• Environmental Class: Class II
• Power Supply: 12V DC
• Current Consumption: 15mA (Normal), 240mA (Max)
• Dimensions: 64mm (H) x 40mm (W) x 11mm (D)
• Weight: 17g
• Operating Temp: -10°C to +55°C

Benefits

• Fast Installation: No need to drill walls or run cables to the internet router.
• Remote Management: Allows installers to perform remote diagnostics via the cloud, reducing site visits.
• User Convenience: Gives the customer total control via their smartphone, increasing the value of the alarm system.
• Cost Effective: A lower hardware cost compared to GSM/4G alternatives, utilising the customer’s existing internet.

FAQs

Which panels is the COM-DATA-WIFI compatible with? This module is designed to plug directly into compatible Eaton Scantronic panels, such as the i-on30R and i-on40H hybrid panels, that support the plug-on footprint.

Does this communicator support 5GHz Wi-Fi? No, the COM-DATA-WIFI operates on the 2.4GHz frequency band, which offers better range and wall penetration suitable for alarm panel locations. Please ensure the site router has 2.4GHz enabled.

Can I use an external antenna with this module? Yes, if the panel is in a metal enclosure or a weak signal area, you can enhance connectivity by adding the Scantronic COM-ANT-02 (5m External WiFi Antenna).
