Scantronic DET-2R-GB: Wireless Glass Break Acoustic Detector – Grade 2

Full Description

Perimeter Protection: Wireless Acoustic Glass Break Detector

The Scantronic DET-2R-GB is a professional Wireless Glass Break Detector designed to enhance perimeter security in residential and commercial properties. Functioning as a vital first line of defense, this device uses advanced acoustic technology to detect the specific sound frequencies associated with breaking glass, triggering an alarm before an intruder can gain entry.

Certified to EN 50131 Grade 2, this detector is suitable for professional security installations. Its wireless radio connection ensures a clean and non-disruptive installation, making it ideal for locations where running cables to windows is difficult or aesthetically undesirable. Housed in a compact white casing, the DET-2R-GB blends discreetly into most interiors while providing robust, tamper-protected security coverage.

Key Features Of The Scantronic DET-2R-GB

• Acoustic Detection Technology: reliable acoustic sensor technology specifically tuned to detect the sound of breaking glass.
• Wireless Connectivity: Operates on a radio frequency, allowing for wire-free installation and communication with the control panel.
• Grade 2 Security: Independently certified to EN 50131 Grade 2, ensuring high reliability for professional systems.
• Tamper Protection: Built-in tamper protection safeguards the device against unauthorised interference or removal.
• Optical Indication: Features optical indication (LED) to assist with testing and status checks.
• Long-Lasting Power: Powered by a standard 3V CR123 battery, ensuring reliable long-term operation.

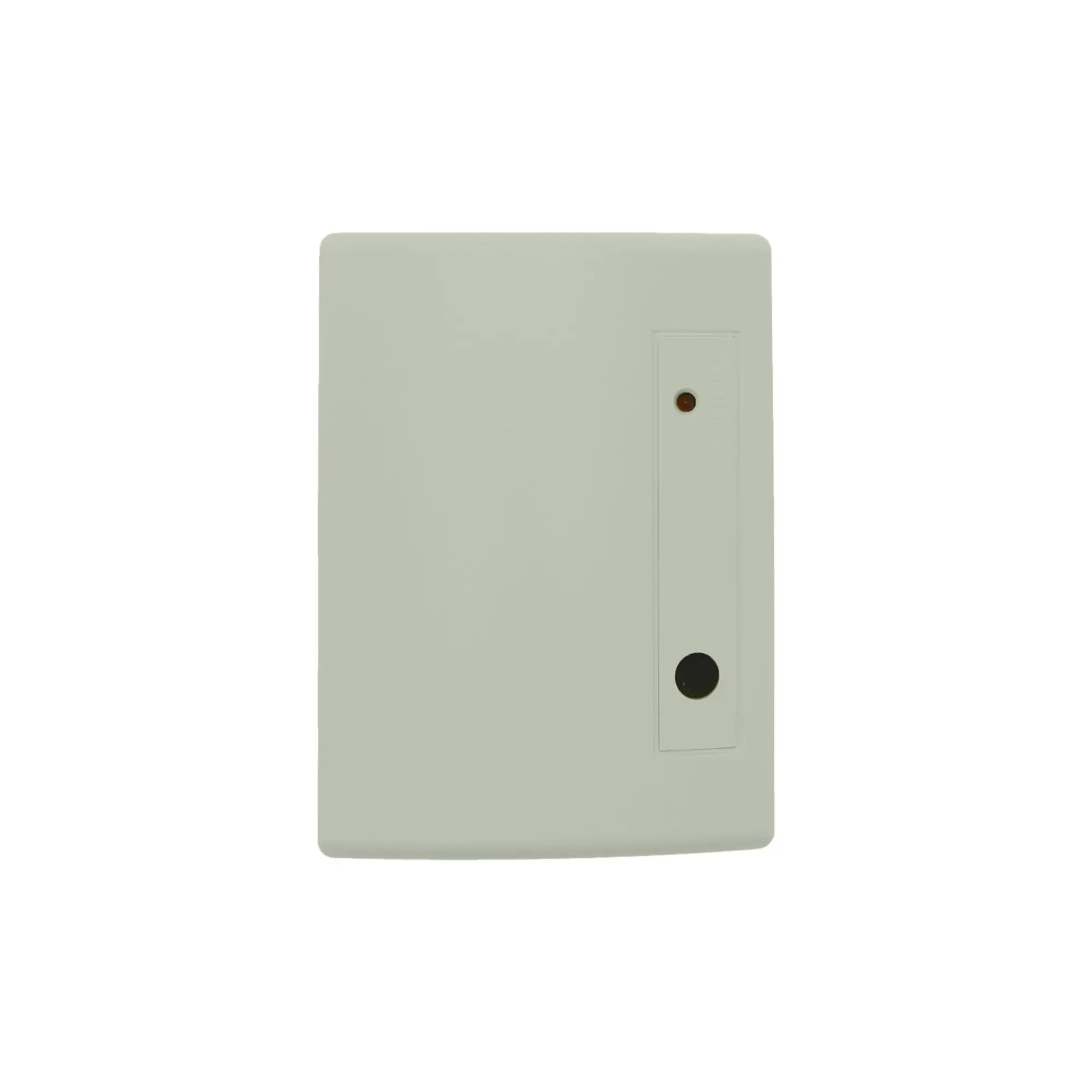

• Compact Design: Small footprint (107mm width) and clean white finish allow for unobtrusive placement near windows.

Technical Specifications

• Product Name: Eaton glass break detector
• Catalog Number: DET-2R-GB
• Technology Type: Acoustic
• Connection: Wireless / Radio
• Security Grade: EN 50131 Grade 2
• Environmental Class: Class I
• Degree of Protection: IP40
• Mounting Method: Surface
• Battery Type: 3V CR123
• Dimensions (H x W x D): 78 mm x 107 mm x 44 mm
• Weight: 0.15 kg
• Colour: White
• Channels: 1
• See Full Data Sheet

Benefits

• Early Detection: Detects break-in attempts at the point of impact, alerting the system before the intruder enters the premises.
• Easy Installation: The wireless design eliminates the need for chasing wires into walls or around window frames.
• Broad Coverage: A single acoustic detector can often cover multiple panes of glass within a room (depending on room acoustics and layout), offering a cost-effective alternative to individual vibration sensors.
• Versatile Protection: Ideal for protecting large glazed areas where standard magnetic contacts cannot detect glass breakage (e.g., fixed picture windows).

Ideal Applications

• Conservatories: Perfect for rooms with extensive glazing where wiring is difficult.
• Retail Display Windows: Protects shop fronts from “smash and grab” attempts.
• Living Rooms with Patio Doors: Adds an extra layer of security to vulnerable rear entry points.
• Commercial Offices: Ideal for ground-floor offices with large glass panes.
