Scantronic EXP-PSU- Series: 10 Wired Zone Expander with Integrated PSU – 1, 2, 3 Amp Options

Full Description

Power and Expansion: Bus Connected Wired Zone Expanders with Integrated Power Supplies

The Scantronic EXP-PSU series (Eaton EXP intruder system expanders) offers a robust solution for expanding the capacity and range of Scantronic intruder alarm systems. These units combine a 10 wired zone expander with a fully monitored intelligent power supply unit (PSU), connecting directly to the control panel via the system bus. Designed to suit installations of varying sizes and security requirements, the series includes options for 1 Amp, 2 Amp, and 3 Amp power delivery, ensuring adequate power for additional detectors, sounders, and auxiliary devices located far from the main panel.

Each unit provides 10 zone inputs and 4 transistor outputs, enabling significant local expansion without the need for complex cabling back to the central controller. The bus-connected architecture ensures reliable two-way communication and advanced diagnostics.

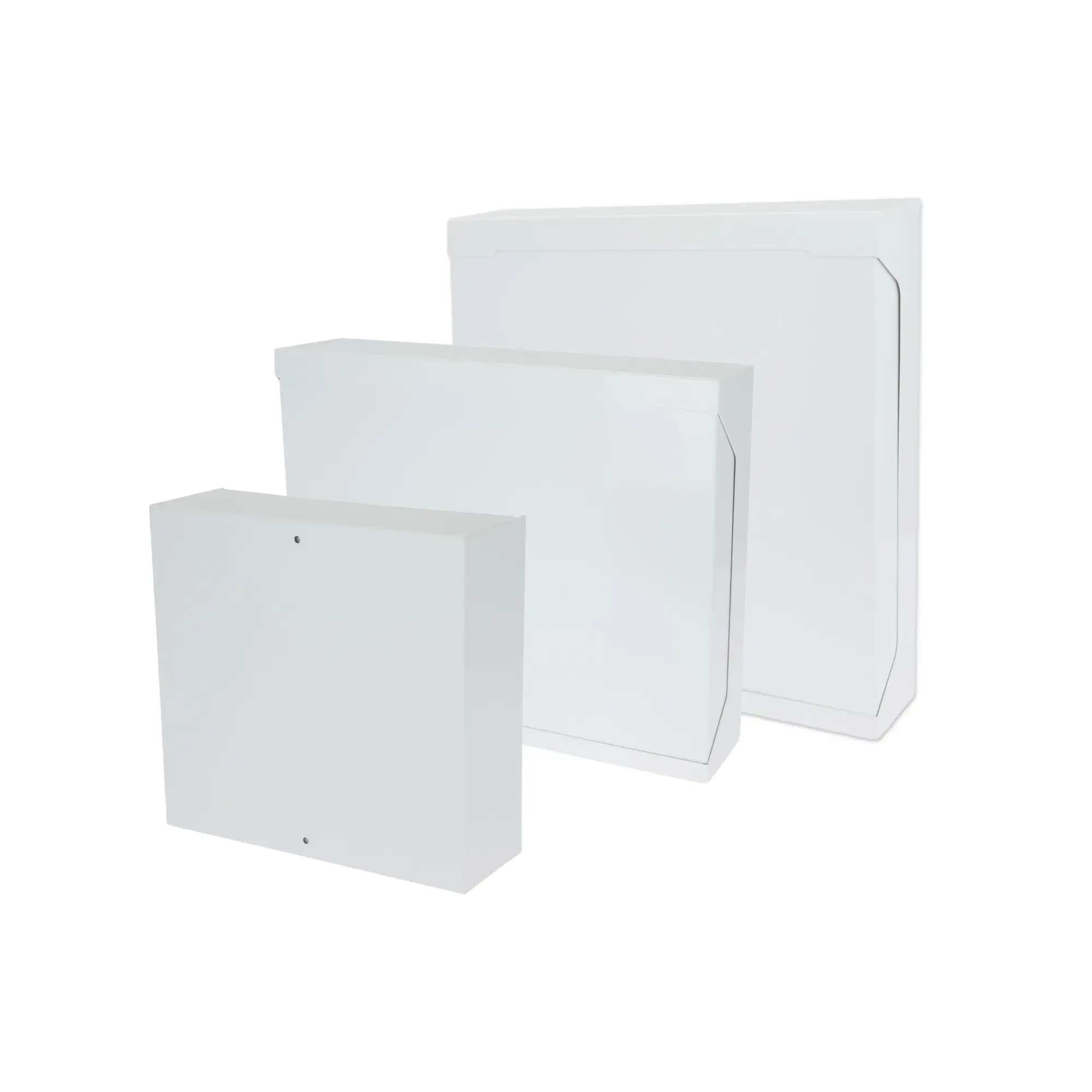

Available Models

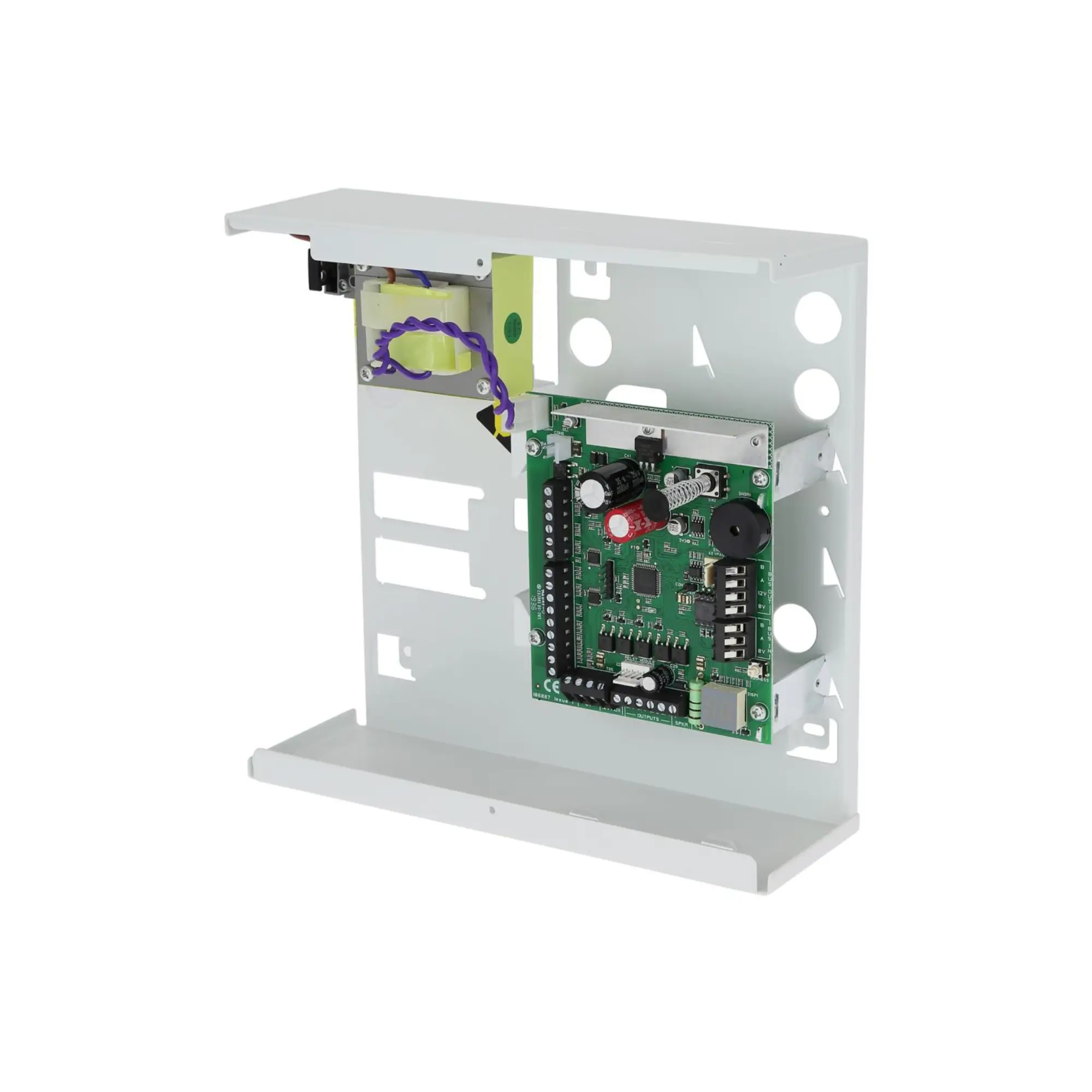

• EXP-PSU-SM (Small Metal Case) This is the entry-level model featuring a 1 Amp power supply housed in a compact metal case (240mm x 250mm). Ideally suited for smaller installations or extensions, it supports a single 7Ah backup battery and is certified to EN 50131 Grade 2.

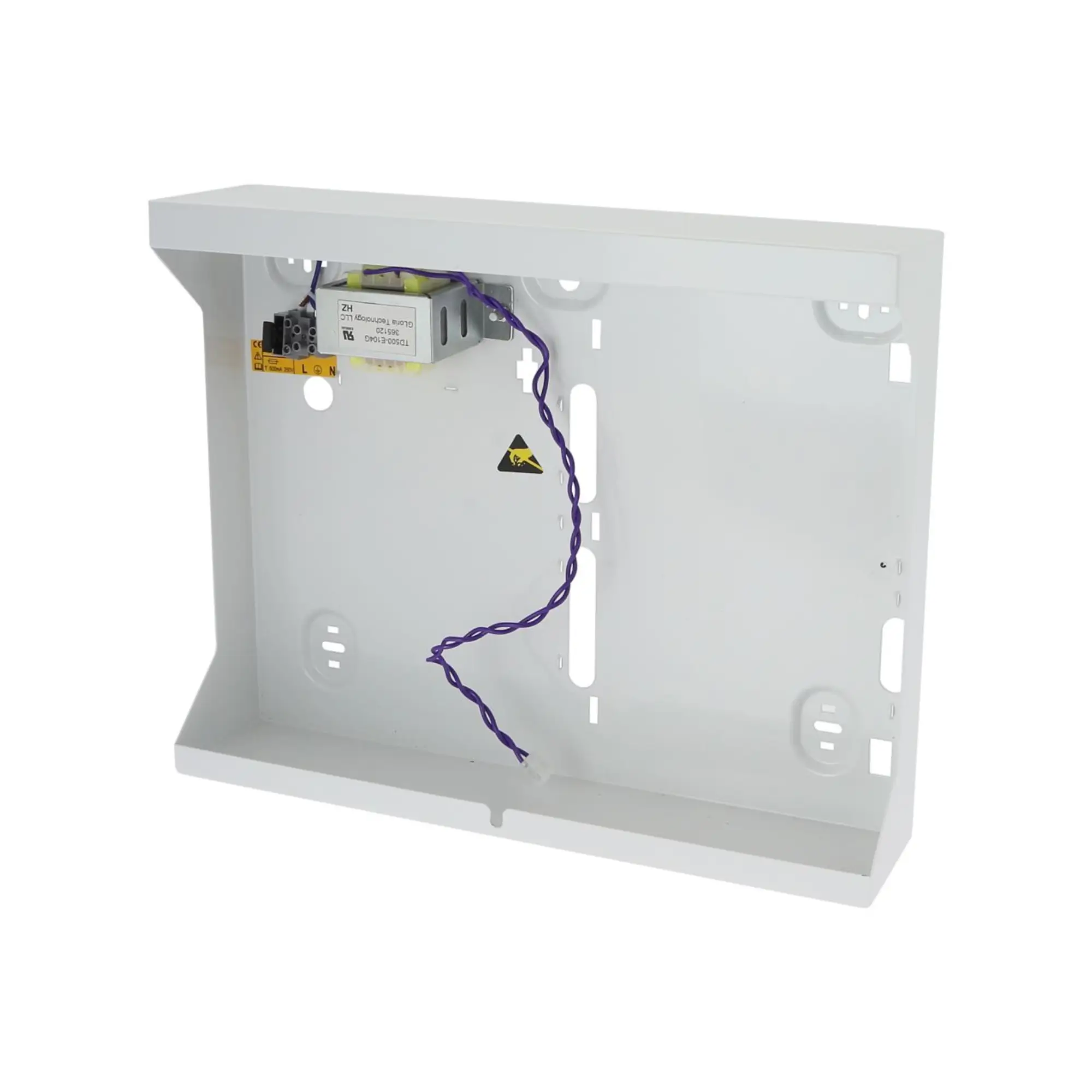

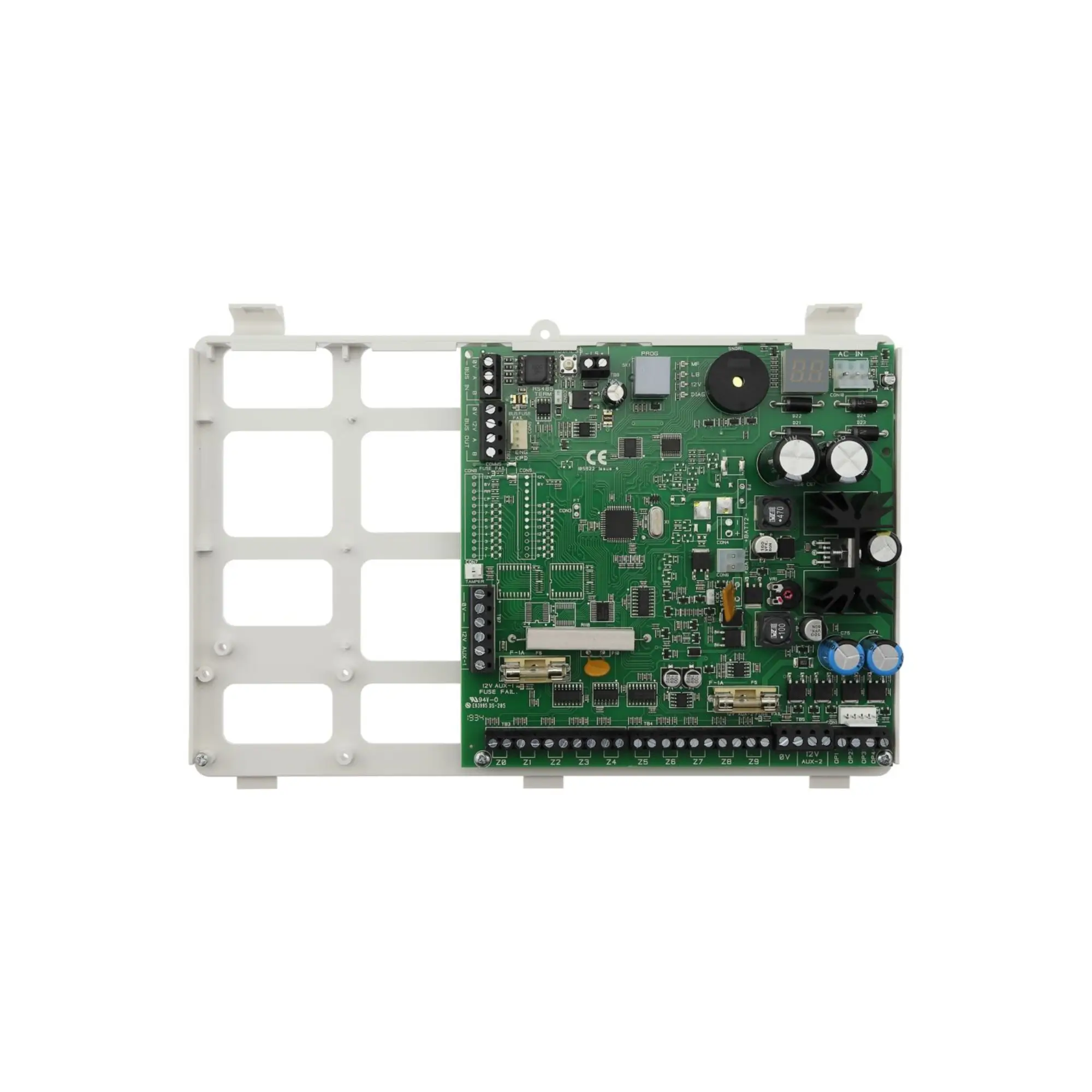

• EXP-PSU-MM (Medium Metal Case) Designed for mid-sized applications, this model steps up to a 2 Amp power supply and a larger enclosure (402mm x 320mm) capable of housing a larger 17Ah battery. This unit meets the more stringent EN 50131 Grade 3 standards, making it suitable for higher security commercial risks.

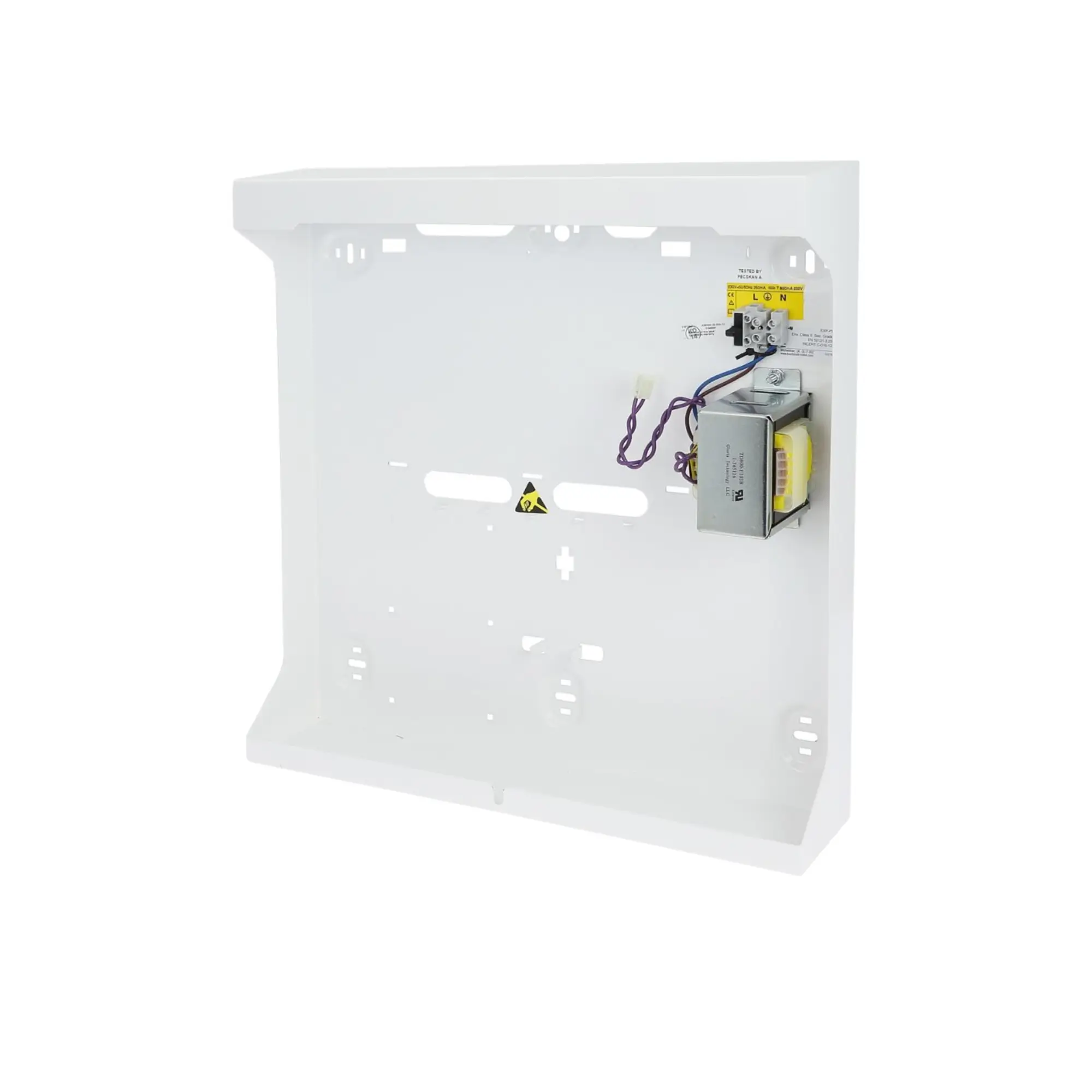

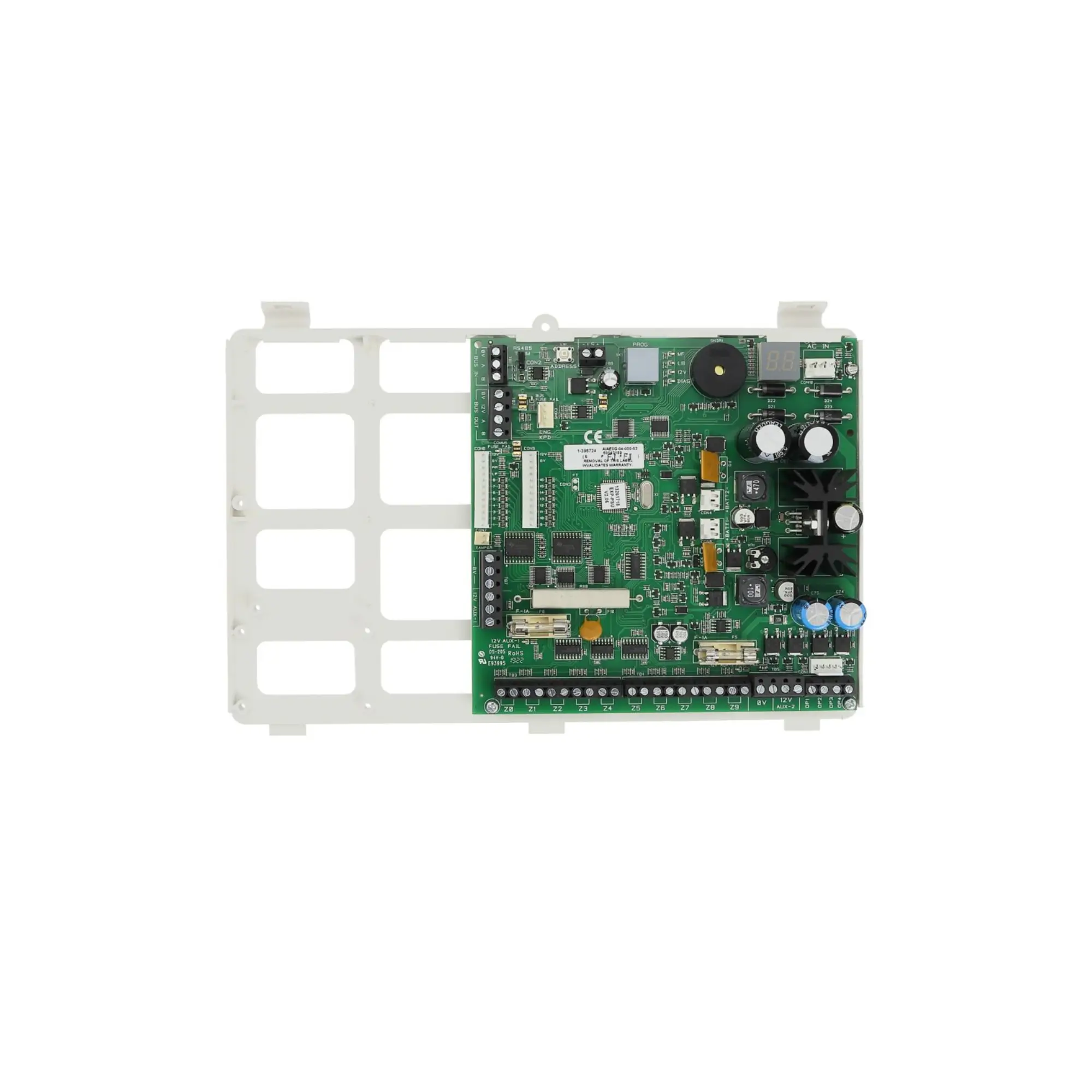

• EXP-PSU-LM (Large Metal Case) The most powerful option in the range, offering a 3 Amp power supply in a large metal cabinet (420mm x 427mm). Like the MM model, it is Grade 3 compliant but offers additional capacity, featuring 16 plug-by outputs and dual battery charge outputs to support robust backup power requirements for large-scale systems.

Key Features Of The Scantronic EXP-PSU Series

• Integrated Zone Expansion: Each unit adds 10 wired zone inputs to the system, allowing for local connection of sensors.
• Intelligent Power Supply: Built-in PSUs (1A, 2A, or 3A) provide regulated power for the expander and connected peripherals, reducing voltage drop over long cable runs.
• Bus Connected: Connects via the system bus for secure, monitored two-way communication with the main panel.
• Programmable Outputs: Features 4 transistor outputs for controlling local devices such as strobes or auxiliary equipment.
• Security Grade Compliance: The SM model is Grade 2 compliant, while the MM and LM models achieve Grade 3 status for high-security environments.
• Battery Backup Support:
  • SM: Supports 1 x 7Ah battery.
  • MM: Supports 1 x 17Ah battery.
  • LM: Capable of supporting larger backup capacities (2 charge outputs listed).
• Loudspeaker Connection: Includes a connection for a local 16-ohm loudspeaker for system sounds and alerts.
• Durable Metal Housing: All models are housed in sturdy metal enclosures (White) for protection and tamper resistance.

Technical Specifications

• Zone Inputs: 10 Wired Zones
• Transistor Outputs: 4
• Plug-by Outputs: 0 (SM/MM), 16 (LM)
• Power Supply:
  • SM: 1000 mA (1A)
  • MM: 2000 mA (2A)
  • LM: 3000 mA (3A)
• Security Grade:
  • SM: Grade 2
  • MM/LM: Grade 3
• Rechargeable Battery Capacity: 7Ah (SM) / 17Ah (MM/LM)
• Operating Temperature: -10°C to +55°C
• Dimensions (H x W x D):
  • SM: 250 x 240 x 90 mm
  • MM: 320 x 402 x 100 mm
  • LM: 427 x 420 x 85 mm
• Certifications: CE
• See EXP-PSU-MM Data Sheet

Benefits

• Scalability: Allows the security system to grow by adding zones and power exactly where needed, far from the central panel.
• Voltage Drop Mitigation: By placing the power supply near the devices (e.g., in a different wing of a building), voltage drop issues on long cable runs are eliminated.
• Cost Efficiency: Reduces cabling costs by running a single bus cable to the expander rather than multiple cables for each detector back to the main panel.
• High-Security Options: With Grade 3 models available, the series is suitable for banks, high-value retail, and other critical infrastructure.

Ideal Applications

• Large Commercial Premises: Where detectors are spread across large distances or multiple floors.
• Outbuildings: Garages or warehouses that require their own power source and zone connections.
• System Upgrades: Adding capacity to an existing Scantronic system without overloading the main panel’s PSU.
• High-Security Sites: Banks or jewelers requiring Grade 3 compliant power and expansion (MM/LM models).
