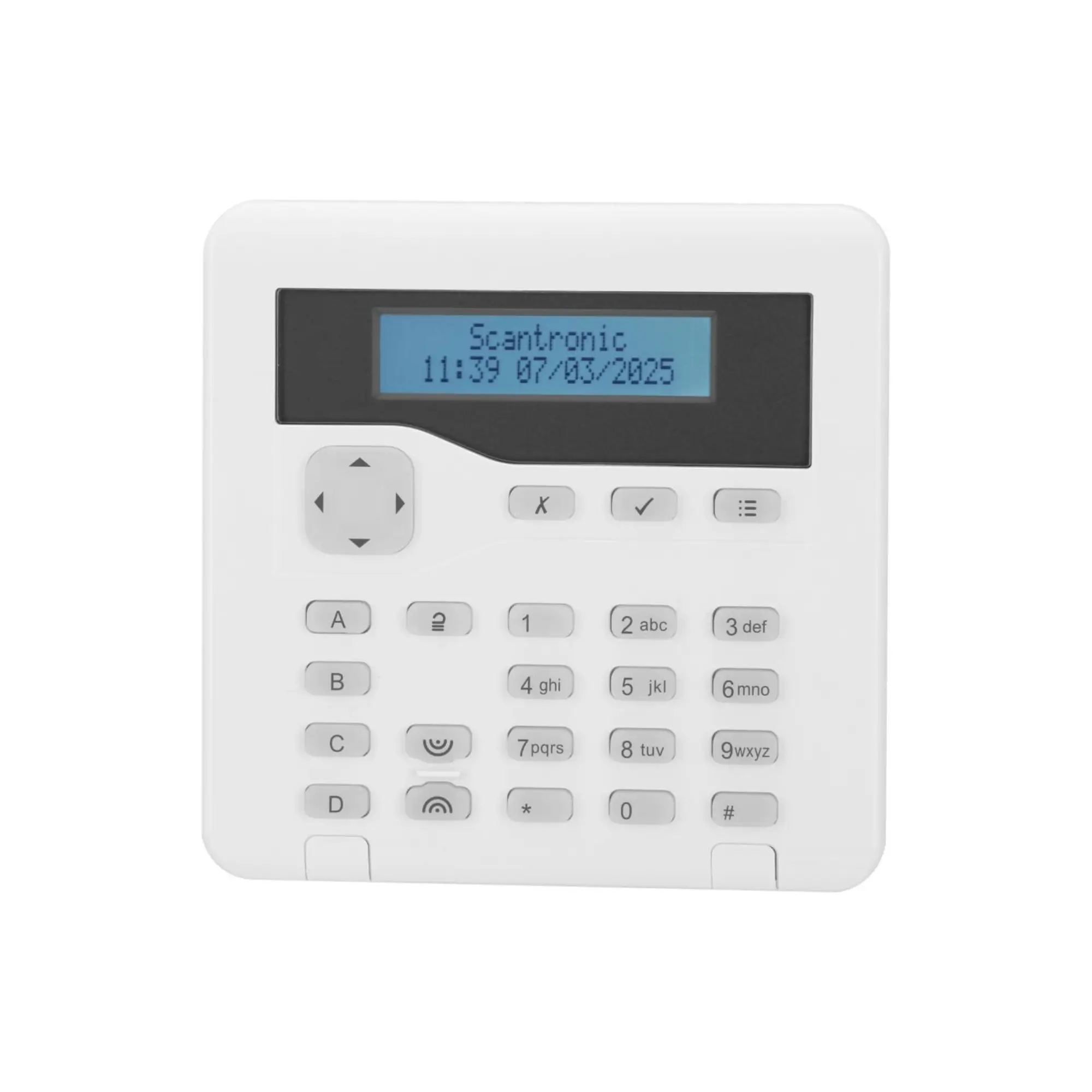

Scantronic KEY-K01: Grade 3 Wired Surface Mounted Keypad for Intruder System

Full Description

Robust Security Interface: Grade 3 Bus Mounted Keypad

The Scantronic KEY-K01 is a durable and reliable Wired Keypad designed to provide a secure user interface for Eaton Scantronic intruder alarm systems. Certified to EN 50131 Grade 3 standards, this bus-mounted keypad is engineered for high-risk environments where system integrity and compliance are paramount.

Unlike other models in the series, the KEY-K01 focuses purely on essential system control via PIN entry, omitting proximity readers to ensure authorized access is granted solely through secure code verification. Featuring a clear display, tactile buttons, and dedicated Personal Attack (PA) keys for emergency signalling, it offers a straightforward and robust solution for managing security systems.

Key Features Of The Scantronic KEY-K01

• Grade 3 Compliance: Independently certified to EN 50131 Security Grade 3, making it suitable for high-security commercial and industrial installations.
• Bus-Mounted Connection: Connects directly to the system bus via a wired connection, ensuring stable and monitored communication with the control panel.
• PIN-Only Access: Designed without an internal proximity reader (“External prox: No”), ensuring access is restricted to users with valid PIN codes, ideal for high-security protocols.
• Dedicated PA Keys: Equipped with dedicated keys to trigger a Personal Attack (PA) alarm immediately in emergencies.
• Clear Display: Features a built-in display to provide users with system status updates, menu navigation, and event logs.
• Surface Mount Design: A compact, surface-mounted unit that installs securely onto walls or flat surfaces.
• Streamlined Architecture: Features 0 zone inputs and 0 transistor outputs, focusing entirely on its role as a control station without local expansion capabilities.

Technical Specifications

• Product Name: Eaton surface mounted keypad for intruder system
• Catalogue Number: KEY-K01
• Security Grade: EN 50131 Grade 3
• Environmental Class: Class II
• Connection Type: Wired (Bus Mounted)
• Proximity Reader: No
• Zone Inputs: 0
• Display: Yes
• Touch Panel: No
• Colour: White
• Dimensions (H x W x D): 128 mm x 128 mm x 28 mm
• Weight: 0.21 kg
• Certifications: CE marking
• See Data Sheet

Benefits

• Enhanced Security: Grade 3 certification ensures the keypad meets rigorous industry standards for tamper resistance and reliability.
• Code-Based Authentication: Eliminates the risk of lost or stolen tags by relying solely on PIN codes for system operation.
• Reliable Performance: The hardwired bus connection provides a consistent and secure link to the main alarm panel.
• Simple Operation: Provides a no-nonsense interface for setting, un-setting, and managing the alarm system.

Ideal Applications

• High-Security Commercial Premises: Banks, jewellery stores, and secure facilities requiring Grade 3 protection.
• Industrial Sites: Warehouses and factories where robust, wired peripherals are preferred.
• Installations Preferring PIN Access: Sites where policy dictates code-only entry rather than proximity tags.
• Secondary Control Points: Ideal as an additional keypad in secure back-office areas.
