Scantronic PAN-100WE-KPZ: 100 Zone Expandable Hybrid Control Panel with Prox Keypad

Full Description

Flexible Grade 2 Hybrid Security with Cloud Connectivity

The Eaton Scantronic PAN-100WE-KPZ is a versatile 100 zone expandable hybrid control panel designed to secure small to medium-sized commercial and residential buildings. Starting with 10 wired zones on board, this Grade 2 panel offers the flexibility to expand up to 100 zones using a mix of wired and wireless expanders, ensuring reliable communication across the system. Supplied with a wired keypad featuring a built-in proximity reader and two zone inputs, the panel is Eaton SecureConnect enabled out of the box, allowing for smart security management and remote configuration via a web browser or app at no extra cost.

Key Features of The PAN-100WE-KPZ:

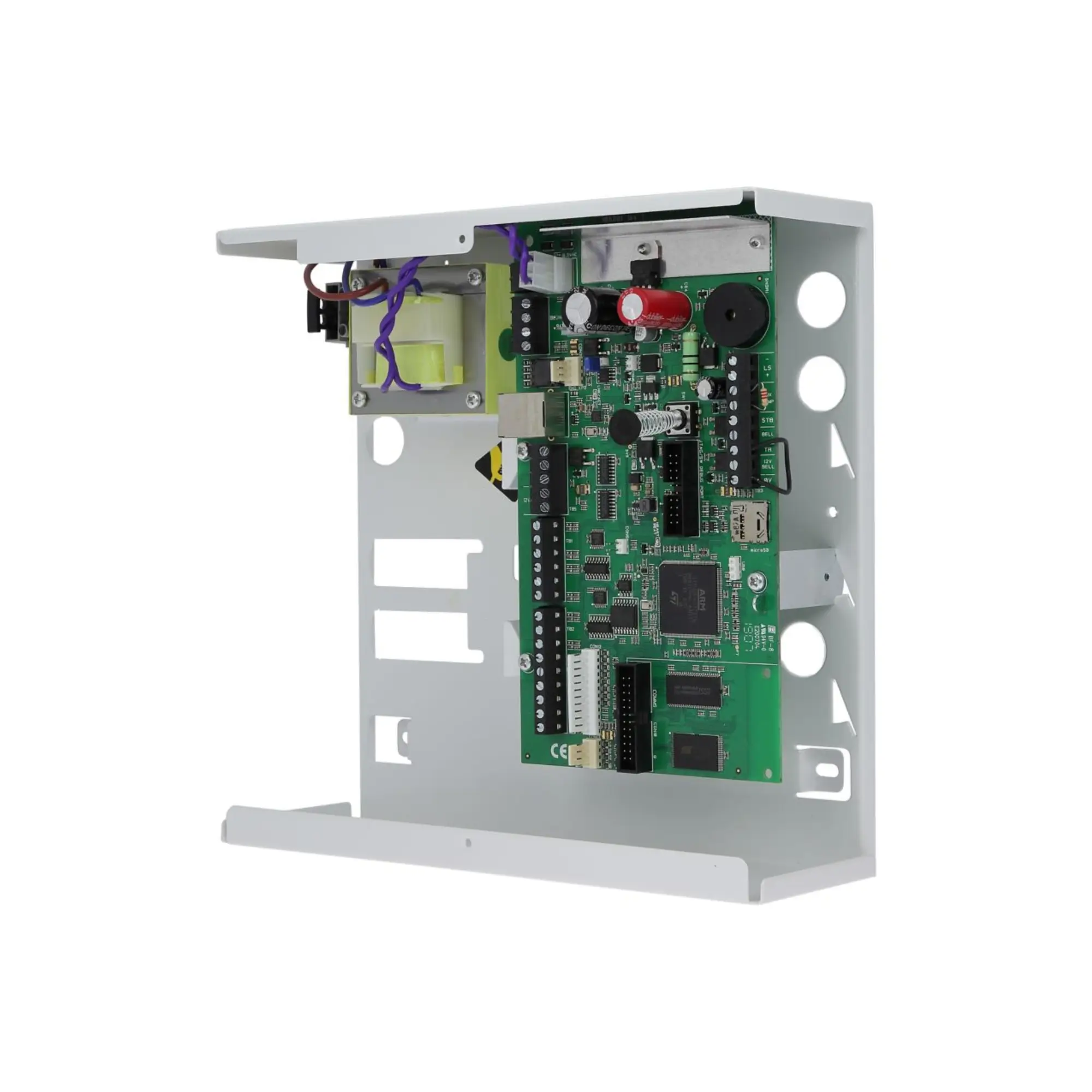

• Expandable Hybrid Architecture: The Scantronic PAN-100WE-KPZ features 10 fully supervised loop (FSL) zones on board, expandable up to 100 zones using wired or wireless expanders, providing a scalable solution for growing security needs.
• SecureConnect™ Enabled: Built-in Ethernet port allows for immediate connection to the Eaton SecureConnect™ cloud for smart management and app control without additional hardware.

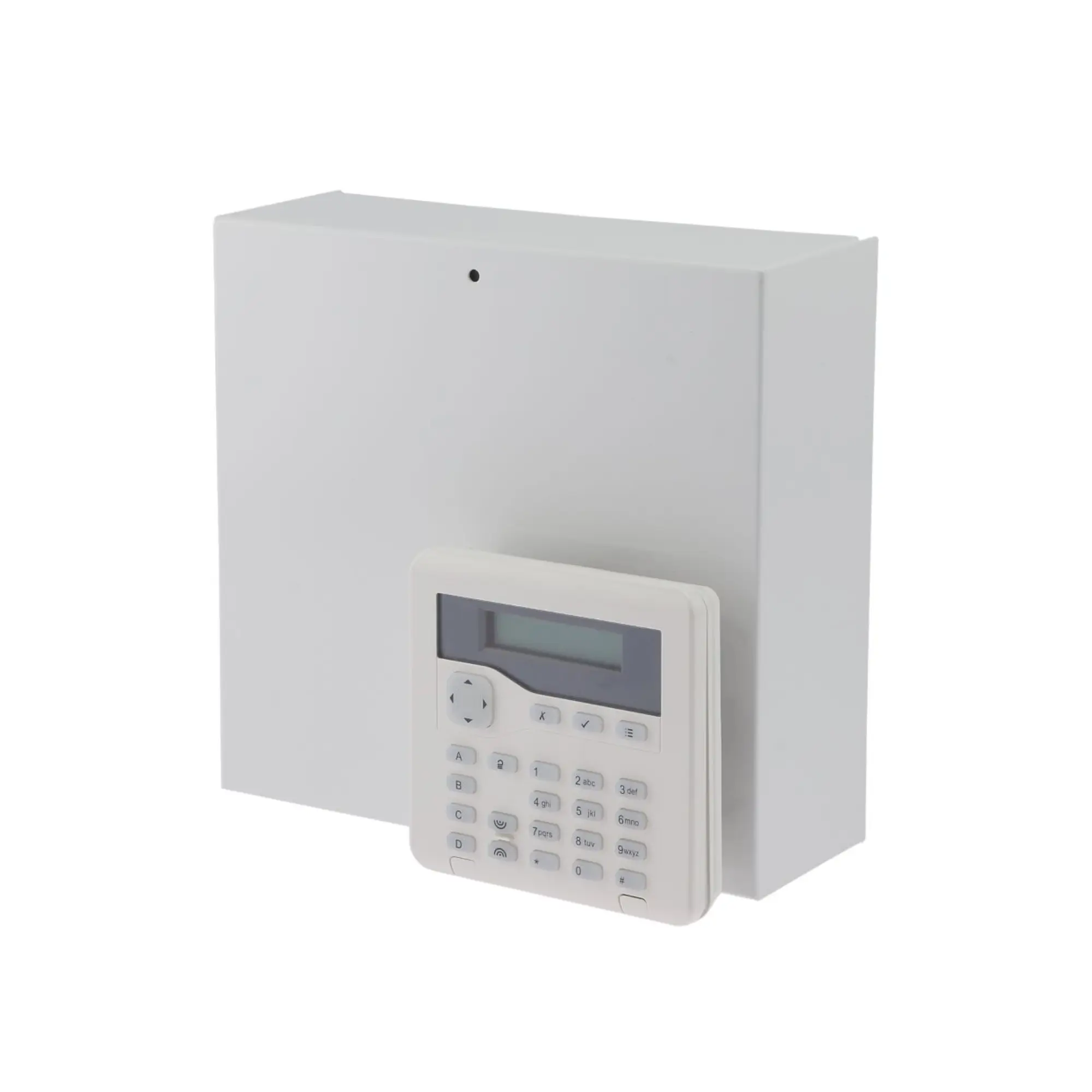

• Included Prox Keypad: Ships with the KEY-KPZ wired keypad, which includes a proximity reader for easy setting/unsetting and two on-board zones for convenient wiring.
• High User Capacity: Supports up to 100 users (verified via datasheet), making it suitable for businesses with multiple staff members.
• Installer-Friendly Tools: The Scantronic PAN-100WE-KPZ includes audible bus device locating to quickly find devices and decimal expansion for straightforward zone identification.
• Flexible Communication: Comes with on-board Ethernet, with optional plug-on modules available for 4G, Wi-Fi, GSM, or PSTN connectivity.
• Semi-Auto Addressing: Prevents address duplication for bus-mounted devices, significantly reducing installation and diagnostic time.

Technical Specifications:

• Product Name: Eaton Scantronic PAN-100WE-KPZ.
• Security Grade: EN 50131 Grade 2.
• Zone Capacity: 10 on-board, expandable to 100.
• Users: 100.
• Log Events: 1500 event log.
• Partitions: 5 independent partitions.
• Power Supply: 1A.
• Battery Capacity: Supports 1 x 7Ah battery.
• Connection: Hybrid (Wired and Wireless).

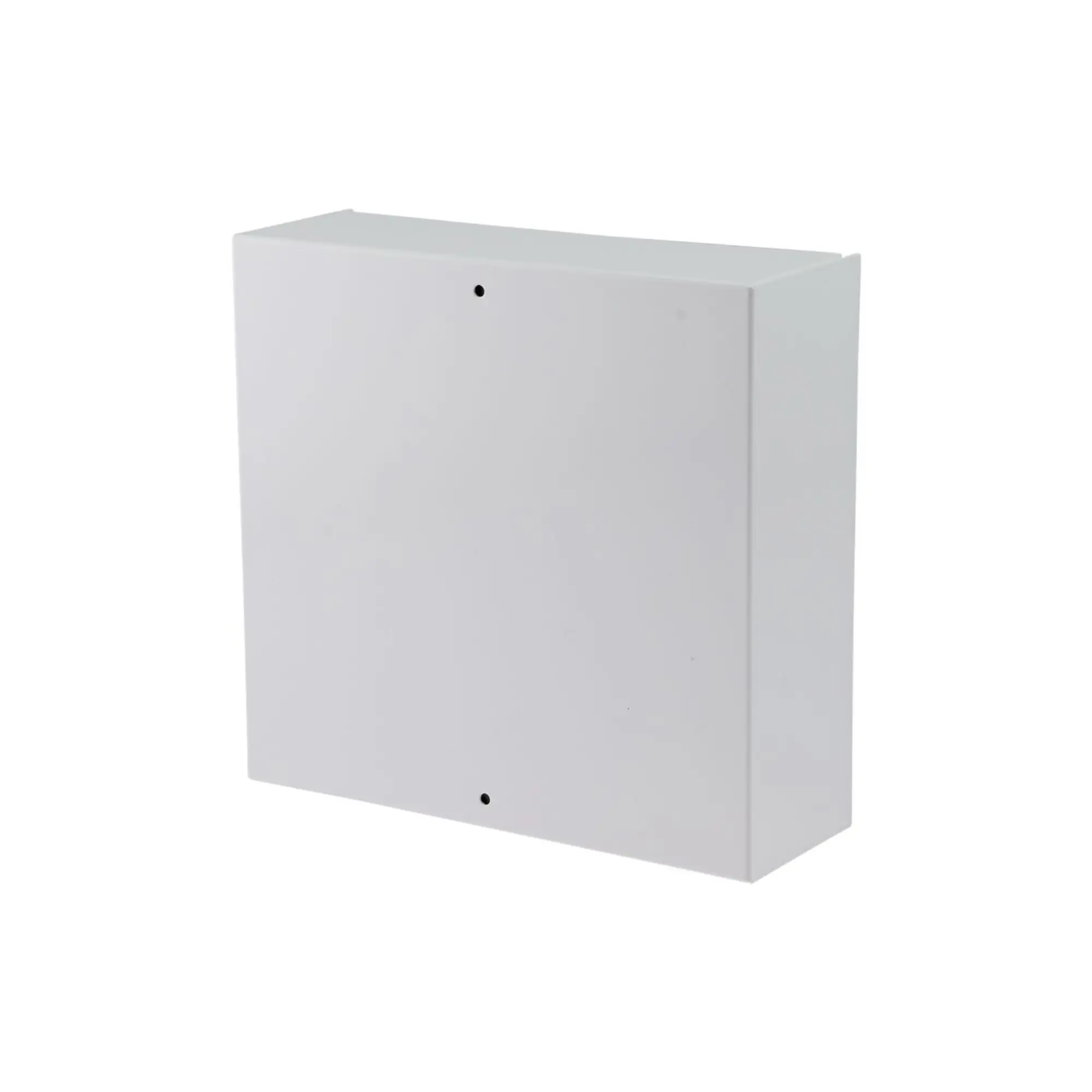

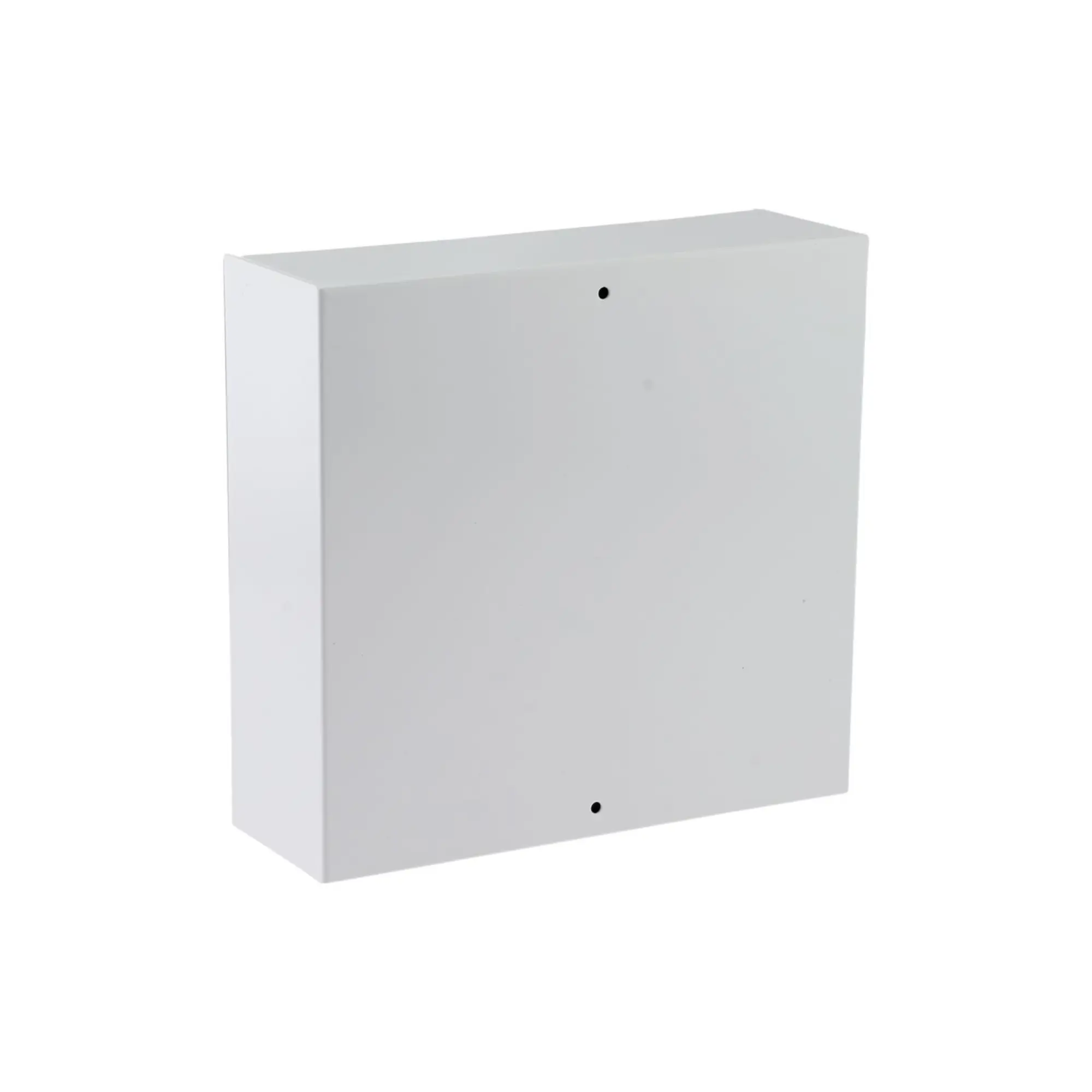

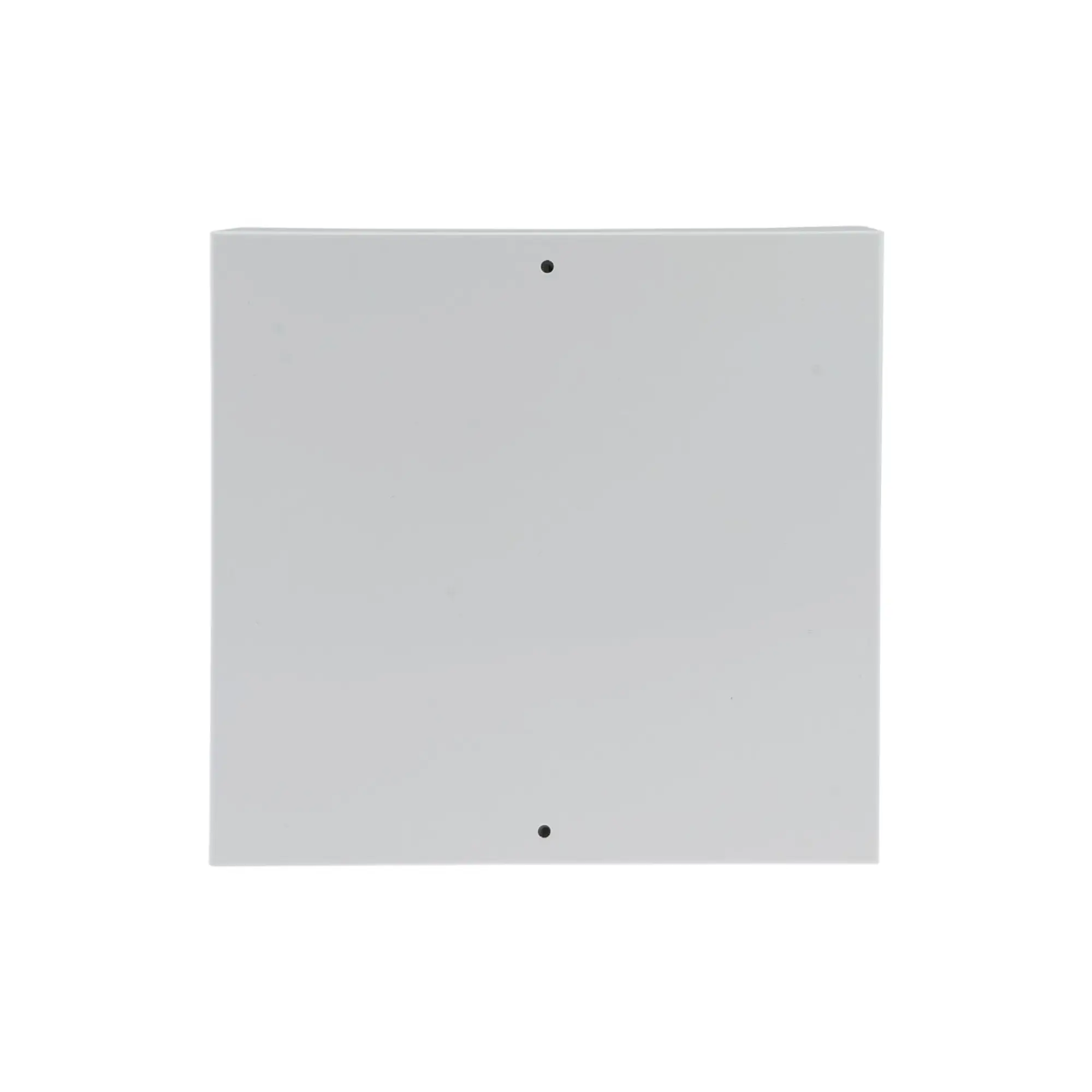

• Dimensions (H x W x D): 239 mm x 250 mm x 90 mm.
• Weight: 2.8 kg (panel without battery).
• Outputs: 100 system outputs plus 12 communicator outputs.
• See Data Sheet

Benefits of a 100-Zone Expandable Hybrid Intrusion System:

• Scalable Security: The ability to start with 10 zones and expand to 100 allows the system to grow with the premises, protecting the initial investment.
• Smart Management: End-users can monitor and control their alarm system remotely via the SecureConnect App, adding value and convenience.
• Efficient Installation: Features like audible bus location and semi-auto addressing save installers time and effort on site.
• Hybrid Flexibility: Compatible with Eaton’s full range of radio peripherals, allowing installers to utilise wireless sensors in hard-to-wire locations.
• Reliable Performance: Built with cyber security in its DNA and approved to the latest industry standards.

Ideal Applications:

• Small to Medium Commercial Buildings: Offices, retail stores, and warehouses requiring up to 100 zones of protection.
• Large Residential Properties: Homes that require a mix of wired and wireless sensors to cover detached garages or outbuildings.
• Installations Requiring Remote Access: Sites where owners or facility managers need to manage security remotely via a smartphone or web browser.
