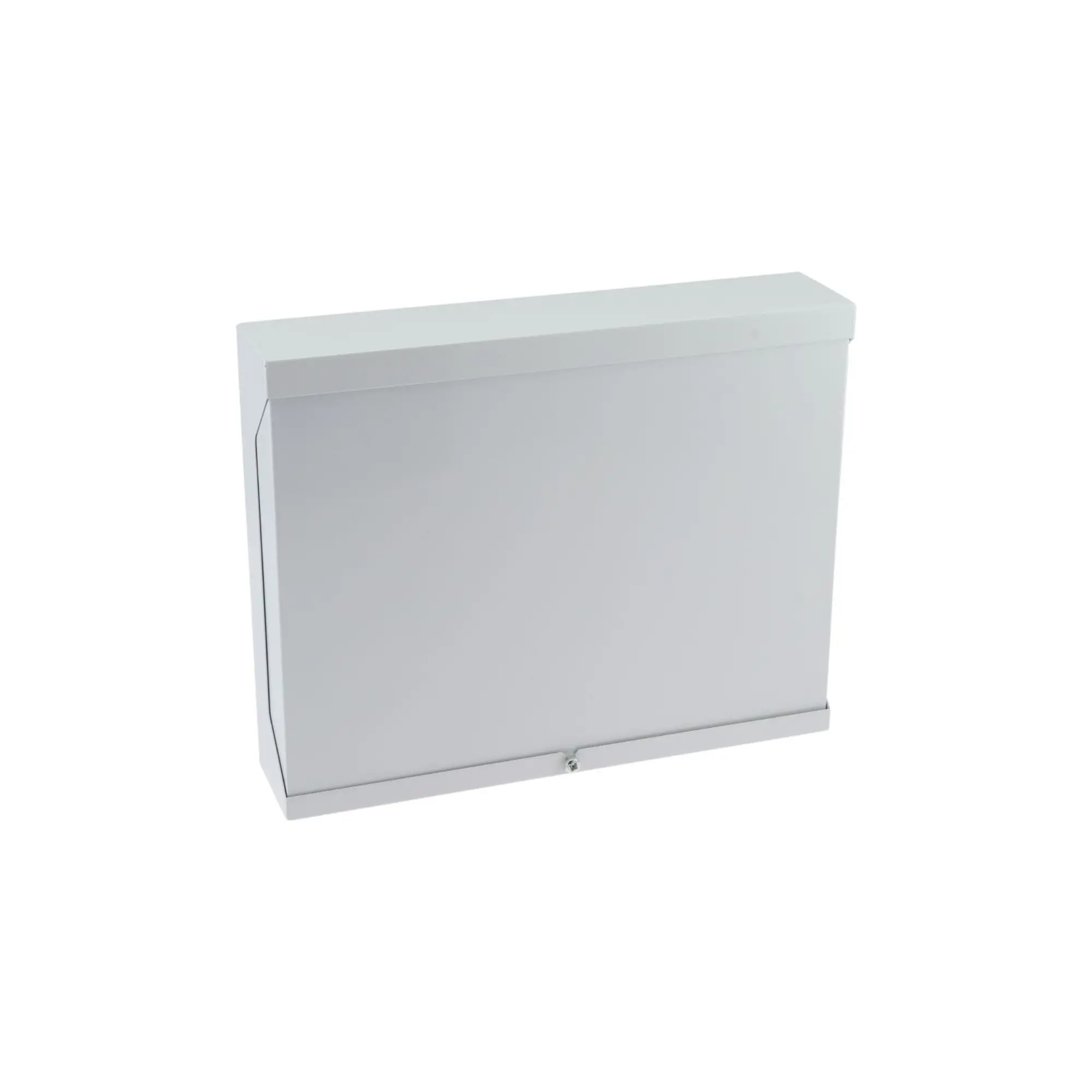

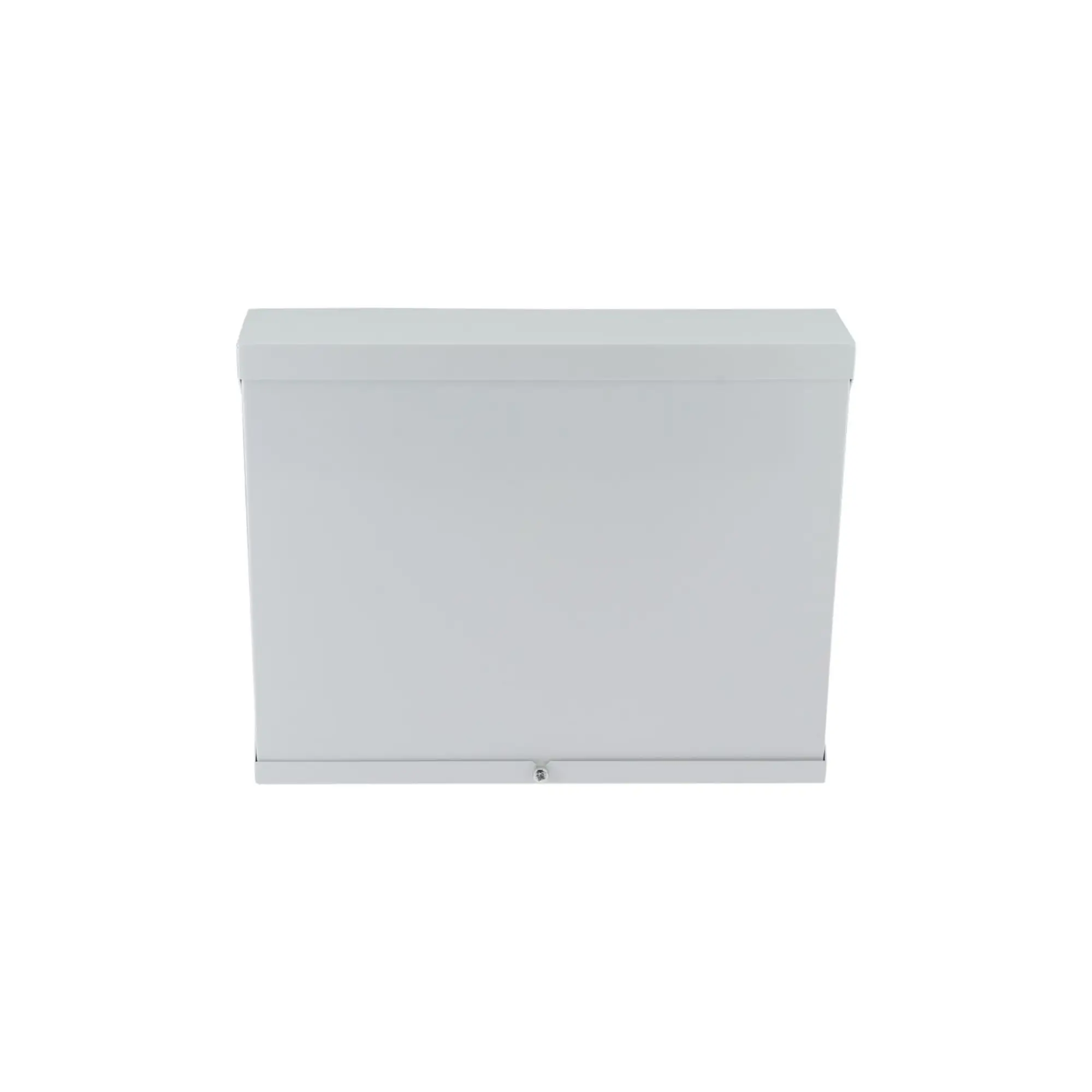

Scantronic PAN-200WE-KPZ: 200 Zone Hybrid Control Panel with Proximity Key pad (Grade 2 or 3)

Full Description

Flexible Grade 2 or Grade 3 Hybrid Security for Mid-Sized Installations

The Scantronic PAN-200WE-KPZ is a powerful 200 zone hybrid control panel designed to secure mid-sized commercial installations and large residential properties. This versatile panel offers the flexibility of Grade 2 or Grade 3 compliance across two performance buses, making it suitable for higher security requirements. Starting with 10 wired zones on board, the system is fully expandable up to 200 zones using a combination of wired and wireless expanders. The panel is Eaton SecureConnect enabled out of the box, featuring a built-in Ethernet port for smart security management and remote control via a web browser or app.

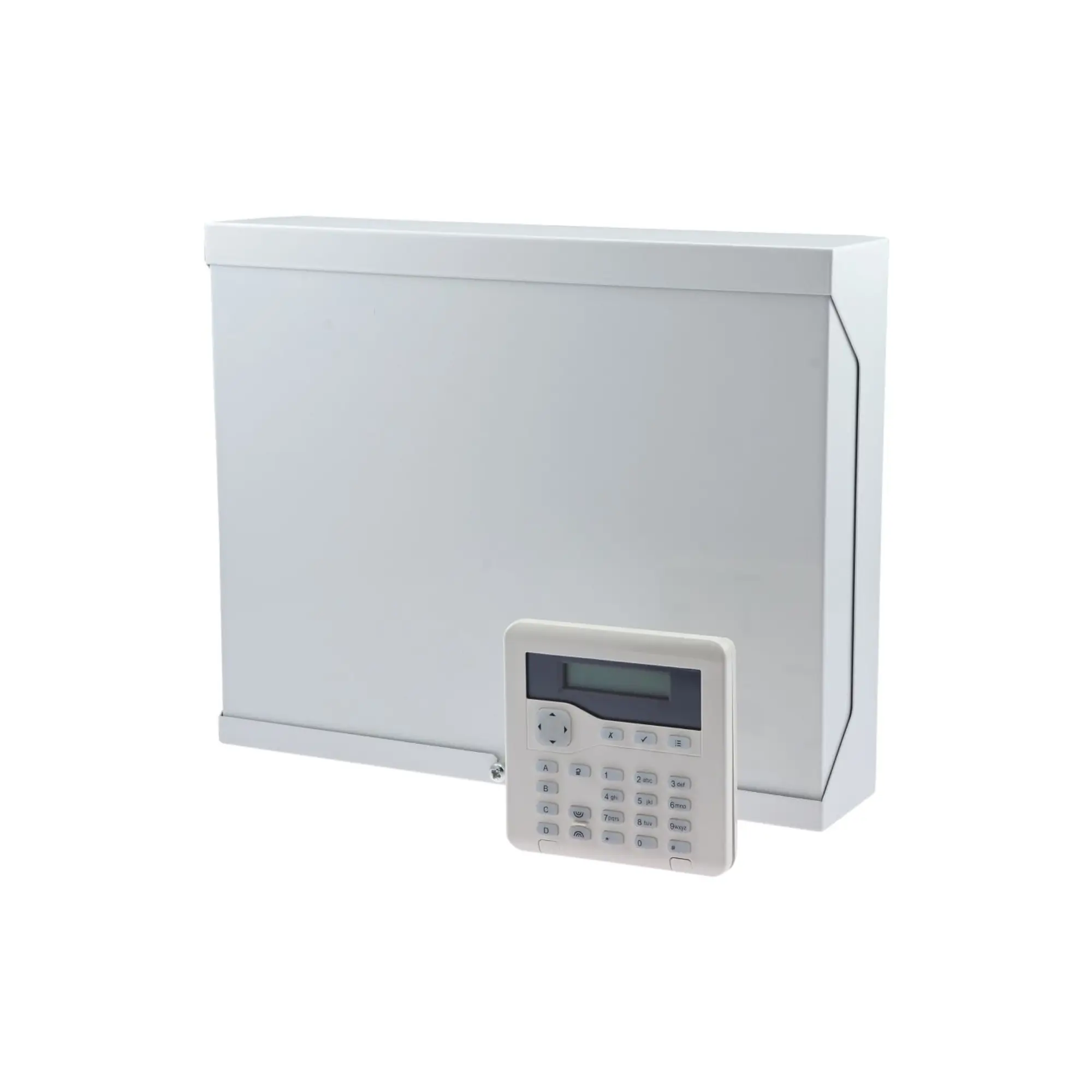

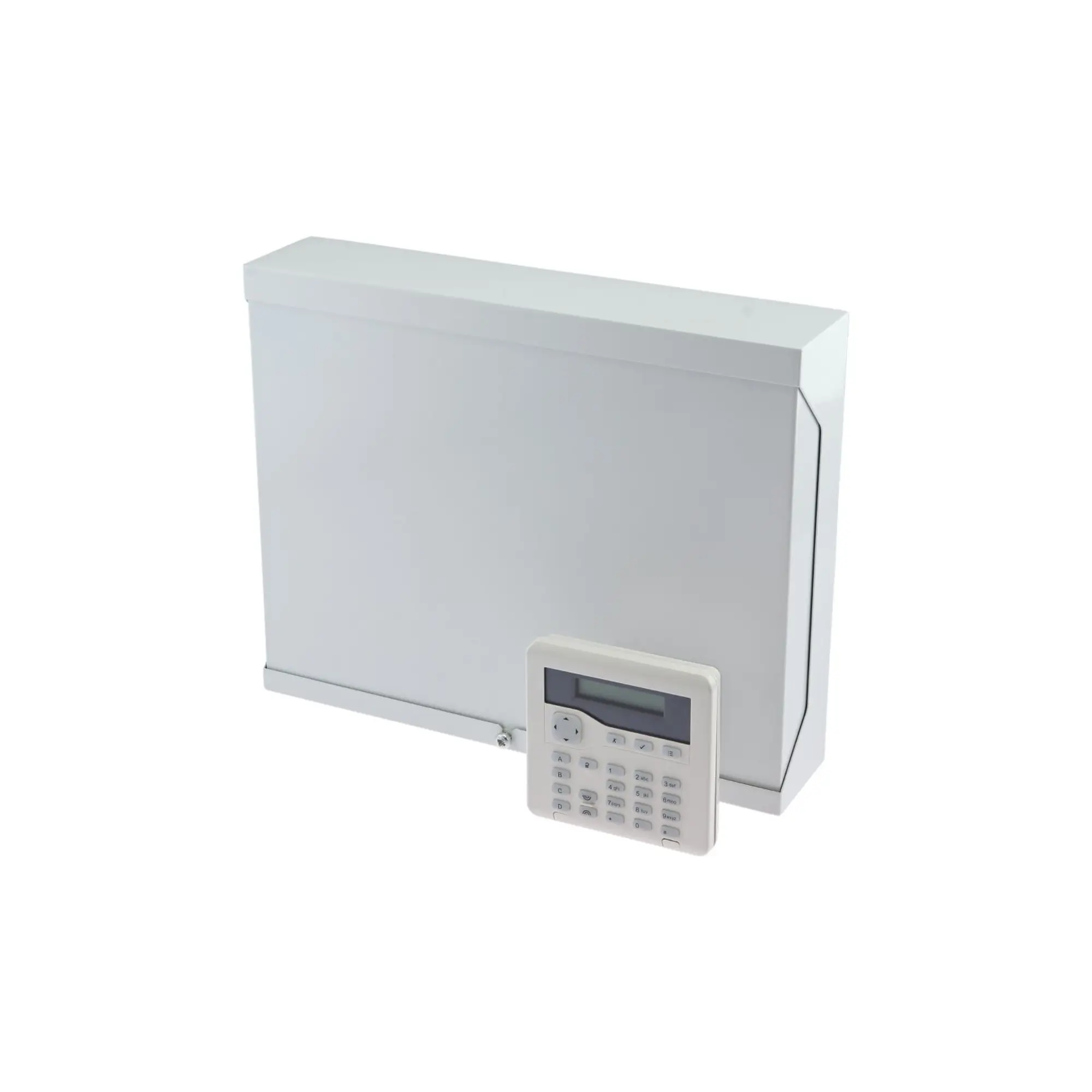

Supplied with the KEY-KPZ wired keypad, which features a built-in proximity reader and two additional zone inputs, the PAN-200WE-KPZ ensures a quick and user-friendly installation.

Key Features op The PAN-200WE-KPZ:

• High Capacity Expansion: The Scantronic PAN-200WE-KPZ starts with 10 on-board wired zones and expands up to 200 zones using wired or wireless expanders.
• Grade 3 Compliant: Capable of meeting EN 50131 Grade 3 standards (or Grade 2) on two buses, providing high-level security for commercial premises.
• Hybrid Technology: Supports both wired and wireless peripherals, offering backward compatibility with Eaton’s full range of radio devices.
• SecureConnect Enabled: Built-in Ethernet port allows for immediate connection to the cloud for remote monitoring, configuration, and app control.
• Included Prox Keypad: Comes with a wired keypad (KEY-KPZ) featuring a proximity reader for easy setting/un-setting and two programmable zones.
• Large User Capacity: Supports up to 200 users, each able to use a PIN, proximity tag, or key fob.
• Comprehensive Event Logging: Stores up to 3000 log events for detailed audit trails.
• Flexibus Technology: Simplify installation with flexible bus addressing, allowing devices to be connected without strict bus allocation.
• Audible Device Location: Features audible bus device locating to quickly identify and find devices during installation or maintenance.

Technical Specifications

• Product Name: Eaton Scantronic Wired expandable control panel (PAN-200WE-KPZ).
• Security Grade: EN 50131 Grade 2 or Grade 3.
• Zone Capacity: 10 on-board, expandable to 200.
• Users: 200.
• Log Events: 3000.
• Buses: 2 performance buses.
• Bus Devices: Supports up to 20 bus devices.
• Wired Keypads: Supports up to 20 wired keypads.
• Outputs: 4 on-board (Panel), 16 Plug-by, 20 Custom.
• Power Supply: 2.0A.
• Battery Support: 1 x Max 17Ah.
• Dimensions (H x W x D): 320 mm x 402 mm x 100 mm.
• Weight: 4.72 kg.
• Communications: On-board Ethernet; Optional Plug-on GSM, PSTN, 4G, WiFi.
• See Full Data Sheet

Benefits

• Scalable Security: The Scantronic PAN-200WE-KPZ expands from a base 10-zone system to a comprehensive 200-zone solution, ideal for growing businesses.
• Enhanced Security Levels: Grade 3 capability makes it suitable for high-risk commercial environments like warehouses and banks.
• Remote Management: SecureConnect allows installers to configure the system remotely and users to control it via an app, reducing site visits and enhancing convenience.
• Flexible Installation: Hybrid nature allows the use of wireless sensors in hard-to-wire areas while maintaining a robust wired backbone.
• Efficient Servicing: Diagnostic tools like audible bus locating and decimal expansion streamline maintenance and troubleshooting.

Ideal Applications

• Mid-Sized Commercial Buildings: Office blocks, retail complexes, and warehouses requiring Grade 3 security.
• Large Residential Properties: High-value homes needing extensive coverage and remote monitoring capabilities.
• Installations with Mixed Requirements: Sites needing a combination of wired reliability and wireless flexibility.
• Managed Security Services: Ideal for installers offering remote maintenance and monitoring services via the cloud.
