Scantronic PAN-80HE-KPZ: 80 Zone Hybrid Intrusion Panel and KPZ Keypad
The Scantronic PAN-80HE-KPZ is a powerful and versatile hybrid intrusion control panel supplied complete with a KPZ keypad. Designed for scalable security, this system provides a robust Grade 2 solution for medium to large residential properties and commercial installations. It leverages a combination of 40 zones out-of-the-box (expandable to 80) and features built-in Ethernet connectivity, enabling seamless integration with the Eaton SecureConnect cloud for smart security management and remote servicing.
Technical Specifications
- Product Type: Hybrid (Wired and Wireless) Intrusion Control Panel.
- Security Grade: EN 50131 Grade 2.
- Total Zones (Max): 80.
- Out-of-the-Box Zones: 40 (30 Radio, 10 Wired).
- Users: 80.
- Bus Devices/Wired Keypads (Max): 20.
- Log Events: 1000.
- Communication: On Board Ethernet; supports plug-on 4G/Wi-Fi/4G+Wi-Fi modules.
- Power Supply: 1A (supports max 7Ah back-up battery).
- Panel Dimensions: 430mm (H) x 250mm (W) x 100mm (D).
- Panel Outputs: 3 On-Board, 12 Plug-By, 4 Custom.
Full Description
Flexible Grade 2 Hybrid Security with Integrated Cloud Connectivity

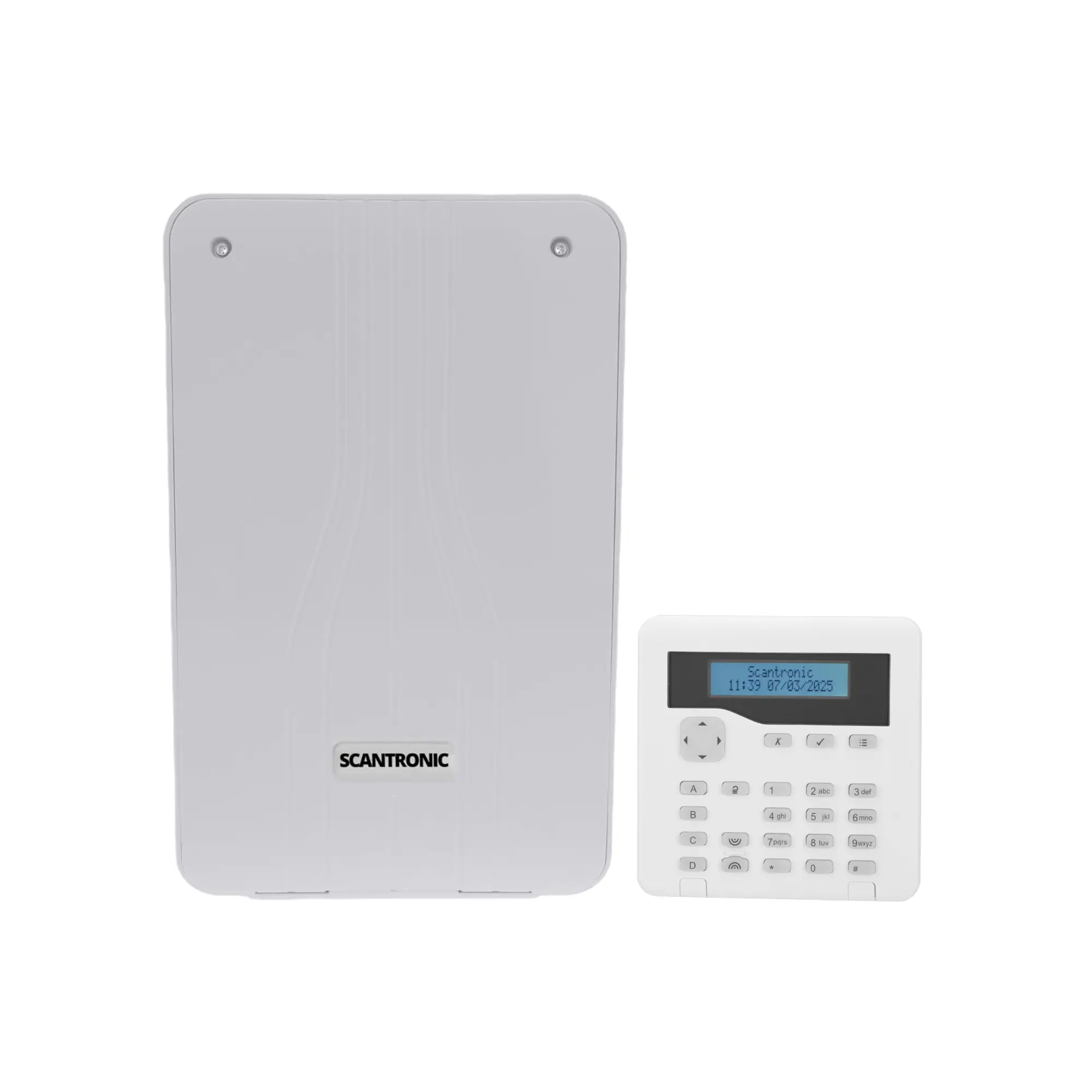

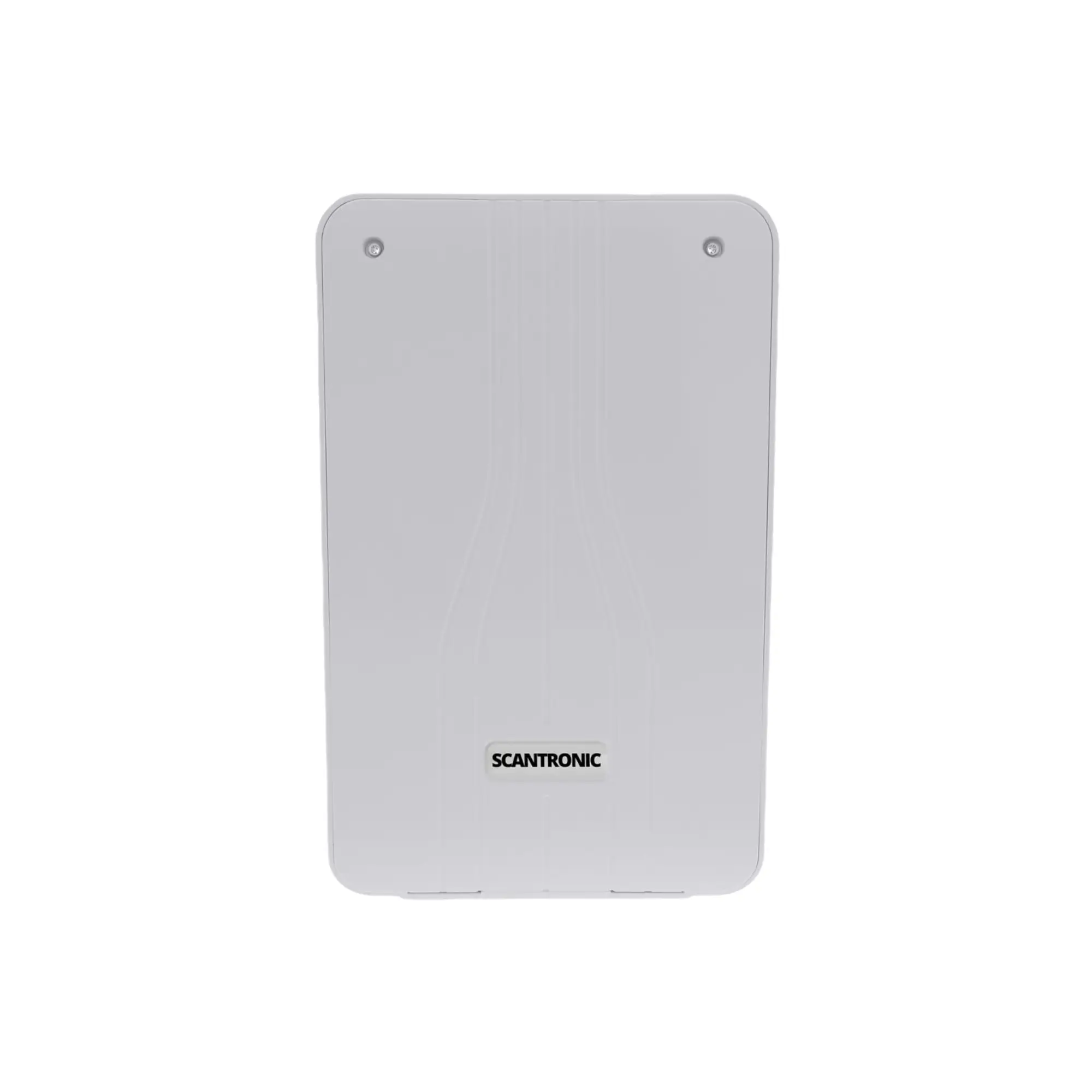

The Scantronic PAN-80HE-KPZ is a powerful and flexible single-unit solution that combines the Scantronic 80HE hybrid control panel with a wired KPZ Keypad. Designed to serve as the control center for intruder alarm systems, this panel is ideal for houses and small-to-medium-sized commercial installations. It is supplied ready for immediate installation with an initial capacity of 40 zones (30 radio and 10 wired) and is fully expandable up to 80 zones using both wired and wireless expanders.

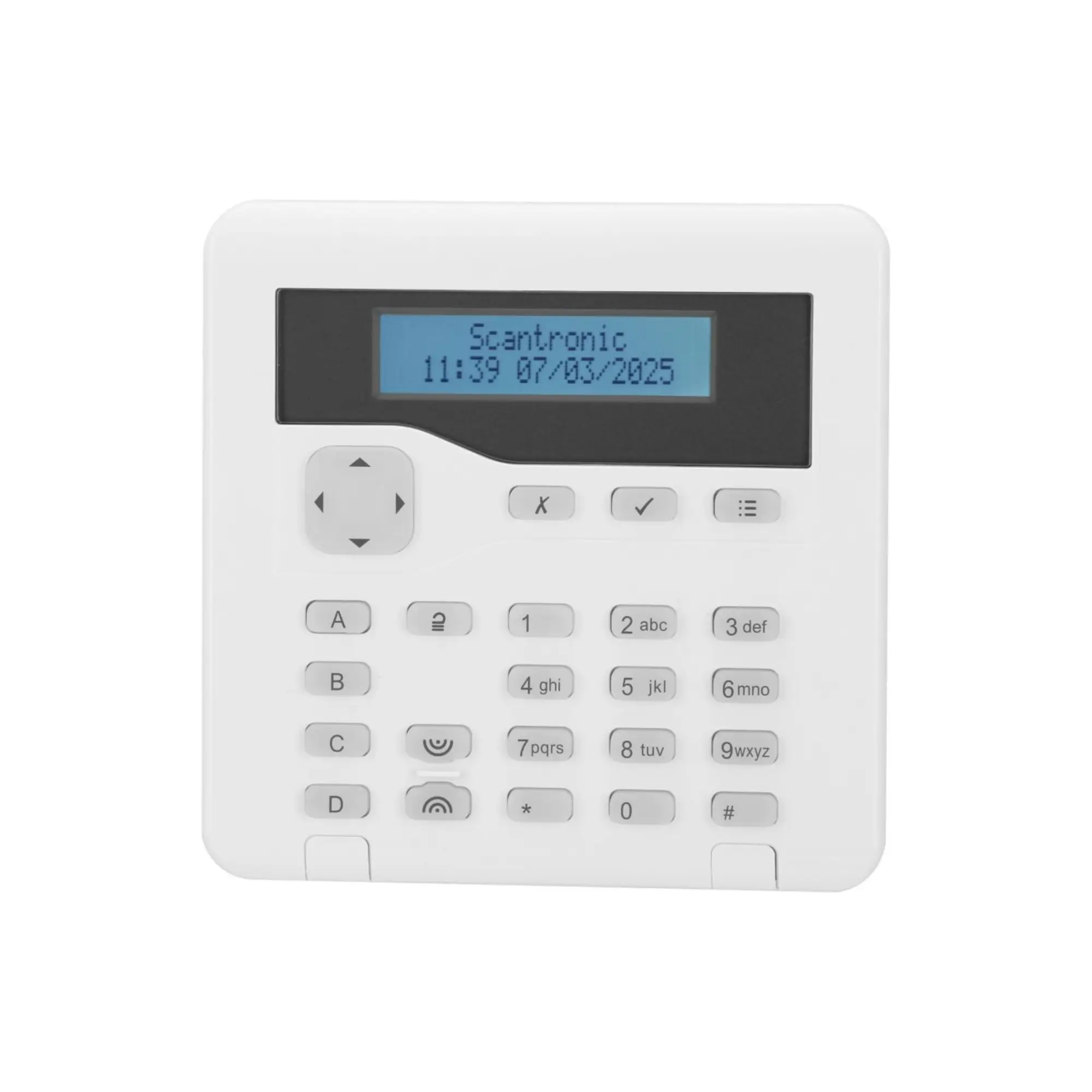

Notably, the PAN-80HE-KPZ is built for modern connectivity, featuring an on-board Ethernet port for direct connection to the Eaton SecureConnect smart security cloud. This Grade 2 system offers robust security, hybrid connection versatility, and high user capacity, making it a reliable and scalable foundation for any professional security installation. The included KPZ Keypad is a surface-mounted, wired unit that includes a built-in proximity tag reader and two zones for connecting additional detectors.
Key Features Of The PAN-80HE-KPZ:
- Hybrid Zone Capacity: The Scantronic PAN-80HE-KPZ comes out of the box with 40 zones (30 wireless and 10 wired) and is fully expandable up to 80 zones using wired and wireless expanders.
- KPZ Keypad Included: Supplied with a keypad that includes a proximity tag reader for easy setting/unsetting and two additional hardwired zones for added flexibility.
- Smart Cloud Connectivity: Features built-in Ethernet and is Eaton SecureConnect enabled, allowing for connection to the smart security cloud for remote control and app integration.
- High User Capacity: Supports up to 80 users, making it suitable for larger premises with multiple staff or family members.
- Comprehensive Sounder Support: Capable of managing 4 radio internal, 4 radio external, 1 wired internal, and 1 wired external sounders.
- Flexible Communications: On-board Ethernet is standard, with plug-on options available for 4G, WiFi, and 4G+WiFi modules.
- Event Logging: The Scantronic PAN-80HE-KPZ stores up to 1000 log events, providing a detailed history of system activity.
- Bus Expansion: Supports up to 20 bus devices and 20 wired keypads.
Technical Specifications:
- Product Name: Eaton Scantronic 80HE control panel
- Catalogue Number: PAN-80HE-KPZ
- Security Grade: EN 50131 Grade 2
- Zone Capacity: 80 Total (30 Radio / 10 Wired out of the box)
- Users: 80
- Keypads: Supports up to 20 wired keypads
- Outputs: 3 On-board (Panel), 12 Plug-by, 4 Custom
- Power Supply: 1A
- Back-up Battery: 1 (Max size 7Ah)
- Dimensions (H x W x D): 430 mm x 250 mm x 100 mm
- Weight: 2.17 kg
- Certifications: CE
- Communications: On-Board Ethernet (Plug-on 4G/WiFi optional)
- See Data Sheet
Benefits:
- Future-Proof Scalability: The Scantronic PAN-80HE-KPZ has the ability to expand from 40 to 80 zones ensures the system can grow alongside the changing security needs of the property.
- Hybrid Flexibility: Seamlessly integrates wired sensors for new builds or wireless peripherals for retrofits, offering the best of both worlds.
- Remote Management: SecureConnect enablement allows installers and users to manage the system remotely via a web browser or app, reducing site visits.
- Enhanced Convenience: The included keypad with proximity reader allows for quick access without remembering PIN codes, while the built-in zones on the keypad simplify wiring near entry points.
- Easy Integration: Backwards and forwards compatible with Eaton’s full range of radio peripherals.
Ideal Applications:
- Mid-to-Large Residential Properties: Where a mix of wired and wireless sensors is required to cover all areas.
- Small-to-Medium Commercial Premises: Retail shops, offices, and warehouses needing up to 80 zones and user management for staff.
- Installations Requiring Remote Access: Sites where owners or facility managers need to monitor and control the alarm system via a smartphone or web browser.
- System Upgrades: ideal for replacing older panels while retaining existing wired sensors and adding new wireless capabilities.
Product Specifications
| Weight | 2170 g |
|---|---|
| Dimensions | 430 × 250 × 100 mm |
| Brand | Eaton, Scantronic |
| Device Type | Panel |
| Grading and Compliance | Grade 2 |
| Connection Type | Wired, Hybrid |
| Kit | Yes |
| SKU | EAT-PAN-80HE-KPZ |
