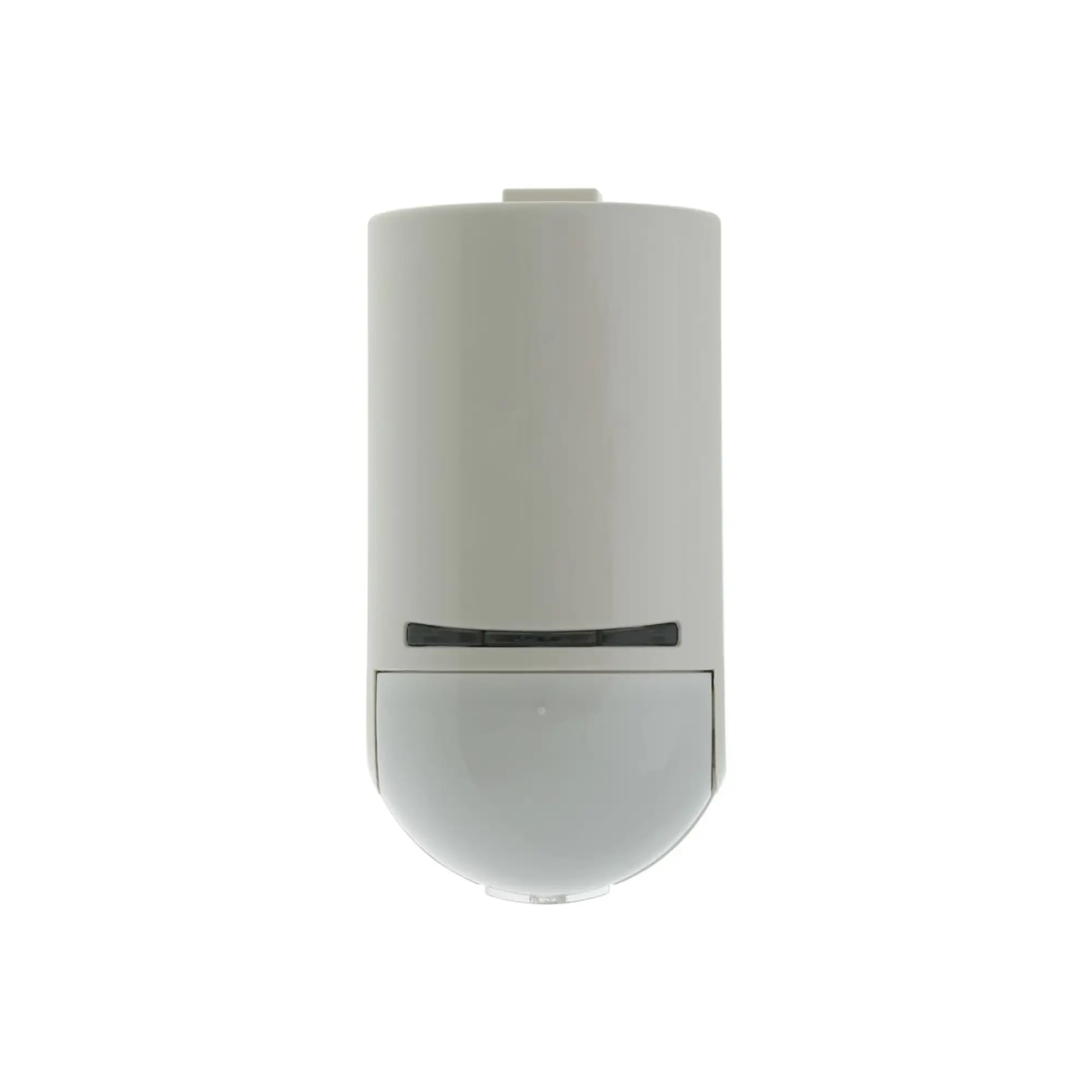

Scantronic XCELWPT: Wired Passive Infrared Motion Detector – Grade 2

Full Description

Reliable Grade 2 Motion Detection with Pet Immunity for Hybrid Installations

The Scantronic XCELWPT is a high-performance wired pet tolerant Passive Infrared (PIR) motion detector designed for use in residential and commercial security systems. Part of the XCEL series, it shares a common housing design with its wireless counterparts, ensuring a uniform and aesthetically pleasing appearance throughout hybrid installations. Engineered for reliability, the detector features a specially designed spherical lens and a dual-element sensor, providing consistent coverage across a 9-meter range while ignoring pets up to 25kg.

Key Features Of The Scantronic XCELWPT

• Pet Tolerance: Intelligently designed to tolerate pets up to 25kg, significantly reducing the risk of false alarms caused by domestic animals.
• Consistent Coverage: The XCELWPT utilises a spherical lens and a dual-element sensor with five layers of beams to deliver superior detection performance and improved consistency.
• Grade 2 Security: Independently certified to EN 50131 Grade 2 and Environmental Class II, making it suitable for professional security installations.
• Uniform Design: Shares the same housing case as the wireless XCELR and XCELRPT models, allowing for a consistent look across mixed wired and wireless systems.
• Tamper Protection: Includes built-in tamper protection and cover monitoring to alert the system of any unauthorised interference.
• Precise Detection Area: Provides a detection coverage of 9 meters by 90°, optimised for pet-tolerant applications.

Technical Specifications

• Product Name: Eaton motion sensor (XCELWPT)
• Security Grade: EN 50131 Grade 2
• Environmental Class: Class II / IP40
• Detection Range: 9 meters
• Detection Angle: 90°
• Pet Tolerance: Up to 25kg
• Sensor Type: Passive Infrared (Dual Element)
• Current Consumption: 10mA (normal), 15mA (max)
• Mounting Method: Surface
• Dimensions (H x W x D):: 120 mm x 55 mm x 55 mm
• Weight: 0.1 kg (approx. 150g per some datasheets)
• Operating Temperature: -10°C to +55°C
• Connection: Wired
• See Data Sheet

Benefits

• False Alarm Reduction: The 25kg pet tolerance ensures that pets can roam freely without triggering the alarm, enhancing user convenience and reducing nuisance calls.
• Aesthetic Consistency: Ideal for properties requiring both wired and wireless sensors, as the identical design maintains a clean, professional look throughout the building.
• Enhanced Security: The advanced spherical lens and dual-element sensor technology respond quickly to human movement while maintaining stability against environmental factors.
• Easy Installation: Designed for simple surface mounting with a dedicated wired connection.

Ideal Applications

• Residential Homes with Pets: Perfect for family homes where dogs or cats are present.
• Hybrid Security Systems: Installations that mix wired sensors (in pre-wired areas) with wireless sensors in extensions or hard-to-reach spots.
• Small Commercial Premises: Suitable for offices and shops requiring Grade 2 compliant security.
• Renovations: Upgrading existing wired systems with modern, pet-friendly detection technology.
