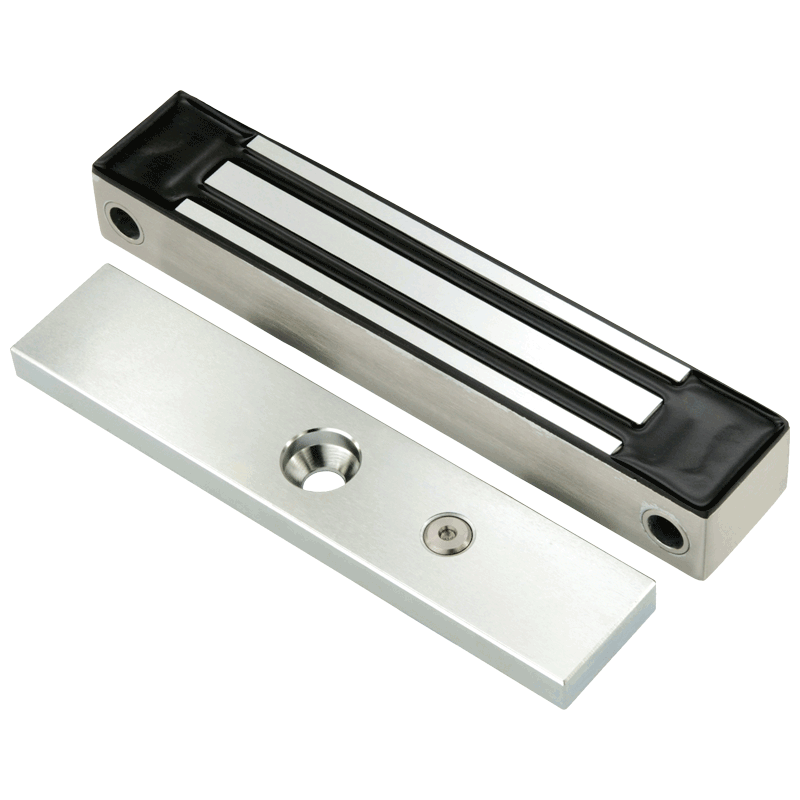

Stainless-Steel Micro Maglock – Up To 300Lb (136Kg) Holding Force

Stainless-Steel construction, weather resistant to IP65, 12 VDC operation – pigtail connection.

Full Description

  • Weatherproof to IP65
  • Voltage: 12VDC ?15%
  • Current: 300mA @ 12VDC (at temperature 20?C)
  • Operating Temperature: -10?C to 55?C (14 to 131?F)
  • Humidity: 0% to 95% non-condensing
  • Typical surface temperature when powered: current temperature 20?C
  • Holding Force: Up to 136kg (300 Lbs)
  • Dimensions:
    • Magnet: 170mm (L) x 32mm (W) x 24mm (D)
    • Armature Plate:?152mm (L) x 32mm (W) x 10mm (D)
  • Stainless Steel housing
  • Approximate nominal weight: 1.5kg
  • Unique Anti-Residual design:? push-off button to overcome residual magnetism and release the armature smoothly

Product Specifications

Weight 1500 g
Dimensions 170 × 32 × 24 mm
Colours

Stainless Steel

Connection type

Pigtail / cable connection

Construction

Stainless Steel

Mounting

Surface Mount

Operating Temperature

-10°C to 55°C

Power Requirement

12 VDC, 300 mA

Technology

Electromagnet

SKU SR1-MAG-300ST
