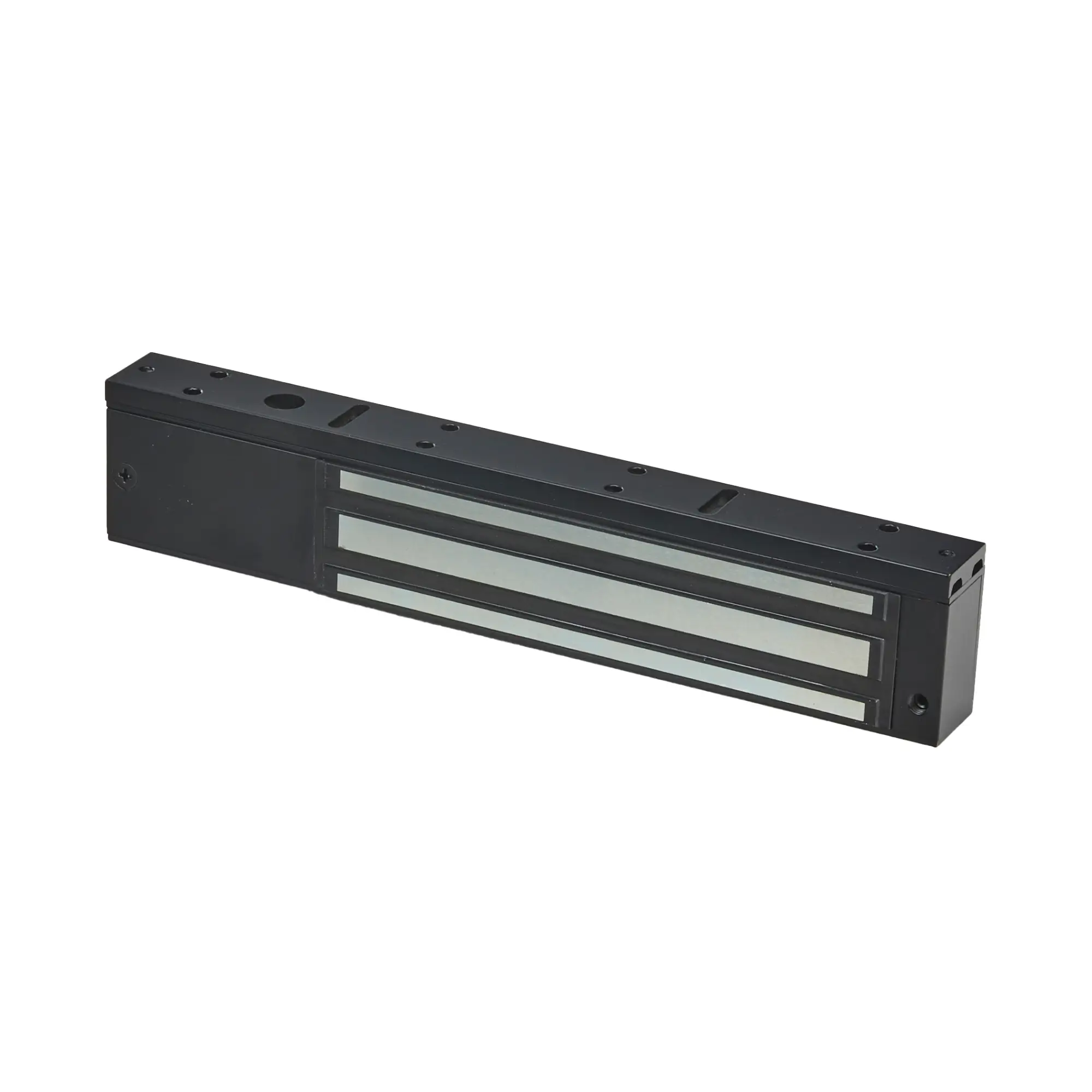

STEALTH01 Series: Unmonitored Slim Mag Locks with Optional Door Status

Full Description

Compact & Reliable Unmonitored Slim Mag Locks with 600lb Holding Force

The STEALTH01 Series offers a range of high-quality unmonitored slim mag locks from Stealth Locking, providing a robust and discreet solution for single-door access control. With a dependable 600lb (275kg) holding force and a slim, compact design, these maglocks are perfect for a variety of indoor applications. The series is available in two versions: the standard STEALTH01 and the STEALTH01DS, which includes an additional door status monitoring feature, offering enhanced functionality. Both models feature a sleek Stealth black finish and are fire rated for safety compliance.

Product Variations:

• STEALTH01: A Stealth Black Slim unmonitored maglock that provides a basic, secure locking mechanism without electronic status feedback.
• STEALTH01DS: A Stealth Black Slim unmonitored maglock with door status, which includes a built-in reed switch to monitor the door’s open/closed position.

Key Features Of The STEALTH01 and STEALTH01DS:

• Powerful Holding Force: Delivers a robust holding force of up to 275kg (600lb), ensuring secure and reliable locking.
• Slim & Compact Design: The maglock’s small footprint makes it ideal for discreet installation and use on a wide range of door types.
• Stealth Black Finish: The modern black finish provides a professional and unobtrusive look that blends seamlessly with contemporary interiors.
• Dual Voltage: Compatible with both 12Vdc and 24Vdc power supplies, offering installation flexibility.
• Fail-Safe Operation: The lock automatically disengages during a power failure, ensuring safe and compliant egress.
• Anti-Residual Magnetism Protection: A built-in feature that ensures the door opens smoothly and without resistance when the power is disengaged.
• Surge Protection (MOV): Includes a Metal Oxide Varistor (MOV) to protect the electronics from voltage spikes, enhancing the maglock’s durability.
• Fire Rated: Certified for use on fire-rated door assemblies, ensuring compliance with crucial safety regulations.
• Surface Mount: Designed for easy surface mounting, with the top-plate, armature-plate, and fixings all included.

Additional Feature (STEALTH-01DS only):

• Door Status Monitoring: The STEALTH01DS model incorporates a reed switch to provide a signal that indicates the door’s physical position (open or closed). This is a valuable feature for basic security systems or for integration with a building management system.

Technical Information (For both Mag Lock Versions):

• Holding Force: Up to 275kg (600lb)
• Current Draw: 500mA @ 12Vdc / 250mA @ 24Vdc
• Voltage Tolerance: +/- 15%
• Operating Temperature: -10°C to +55°C
• Humidity: 0-95% non-condensing
• Dimensions: 250mm x 48mm x 26mm (Mag dimension)
• Weight: Approx. 2kg
• Door Status Contact (STEALTH01DS): Reed switch
• STEALTH01 Data Sheet
• STEALTH01DS Data Sheet

Benefits:

• Reliable & Secure: The 600lb holding force provides strong, dependable locking.
• Aesthetically Pleasing: The slim profile and Stealth black finish ensure a clean and professional appearance.
• Cost-Effective: A powerful and effective solution without the added complexity of electronic lock status monitoring.
• Safety Compliant: Fire-rated certification and fail-safe operation guarantee adherence to safety standards.
• Flexible Functionality: The optional door status feature allows for simple monitoring of the door’s physical position.

Ideal Applications:

• Single doors in offices, small businesses, and residential properties.
• Securing non-critical areas like stock rooms, closets, or staff entrances.
• Any indoor location where a slim, fire-rated, and dependable maglock is required.
• The STEALTH-01DS is especially suited for installations where knowing the physical state of the door (open/closed) is important for security or building management.
