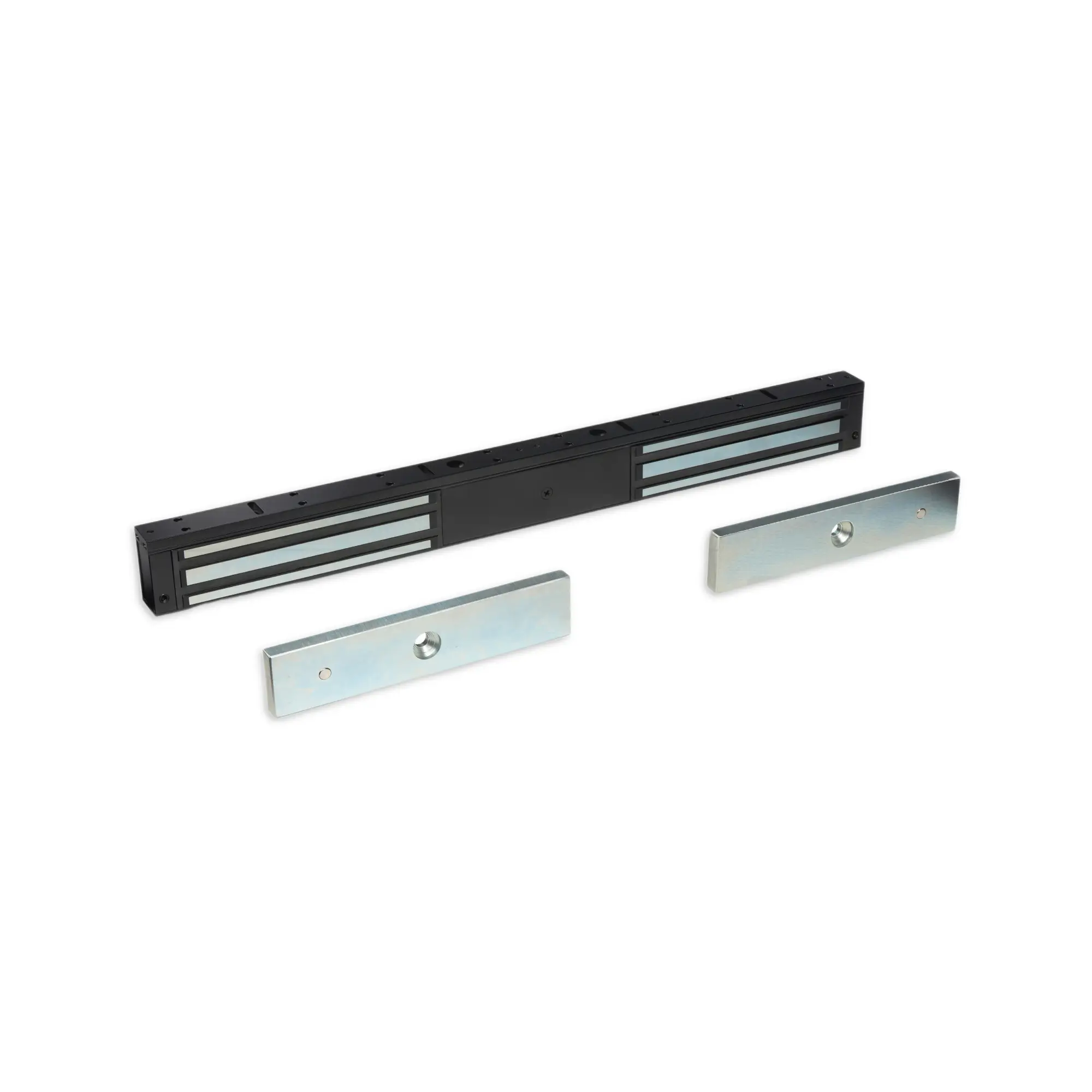

STEALTH04 Series: Slimline Unmonitored Double Mini-Maglock with Door Status (Optional)

The STEALTH04 series offers a sleek, compact, and powerful solution for securing double doors. These slimline, unmonitored mini-maglocks provide a substantial 600lb (275kg) of holding force and are ideal for a wide range of indoor applications. Finished in a modern stealth black, the series is available in two variations: the standard STEALTH 04, and the STEALTH 04DS, which includes the additional feature of door position monitoring.

Technical Information:

  • Holding Force: Up to 275kg (600lb)
  • Current Draw: 500mA @ 12Vdc / 250mA @ 24Vdc
  • Voltage Tolerance: +/- 15%
  • Operating Temperature: -10°C to +55°C
  • Humidity: 0-95% non-condensing
  • Weight: Approx. 4kg
  • Door Status Contact (STEALTH04DS only): Reed switch (one per side)

Full Description

Compact and Unobtrusive Maglocks for Double Doors

The STEALTH04 Series offers a compact and secure solution for controlling access through double doors. These slimline unmonitored double mini-maglocks from Stealth Locking are designed for indoor applications where a solid 600lb (275kg) holding force is sufficient. With a discreet Stealth black finish and a fire-rated certification, the STEALTH 04 Series provides a reliable and aesthetically pleasing locking mechanism. The series includes two models: the standard STEALTH04 and the STEALTH04DS, which offers an optional door status feature for enhanced functionality.

Product Variations:

  • STEALTH04: Slim Unmonitored Double Mini-Maglock – Fire Rated. Provides a basic, secure lock without electronic monitoring of its status.
  • STEALTH04DS: Slim Unmonitored Double Mini-Maglock with Door Status Monitoring – Fire Rated. Includes a built-in reed switch to signal the open or closed position of each door.

Key Features Of The STEALTH04 Series (both models):

  • Powerful Holding Force: Delivers up to 275kg (600lb) of holding force, providing reliable security for double doors.
  • Slim & Compact Design: The compact form factor is ideal for discreet installation in most indoor environments.
  • Stealth Black Finish: The sleek, black finish offers a professional and modern look that blends seamlessly with various door types and architectural styles.
  • Dual Voltage: Operates on both 12Vdc and 24Vdc, offering flexibility and compatibility with a wide range of power supplies.
  • Fail-Safe Operation: Designed to unlock automatically during a power failure, ensuring safe egress in accordance with fire and safety regulations.
  • Anti-Residual Magnetism: A built-in feature that prevents the lock from retaining magnetism, ensuring doors open smoothly and without resistance.
  • Surge Protection (MOV): Includes a Metal Oxide Varistor (MOV) to protect the electronics from voltage spikes and power surges, increasing the lock’s durability.
  • Fire Rated: Certified for use on fire-rated door assemblies, ensuring the installation adheres to critical safety standards.
  • Surface Mount: Easy to install with the included top-plate, armature-plates, and fixings.

Additional Feature (STEALTH04DS only):

  • Door Status Monitoring: The STEALTH 04DS model includes a reed switch for each door, providing a signal that indicates whether the door is open or closed. This feature is crucial for integration with alarm systems, building management software, or for a simple visual indication of door position.

Technical Information:

  • Holding Force: Up to 275kg (600lb)
  • Current Draw: 500mA @ 12Vdc / 250mA @ 24Vdc
  • Voltage Tolerance: +/- 15%
  • Operating Temperature: -10°C to +55°C
  • Humidity: 0-95% non-condensing
  • Weight: Approx. 4kg
  • Door Status Contact (STEALTH04DS only): Reed switch (one per side)
  • See the 04 Data Sheet and 04DS Data Sheet

Benefits Of Stealth Unmonitored Double Mini-Maglocks:

  • Efficient and Reliable: Provides a solid, dependable locking mechanism for double doors.
  • Aesthetically Pleasing: The slim profile and black finish make for an unobtrusive and professional installation.
  • Safety Assured: Fail-safe operation and fire-rated certification ensure compliance with safety standards.
  • Versatile: The dual-voltage capability and choice of door status monitoring allow for flexible integration into various systems.
  • Cost-Effective Security: Offers a powerful locking solution without the added complexity or cost of electronic lock status monitoring.

Ideal Applications:

  • Single-entry double doors in offices, small businesses, and retail environments.
  • Securing non-critical areas like supply rooms, conference rooms, or staff entrances.
  • Any indoor location where a reliable, slim, and fire-rated double maglock is required.
  • The STEALTH04DS is especially suited for installations where monitoring the physical position of each door is important for security protocols or building management systems.

Product Specifications

Brand

Stealth Locking

Lock Options

Monitored, Monitored + Door Status Sensor

Holding Force

600 Lbs x 2

Mounting

Surface Mount

Operating Temperature

-10°C to 55°C

Power Requirement

12-24 VDC

Safety Features

Fail-Safe, Fire Resistant

Form Factor

Double Maglock

Fire Rating

Fire Rated

Colours

Black

SKU STEALTH04, STEALTH04DS
