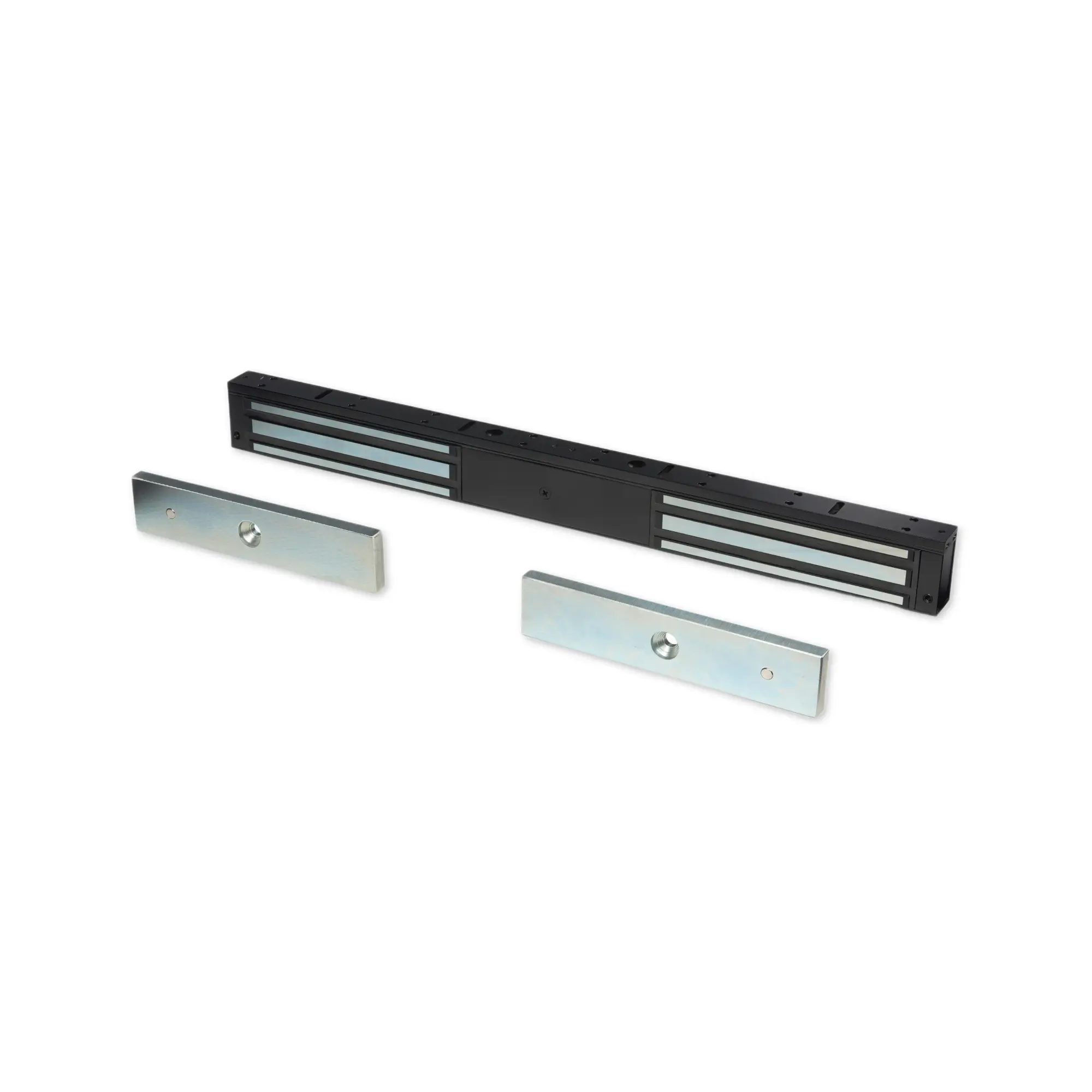

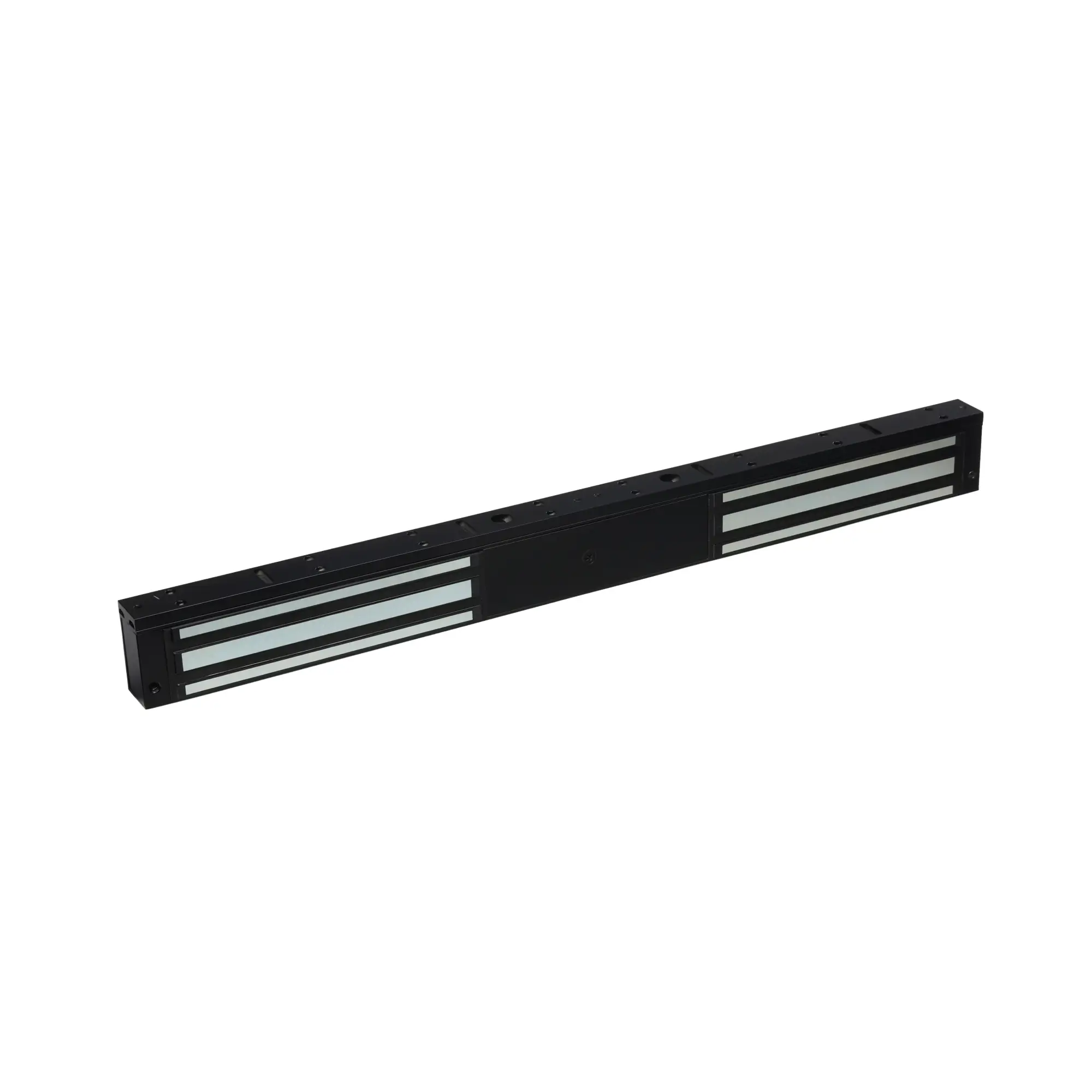

STEALTH05 Series: Slim Monitored Double Mini-Maglock with Optional Door Status
The STEALTH05 series offers a compact and secure double maglock solution for double doors, providing a reliable monitored locking mechanism with two powerful 600lb (275kg) holding force slim maglocks. These slimline, stealth black maglocks are ideal for indoor applications where aesthetics and functionality are equally important. Available in two variations, the STEALTH 05 Series provides essential lock status monitoring, while the STEALTH 05DS adds the critical function of door position monitoring.
Technical Information:
- Holding Force: Up to 275kg (600lb) per door
- Current Draw: 500mA @ 12Vdc / 250mA @ 24Vdc
- Voltage Tolerance: +/- 15%
- Operating Temperature: -10°C to +55°C
- Humidity: 0-95% non-condensing
- Weight: Approx. 4kg
- Relay Output: COM/NO/NC (1A@24VDC) per side
- Door Status Monitoring (STEALTH05DS): Reed switch door contact per side
Product Variations:
- STEALTH05: Standard monitored double maglock, providing lock status indication.
- STEALTH05DS: Monitored double maglock with an additional reed switch for monitoring each door’s open/closed position.
Full Description
Compact, Dual-Door Maglock Solutions for Professional Access Control
The STEALTH05 series offers a range of high-performance, slim monitored double maglock’s designed specifically for double doors in indoor applications. The compact design and Stealth black finish provide a discreet and professional aesthetic, while two robust 600lb (275kg) holding force mag locks ensures reliable security. Available in two variations, the standard STEALTH05 and the advanced STEALTH05DS with an added door status feature. These maglocks are a versatile and secure choice for modern access control systems.
Product Options:
- STEALTH05: Standard monitored double maglock, providing lock status indication.
- STEALTH05DS: Monitored double maglock with an additional reed switch for monitoring each door’s open/closed position.
Key Features of the STEALTH05 Series (Common to both models):
- Slim & Compact Design: Ideal for installations where space is limited or a discreet appearance is desired.
- Monitored Double Maglock: Designed for double doors, with monitoring on each lock to provide lock status feedback.
- Robust Holding Force: Delivers a reliable holding force of up to 275kg (600lb) for each maglock, making it suitable for a wide range of security needs.
- Stealth Black Finish: A sleek, black finish provides a modern and professional look that blends well with various decors.
- Dual Voltage: Compatible with both 12Vdc and 24Vdc systems, selectable for installation flexibility.
- Fail-Safe Operation: The lock is fail-safe, ensuring the doors automatically unlock during a power failure for safe egress.
- Surge Protection (MOV): Integrated MOV (Metal Oxide Varistor) provides spike and surge protection, extending the life and reliability of the maglock.
- Anti-Residual Magnetism Protection: Prevents residual magnetism, ensuring a smooth and immediate release of the doors upon deactivation.
- Fire Rated: Certified for use on fire-rated door assemblies, ensuring compliance with fire safety regulations.
- Surface Mount: Easy to install with the included top-plate, armature-plates, and fixings.
- Red/Green LED Indicators: Each side of the maglock features a Red/Green LED to provide clear visual indication of its status.
Additional Feature (STEALTH05DS only):
- Door Status Monitoring: The STEALTH05DS model includes a built-in reed switch for each door. This feature provides real-time feedback on the physical position of each door (open or closed), which is essential for advanced access control, alarm systems, and security logging.
Technical Information:
- Holding Force: Up to 275kg (600lb) per door
- Current Draw: 500mA @ 12Vdc / 250mA @ 24Vdc
- Voltage Tolerance: +/- 15%
- Operating Temperature: -10°C to +55°C
- Humidity: 0-95% non-condensing
- Weight: Approx. 4kg
- Relay Output: COM/NO/NC (1A@24VDC) per side
- Door Status Monitoring (STEALTH05DS): Reed switch door contact per side
- STEALTH05 Data Sheet, STEALTH05DS Data Sheet
Benefits Of The Stealth 05 Monitored Double Maglock:
- Superior Security: Provides reliable locking with a robust holding force for double doors.
- Discreet Integration: The slim profile and black finish ensure a clean, professional aesthetic.
- Flexible & Versatile: Dual voltage, fail-safe operation, and optional door status monitoring cater to a wide range of security requirements.
- Enhanced Reliability: MOV surge protection and anti-residual magnetism ensure long-term, trouble-free performance.
- Safety Compliant: Fire-rated certification guarantees compliance with essential safety standards.
Ideal Applications:
- Main entrance double doors in commercial or residential buildings.
- Double doors in offices, schools, and hospitals.
- Server rooms or secured areas with double doors.
- Any indoor location where a secure, slim, and aesthetically pleasing double maglock solution is required.
- The STEALTH05DS is specifically suited for installations where monitoring the physical position of each door is a critical requirement for security protocols.
Product Specifications
Brand | Stealth Locking |
---|---|
Lock Options | Monitored, Monitored + Door Status Sensor |
Holding Force | 600 Lbs x 2 |
Mounting | Surface Mount |
Operating Temperature | -10°C to 55°C |
Power Requirement | 12-24 VDC |
Safety Features | Fail-Safe |
Form Factor | Double Maglock |
Colours | Black |
SKU | STEALTH05, STEALTH05DS |
