STEALTH10 Series: Fire Rated Unmonitored Standard Maglock With Optional Door Status Monitoring

Full Description

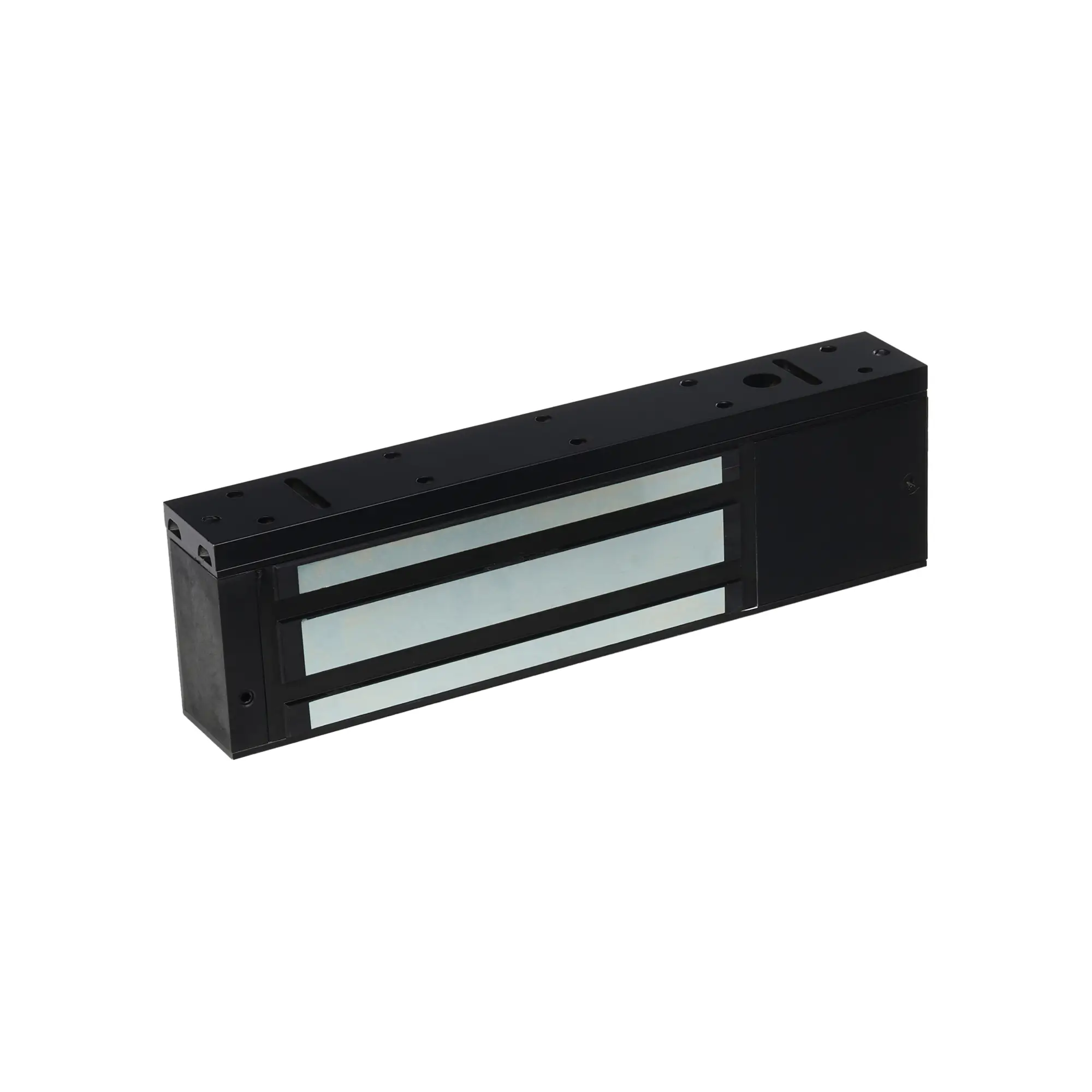

Standard Maglock with 1200lb Holding Force and Discreet Black Finish

The STEALTH10 Series offers a powerful and reliable solution for single-door access control. These unmonitored black standard maglocks are designed for indoor applications, providing a solid 1200lb (545kg) holding force to ensure maximum security. The series includes two models: the standard STEALTH10 and the advanced STEALTH10DS, which features additional door status monitoring. Both maglocks have a sleek Stealth black finish and are fire rated, making them a versatile and compliant choice for a wide range of professional security installations.

Product Variations:

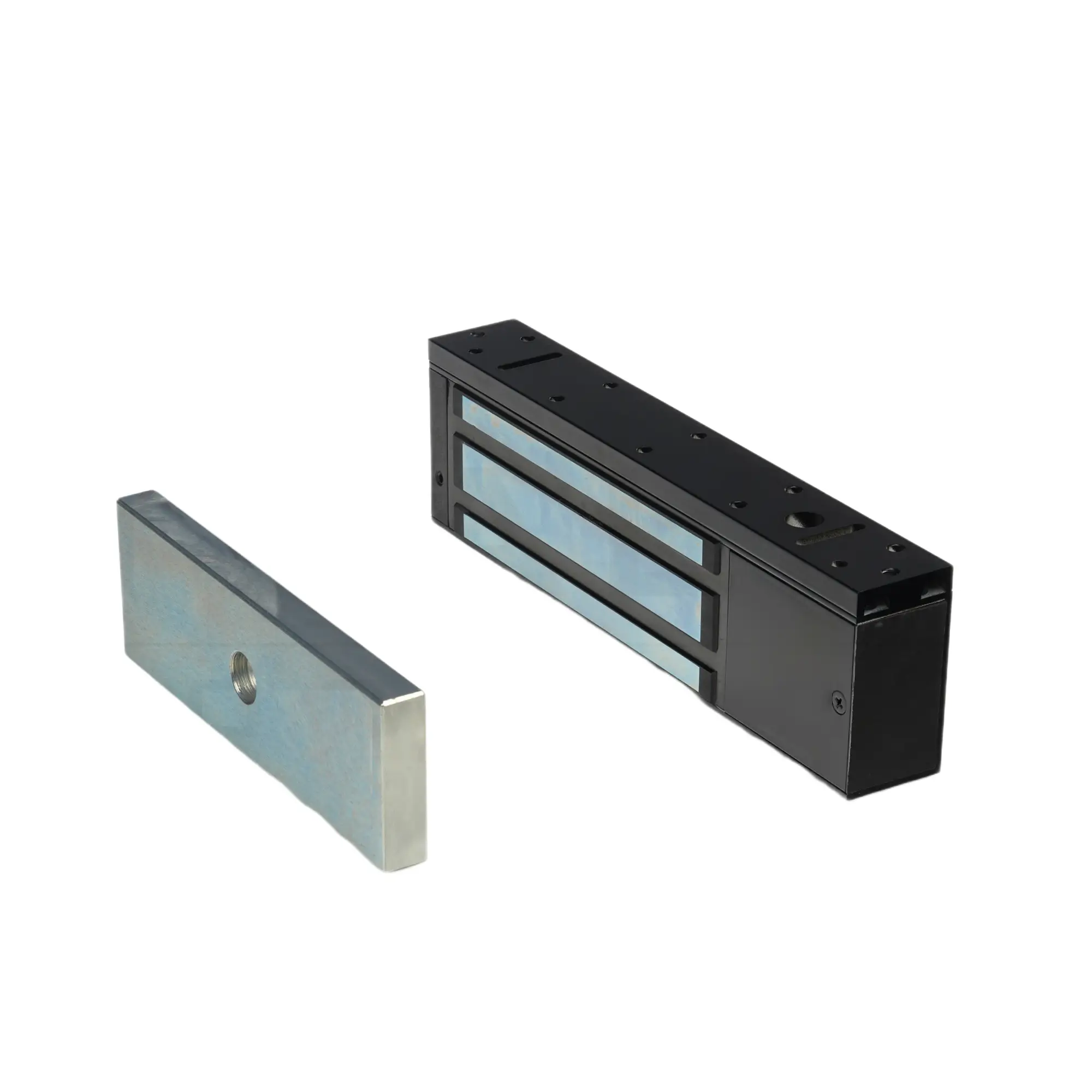

• STEALTH10: A standard unmonitored maglock that provides a secure locking mechanism without electronic status feedback. (See Manufacturers Data Sheet)

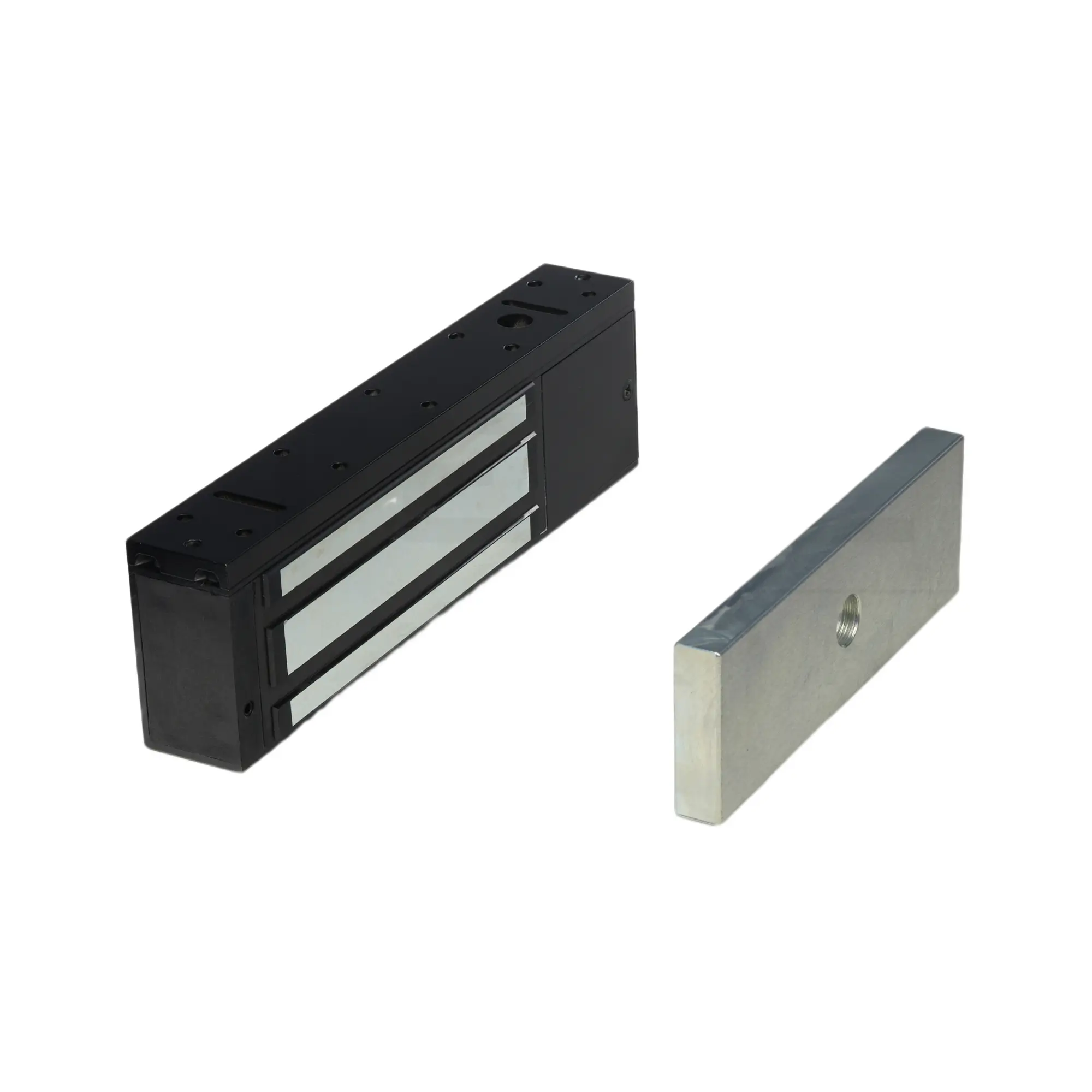

• STEALTH10DS: A standard unmonitored maglock with door status, which includes a built-in reed switch to monitor the door’s open/closed position. (See Manufacturers Data Sheet)

Key Features Of The STEALTH10 Series:

• Powerful Holding Force: Delivers a reliable holding force of up to 545kg (1200lb), providing an exceptional level of security for single doors.
• Dual Voltage: Operates on both 12Vdc and 24Vdc, offering flexible power options to suit a variety of installations.
• Unmonitored Design: The STEALTH 10 Series provides basic, effective locking without the added complexity of electronic lock status monitoring.
• Stealth Black Finish: The professional black finish provides a discreet and aesthetic appearance that blends seamlessly with modern interiors.
• Surface Mount: Designed for straightforward surface mounting, with the armature-plate and fixings included on the STEALTH 10DS model.
• Fire Rated: Certified for use on fire-rated door assemblies, ensuring the installation adheres to critical safety standards.

Additional Features of the STEALTH10DS:

• Door Status Monitoring: The STEALTH10DS model includes a built-in reed switch that provides a signal indicating the physical position of the door (open or closed). This is a valuable feature for basic alarm systems or building management software.
• Fail-Safe Operation: The STEALTH 10DS is fail-safe, ensuring the door automatically unlocks during a power failure for safe egress.
• Anti-Residual Magnetism: Prevents the lock from retaining magnetism, allowing the door to open smoothly upon deactivation.
• Surge Protection (MOV): Includes a Metal Oxide Varistor (MOV) to protect the electronics from voltage spikes.

Technical Information:

• Holding Force: Up to 545kg (1200lb)
• Current Draw: 500mA @ 12Vdc / 250mA @ 24Vdc
• Voltage Tolerance: +/- 15%
• Operating Temperature: -10°C to +55°C
• Humidity: 0-95% non-condensing
• Weight: Approx. 4.8kg
• Door Status Contact (STEALTH10DS only): Reed switch

Benefits of the Stealth Unmonitored Standard Maglock:

• Effective Security: Provides a strong and dependable locking mechanism for a wide range of applications.
• Aesthetically Pleasing: The sleek black finish offers a clean and professional appearance.
• Cost-Effective: A powerful and effective security solution without the added cost of electronic lock status monitoring.
• Flexible Functionality: The additional door status feature on the STEALTH10DS allows for simple monitoring of the door’s physical position.
• Safety Compliant: Fire-rated certification ensure compliance with essential safety standards.

Ideal Applications:

• Single doors in offices, small businesses, and residential properties.
• Securing non-critical areas like stock rooms or staff entrances.
• Any indoor location where a powerful, fire-rated, and dependable maglock is required.
• The STEALTH10DS is especially suited for installations where knowing the physical state of the door is important for security or building management.
