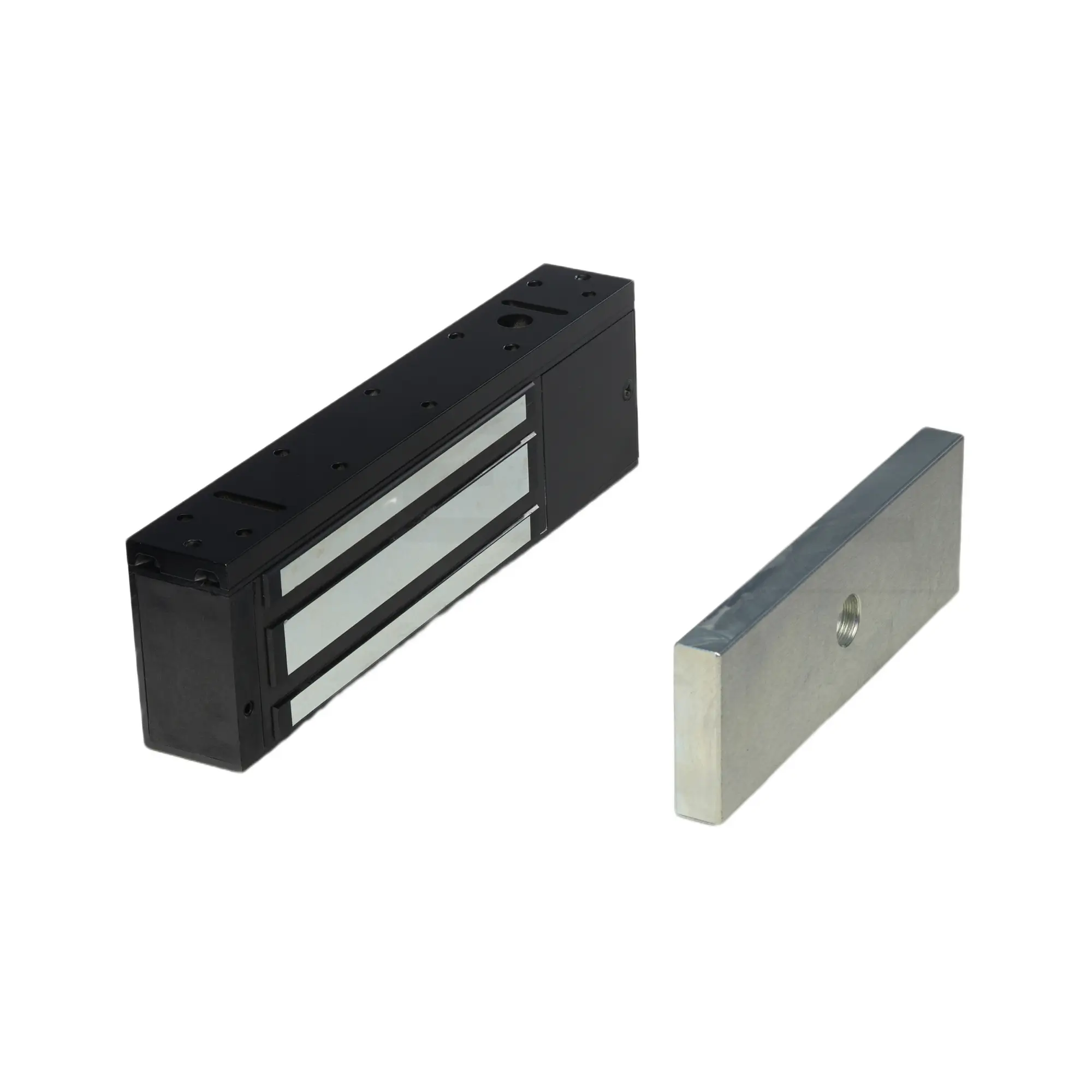

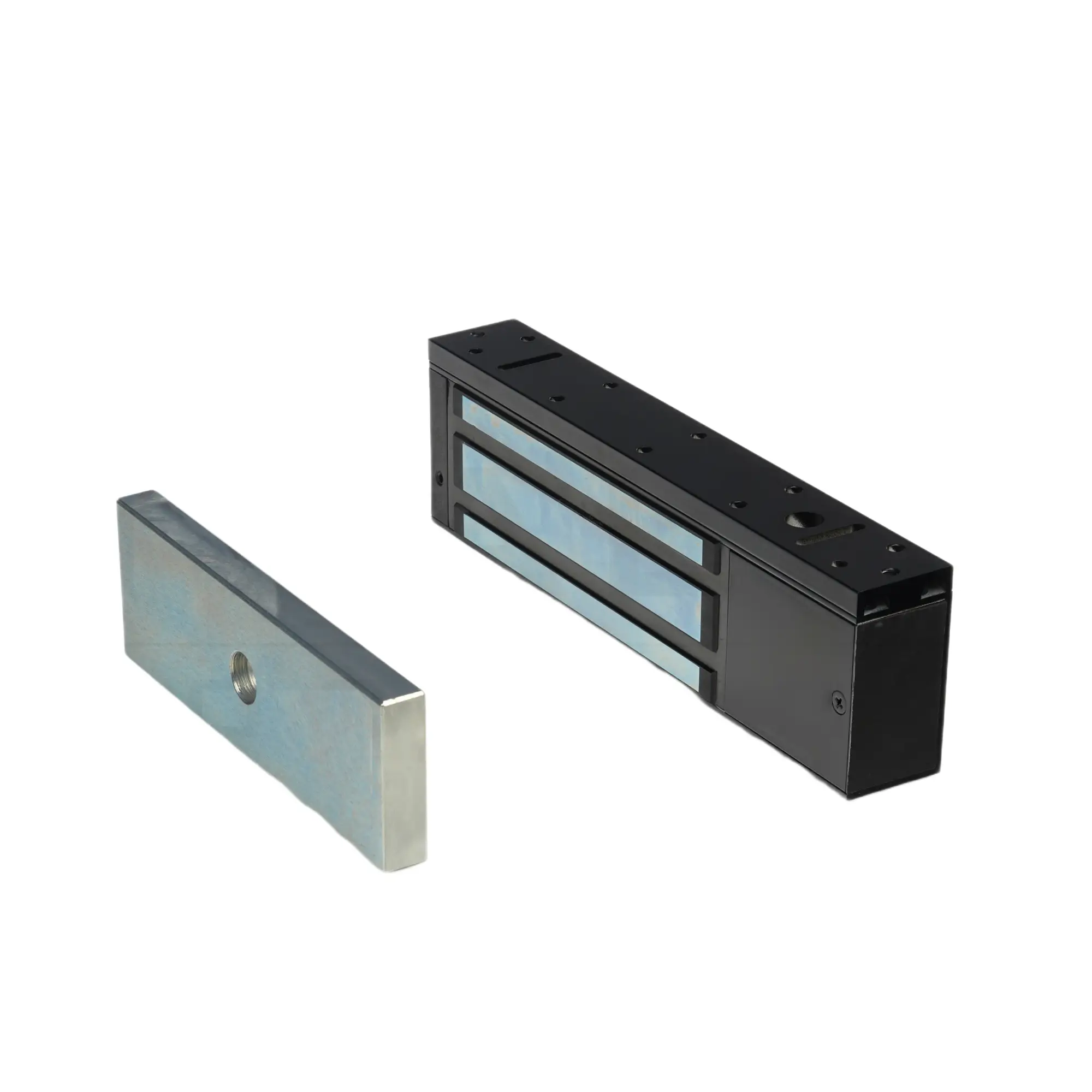

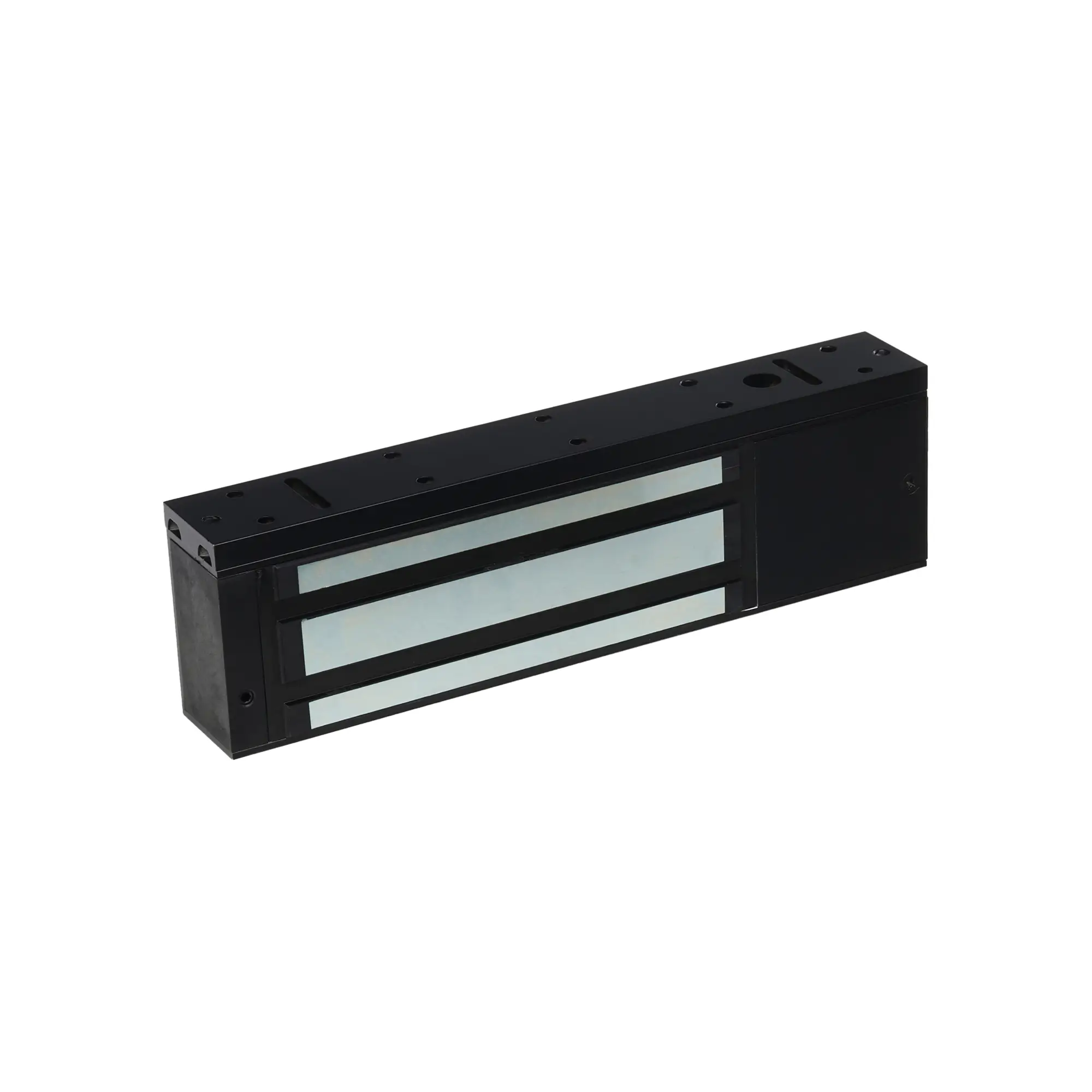

STEALTH20: Monitored Black Mag Lock with 1200lb Holding Force

The Stealth20 is a high-performance, monitored black mag lock from Stealth Locking, engineered for applications requiring a strong and secure locking solution. With an impressive 1200lb (545kg) holding force, this magnetic lock is designed for reliable and long-term use in demanding indoor environments. Its sleek, “Stealth black” finish and robust monitoring features make it a top choice for professional access control systems.

Key Specifications:

  • Holding Force: Up to 545kg (1200lb)
  • Current Draw: 500mA @ 12Vdc / 250mA @ 24Vdc
  • Voltage Tolerance: +/- 15%
  • Operating Temperature: -10°C to +55°C
  • Humidity: 0-95% non-condensing
  • Weight: Approximately 4.8kg
  • LED Indicator: Red/Green for lock status
  • Relay Output: COM/NO/NC (1A @ 24Vdc)
  • Finish: Stealth Black

Full Description

Fire Rated Monitored Black Mag Lock by Stealth Locking

The Stealth20 is a high-performance, single monitored black mag lock designed for secure access control in demanding indoor environments. With a powerful 1200lb (545kg) holding force and a sleek “Stealth black” finish, this mag lock offers both robust security and a discreet, professional aesthetic. Its integrated monitoring capabilities, fire rating, and dual voltage compatibility make it a versatile and reliable choice for a wide range of applications.

Key Features of the STEALTH20:

  • 1200lb (545kg) Holding Force: Provides exceptional security and resistance to forced entry, suitable for high-security doors and gates.
  • Lock Monitoring: Equipped with monitoring capabilities that provide real-time status updates. This is crucial for security systems that require verification of the lock’s state (locked or unlocked).
  • Built-in LED Status Indicator: A prominent Red/Green LED indicator offers a clear visual signal of the lock’s status, simplifying system checks and maintenance.
  • Dual Voltage Operation: The maglock operates on both 12Vdc and 24Vdc, providing flexibility and compatibility with a wide range of power supplies.
  • Low Power Consumption: With a current draw of 500mA at 12Vdc and 250mA at 24Vdc, it is energy-efficient and places minimal strain on the power source.
  • Stealth Black Finish: The modern, discreet black finish blends seamlessly into various architectural designs, maintaining a professional and aesthetic appearance.
  • Fire Rated: Certified for use in fire-rated door assemblies, ensuring compliance with safety and building regulations.
  • Surface Mount Installation: Designed for simple and convenient surface mounting on doors and frames.
  • Relay Contacts: Features COM/NO/NC relay contacts with a rating of 1A@24Vdc, allowing for easy integration with access control panels, alarm systems, or remote signalling devices.

Technical Specifications:

  • Holding Force: Up to 545kg (1200lb)
  • Current Draw: 500mA @ 12Vdc / 250mA @ 24Vdc
  • Voltage Tolerance: +/- 15%
  • Operating Temperature: -10°C to +55°C
  • Humidity: 0-95% non-condensing
  • Weight: Approximately 4.8kg
  • LED Indicator: Red/Green for lock status
  • Relay Output: COM/NO/NC (1A @ 24Vdc)
  • Finish: Stealth Black
  • See the Full STEALTH20 Data Sheet

Benefits of the Monitored Black Mag Lock:

  • Enhanced Security: The high holding force and real-time lock monitoring provide superior security and peace of mind.
  • Versatile Application: Dual voltage and relay contacts allow for easy integration into a variety of new or existing access control systems.
  • Durable & Reliable: Built to withstand demanding usage with a wide operating temperature range and robust construction.
  • Aesthetic Appeal: The sleek black finish offers a discreet and professional look, suitable for high-end commercial or residential settings.
  • Fire Safety Compliant: Its fire rating ensures it meets critical safety standards.

Ideal Applications:

  • Main entrance doors in commercial and residential buildings.
  • Server rooms, data centres, and other high-security areas.
  • Offices, schools, and healthcare facilities.
  • Any indoor application where reliable, high-holding-force access control is required.

Product Specifications

Brand

Stealth Locking

Lock Options

Monitored

Holding Force

1200 Lbs

Mounting

Surface Mount

Operating Temperature

-10°C to 55°C

Power Requirement

12-24 VDC

Safety Features

Fire Resistant

Form Factor

Standard Maglock

Fire Rating

Fire Rated

Colours

Black

SKU Stealth20
