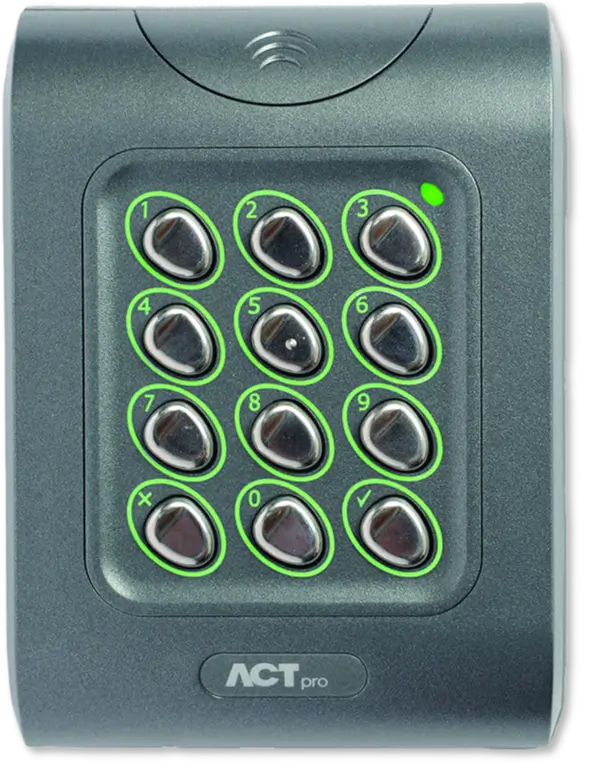

Vanderbilt EM1050e ACTpro Keypad Reader

The Vanderbilt EM1050e ACTpro Keypad Reader is a multi-format proximity and keypad reader that is ideal for a variety of access control applications. It is compatible with all ACTpro proximity cards and fobs (125KHz RFID), as well as HID-compatible credentials. The EM1050e also features a built-in keypad, which allows users to enter a PIN code to gain access, making it ideal for the extra security of two-factor authentication (card and PIN).

Key Features

  • Multi-format reader
  • Choice of proximity only, pin and proximity or pin only
  • ACTProx Cards and Fobs supported (125KHz RFID)
  • ID-compatible credentials supported (125Khz RFID)
  • Indoor & outdoor installation
  • Built-in buzzer
  • Tri-Colour LED
  • Operates between -40°C and +70°C
  • 5V DC to 12V DC operation
  • Auto detect Clock and Data or 26-bit Wiegand Output
  • Robust polycarbonate housing
  • Vandal Resistant Cover (MF-VR) available for the EM1030e proximity reader

Full Description

Multi-Format Proximity and Keypad Reader with Enhanced Security and Accessibility

The Vanderbilt EM1050e ACTpro Keypad Reader is a versatile and secure solution for various access control needs. This multi-format proximity and keypad reader is designed to provide enhanced security and accessibility for your facility.

One of the standout features of the EM1050e is its compatibility with a wide range of credentials. It can seamlessly work with all ACTpro proximity cards and fobs, which operate on a 125KHz RFID frequency. Additionally, this reader supports HID-compatible credentials, making it incredibly flexible for your access control system.

Enhance Your Security With Two-Factor Authentication

What sets the EM1050e apart is its built-in keypad, offering an additional layer of security through PIN code entry. This two-factor authentication method (card and PIN) provides an extra level of protection, ensuring only authorised individuals gain access to your premises.

Boasting a host of features to suit various installation scenarios, the ACTpro keypad reader can be installed both indoors and outdoors, with a robust polycarbonate housing that ensures durability and longevity. The reader is equipped with a built-in buzzer and a tri-color LED indicator for clear user feedback.

With an operating temperature range from -40°C to +70°C, this reader can withstand extreme conditions, ensuring reliable performance year-round. It operates on a 5V DC to 12V DC power supply, offering flexibility in power options.

Why Should You Buy?

The Vanderbilt EM1050e ACTpro Keypad Reader also supports automatic detection of Clock and Data or 26-bit Wiegand Output, simplifying integration into your access control system. For added protection against vandalism, you can opt for the Vandal Resistant Cover (MF-VR).

Whether you require proximity-only, PIN and proximity, or PIN-only access, the Vanderbilt EM1050e ACTpro Keypad Reader provides a secure and adaptable solution for your access control needs, delivering peace of mind and convenience to your facility.

Product Specifications

Weight 225 g
Dimensions 130 × 94 × 25 mm

ACRE, ACT, Vanderbilt


125 KHz

Power Requirement

40 mA, 5-12 VDC


Mullion, Surface Mount

Operating Temperature

-40°C to 70°C

Connection type

Terminal connection

Protection Rating






Manufacturer's Datasheet

928.09 KB


Installation Guide

1.88 MB
