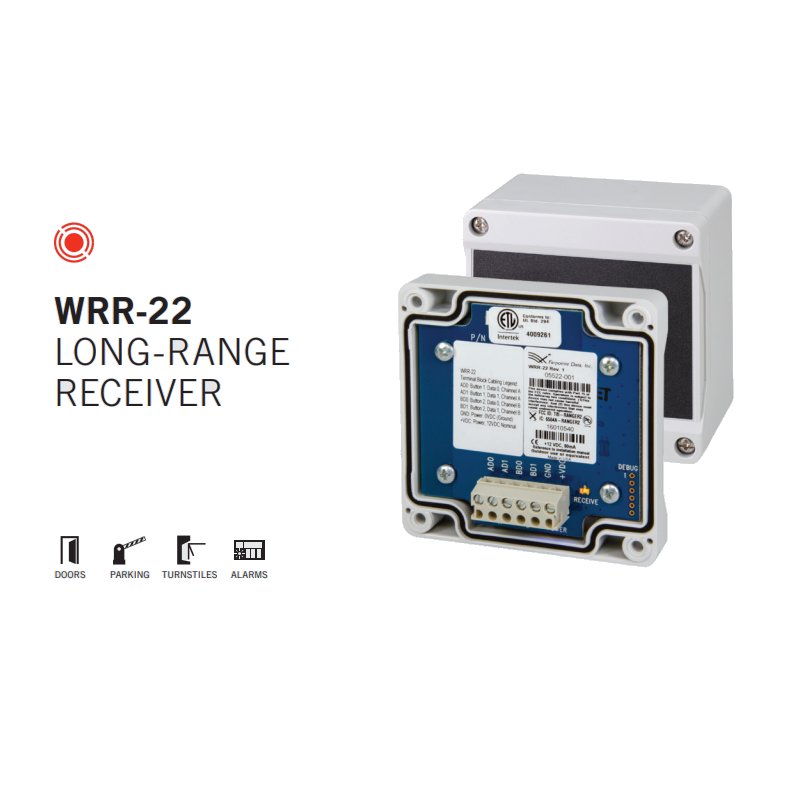

Farpointe Data WRR-22 Ranger Long-Range 2-Channel 433MHz Reader

Ranger Receivers and Transmitters comprise Farpointe Data’s long-range radio frequency identification (RFID) solution. This solution operates at the globally harmonized frequency of 433-MHz and offers exceptionally long transmission ranges – the WRR-22 model has a read-range of up to 30.5 Metres.

The WRR-22 receiver provides 2 Wiegand output channels simulating 2 separate readers.  Depending on which button is pressed on the remote transmitters (bought separately) the corresponding Wiegand port will output the data in the same way as a conventional card reader when a card is presented – ideal for multiple gate access control.

  • Long read-range up to 30.5 Metres (100 feet)
  • Supports industry standard electronic access control interfaces
  • Transmitters can also include a standard passive access control credential (optional)
  • Transmission features rolling code & encryption
  • Adjustable read-range – can be reduced if required

Product Specifications

Weight 227 g
Dimensions 84 × 84 × 48.3 mm

Farpointe Data


433 MHz


Surface Mount

Protection Rating


Power Requirement

12 VDC, 80 mA

Operating Temperature

-40°C to 65°C



442.05 KB
