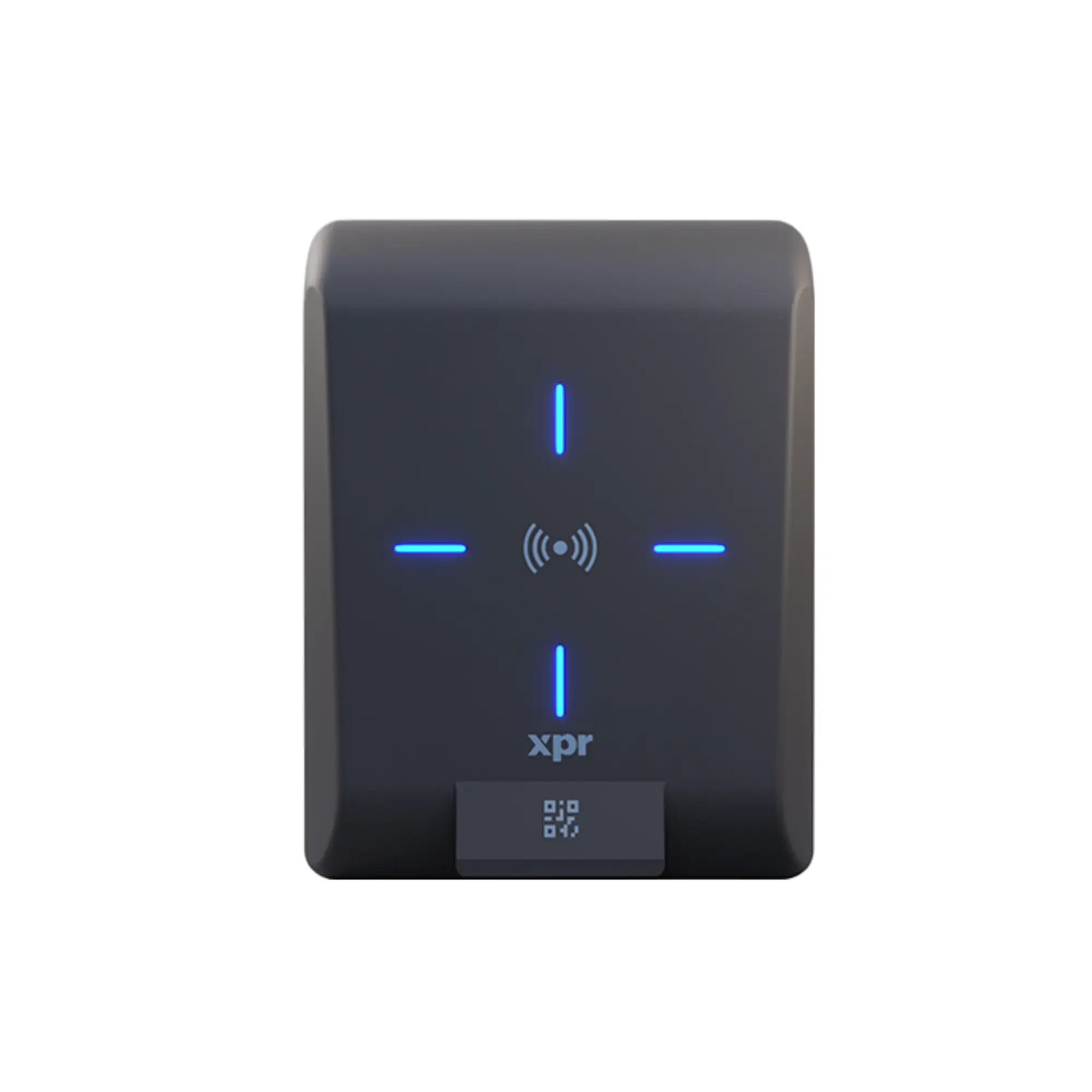

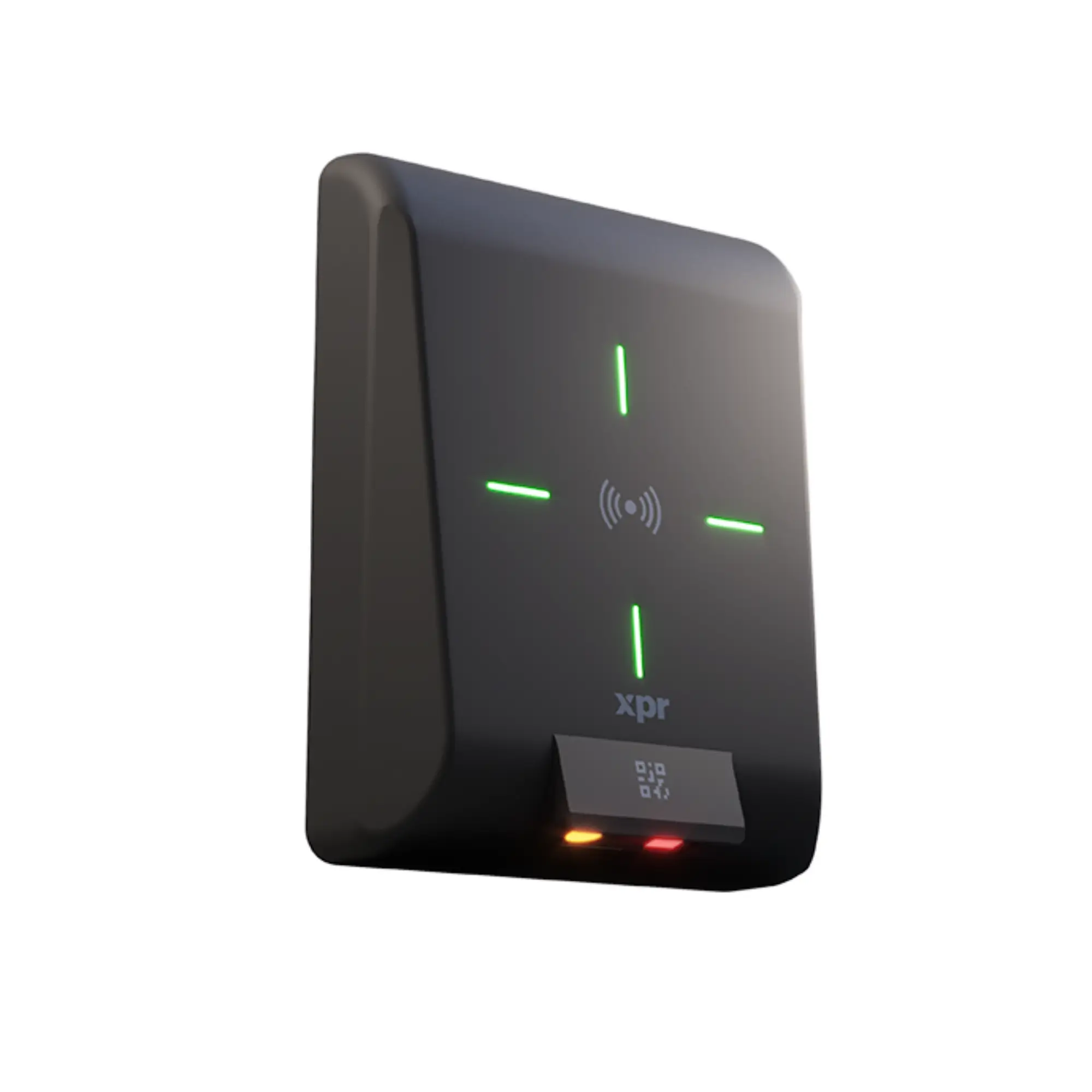

XPR XP-QR-MFBT: Multi-Technology Mifare Reader with Bluetooth, QR Code and Optional X-Secure

Full Description

Advanced Multi-Technology Reader with Mobile, QR, and Secure Credential Support

The XPR XP-QR-MFBT is a cutting-edge Multi-Technology Reader that provides a versatile and secure access solution by combining multiple reading technologies into one unit. It supports traditional NFC and MIFARE credentials, modern Bluetooth mobile access, and convenient QR code scanning. This flexibility makes it ideal for managing various user types, from permanent employees using secure fobs to temporary visitors using QR codes on their mobile phones. The reader is compatible with virtually all access controllers, offering Wiegand, RS485, and OSDP output, and features an optional X-Secure encryption for maximum data security.

Key Features of the XP-QR-MFBT:

• Multi-Technology Reading: The XPR XP-QR-MFBT Combines three primary access methods in one reader:

1. 1. RFID (13.56 MHz): Supports MIFARE & DESFire credentials, including CSN from iCLASS, MIFARE Classic, DESFire, Plus, Ultralight, and NTAG CSN.
   2. Bluetooth (BLE): Allows secure access using a user’s mobile phone, enabling mobile credentials.
   3. QR Code: Enables quick and easy access for temporary users (visitors, deliveries) using a scannable QR code on a mobile device or printed ticket.

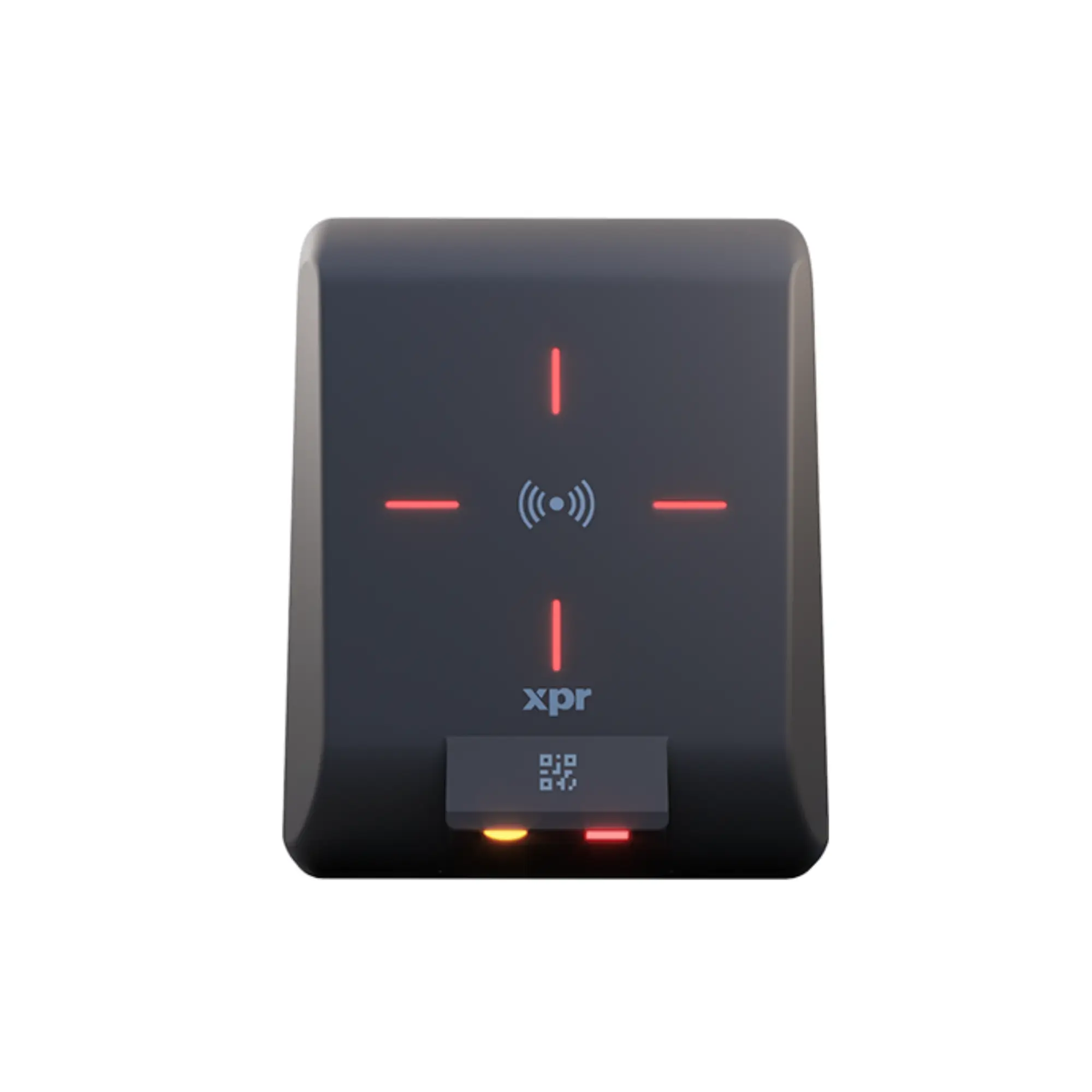

• Optional Xsecure Encryption (XP-MFBT-X variant): The Xsecure solution, based on DESFire EV3, provides proprietary end-to-end encryption between the credential and the reader, guarding against cloning and spoofing.
• Universal Communication: Offers three output protocols, Wiegand, RS485, and OSDP, ensuring seamless integration with nearly all access control panels on the market.
• Extreme Durability: Built for challenging environments with an excellent environmental rating:
  • IP65: Fully protected against dust and water jets (resin potted).
  • IK11: Provides the highest level of vandal resistance against physical impact.
• Wide Operating Range: Functions reliably in extreme temperatures, from -35°C to +70°C.
• Flexible Configuration: The internal buzzer intensity is adjustable using product software, and the reader includes tamper protection for enhanced security.
• Power Efficient: Operates on a wide voltage range of 9 – 15 V DC with low maximum consumption.

Technical Information:

• Mounting: Surface mount
• Housing: Polycarbonate copolymer (UL94)
• Communication: Wiegand, RS-485, OSDP
• Operating Frequency: 13.56 MHz (NFC, MIFARE, DESFire)
• Reading Range: Up to 9 cm (depending on tag)
• Operating Voltage: 9 – 15 V DC
• Max. Consumption @ 12 V DC: 100 mA
• Environmental Rating: IP65 (Indoor/Outdoor, resin potted)
• Impact Protection: IK11
• Operating Temperature: -35°C to +70°C
• Supported Credentials: QR Code, Bluetooth, Xsecure, Mifare CSN, NTAG CSN, ISO 15693, DESFire EV3
• See Full Data Sheet

Benefits:

• Maximum Versatility: The combination of QR, Bluetooth, and Mifare/DESFire reading allows for the management of all user types (employees, guests, contractors) with a single reader platform.
• Highest Security Options: The optional Xsecure encryption provides peace of mind against advanced threats like credential cloning, available with the XP-QR-MFBT-X (please select when ordering).
• Future-Proof Design: Supports the latest mobile access technology (Bluetooth) and standard RFID, ensuring the system can adapt to future credential trends.
• Unmatched Reliability: The IP65 and IK11 ratings guarantee long-term operation in both harsh external and high-traffic public areas.

Ideal Applications:

• Commercial & Corporate Campuses: Managing full-time staff (fobs/mobile) and daily visitors/deliveries (QR codes).
• Hotels and Short-Term Rentals: Issuing temporary, time-limited QR codes or mobile keys for guest access.
• Parking Garages & Vehicle Access: Using QR codes for ticketed access or Bluetooth for registered employees.
• Any professional environment demanding a multi-layered, highly secure, and extremely durable access control reader.
