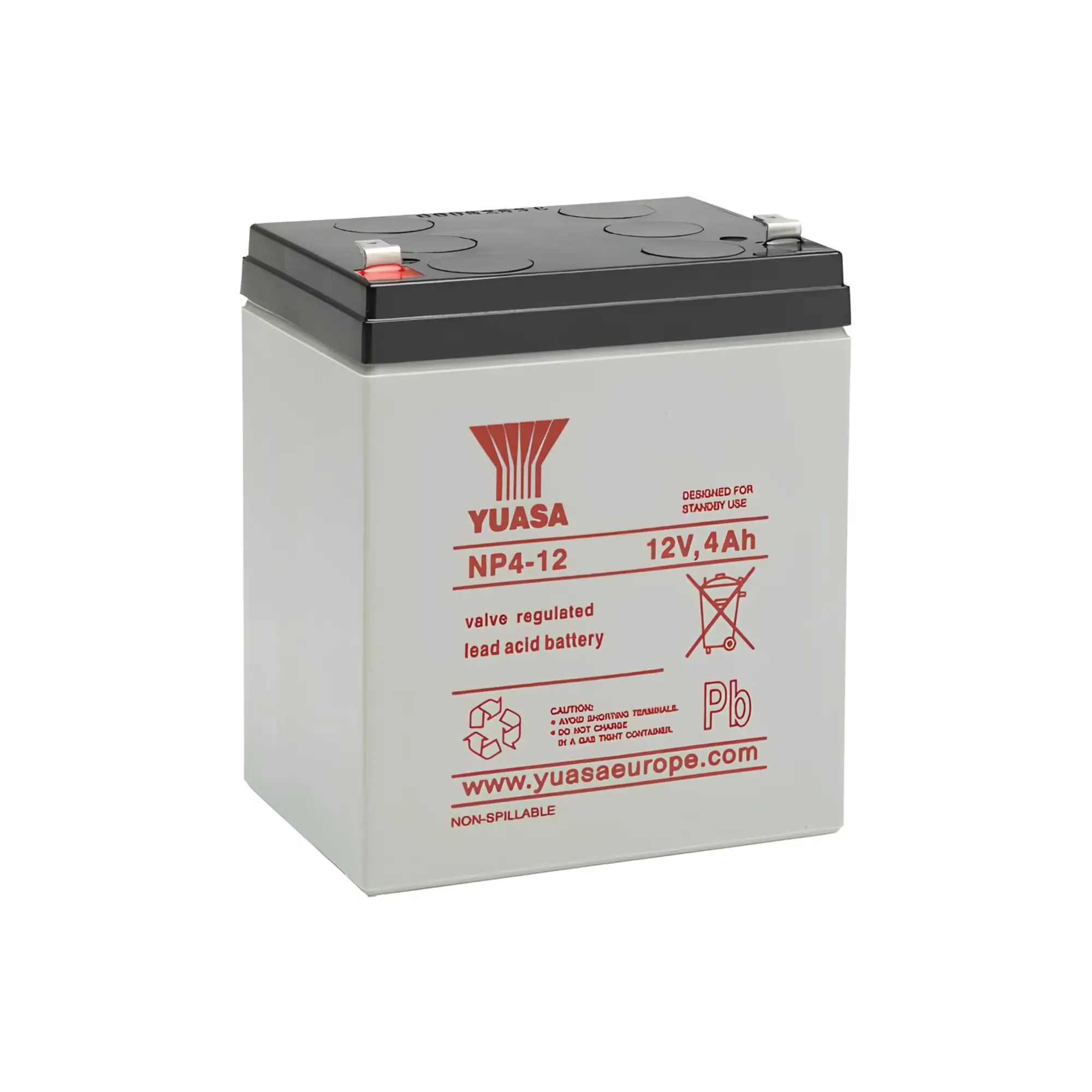

YUASA NP4-12 – Industrial VRLA Battery (12V 4Ah)
The YUASA NP4-12 is a reliable and high-performance industrial VRLA battery that provides dependable power for a wide range of applications. With its robust construction, long design life, and maintenance-free operation, the NP4-12 is an excellent choice for critical systems requiring reliable backup power.
Key Features:
- 12V 4Ah Capacity: Provides reliable power for extended periods.
- VRLA Technology: Maintenance-free and leak-proof design for safe and convenient operation.
- Wide Operating Temperature Range: Performs reliably in diverse environmental conditions.
- Low Self-Discharge: Minimal capacity loss during storage.
- Robust Construction: Durable ABS case for reliable performance.
- Multiple Terminal Options: Features Faston quick-fit/release terminals for easy connection.
- Long Design Life: Up to 5 years of design life at 20°C.
Full Description
Reliable Power for Industrial Applications
The YUASA NP4-12 is a high-quality, 12V 4Ah Valve Regulated Lead Acid (VRLA) battery designed to provide reliable power for a wide range of industrial applications. Known for its robust construction and consistent performance, the NP4-12 is an excellent choice for critical systems requiring dependable backup power.
Key Features of the YUASA NP4-12:
- 12V Nominal Voltage: Standard voltage for various industrial devices.
- 4Ah Capacity: Provides sufficient power for backup and cyclic applications.
- VRLA Technology: Maintenance-free and leak-proof design.
- Wide Operating Temperature Range: Suitable for use in diverse environmental conditions.
- Long Design Life: Up to 5 years design life at 20°C.
- Faston Terminals: Quick-fit/release terminals for easy installation.
- Durable Construction: ABS case material for robust protection.
Technical Specifications:
- Nominal Voltage: 12V
- Capacity: 4Ah (20-hr rate), 3.7Ah (10-hr rate)
- Dimensions: 90mm (L) x 70mm (W) x 106mm (H)
- Weight: 1.75kg
- Terminal Type: Faston 4.75mm
- Operating Temperature: -20°C to +60°C (discharge), -15°C to +50°C (charge), -20°C to +60°C (storage)
- Charge Voltage: 13.65V (float), 14.5V (cyclic)
- Maximum Discharge Current: 120A (1 second), 40A (1 minute)
- Impedance: 40mΩ (at 1 kHz)
- Design Life: Up to 5 years (at 20°C)
- Case Material: Standard ABS (UL94:HB), FR version available (UL94:V0)
- See Data Sheet
Benefits:
- Reliable Power: YUASA NP4-12 provides consistent and dependable performance for critical systems.
- Maintenance-Free: VRLA technology eliminates the need for regular maintenance.
- Versatile Applications: Suitable for both backup and cyclic applications.
- Easy Installation: Faston terminals simplify installation.
- Long Service Life: Provides extended service life for reduced replacement costs.
Ideal Applications:
- Security systems
- Emergency lighting
- UPS systems
- Telecommunications equipment
- Access control systems
Product Specifications
| Weight | 1750 g |
|---|---|
| Dimensions | 90 × 70 × 106 mm |
| Brand | Yuasa |
| Form Factor | Batteries |
| Output | 4 Amp |
| Output Voltage | 12v DC |
| SKU | SR1-BAT-NP4-12 |
