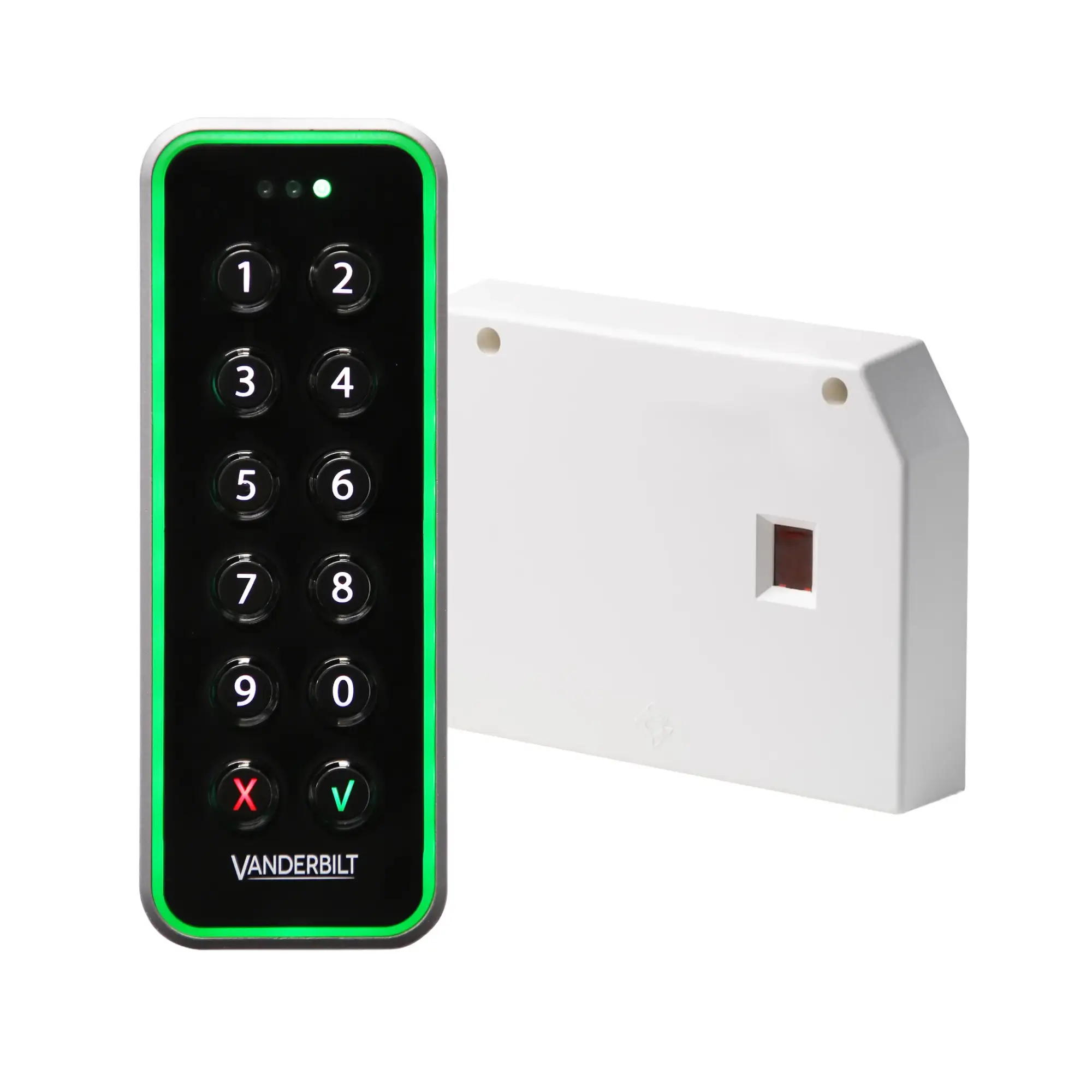

Acre SPCA210+VR50 – Expander And Keypad Reader Kit
The Acre SPCA210+VR50 kit provides a comprehensive and convenient solution for adding advanced access control functionalities to your security system. This all-in-one kit includes both the SPCA210.100 2-door expander and the VR50M-MF NGCR Mifare reader, offering everything you need to manage entry access for two doors in a single package.
Kit Includes:
- 1x SPCA210.100 2-Door Expander: Intelligently manages access control for up-to two entry points.
- 1x VR50M-MF NGCR Mifare Reader and Keypad: Provides secure and user-friendly access control with Mifare card technology.
Key Features:
- Complete Access Control Solution: This kit offers all the necessary components for managing access control of two doors, eliminating the need for separate purchases.
- Enhanced Security with Mifare Technology: The VR50 reader utilises Mifare cards for secure and reliable user authentication.
- Seamless System Integration: The expander automatically assigns doors and works in cooperation with your intrusion system for intuitive control and status monitoring.
- Advanced Door Control Functionality: The SPCA210 expander manages door locking, unlocking, and access events for two doors.
- Flexible Programming Options: On-board relays and zones can be programmed for door locks, door position monitoring, or other functionalities based on your specific needs.
- Standalone Operation Capability: The expander can store up to 512 user cards for continued operation even in case of communication loss with the main control panel.
Full Description
Complete Access Control Solution in a Convenient Kit
The Acre SPCA210+VR50 Expander Kit provides a comprehensive solution for expanding your security system’s access control capabilities. This convenient kit combines the powerful SPCA210.100 2-door expander with the VR50M-MF NGCR Mifare reader and keypad, offering a user-friendly and feature-rich solution for managing access control for two entry points.
Kit Includes:
- 1x SPCA210.100 2-Door Expander: Intelligently manages entry and exit points for two doors.
- 1x VR50M-MF NGCR Mifare Reader and Keypad: Provides secure and convenient access control with Mifare card technology and PIN code functionality.
Key Features Of The Acre SPCA210+VR50:
- All-Inclusive Convenience: The kit offers a complete package for adding access control to two doors, eliminating the need to purchase components separately.
- Seamless System Integration: The expander integrates effortlessly with your existing Acre intrusion panel for streamlined access control management.
- Enhanced Security: Mifare card technology and PIN code access provide a robust two-factor authentication solution.
- Advanced Door Control Functionality: The expander manages door locking, unlocking, and access events for two doors.
- Flexible Programming Options: Zones, outputs, and LED indicators on the expander can be customised for optimal system configuration.
Expander And Reader Kit Breakdown:
- SPCA210.100 2-Door Expander:
- Supports 2 entry doors or 1 entry/exit door configuration.
- Provides Wiegand/Clock & Data interfaces for reader communication.
- Offers 4 LED outputs for visual access status indication.
- Includes 4 zones for monitoring door position and opening/closing.
- Features 2 relay outputs for controlling door locks.
- Integrates a buzzer for audible alerts (e.g., door held open too long).
- Stores up to 512 user cards for standalone operation.
- See Full Data Sheet.
- VR50M-MF NGCR Mifare Reader and Keypad:
- Modern and aesthetically pleasing design.
- Multi-colour programmable light frame for clear access status indication.
- User-friendly interface with keypad for PIN code access.
- Reads Mifare Classic cards for secure authentication.
- Built with durable materials for long-lasting performance in various environments.
- See Full Data Sheet.
Benefits for Security Professionals:
- Simplified System Integration: The all-inclusive kit facilitates a quick and hassle-free installation process.
- Enhanced Security and Access Control: Offers a robust solution for managing entry points and user access with two-factor authentication.
- Increased User Convenience: Mifare card and PIN code access provide flexible options for users.
- Improved System Flexibility: The programmable expander allows for customisation based on specific security requirements.
- Cost-Effective Solution: The kit offers a complete package at a competitive price point.
Ideal Applications:
- Commercial Buildings: Ideal for access control in offices, retail stores, or other commercial spaces.
- Multi-Unit Residential Buildings And Flats: Provides secure entry control for flats or gated communities.
- Educational Institutions: Enhances security and access control in schools and universities.
Product Specifications
Brand | ACRE |
---|---|
Series | Acre Intrusion, SPC |
Kit | Yes |
Reader and Card Technology | MIFARE, DESFire |
Device Type | Expander, Keypad |
Operating Temperature | -10°C to 50°C |
Protection Rating | IK08, IP66 |
Grading and Compliance | Grade 4 |
SKU | SPC-A210.100/VR50 |
