Acre VR50M-MF NGCR MiFare EV1 Mullion Reader with Keypad

The Acre VR50M-MF NGCR MiFare EV1 Mullion Reader with Keypad offers a secure and user-friendly access control solution. Its advanced features, including MiFare card technology, keypad access, and a durable weatherproof design, make it ideal for various access control applications. With its versatility and functionality, this reader streamlines access management while enhancing building security.

Key Features:

  • Advanced MiFare Card Technology: Supports a wide range of MiFare cards, including EV1 and EV2, for secure and encrypted access control.
  • Integrated Keypad: Provides an additional layer of security and allows for PIN code access alongside card credentials.
  • Multicolour Programmable Light Frame: Enhance the visual appeal and functionality of the reader with customisable colour options for different access outcomes (granted/denied) and rest state.
  • Durable Design: Constructed with a zinc-casted metal bezel and polycarbonate plastic front, the reader is built to withstand harsh weather conditions (IK08 impact rating).

Full Description

Enhanced Security and User Experience with a Versatile Access Control Solution

The Acre VR50M-MF NGCR MiFare EV1 Mullion Reader with Keypad offers a secure and user-friendly access control solution. Its advanced features, including MiFare card technology, keypad access, and a durable weatherproof design, make it ideal for various access control applications. With its versatility and functionality, this feature-rich reader combines secure MiFare card technology with a convenient keypad, offering a reliable and versatile approach to managing building access.

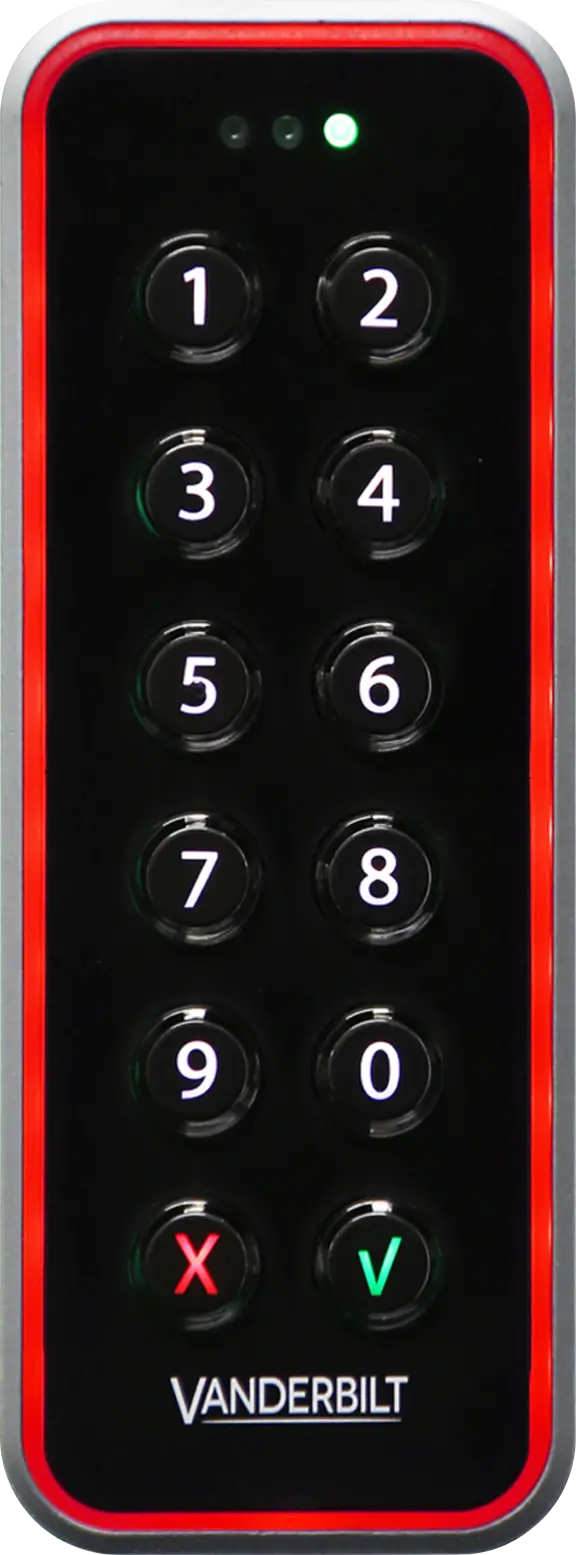

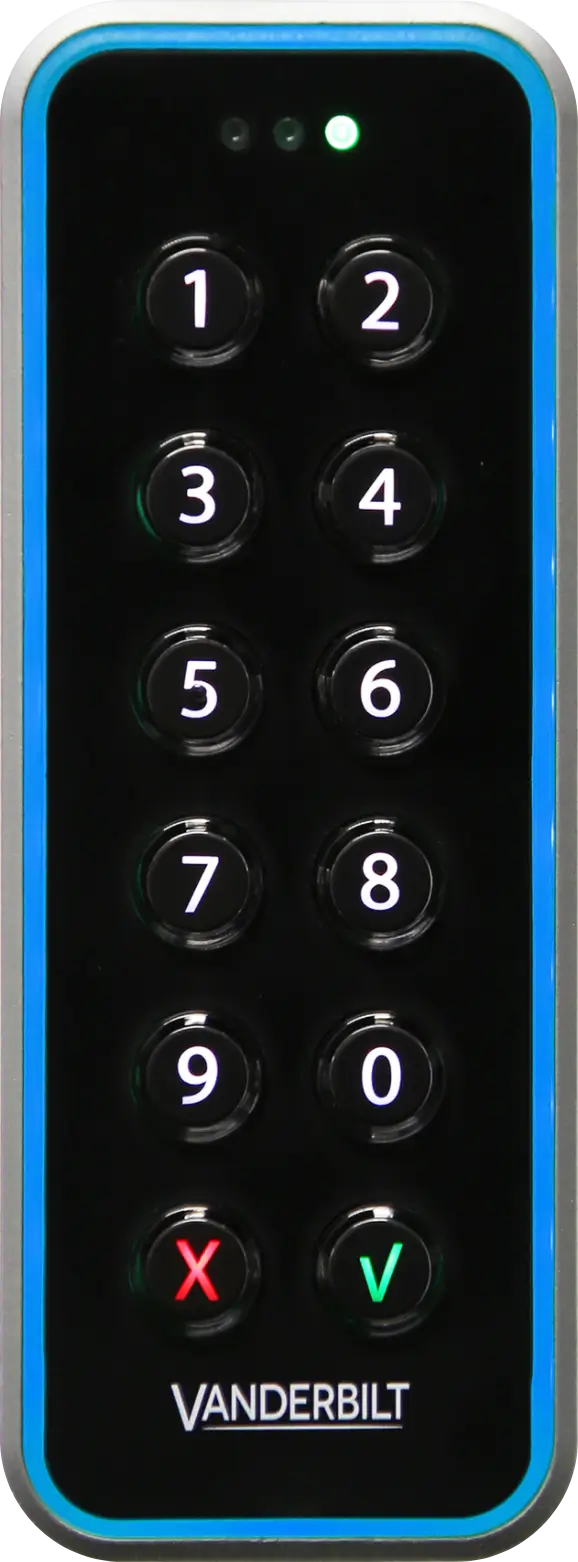

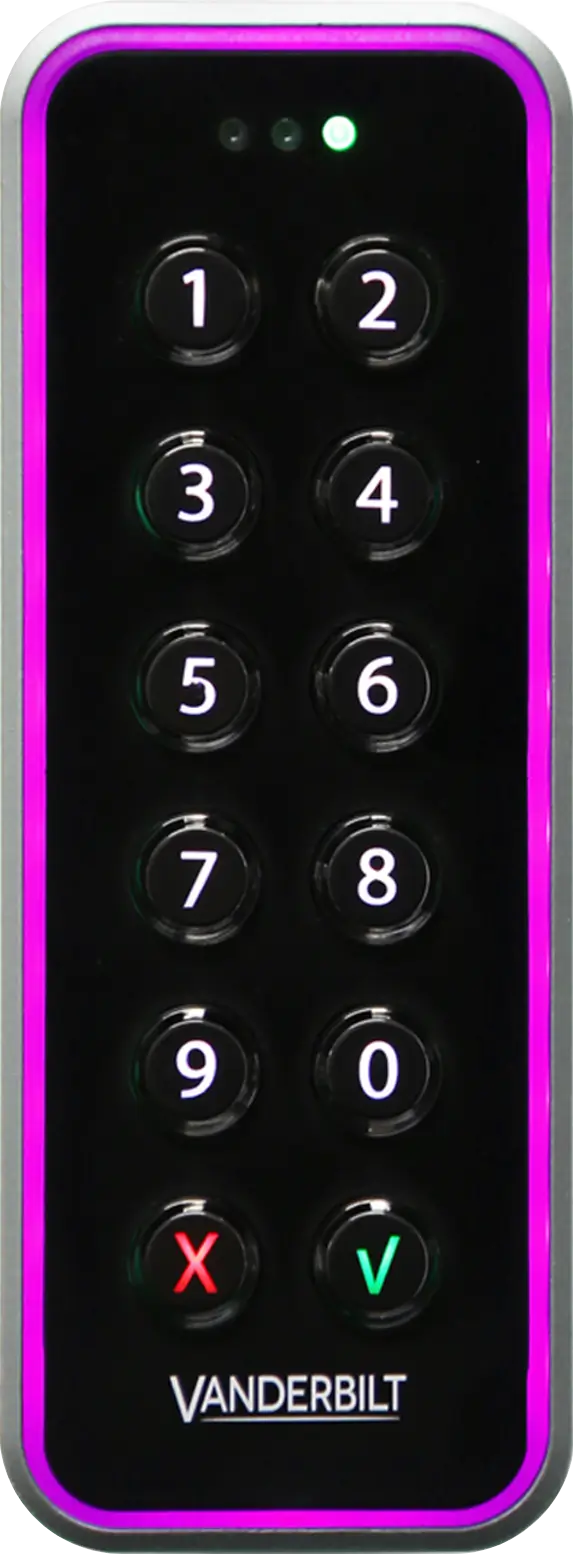

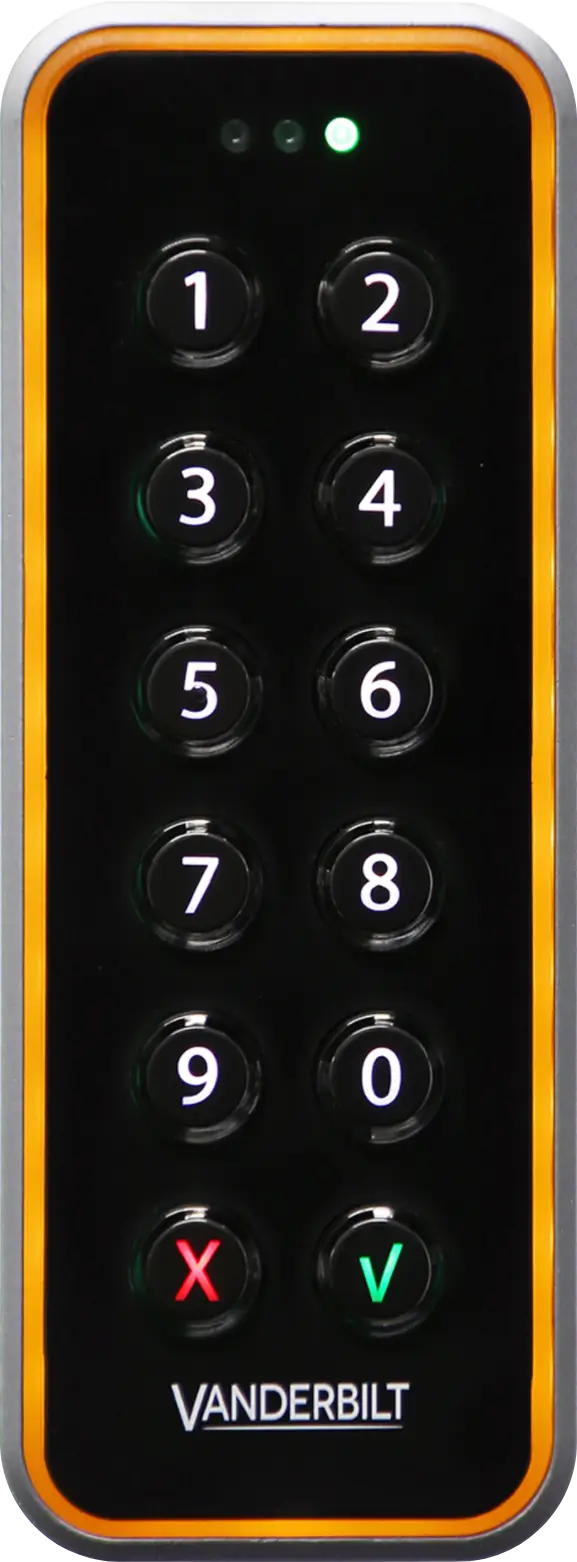

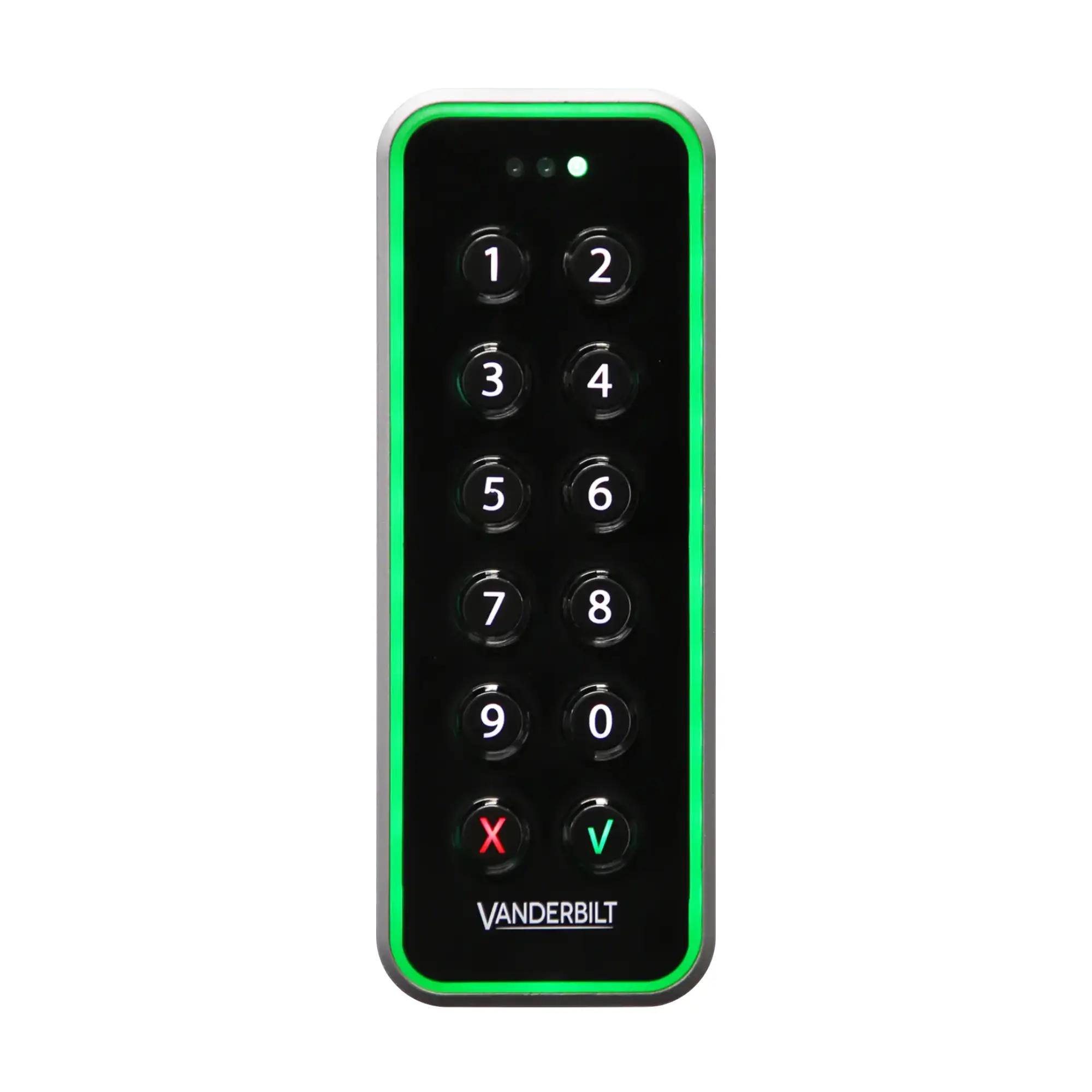

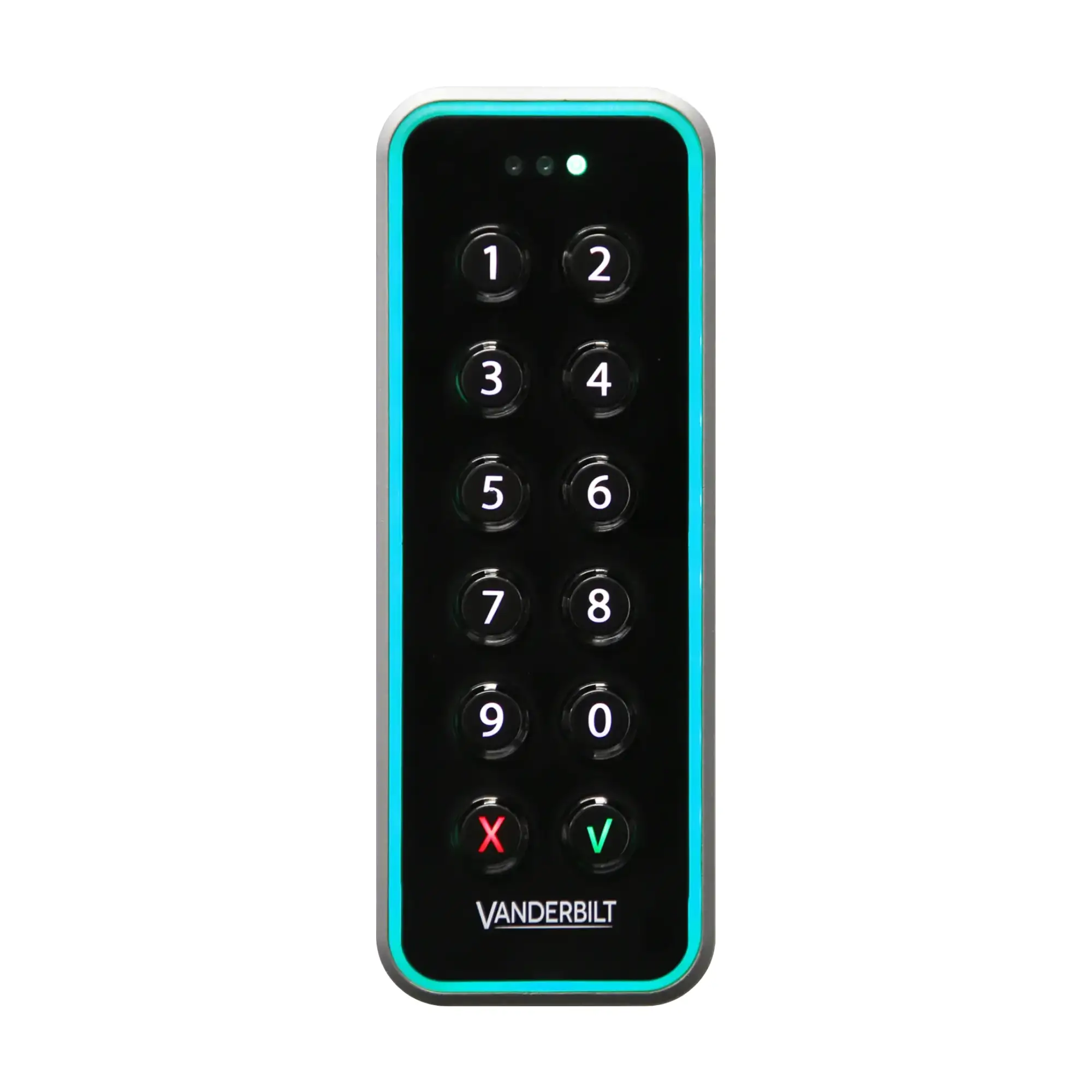

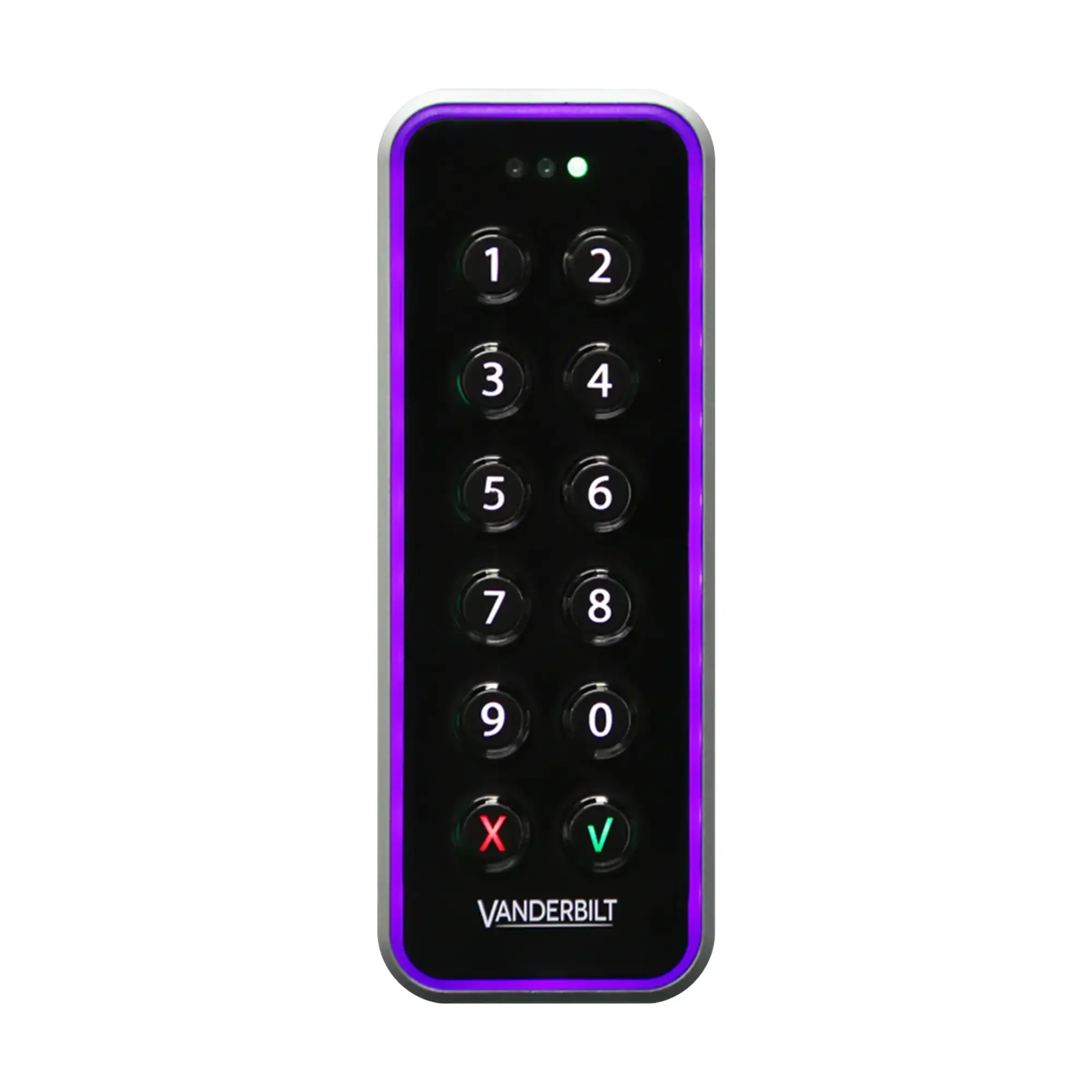

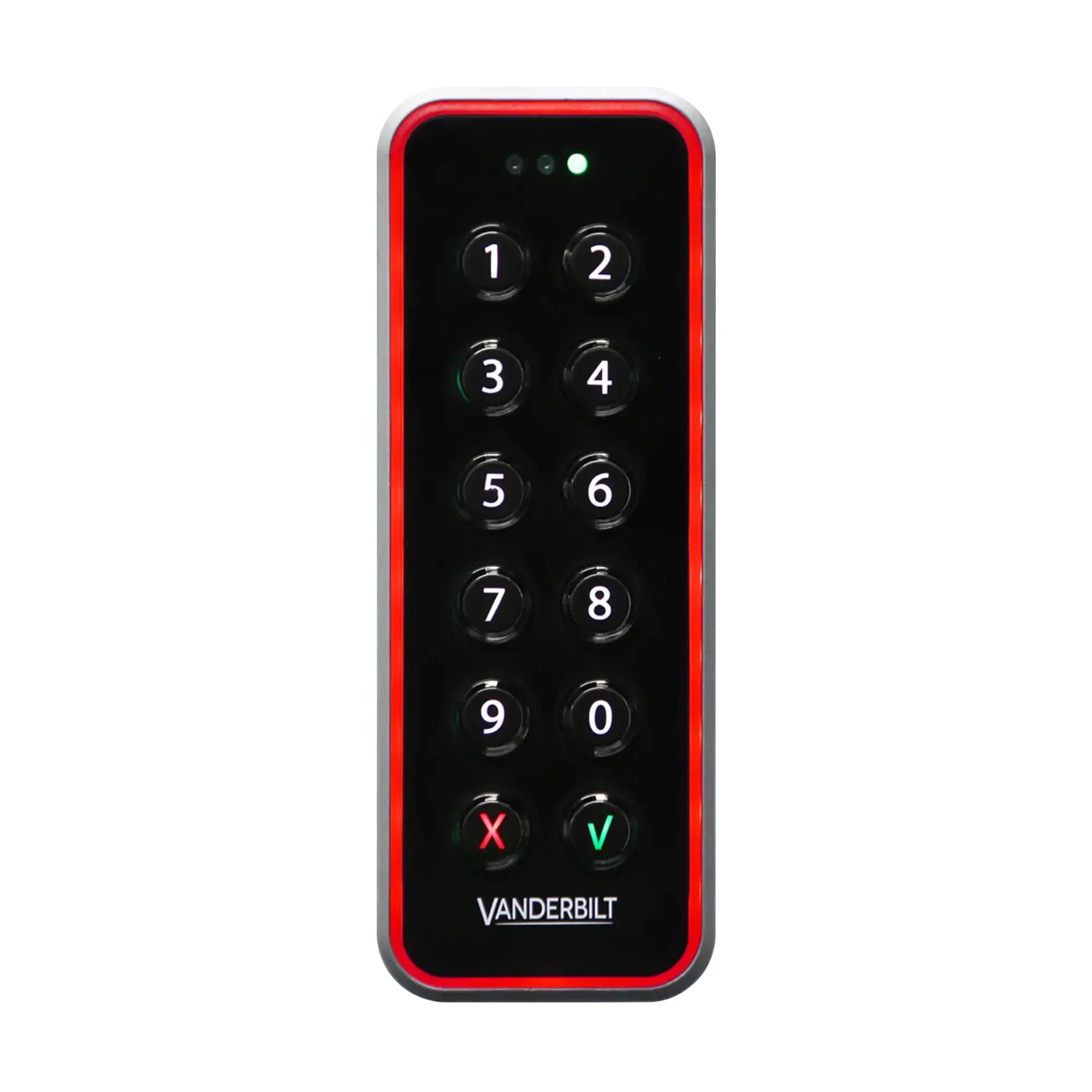

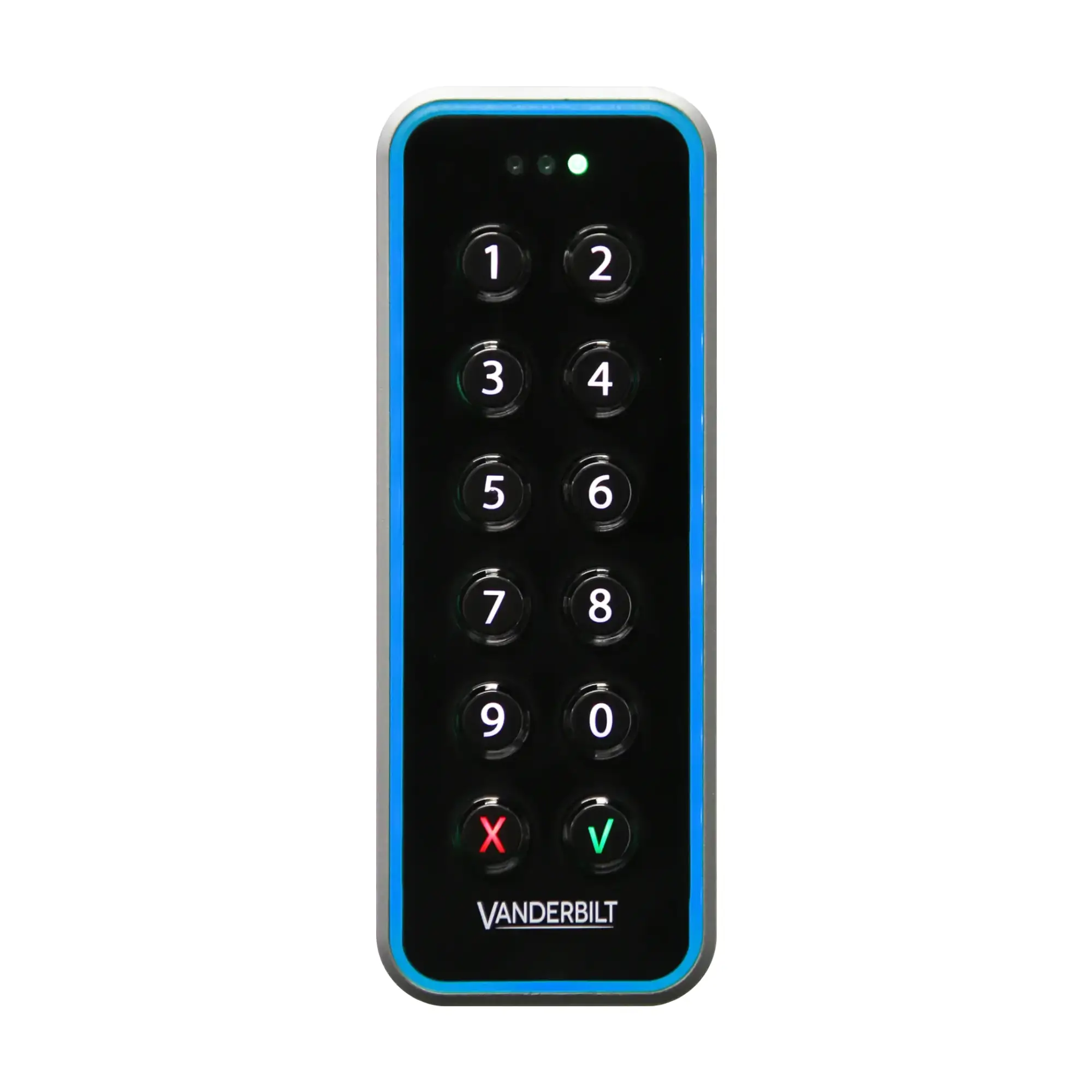

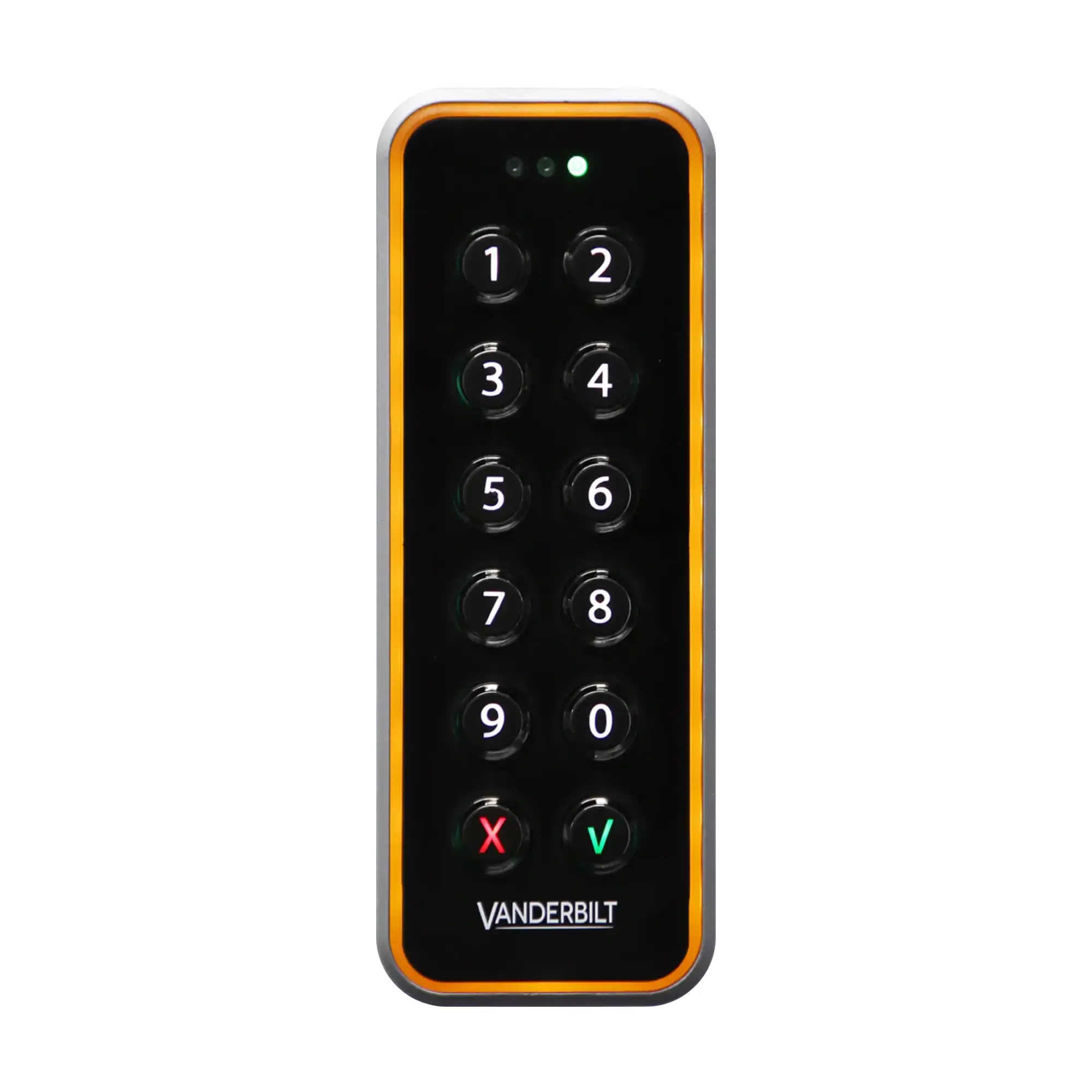

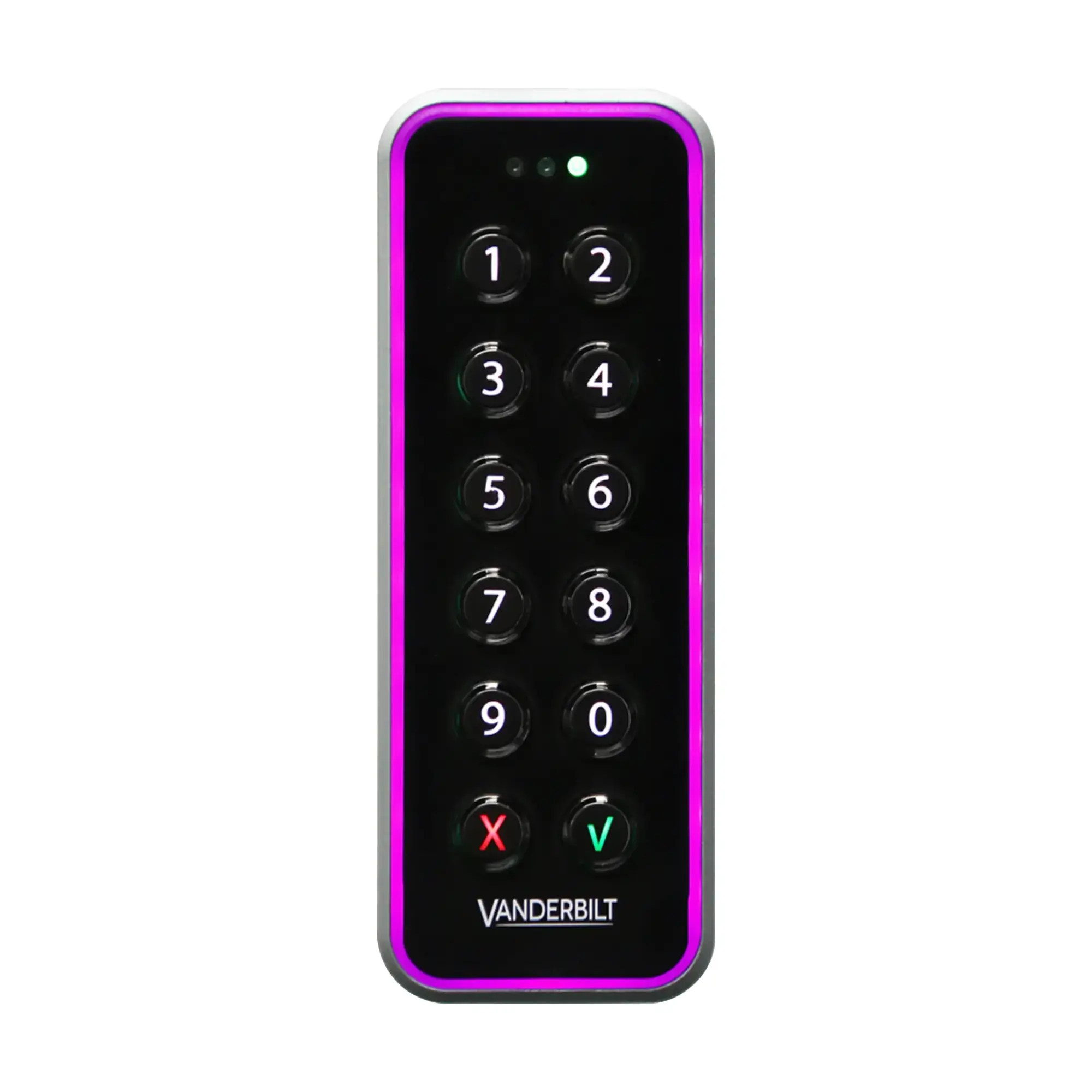

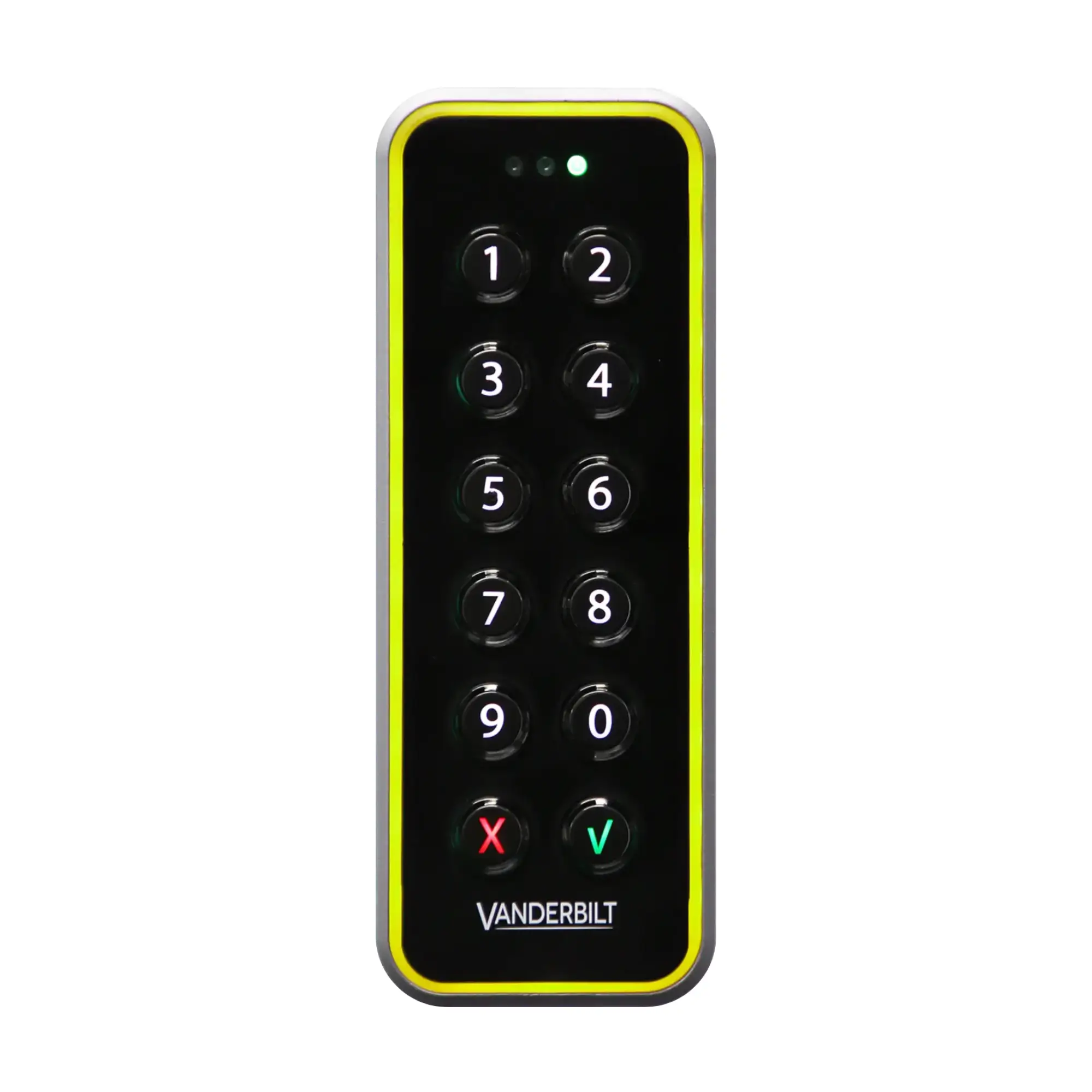

One Reader… Multiple Ways to Customise With the MultiColour LEDs

Elevate both the aesthetic appeal and operational efficiency of the Acre VR50M-MF NGCR by taking advantage of its customisable colour options. With the ability to adjust the colours for various access outcomes such as granted or denied access, as well as its rest state, you can tailor the reader to suit your specific needs and preferences. Whether it’s for enhancing visual cues or aligning with your branding, the multicolour LED feature offers a versatile solution for personalising your access control system.

Key Features of the Acre VR50M-MF NGCR:

  • Advanced MiFare Card Technology: Supports a wide range of MiFare cards, including EV1 and EV2, for secure and encrypted access control.
  • Integrated Keypad: Provides an additional layer of security and allows for PIN code access alongside card credentials.
  • Multicolour Programmable Light Frame: Enhance the visual appeal and functionality of the reader with customisable colour options for different access outcomes (granted/denied) and rest state.
  • Durable Design: Constructed with a zinc-cast metal bezel and polycarbonate plastic front, the reader is built to withstand harsh weather conditions (IK08 impact rating).

Additional Benefits of the MiFare EV1 Mullion Reader with Keypad:

  • Flexible Connectivity: Choose between OSDP or Wiegand connectivity for compatibility with various access control systems.
  • Clear Status Indicators: Three LED lights (red, yellow, green) and a buzzer provide clear visual and audible feedback on access attempts.
  • Tamper Protection: Built-in tamper protection ensures the integrity of the reader and prevents unauthorised access.
  • Wide Operating Range: Functions reliably in temperatures ranging from -40°C to +70°C (surface mounted) or -10°C to +70°C (back box mounted).

Ideal for:

  • Office Buildings: Manage employee access to secure areas within an office environment.
  • Residential Buildings: Grant secure access to apartment buildings, common areas, and individual units.
  • Data Centres and Server Rooms: Enforce strict access control for critical IT infrastructure.
  • Manufacturing Facilities: Control access to sensitive areas within a manufacturing plant.

Technical Specifications:

  • Colour: Black (matt chrome finish)
  • Housing material: Zinc casted metal bezel with polycarbonate plastic front
  • Dimensions: (L x W x H): 50 x 130 x 22 (mm)
  • Weight: 0.294 kg
  • Operating voltage: 8.5 – 30.0 VDC
  • Power consumption: DC 12V = 50mA (150mA Peak); DC 24V = 30mA (100mA Peak)
  • Tamper protection: Yes
  • Keypad: Yes
  • Card technology: MIFARE
  • Card compatibility: MIFARE Classic; MIFARE Plus (UID only); MIFARE DESFire EV1; MIFARE DESFire EV2/EV3 (to EV1 conditions only)
  • Card read distance: Up to 6 cm
  • Interface to controller: RS485 / Wiegand
  • Display: No
  • Indicators: 3 x LED (red/yellow/green); 1 x Buzzer; Multicolour light frame
  • Approval: CE according to R&TTE and EMC Directives; RED; FCC; UL (pending)
  • Operating temperature: -40°C to +70°C (surface mounted) -10°C to +70°C (back box mounted)
  • Housing protection: IP66 (surface mounted) IP3X (back box mounted)
  • Air humidity (EN 60721): 5-95% non-condensing
  • Environment: Indoor or outdoor use
  • Impact rating: IK08



Shop All Reader & Keypads

Product Specifications

Weight 294 g
Dimensions 50 × 130 × 22 mm
Brand

ACRE

Reader and Card Technology

MIFARE, DESFire

Reader Interface

Wiegand, Custom

Mounting

Mullion, Surface Mount

Protection Rating

IK08, IP66

Power Requirement

8.5 – 30.0 VDC

Colours

Black

Indicators

Buzzer, Green, Multicolour, Red, Yellow

Operating Temperature

-40°C to 70°C

Device Type

Keypad, Reader

SKU VR50M-MF-NGCR
