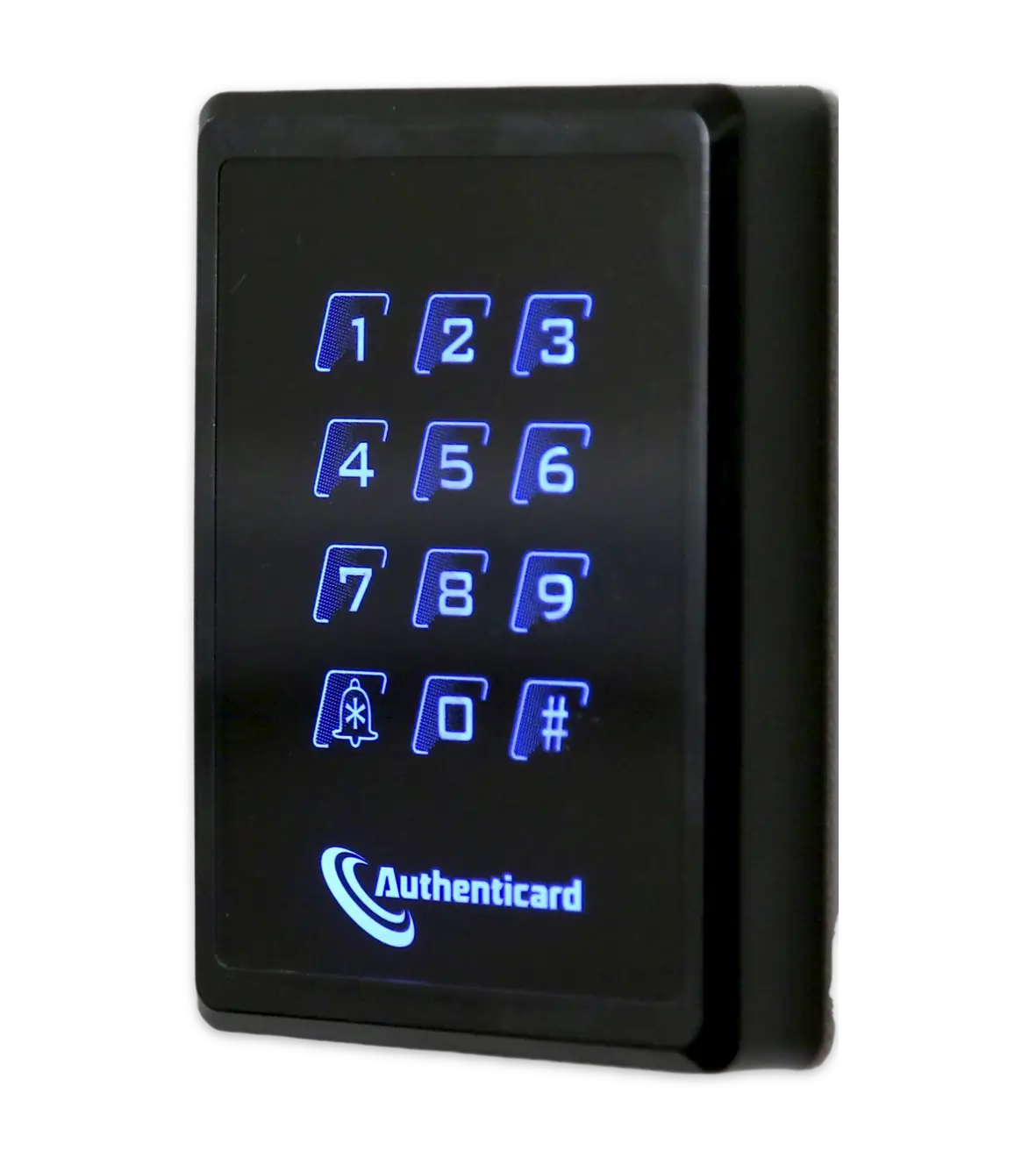

Authenticard A-KEYPAD Reader

The Authenticard A-KEYPAD reader range provide the ideal compliment for your security setup. Designed specifically for access control systems, the A-KEYPAD is available in many versions for use with most credential technologies, including: MIFARE, DESFire, AuthentiFire, Legic, Proximity 125KHz – Please select when ordering

Key Features:

  • Compatible with all standard access control systems
  • Backlit Keypad
  • 4-colour OLED indication
  • Integral beeper
  • Tamper Protection Output
  • 12VDC Operation
  • EU (CE) Certification
  • Pigtail Termination

The touch-sensitive keypad with OLED backlighting eliminates moving parts and features a smooth hardened acrylic surface making it suitable for both outdoor and indoor use.

Full Description

A-KEYPADthe Authenticard A-KEYPAD Reader With Multi-Factor Authentication – Your Key to Versatile and Secure Access Control

The Authenticard A-KEYPAD reader range provides the ideal compliment for your Authenticard credentials. Designed specifically for access control systems, the A-KEYPAD is available in many versions for use with most credential technologies. The touch-sensitive, multi-factor authentication keypad with OLED backlighting eliminates moving parts and features a smooth hardened acrylic surface making it suitable for both outdoor and indoor use.

  • Integrated reader with choice of technologies including proximity, MIFARE, DESFire, AuthentiFire and Legic
  • Touch-sensitive keypad eliminates moving parts for enhanced reliability
  • Suitable for both indoor and outdoor use – weatherproof to IP65
  • Can be mounted on metal without degradation of read range
  • Universal metal back-plate allows easy installation on a UK, EU & US single-gang back-box as well as direct wall mounting
  • Fully encapsulated construction

Key Features:

  • The Authenticard A-KEYPAD Reader Supports diverse credentials: Choose from MIFARE, DESFire, AuthentiFire, Legic, or 125KHz Proximity to match your existing system.
  • Touch-sensitive keypad: Eliminates moving parts for enhanced reliability and weatherproof performance (IP65).
  • Durable construction: Hardened acrylic surface and fully encapsulated design withstand harsh conditions.
  • Versatile mounting options: Mount on metal or directly to walls using the universal back-plate.
  • Clear user feedback: Backlit keypad and 4-color OLED display for intuitive interaction.
  • Integrated beeper and tamper protection: Provides audible and visual alerts for security breaches.
  • Wide compatibility: Works with all standard access control systems for seamless integration.
  • EU (CE) certified: Ensures compliance with safety and performance standards.

Supported Technologies:

  • 125KHz Proximity (A-KEYPAD-125)
  • MIFARE (A-KEYPAD-CSN)
  • DESFire (A-KEYPAD-EV1)
  • Authentifire (A-KEYPAD-AF)
  • Legic (A-KEYPAD-LEG)

Installation:

Installing the Authenticard A-KEYPAD Reader is simplified with its universal metal backplate, crafted to fit into a single-gang backbox or for surface mounting. Prior to securing the reader, positioning and alignment are effortlessly achieved. The reader conveniently locates onto latching tabs at the top and an integral non-drop screw located underneath for added stability and ease of installation.





Shop Our Complete Range Of Readers

Product Specifications

Weight 230 g
Dimensions 115.5 × 84.5 × 20.5 mm
Technology

DESFire, MIFARE CSN, Proximity 125KHz

Brand

Authenticard

Connection type

Pigtail / cable connection

Colours

Black

Frequency

125 KHz, 13.56 MHz

Keypad

Backlit, Integral 4-Bit Burst Keypad, Touch Sensitive

Output Protocol

Wiegand

Power Requirement

10-15 VDC, 150 mA

Construction

ABS, Polycarbonate

Operating Temperature

-30°C to 70°C

Protection Rating

IP65

Annunciation

Blue LED, Green LED, Red LED, Sounder

Finish

Gloss Black

Mounting

Surface Mount

SKU A-KEYPAD-D, A-KEYPAD-CSN, A-KEYPAD-125
