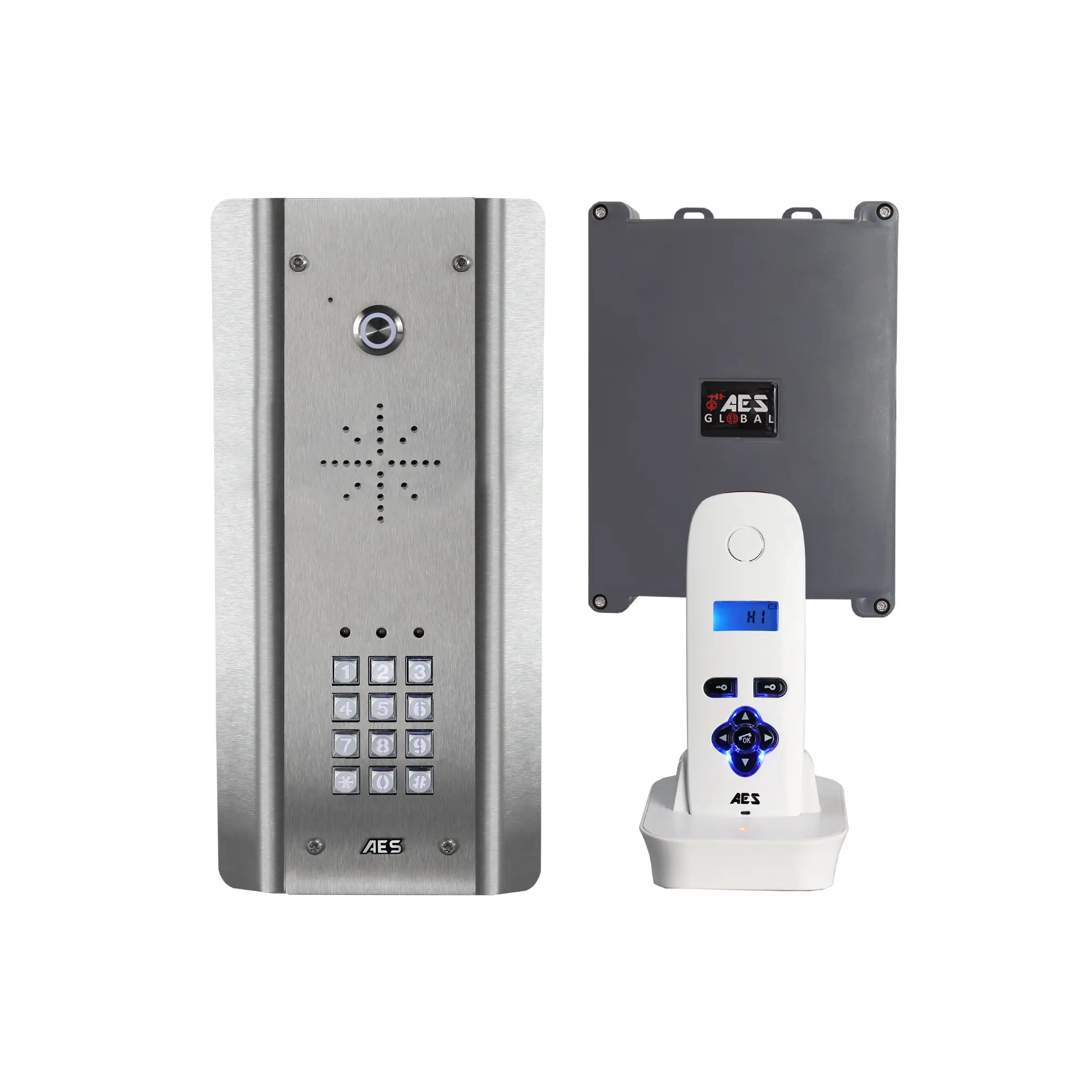

AES 603-ASK: 1-User Wireless Intercom Kit with Keypad

Full Description

Sleek, High-Performance Wireless Access Control

The AES 603-ASK architectural kit offers installers a state-of-the-art solution for sites that demand both aesthetic appeal and robust functionality. This model provides all the benefits of AES’s wireless intercom technology, eliminating the need for disruptive and costly trenching, in a modern, silver-finished door panel.

The system boasts an impressive 400-meter open field range (or 200m through a single wall), ensuring dependable communication over large or complex properties.

The AES 603-ASK features an integrated keypad capable of managing up to 1200 unique user codes across three separate relays. This allows you to manage entry for residents, staff, and contractors efficiently, while maintaining separate control over pedestrian gates, vehicle gates, or auxiliary locking mechanisms.

The portable audio handset delivers clear wireless communication and includes professional features such as a voicemail facility (capacity of 16 messages) to capture missed visitors. The system is readily expandable, supporting up to four indoor handsets in total, all of which benefit from convenient intercall functionality.

Why Choose the 603-ASK from Smart R Distribution? We stock the full range of genuine AES wireless solutions, ensuring you receive reliable, compliant components. We offer expert support and competitive trade pricing on both single units and multi-site projects.

Key Features Of The AES 603-ASK

• Premium Silver Finish: Architectural design in a modern silver housing for high-end aesthetics.
• Exceptional Wireless Range: Up to 400m (open field) or 200m through a single concrete/brick wall.
• Integrated Keypad Access: Keypad manages up to 1200 codes/proximity cards across 3 relays for full access control.
• Voicemail Functionality: Records up to 16 missed caller messages for end-user convenience.
• Expandable System: Supports up to four total indoor audio handsets (portable or wall-mounted).
• Intercall Capability: Allows users to call between multiple handsets within the property.

Technical Specifications

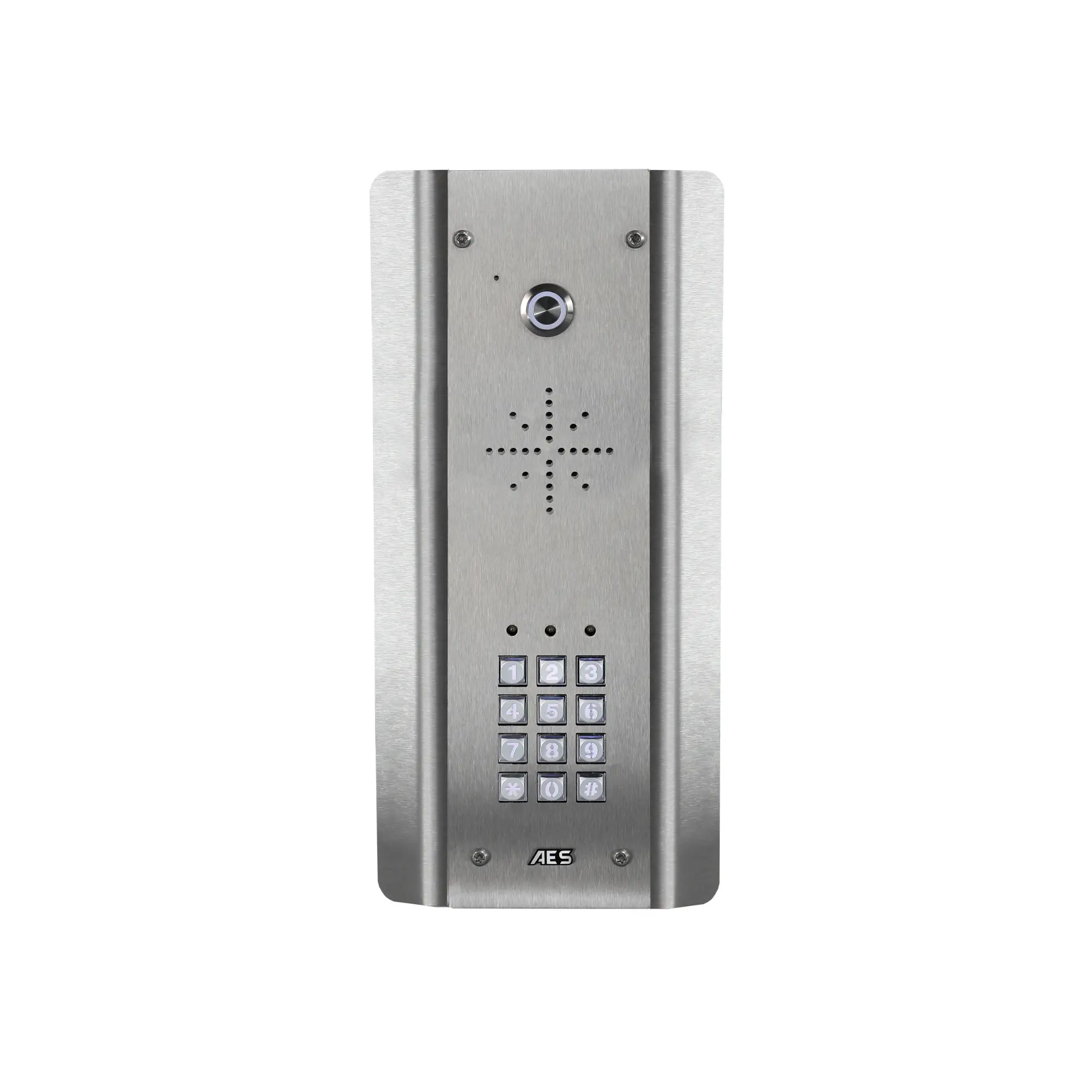

Outdoor Architectural Speech Panel

• Relay Outputs (Intercom): 2
• Relay Outputs (Keypad): 3
• Keypad Capacity: 1200 User Codes (Total)
• Power Supply: 24V AC/DC (24V DC 2A adaptor included)
• Current Consumption: 65mA (Standby), 400mA (Calling)
• Frequency: Wireless Audio (Proprietary FHSS)
• See Data Sheet

Indoor Handset Unit

• Maximum Handsets per System: 4
• Charging Base Power: 5V DC
• Wall Unit Power (Optional): 12V DC
• Voicemail Capacity: 16 Messages
• Audio Features: Volume Adjust, Intercall

Benefits

• Aesthetic Appeal: Silver architectural finish complements modern gate designs and premises.
• Installation Efficiency: Wireless operation saves time and cost associated with civil works and cabling.
• Versatile Access: Keypad allows entry management for high-traffic or multi-user environments.
• Future Proof: Expandable handset capacity future-proofs the system for growing properties.

FAQs

Is the AES 603-ASK compatible with proximity cards? Yes, the integrated keypad supports both standard coded access and proximity cards (if a compatible reader is wired to the unit), with a total capacity of 1200 users across all access relays.

How does the range compare to the black (603-ABK) version? The 603-ASK uses the same core wireless technology and transmitter as the black model (603-ABK), meaning the maximum open field range remains identical at 400 meters.

Can I use the portable handset as a fixed wall-mounted unit? The kit includes a portable audio handset, but an optional hands-free wall unit (separate accessory) is available for users who prefer a permanent mounting point inside the property.
