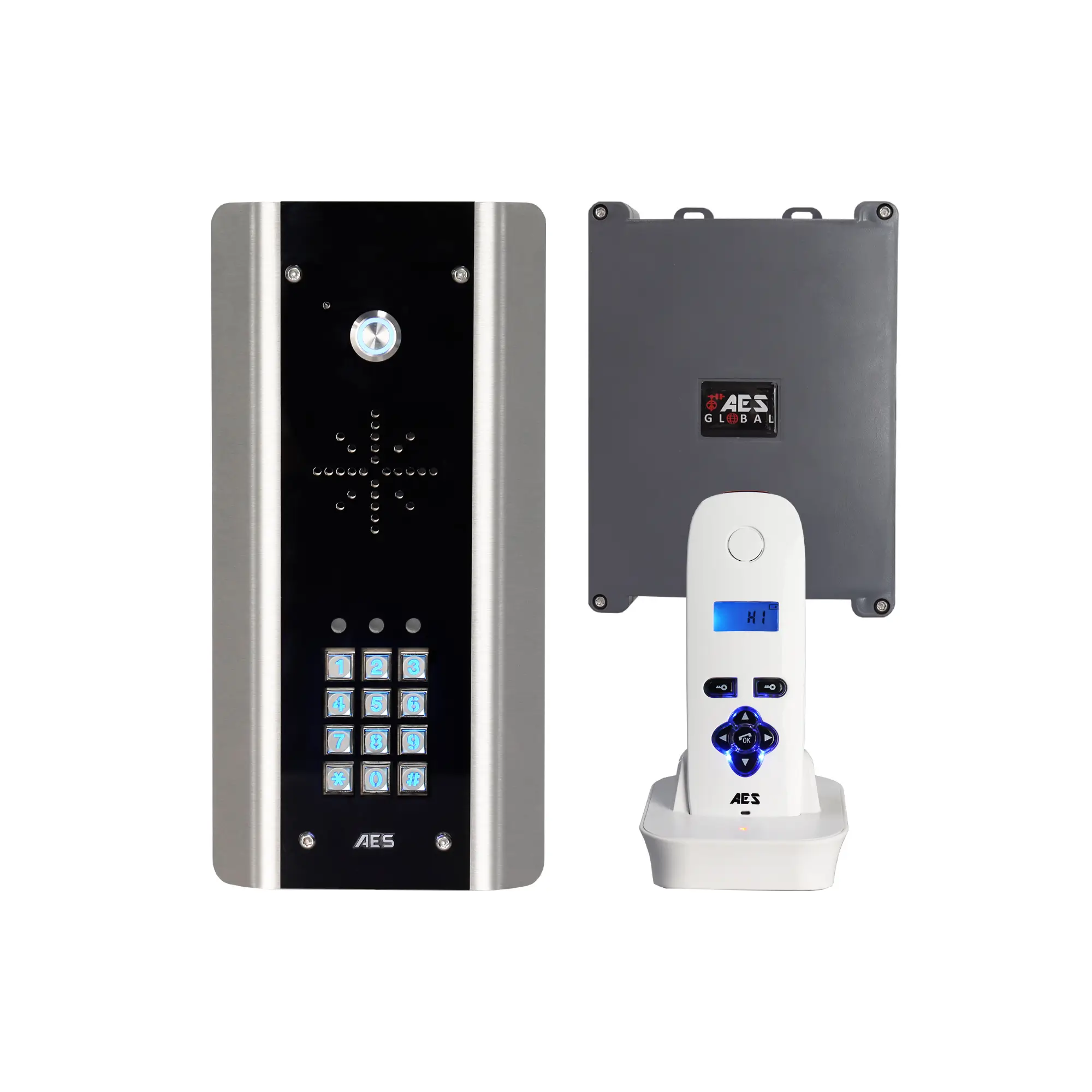

AES 603-ABK: Single Button Wireless Audio Architectural Intercom Kit with Keypad

Full Description

Premium Wireless Door Control Kit

The AES 603-ABK provides the perfect balance of cutting-edge wireless technology and professional-grade access control, making it a powerful choice for installers working on high-spec residential or light commercial gate systems. Designed to bypass the expense and disruption of laying cables, this system achieves a remarkable 400-meter open field range, ensuring reliable performance even over long driveways.

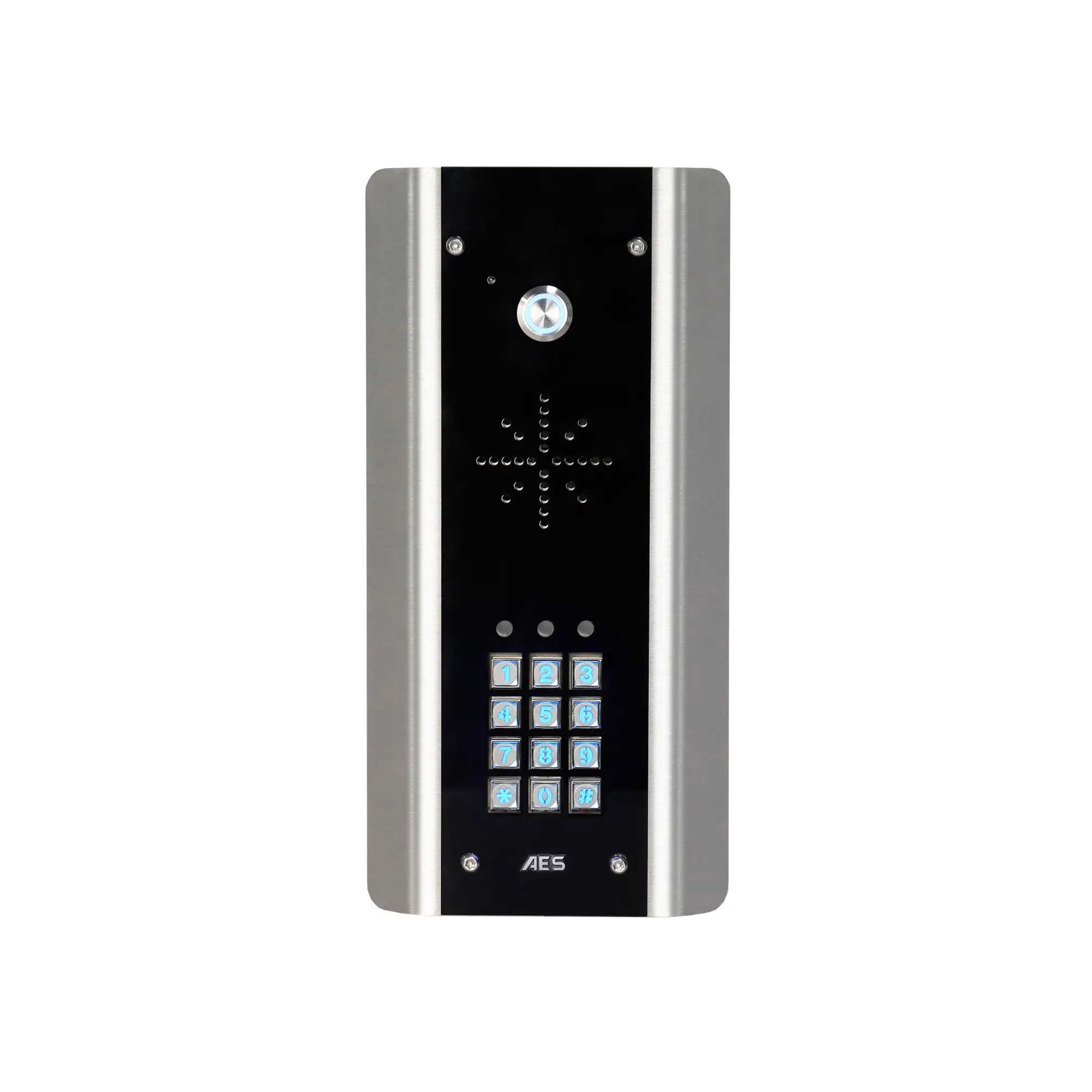

The architectural unit features a robust, single call-button gate station combined with a built-in keypad, capable of managing up to 1200 user codes or proximity cards across three separate relays. This allows for dedicated control over pedestrian gates, main vehicle gates, or lighting/auxiliary functions directly from the entrance point.

The system is managed using a portable audio handset, which features a voicemail capacity of 16 to record missed callers, a key benefit for busy end-users. Installers can easily expand the system up to four total handsets, which also support convenient intercall functionality. The unit comes complete with the necessary 24v DC adaptor, simplifying the installation process.

Why Choose the 603-ABK from Smart R Distribution? We supply the full range of AES wireless solutions, trusted by gate automation and security installers across the UK. Contact our trade support team today to discuss bulk pricing or system configuration advice.

Key Features Of The AES 603-ABK

• Exceptional Wireless Range: Up to 400m (open field) or 200m through a single concrete/brick wall.
• Integrated Keypad Access: Built-in keypad manages up to 1200 unique codes/proximity cards across 3 relays.
• Voicemail Functionality: Records up to 16 missed caller messages for end-user convenience.
• Expandable System: Supports up to four indoor audio handsets (portable or wall-mounted).
• Intercall Capability: Allows users to call between multiple handsets within the property.
• Dual Gate Relay Control: Two dedicated relays for intercom activation (plus three via keypad).

Technical Specifications

Outdoor Architectural Speech Panel

• Relay Outputs (Intercom): 2
• Relay Outputs (Keypad): 3
• Keypad Capacity: 1200 User Codes/Proxcards (Total)
• Power Supply: 24V AC/DC (24V DC 2A adaptor included)
• Current Consumption: 65mA (Standby), 400mA (Calling)
• Frequency: Wireless Audio (Proprietary FHSS)

Indoor Handset Unit

• Maximum Handsets per System: 4
• Charging Base Power: 5V DC
• Wall Unit Power (Optional): 12V DC
• Voicemail Capacity: 16 Messages
• Audio Features: Volume Adjust, Intercall
• See Full Data Sheet

Benefits

• Significant Cost Reduction: Eliminates the labour and material cost of trenching and cabling.
• High Security: 1200 user capacity for complex access requirements.
• Reliable Performance: Powerful wireless signal maintains connection over challenging distances.
• User Convenience: Portable handset allows mobility within the property while communicating with visitors.

FAQs

What is the maximum practical range I can expect from the AES 603-ABK? While the open field range is 400 meters, through one solid brick or stone wall, the practical working range is approximately 200 meters. Multiple obstructions will reduce the range, so always conduct a site survey for optimal placement.

Does the integrated keypad support proximity access? No, the keypad in the 603-ABK is designed to handle unique entry codes. For proximity card access, please see the AES 603-ABPK, which has an integrated prox reader.

Can I connect the AES 603-ABK intercom to a pedestrian gate and a vehicle gate simultaneously? Yes, the system provides two relays for intercom control and three relays from the keypad, allowing you to dedicate specific keypad codes to separate gates or auxiliary locks.
