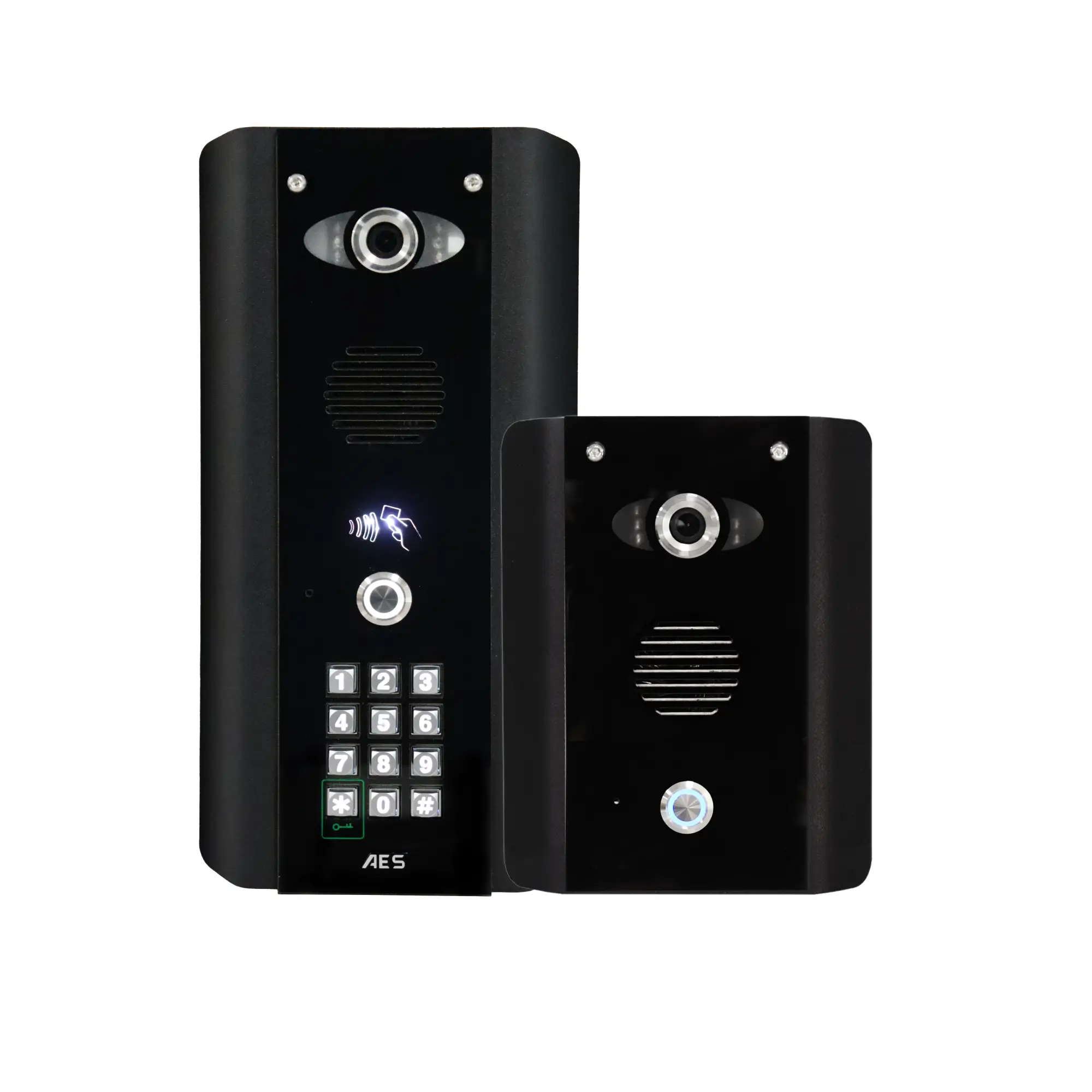

AES OPYN-PRO – IP or 4G Architectural Video Intercom with Prox Reader and Optional Keypad

Full Description

Advanced Video Entry for Modern Security Environments

The AES OPYN-PRO represents the next generation of architectural video intercoms, integrating cutting-edge cloud technology into a robust, professional-grade housing. Designed for installers who demand flexibility, this system allows for seamless connection via a standard IP/LAN network or a standalone 4G cellular link. Whether it’s a remote gate or a high-traffic commercial entrance, the OPYN Pro ensures you stay connected anytime, anywhere.

Crystal Clear Video and Smart Access Equipped with a wide-angle 1080p camera (120° diagonal), the OPYN Pro provides an expansive view of the entrance, ensuring no visitor is missed. The system is built for the modern user, supporting unlimited app sharing via QR codes or links. For physical access control, the system manages up to 150 keypad codes, 150 proximity codes, and 150 QR codes, with the added benefit of setting specific validity times or usage limits for temporary visitors.

Reliability and Integration Built to withstand harsh environments with an IP55 rating and an operating temperature range of -30°C to +65°C, the OPYN Pro is as durable as it is smart. It features two onboard relays for controlling both vehicle and pedestrian gates. Activity is logged directly to the internal SD card (up to 128GB), providing a clear audit trail of all entry events.

Why Partner with Smart R Distribution? As a specialist distributor, Smart R provides full technical backup and trade support for the AES OPYN-PRO range. We can advise on SIM card requirements for 4G models and assist with network configuration for IP-based systems.

Available Models

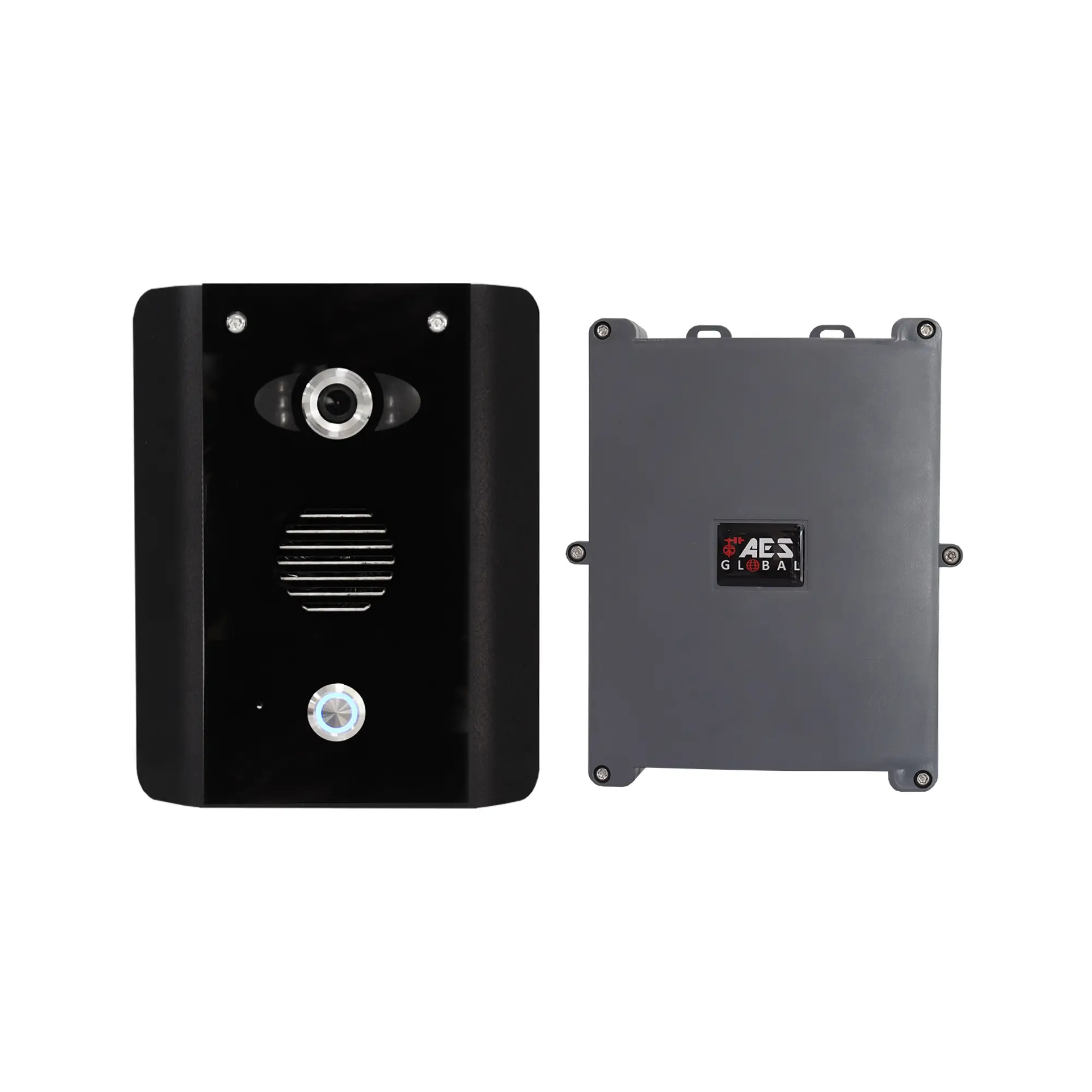

• AES OPYN-PRO-4G-AB – 4G Video Intercom System in a Black Architectural finish. Ideal for sites without internet cabling. (Requires a monthly SIM contract).

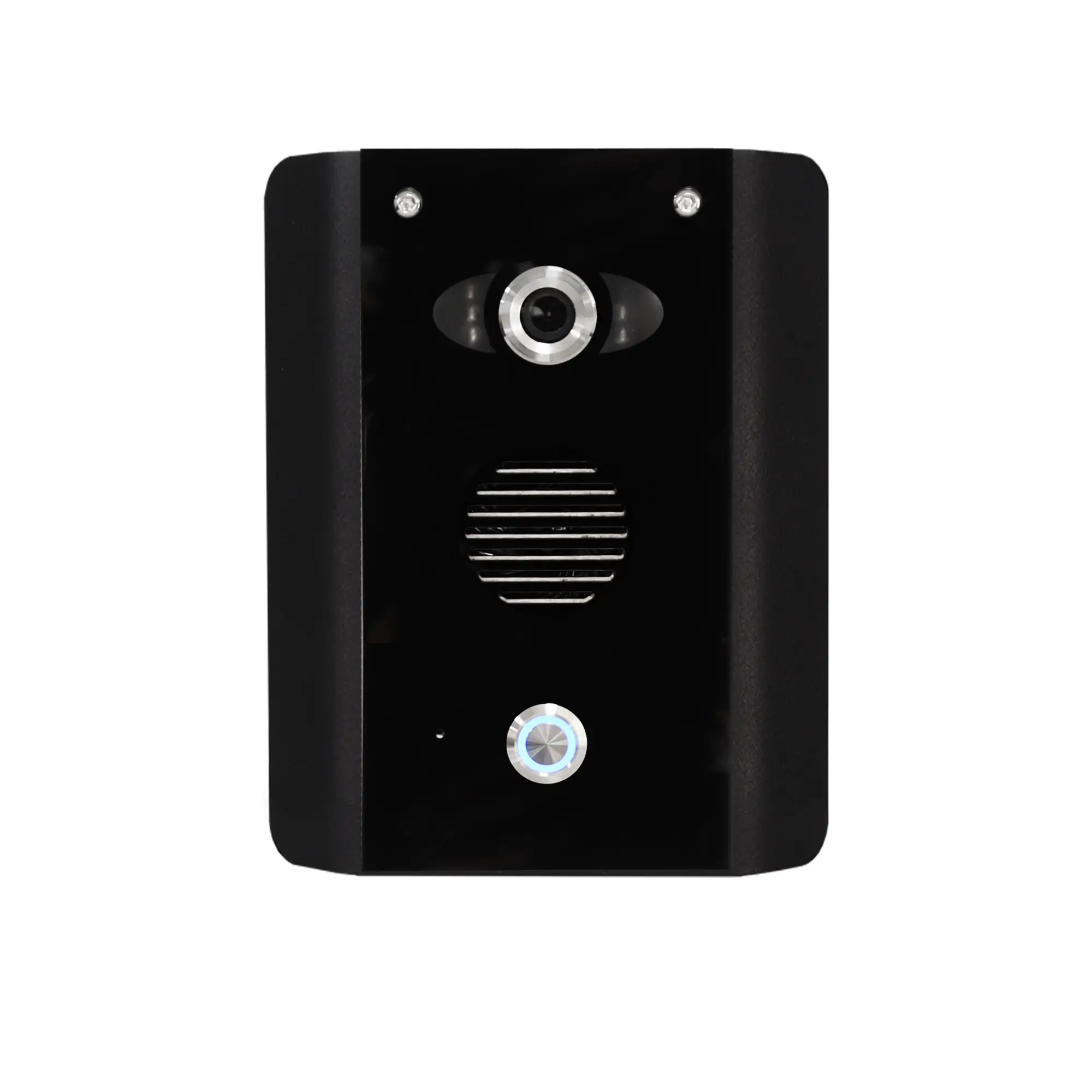

• AES OPYN-PRO-IP-AB – IP Video Intercom System in a Black Architectural finish. Connects via LAN or Dual-band WiFi.

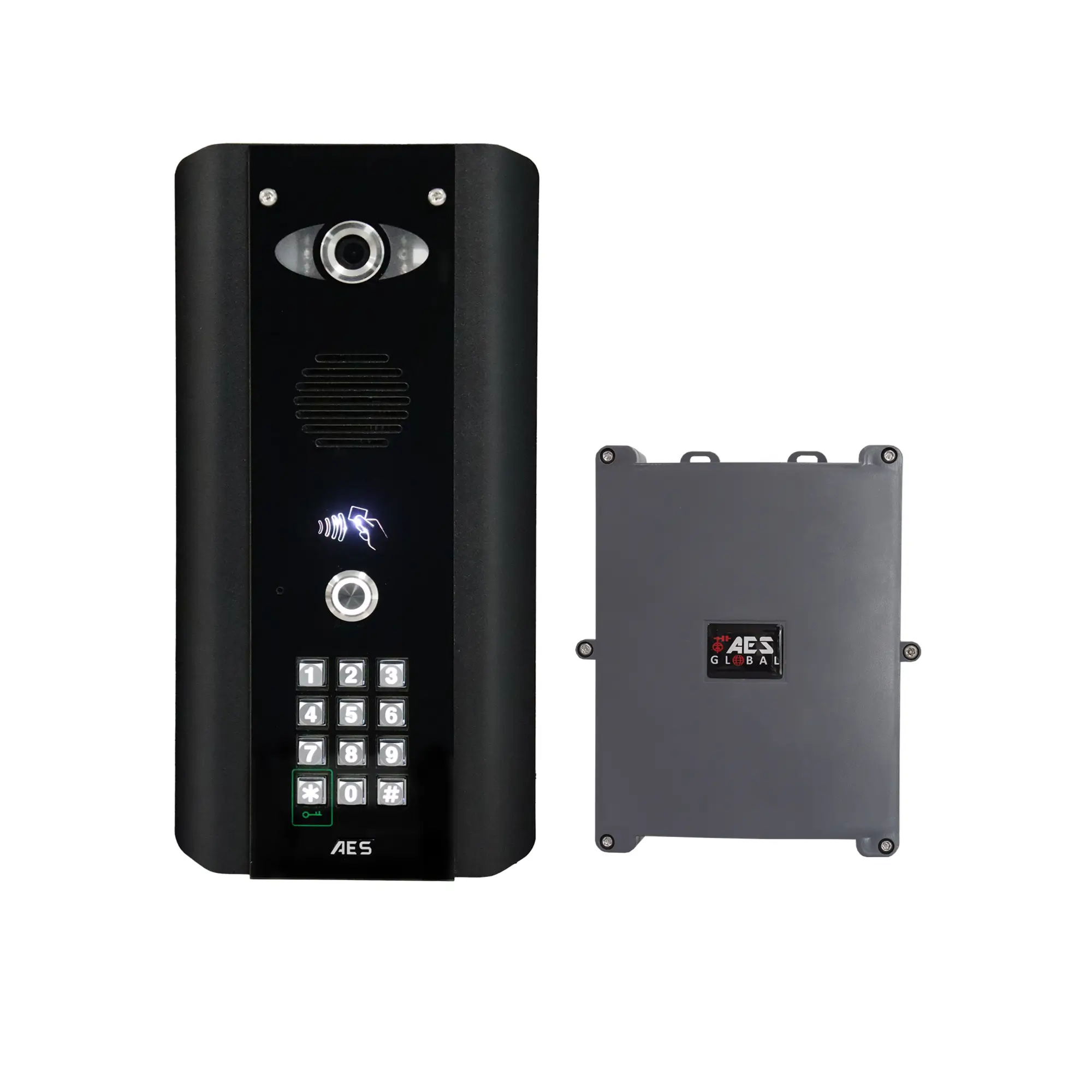

• AES OPYN-PRO-4G-ABK – 4G Video Intercom with Integrated Keypad. Black Architectural finish. (Requires a monthly SIM contract).

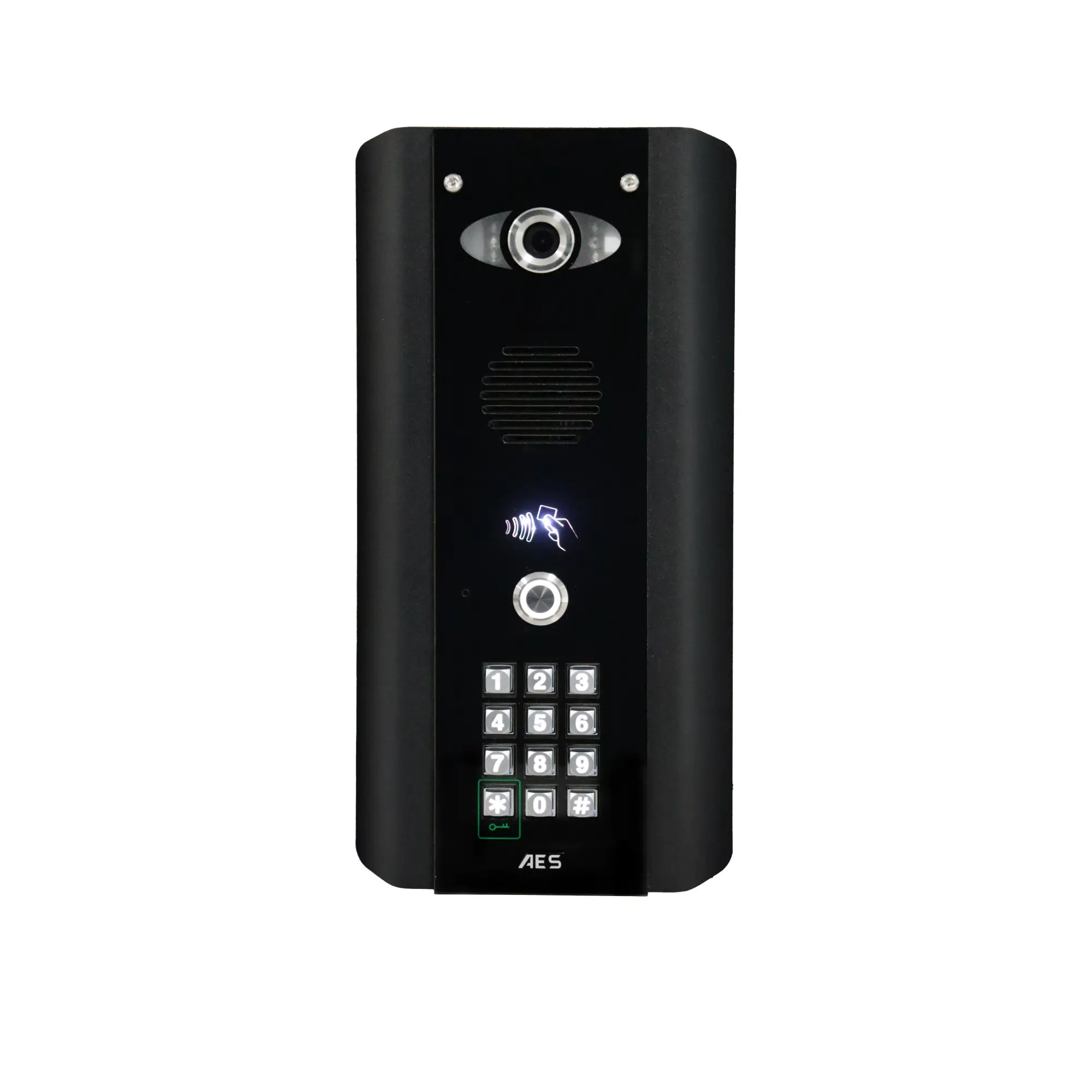

• AES OPYN-PRO-IP-ABK – IP Video Intercom with Integrated Keypad. Black Architectural finish.

Key Features Of The AES Opyn-Pro Series

• Dual Connectivity Options: Choose between high-speed 4G cellular or traditional IP/LAN connection.
• Full HD Video: 1080p resolution with a wide 120° diagonal viewing angle for superior visibility.
• Unlimited App Users: Share access easily with residents or staff via app links or QR codes.
• Versatile Access Control: Manage 150 Keypad, 150 Prox, and 150 QR codes with time-limited validity options.
• Dual-Band WiFi: Supports both 2.4 GHz and 5 GHz networks for flexible wireless installation.
• Robust Weatherproofing: IP55 rated housing designed to operate in extreme temperatures (-30°C to +65°C).
• Internal Event Logging: Includes an 8GB SD card (expandable to 128GB) for local activity logs.

Technical Specifications

• Camera Resolution: 1080p / 720p selectable
• Viewing Angle: 120° (D), 109° (H), 65° (V)
• Working Voltage: 24V DC or 48V PoE
• Power Consumption: 24V 800mA / 48V 400mA
• Relays: 2 x N/C and N/O (3A, 30V DC / 250V AC)
• Memory: 128GB Max SD Card (8GB included)
• Network: LAN / WiFi (2.4 & 5 GHz) / 4G LTE (model dependent)
• IP Rating: IP55
• Materials: Architectural Black Finish
• Operating Temperature: -30°C to +65°C
• See Data Sheet

Benefits

• Future-Proof Technology: Uses the updated Opyn cloud platform for faster, more reliable app notifications.
• Eliminate Cabling Costs: 4G models remove the need for long, expensive data cable runs to remote gates.
• Enhanced Security: Detailed activity logs and high-definition video provide peace of mind for property owners.
• Temporary Access Management: Ideal for holiday lets or contractors, simply issue a time-limited QR or Keypad code.

FAQs

Does the 4G version of the AES OPYN-PRO require a special SIM card? Yes, the 4G models require a compatible data SIM card with a monthly contract. This allows the intercom to create its own internet hotspot via the internal 4G router.

Can I power this intercom via PoE? Yes, the IP models support 48V PoE (Power over Ethernet), which allows you to send both data and power over a single Cat5e or Cat6 cable for a cleaner installation.

Is the app free for all users? The Opyn app allows you to share the device with an unlimited number of users via a link or QR code, making it highly cost-effective for large families or commercial offices.
