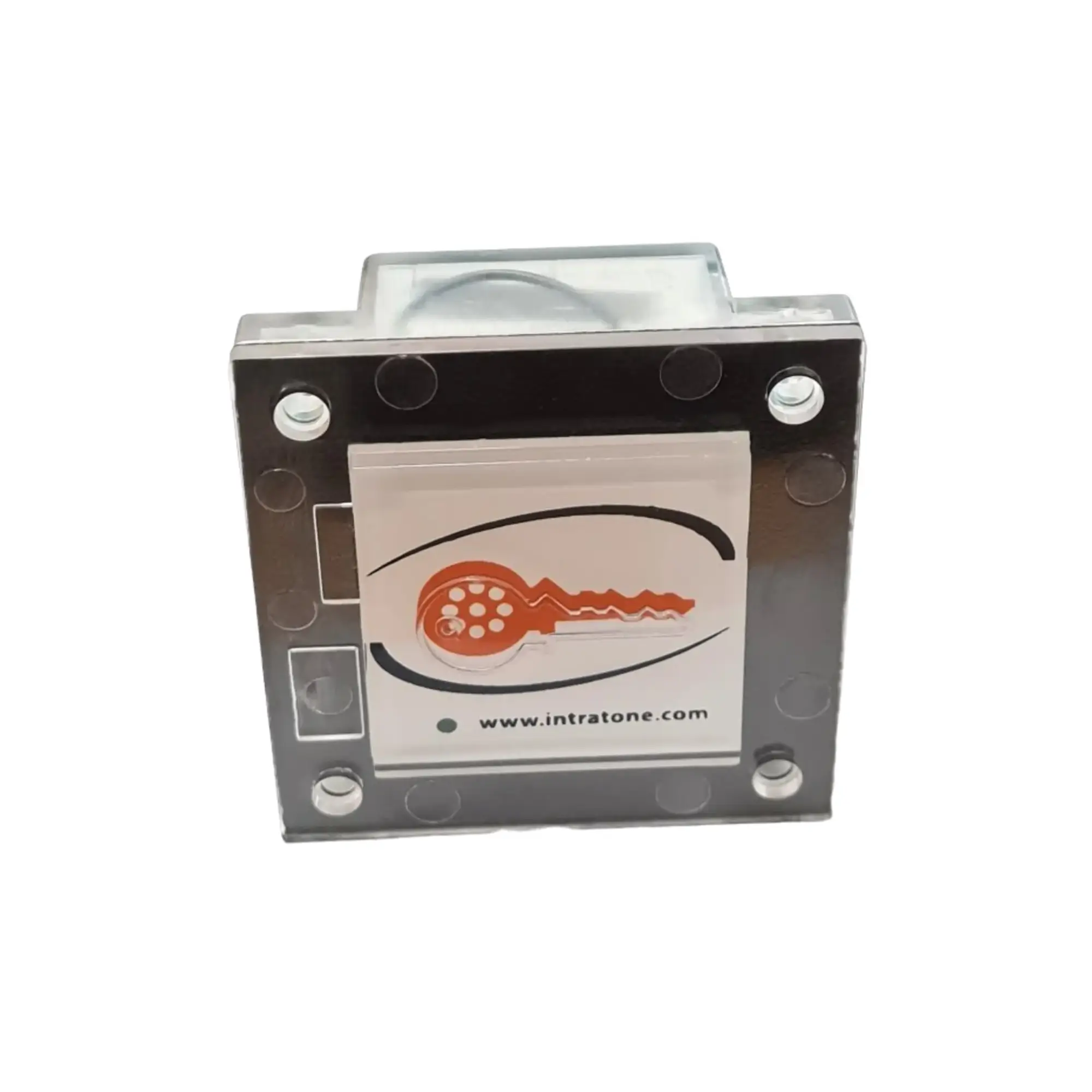

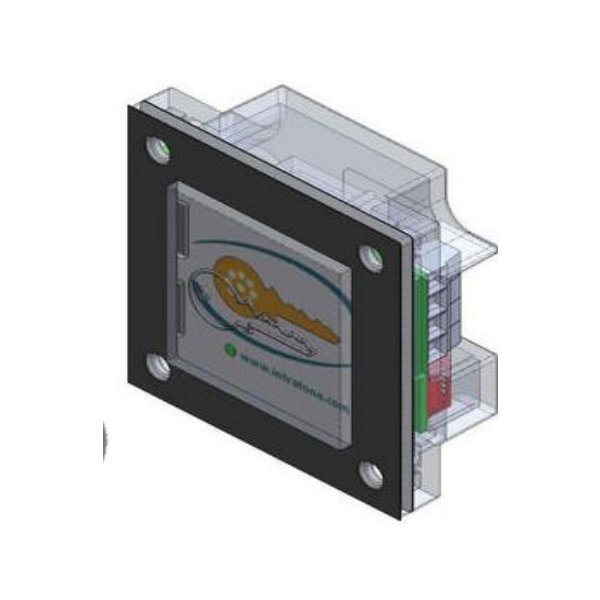

Intratone 04-0106 Flush-Fit Square Panel-Mount Proximity Reader (Requires Intratone Controller)

This Intratone high frequency (13.56MHz) reader adds proximity fob access control to an Intratone GSM door panel.  Designed to fit standard 40mm x 40mm cut-outs this reader is quick & easy to fit.  Comes with 4 nyloc nuts for fitting to mounting posts, a gasket for sealing against the door panel and a varistor to fit to the electric lock wiring to suppress any over-voltage conditions should an existing lock not already have one fitted.

Note: requires a housing and to be connected to an Intratone controller (4-wire connection).

Product Specifications

Brand

Intratone

Technology

MIFARE

Cable Type

2-Wire Twisted Pair

Frequency

13.56 MHz

Operating Temperature

-20°C to 60°C

Protection Rating

IP54

Power Requirement

12-24 VDC

SKU INT-04-0106
