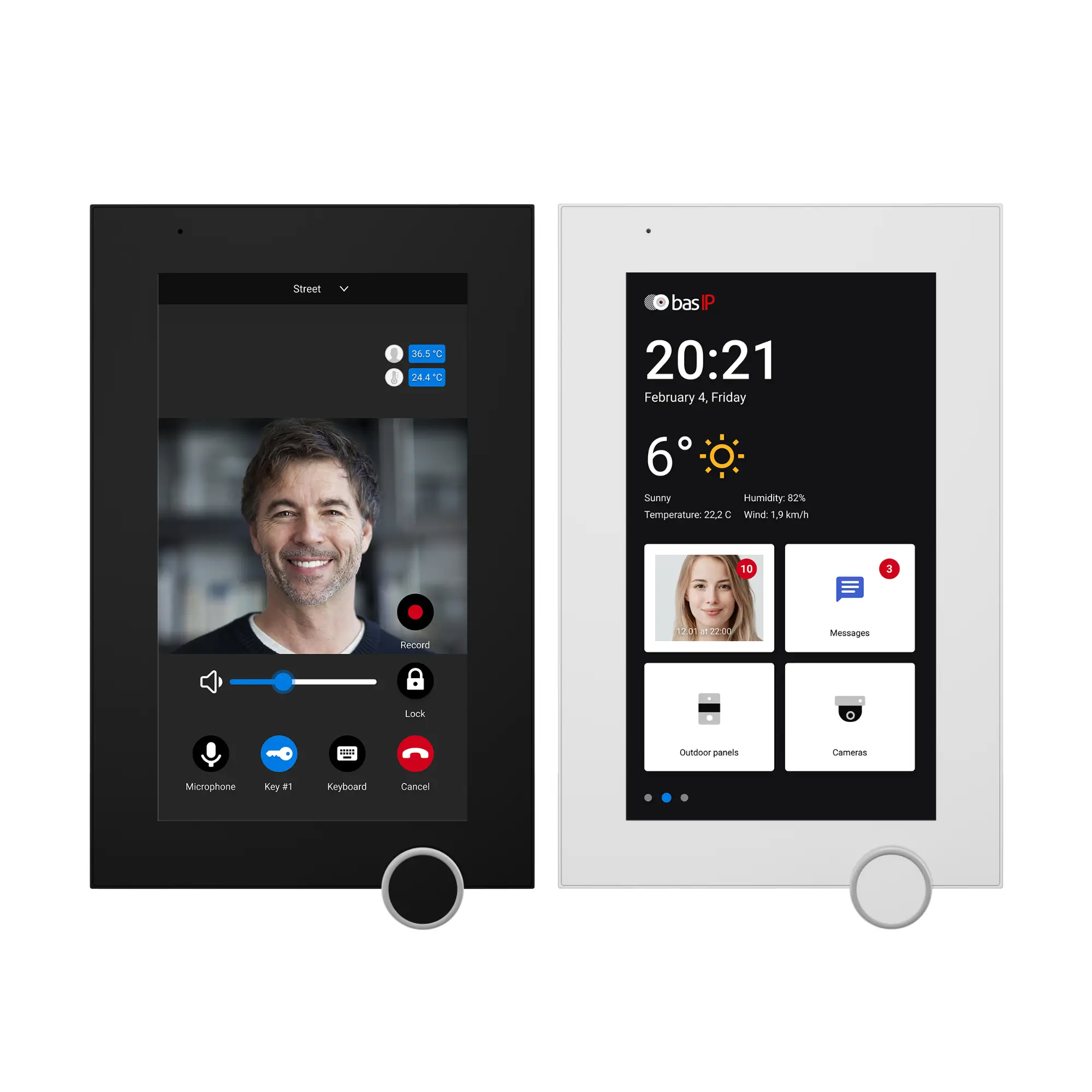

BAS-IP AZ-07LF: 7-inch IP Indoor Video Phone with Wi-Fi

The BAS-IP AZ-07LF is a modern 7-inch IP indoor video phone, offering a sleek and intelligent solution for apartment and home communication. Running on Android 10.0 and featuring integrated Wi-Fi, this device provides intuitive control over your intercom system and smart home features, all while maintaining high security standards (IASME Level 2 accredited).

Key Features:

  • Centralised Control: Manages intercom calls, monitors cameras, and controls smart home devices from a single, intuitive interface.
  • Enhanced Security & Privacy: Monitor multiple cameras, manage call settings, and protect personal space with Do Not Disturb modes.
  • Modern User Experience: The Android OS and touchscreen provide a familiar, app-driven experience, making it easy for users of all ages.
  • Flexible Installation: Wi-Fi and multiple power options simplify deployment in various residential settings.
  • Customisable & Expandable: Supports custom ringtones, third-party apps, and extensive connections to other panels and cameras, adapting to evolving needs.
  • IASME Level 2 Accreditation: Ensures a high standard of cybersecurity for your communication system.

Select From The Following Colours:

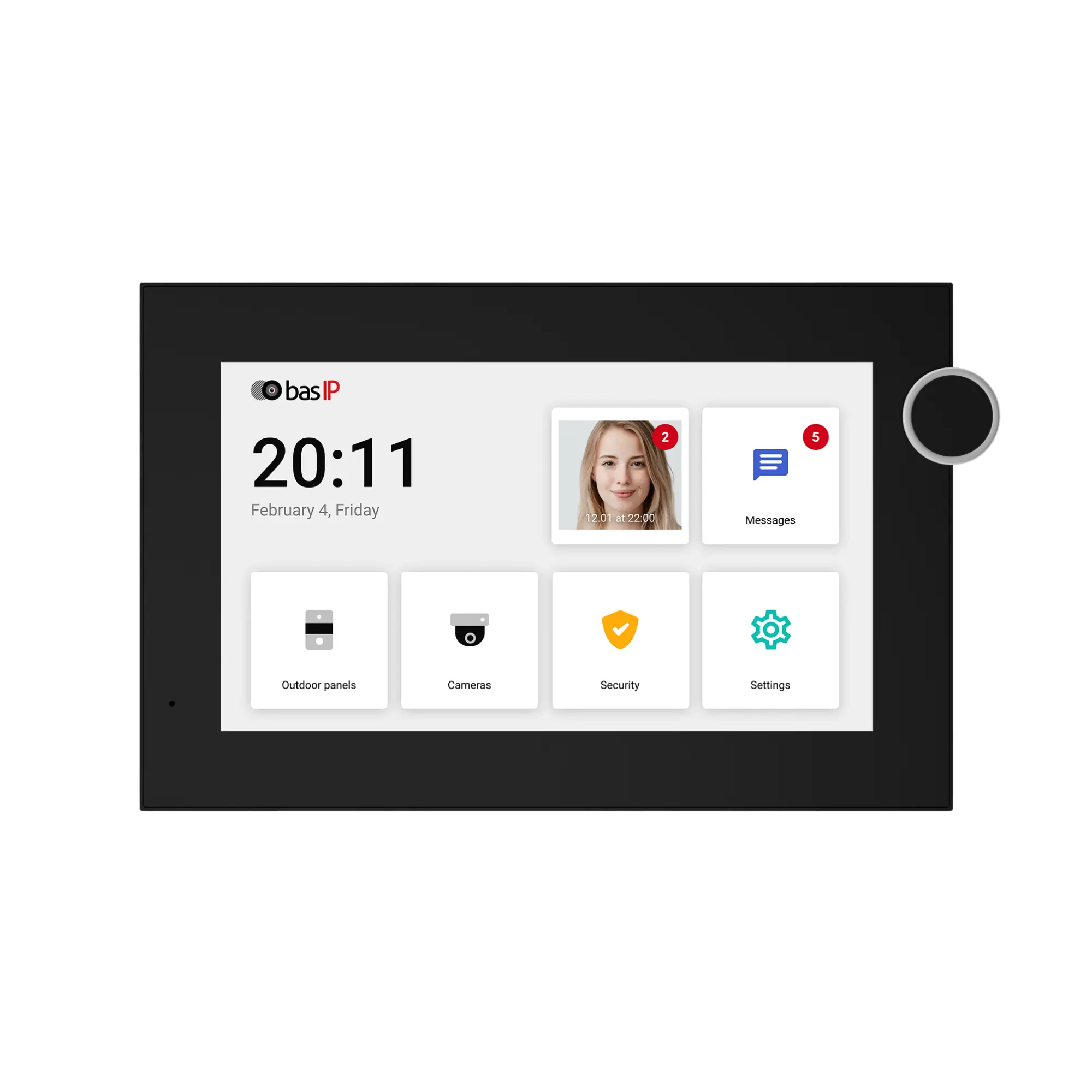

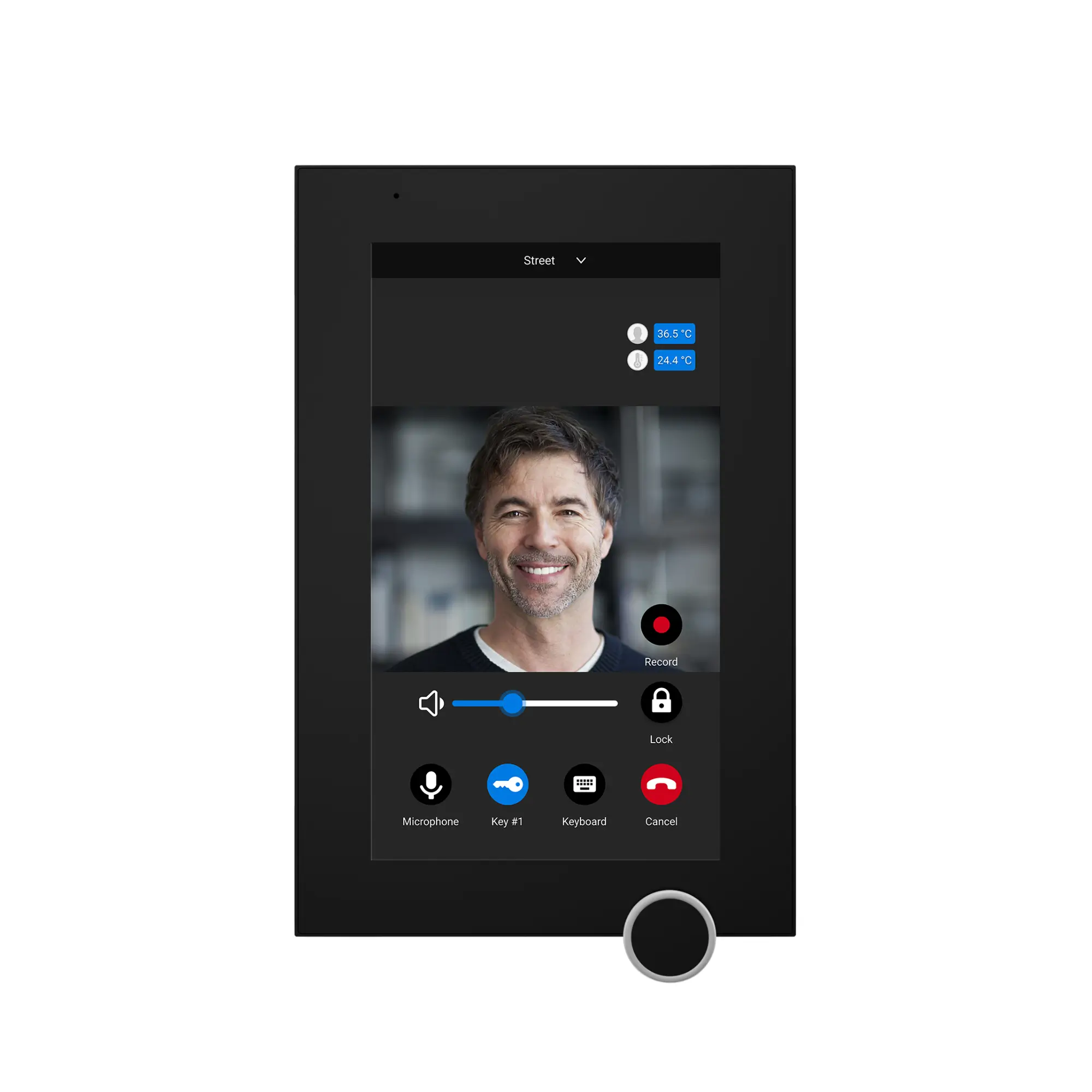

  • BAS-IP AZ-07LF-B – Black

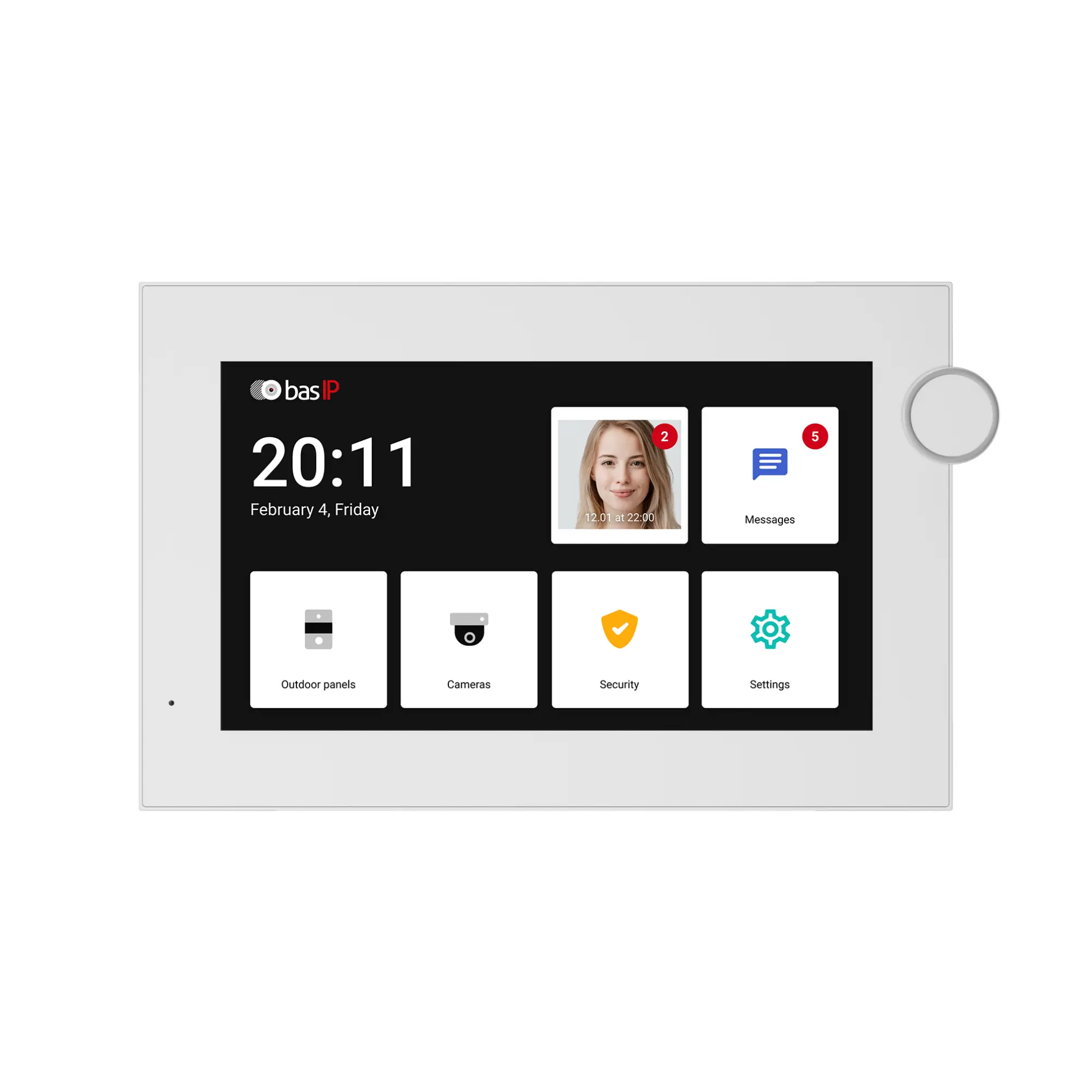

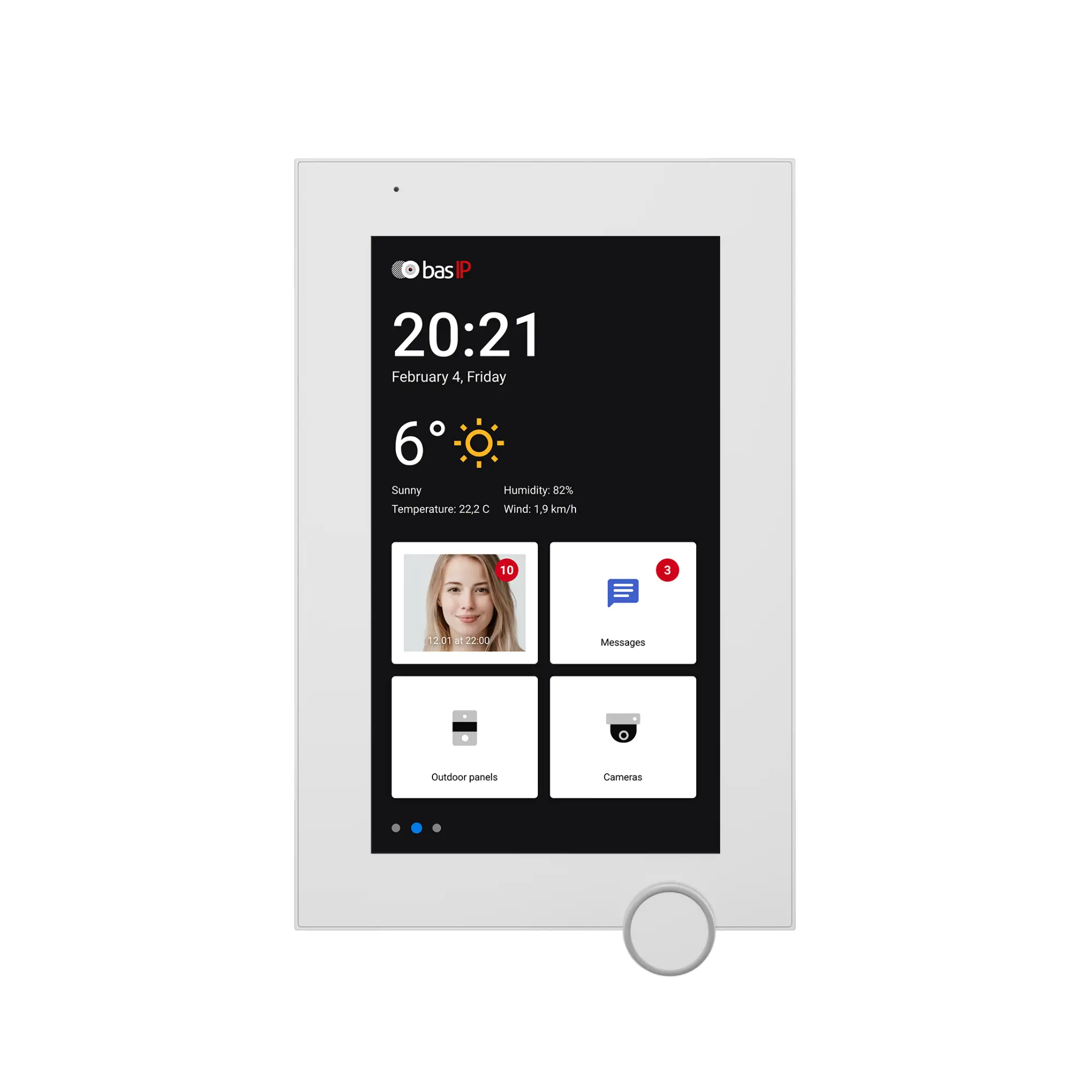

  • BAS-IP AZ-07LF-W – White

Full Description

7-inch IP Indoor Video Phone with Wi-Fi and Android OS, Accredited to IASME Level 2

The BAS-IP AZ-07LF is a sophisticated 7-inch IP indoor video phone that combines intuitive design with advanced smart home capabilities, all while boasting an IASME Level 2 accreditation for enhanced cybersecurity. Featuring a crisp IPS LCD capacitive touchscreen and running on Android 10.0, this monitor provides a comprehensive interface for managing building access, smart home functions, and communications. With built-in Wi-Fi and versatile power options, the AZ-07LF offers flexible installation and integration into modern residential and commercial environments.

Key Features Of The BAS-IP AZ-07LF:

  • 7-inch IPS LCD Capacitive Touchscreen: The BAS-IP AZ-07LF features a vibrant 1024 x 600 resolution display offers sharp images and highly responsive touch control for an intuitive user experience.
  • Android 10.0 Operating System: Provides a familiar and flexible platform
  • Built-in Wi-Fi (2.4GHz IEEE 802.11b/g/n): Offers convenient wireless connectivity, simplifying installation and reducing cabling requirements.
  • IASME Level 2 Accreditation: Ensures a high standard of cybersecurity, providing peace of mind regarding data protection and system integrity.
  • Flexible Power Options: Supports both Power over Ethernet (PoE) and +12 V DC (PSU not included), providing versatile installation choices.
  • Multi-Panel & Multi-Monitor Support: Connects to up to 9 individual panels, 9 multi-apartment panels, and up to 8 additional monitors within the same property for comprehensive coverage.
  • Extensive IP Camera Integration: Supports viewing streams from up to 32 IP cameras, allowing for comprehensive surveillance from a single device.
  • Multimedia Capabilities: View video, photo, and audio files directly from an SD card, which can also be used for recording call photos, videos, and audio.
  • Customisable Ringtones: Choose from 9 built-in call melodies or upload custom MP3 ringtones for a personalised experience.
  • Smart Home Control: Integrated functions for controlling home automation elements such as lights, curtains, and even lifts, making it a central smart home hub.
  • Answering Machine Functionality: Records messages when calls are missed, ensuring no visitor communication is lost.
  • Message Reception Support: Can receive various types of messages, enhancing communication within the building system.
  • Customisable Standby Mode: Features customisable standby modes including multi-camera live viewing (up to 4 or 16 cameras with adjustable time), clock display, photo frame, or single IP camera live viewing.
  • Do Not Disturb & Silent Mode: Customisable by time, allowing residents to control interruptions.
  • Backup of Call Photos: Automatically backs up photos taken during calls.
  • Multi-Language Interface: User-friendly graphical and web interface available in multiple languages.
  • Software Updates: Easily update firmware from the web interface, SD card, or BAS-IP updates server.
  • Compact & Stylish Design: Available in black and white plastic body, designed for wall mounting in both horizontal and vertical orientations.

Technical Specifications:

  • Display: 7” IPS LCD (capacitive touchscreen), 1024 x 600 resolution
  • Operating System: Android 10.0
  • Built-in Camera: No
  • Wi-Fi: 2.4GHz (IEEE 802.11b/g/n)
  • Power: PoE and + 12 V DC (PSU not included)
  • Power Consumption: 6 W (active), 2.5 W (standby)
  • Dimensions: 195 x 127 x 27 mm
  • Colours: Black / White
  • Body Material: Plastic
  • Installation Type: Wall mount (horizontal and vertical options)
  • Network Connection: Ethernet wire 8P8C
  • Individual Panel Support: Up to 9
  • Multi-Apartment Panel Support: Up to 9
  • Additional Monitor Connection: Up to 8
  • Additional Connectors: SD card slot (SDHC)
  • IP Camera Support: Up to 32 cameras
  • Call Ringtones: 9 melodies (custom MP3 upload)
  • Intercom Type: Audio Intercom (no built-in camera on indoor unit)
  • See Full Data Sheet

Benefits Of The BAS-IP AZ-07LF:

  • Centralised Control: The BAS-IP AZ-07LF manages access, communication, and smart home features from one intuitive device.
  • Enhanced Security: IASME Level 2 accreditation provides assurance of robust cybersecurity practices.
  • Flexible Connectivity: Wi-Fi and PoE options simplify installation and integration.
  • Customisable & Expandable: Android OS allows for personalised apps and extensive camera/panel integration.
  • Convenient Communication: Video/audio calls, answering machine, and message reception keep residents connected.
  • Discreet Design: Slim profile and colour options blend seamlessly into modern interiors.
  • User-Friendly Interface: High-resolution touchscreen and multi-language support offer an excellent user experience.

Ideal Applications of the BAS-IP AZ-07LF-B and The BAS-IP AZ-07LF-W:

  • Residential apartments and luxury homes.
  • Small to medium-sized commercial offices.
  • Condominiums and multi-dwelling units.
  • Any property seeking a modern, secure, and feature-rich IP indoor video phone with smart home integration capabilities.
  • Installations where cybersecurity accreditation is a priority.



Product Specifications

Brand

Bas-IP

Door Entry System Component

Ancillary Products

Monitor or Handset Type

Video Touchscreen, App

Monitor Size

7" Touch-Screen

Construction

Plastic

Mounting

Surface Mount

Power Requirement

12 VDC, PoE

Colours

Black, White

SKU BAS-AZ-07LF-B, BAS-AZ-07LF-W
