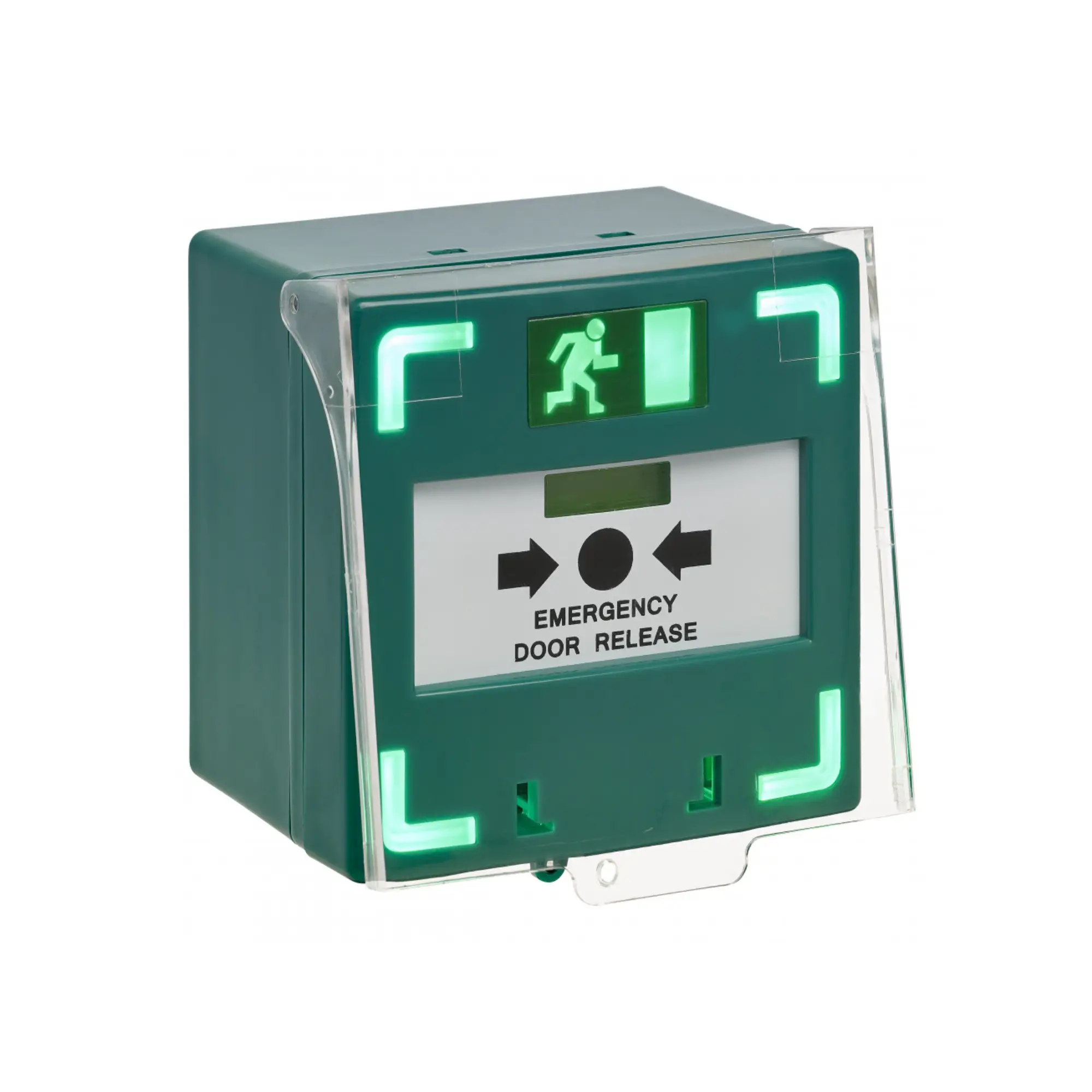

CP3-LSRC-DB – Triple Pole Resettable BGU With Deep Back Box

The CP3-LSRC-DB is a versatile triple pole resettable break glass unit (BGU) designed for emergency door release, offering both surface and flush mounting options thanks to its included deep back box. This unit provides a reliable and compliant solution for emergency egress, featuring clear visual and audible indications.

Key Features:

  • Triple Pole Configuration: Provides three independent sets of contacts, allowing for flexible wiring and integration with various security and access control systems.
  • Resettable Mechanism: Easily reset after activation using the supplied key, eliminating the need for replacement glass and reducing ongoing maintenance costs.
  • Deep Back Box Included: Facilitates both surface and flush mounting installations, offering greater flexibility in deployment.
  • Integrated Sounder: Features an adjustable sounder (65 to 85dB) to provide an audible alert upon activation, drawing immediate attention to the emergency.
  • Bi-Coloured LED Indicators: Includes adjustable dual-colour LEDs that clearly indicate the unit’s status (e.g., armed, activated).
  • Protective Cover: Supplied as standard to prevent accidental activation.
  • Single Gang: Designed to fit standard single gang electrical boxes for straightforward installation.
  • Wide Power Compatibility: Operates on 12Vdc or 24Vdc power supplies.
  • High Contact Rating: Contacts rated at 3A @ 125V for reliable switching.

Full Description

Emergency Door Release with Dual-Color LED & Audible Sounder

The CP3-LSRC-DB is a highly versatile triple pole resettable break glass unit (BGU) designed for emergency door release in various access control and security systems. Unlike its shallower counterpart, this unit comes with a deep back box, allowing for both surface and flush mounting. It offers convenient resetting with a supplied key after activation and includes an adjustable sounder and bi-colored LEDs for clear status indication.

Key Features of the CP3-LSRC-DB:

  • Triple Pole Contacts: The CP3-LSRC-DB provides robust and flexible switching capabilities for various electrical configurations in emergency door release applications.
  • Resettable Mechanism: Allows for quick and easy resetting after activation using the provided key, eliminating the need to replace fragile glass elements.
  • Deep Back Box: Enables flexible installation for either surface mounting (protruding less than a standard surface box) or flush mounting (recessed into the wall).
  • Emergency Door Release: Serves as a clear and identifiable manual override point for immediate egress during emergencies.
  • Adjustable Audible Sounder: Features an integrated sounder with adjustable volume (65 to 85dB) to provide a clear alarm upon activation.
  • Bi-coloured LED Indicators: Equipped with dual-colour LEDs (e.g., green for normal, red for activated) for intuitive visual status feedback, with adjustable brightness.
  • Protective Cover Supplied: The CP3-LSRC-DB comes with a transparent protective cover as standard to help prevent accidental activation.
  • Single Gang Size: Compact and standard size for easy integration into existing installations.

Technical Information:

  • Contact Configuration: Triple Pole
  • Operation: Resettable
  • Power Supply: 12/24Vdc
  • Contacts Rating: 3A @ 125V
  • Indicator: Dual-colour LED (Adjustable)
  • Sounder Range: 65 to 85dB (Adjustable)
  • Active Current: 75mA
  • Standby Current: 41mA
  • Mounting: Surface or Flush mount
  • Colour: Green (Standard)
  • Size (excluding cover): 85mm (H) x 85mm (W) x 64mm (D)

Benefits of a Break Glass Unit with a Deep Back Box:

  • Installation Flexibility: The CP3-LSRC-DB has a deep back box that supports both surface and flush mounting.
  • Cost-Effectiveness: Resettable design eliminates recurring costs associated with replacing traditional break glass.
  • Clear Status Indication: Audible sounder and bright, adjustable LEDs provide immediate and unambiguous feedback.
  • Enhanced Safety: Provides a readily identifiable and easy-to-operate emergency exit mechanism.
  • Versatile Integration: Triple pole contacts and 12/24Vdc power compatibility suit a wide range of access control systems.
  • Reduced Accidental Activations: Protective cover offers an additional layer of safety.

Ideal Applications:

  • Emergency exit points in commercial and public buildings.
  • Access control systems requiring robust and resettable emergency override.
  • Installations where both flush and surface mounting options are considered.
  • Fire escape routes and emergency egress points (in compliance with local regulations).
  • Any security system needing a clear and reliable manual release mechanism.

Product Specifications

Colours

Green

Connection Type

Terminal connection

Construction

Plastic

Contacts

1-pole changeover (1 x SPDT), 2-pole changeover (2 x SPDT), 3-pole changeover (3 x SPDT)

Mounting

Surface Mount

Power Requirement

12-24 VDC

SKU SR1-BGS-303-LSRC-42
