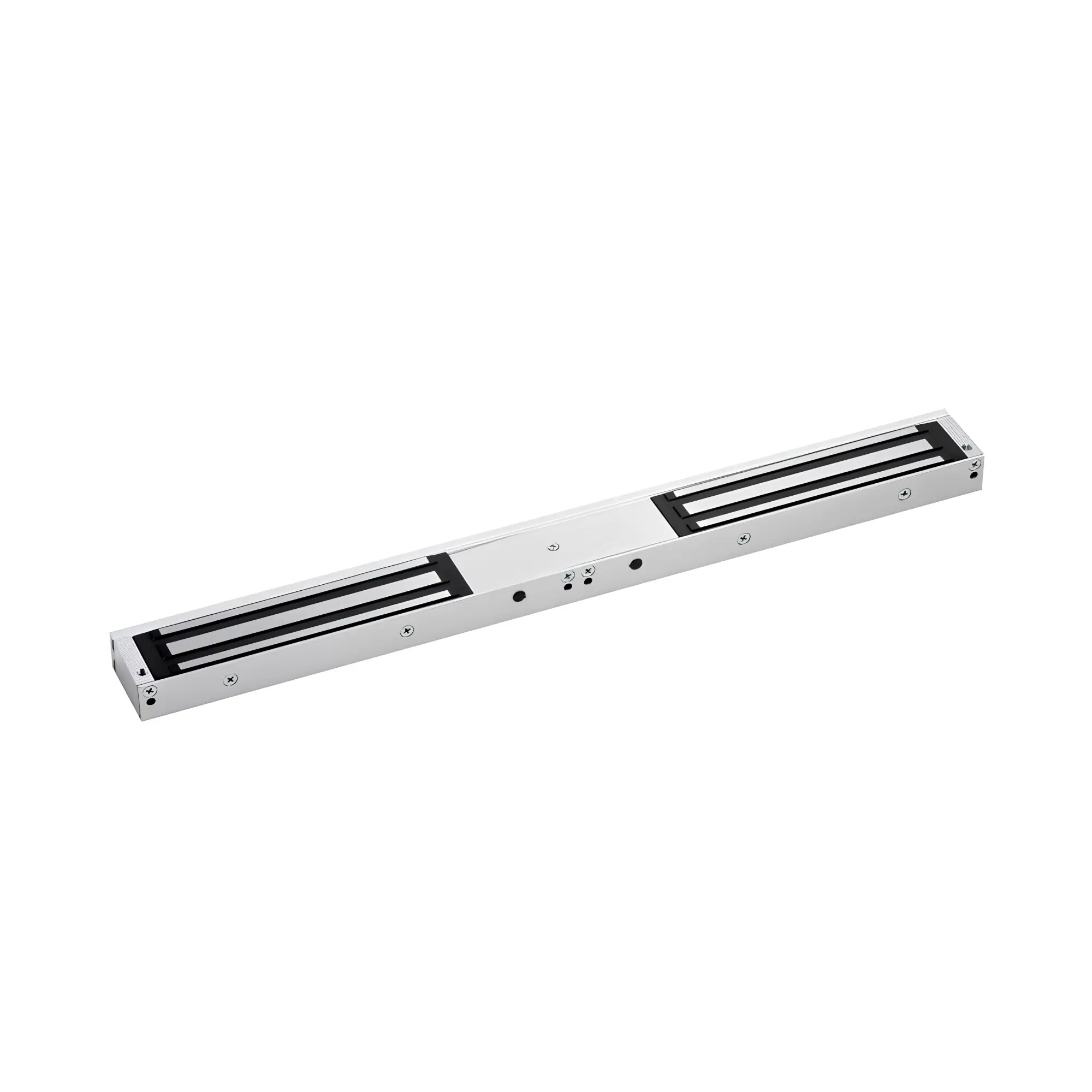

Dual Mini Maglock For Double-Leaf Doors (Optional Monitoring and Status)

Full Description

Secure Access Control with Optional Lock and Door Status Monitoring for Double-Leaf Doors

This Dual Mini Maglock series offers a compact and efficient magnetic locking solution specifically designed for double-leaf doors. Providing a robust 275kg (600lbs) holding force, these slim maglocks are ideal for most indoor access control applications. Available with various monitoring and door status options, they offer flexibility to meet diverse security requirements.

Dual Mini Maglock Available Models:

• SR1-MAG-6002 (Slim Unmonitored Dual Mini Maglock):

  • Basic, unmonitored double maglock for standard access control applications where only locking is required.

• SR1-MAG-6002D (Slim Unmonitored Double Mini Maglock with Door Status Monitoring):

  • Includes integrated contacts to monitor the open or closed position of each door leaf, providing valuable information for alarm systems or access control panels.

• SR1-MAG-6002M (Slim Monitored Double Maglock Mini):

  • Features lock monitoring, providing an LED indicator on the maglock to show its locked/unlocked status and relay contacts for signalling this status to an access control system or alarm panel.

• SR1-MAG-6002DM (Slim Monitored Double Maglock with Door Status Monitoring):

  • The most comprehensive option, combining lock monitoring (LED indication and relay contacts for locked/unlocked status) with door status monitoring (contacts to monitor door position). This provides complete oversight of both the lock’s state and the door’s physical position.

Technical Specifications (Common where applicable):

• Holding Force: 275kg (600lbs) per leaf (total 550kg for double door)
• Operating Voltage: 12Vdc or 24Vdc (selectable)
• Operation: Fail-safe (power to lock)
• Mounting: Surface mount
• Finish: Silver anodised aluminium
• Protection: MOV (spike and surge)
• Monitoring (per model):
  • SR1-MAG-6002: None
  • SR1-MAG-6002D: Door status contacts
  • SR1-MAG-6002M: Lock status (LED + relay contacts)
  • SR1-MAG-6002DM: Lock status (LED + relay contacts) & Door status contacts

Benefits of our Dual Mini Maglock For Double-Leaf Doors:

• Tailored Security: Choose the exact level of monitoring needed for your double-leaf doors.
• Compact & Discreet: Slim design fits well in various indoor settings.
• Reliable Operation: MOV protection and anti-residual magnetism ensure consistent performance.
• Easy Installation: Surface mount design with included fixings simplifies setup.
• Enhanced Awareness (Monitored Models): Provides real-time feedback on door and lock status for improved security management and system integration.
• Cost-Effective: Offers varying options to suit budget and functional requirements.

Ideal Applications:

• Double-leaf doors in offices and commercial buildings.
• Internal double doors within schools, hospitals, and public facilities.
• Access control points for conference rooms, server rooms, and restricted areas.
• Any indoor double-door application requiring secure magnetic locking with flexible monitoring capabilities.
