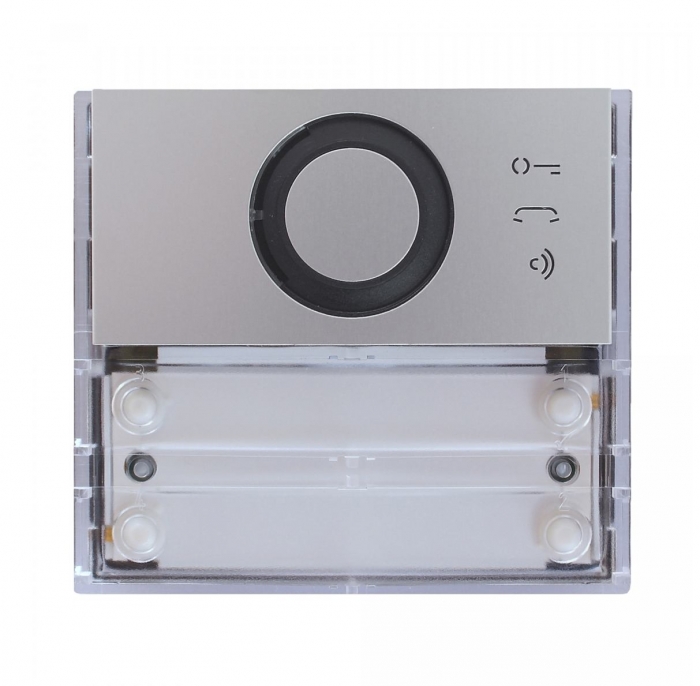

Farfisa AB3G “Alba” GSM Audio Module
3G GSM module. Call made via mobile device. Programming is made through web interface, app, PC with MyComManager software or SMS.
Audio module on Alba range with electrical door speaker integrated in 3G technology and ready for max 4 calls in double button mode. The call is made by the external panel by using the mobile net (a nano SIM card is necessary but not included) and can be sent to a maximum of 3 fixed or mobile telephone numbers, programmable in sequence for each call button. Up to 2 outputs through the provided relays can be managed separately e.g. a pedestrian door and a gate for vehicles.
It can be connected through Alba bus to CT2138AB button module, with total 68 buttons or through digital keypad PD2100AB and/or display DD2140AB for up to 200 users. 2 alarm entrances. Function “calling number recognition for door lock opening (CLIP) through call or SMS for all the users already inside contacts plus a further 200 telephone numbers, alarm management and NAC function (signal for attempted use clip function by a non-authorised user).
Programming is made through web interface, app, PC with MyComManager software or SMS. Lighting signals for conversation status indications, relay activation, subscription to telephone net, signal intensity. To be completed with AB20 or AB21, depending on the number of calls to use.
|99 × 91 × 37 mm
0°C to 50°C
