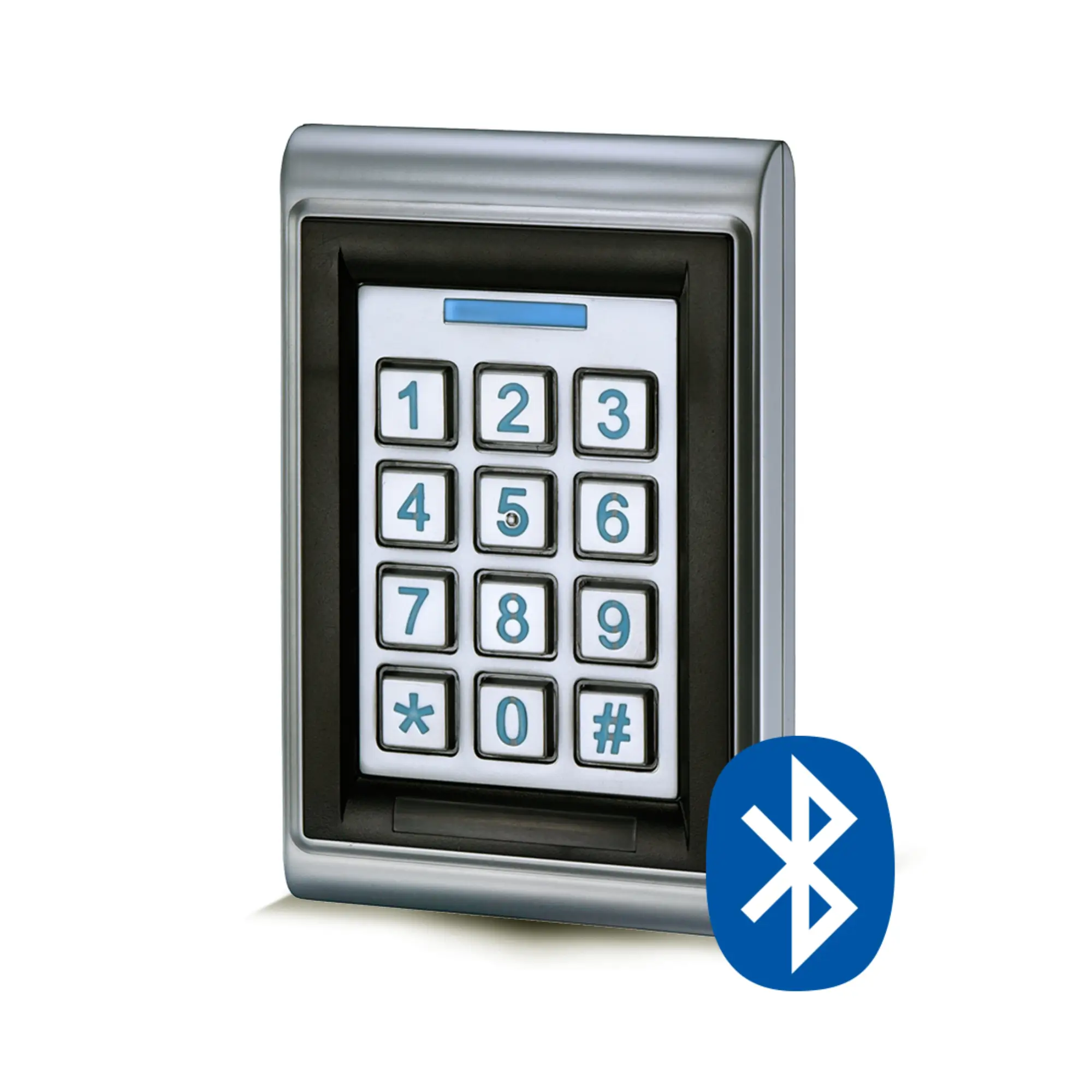

GEM DG800+ Bluetooth Standalone Keypad with PIN and Proximity for up to 200 Users
The GEM DG800+ is a vandal-resistant proximity card and keypad access control unit suitable for external applications. The GEM DG800+ accepts up to 200 users and provides entry via the use of proximity cards, virtual credentials, and/or PIN codes.
Key Features:
- Applicable card mode: EM Card / Key Fob
- 1 Administrator and 200 Users
- 200 Proximity Cards / Key fobs
- Access Modes: Use Bluetooth smartphone, Card / Key fob or enter passcode to access
- Built-in Tamper alarm and Buzzer (85dB)
- User Management: Add / Delete / View user data, Grant user access for specific dates or time periods, Change user passcode
- Audit Trail logs for last 1000 events
- Alarm output to notify that Tamper alarm has been triggered
- Overhead LEDs and Backlit keys for easy use in the dark
- Wrong code lockout: If an incorrect passcode is entered 3 times in a row, the keypad will lock down for 60 seconds
Full Description
Smartphone Access for Up to 200 Users, with Illuminated Keypad
The GEM DG800+ is a cutting-edge standalone single-door access control system that combines Bluetooth smartphone access with traditional proximity card reading and PIN code entry. This versatile device offers secure and convenient access for up to 200 users, featuring an illuminated keypad for ease of use and a weatherproof design for indoor or outdoor installation.
Key Features of the GEM DG800+:
- Bluetooth Smartphone Access: The GEM DG800+ Allows authorised users to unlock the door using the dedicated E-Access app on their smartphones.
- Proximity Card Reader: Supports 125kHz RFID technology (EM or EM compatible cards – sold separately).
- PIN Code Entry: Provides keypad access with programmable PIN codes.
- Up to 200 Users: Manages access for up to 200 individual users.
- Illuminated Keypad: Ensures visibility and easy operation in low-light conditions.
- Adjustable Auto Proximity Range: Customisable proximity detection for convenient hands-free access via Bluetooth.
- E-Access App: User-friendly app for access control and user management.
- LED and Buzzer Indicators: Provide clear status feedback.
- Weatherproof IP Rating: Suitable for both indoor and outdoor installations.
- Chrome Finish: Offers a sleek and modern aesthetic.
Technical Specifications:
- Voltage: 12 VDC / 24 VDC
- Bluetooth Mode: BLE 4.2
- Current Draw (Standby): 56mA @ 12VDC; 28mA @ 24VDC
- Current Draw (Working – Relay Active): 85mA @ 12VDC; 43mA @ 24VDC
- Administrator/Users: 1 / 200
- Access Modes: Smartphone (Bluetooth), RFID Proximity Card (125kHz), PIN Code
- Bluetooth Operating Range: Up to 50 meters (environment dependent)
- RFID Technology: 125kHz (EM or EM compatible)
- Keypad: Illuminated
- Indicators: LED and Buzzer
- Weather Rating: IP rated weatherproof
- Finish: Chrome
- See Full Data Sheet
Benefits:
- Multiple Access Options: Offers flexibility and convenience for users with smartphone, card, or PIN access.
- Enhanced Security: Secure Bluetooth communication and traditional access methods.
- Convenient Smartphone Access: Modern and keyless entry via the E-Access app.
- Easy User Management: Simple user administration through the E-Access app.
- Versatile Installation: Weatherproof design for indoor and outdoor use.
- User-Friendly Operation: Illuminated keypad and clear status indicators.
Ideal Applications:
- Residential homes
- Small offices
- Commercial buildings
- Shared workspaces
- Storage units
- Any single door requiring secure and convenient access control for up to 200 users.
Product Specifications
| Weight | 430 g |
|---|---|

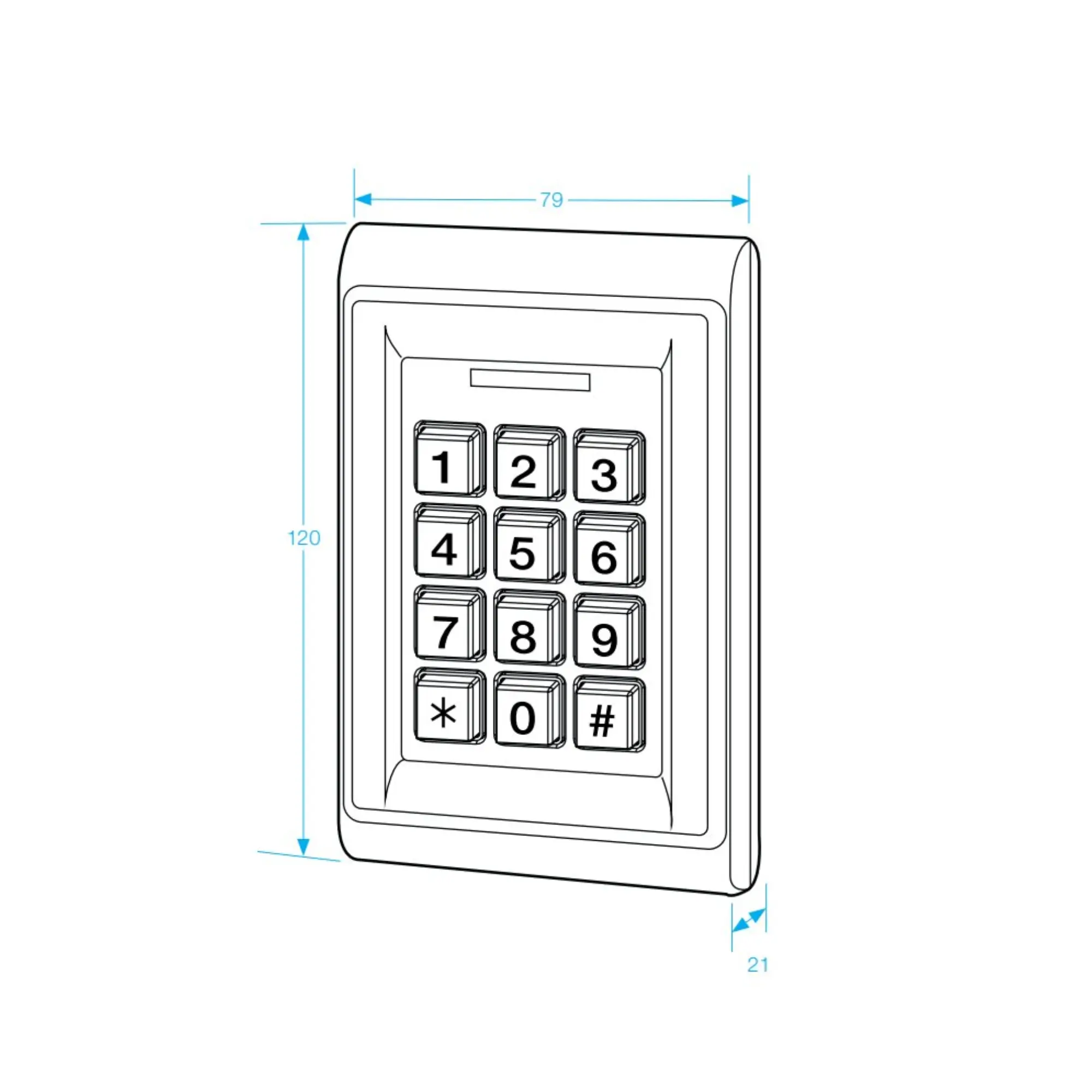

| Dimensions | 120 × 76 × 27 mm |
| Brand | GEM |
| Mounting | Surface Mount |
| Frequency | 125 kHz (RFID), 2.45 GHz |
| Power Requirement | 12-24 VDC |
| Operating Temperature | -20°C to 50°C |
| Finish | Stainless Steel |
| Protection Rating | IP65 |
| Number of Users | 200 |
| Output Relays | 1 |
| SKU | DG-800+ |
Downloads
Manufacturer's User Guide (includes wiring details)
1.6 MB
