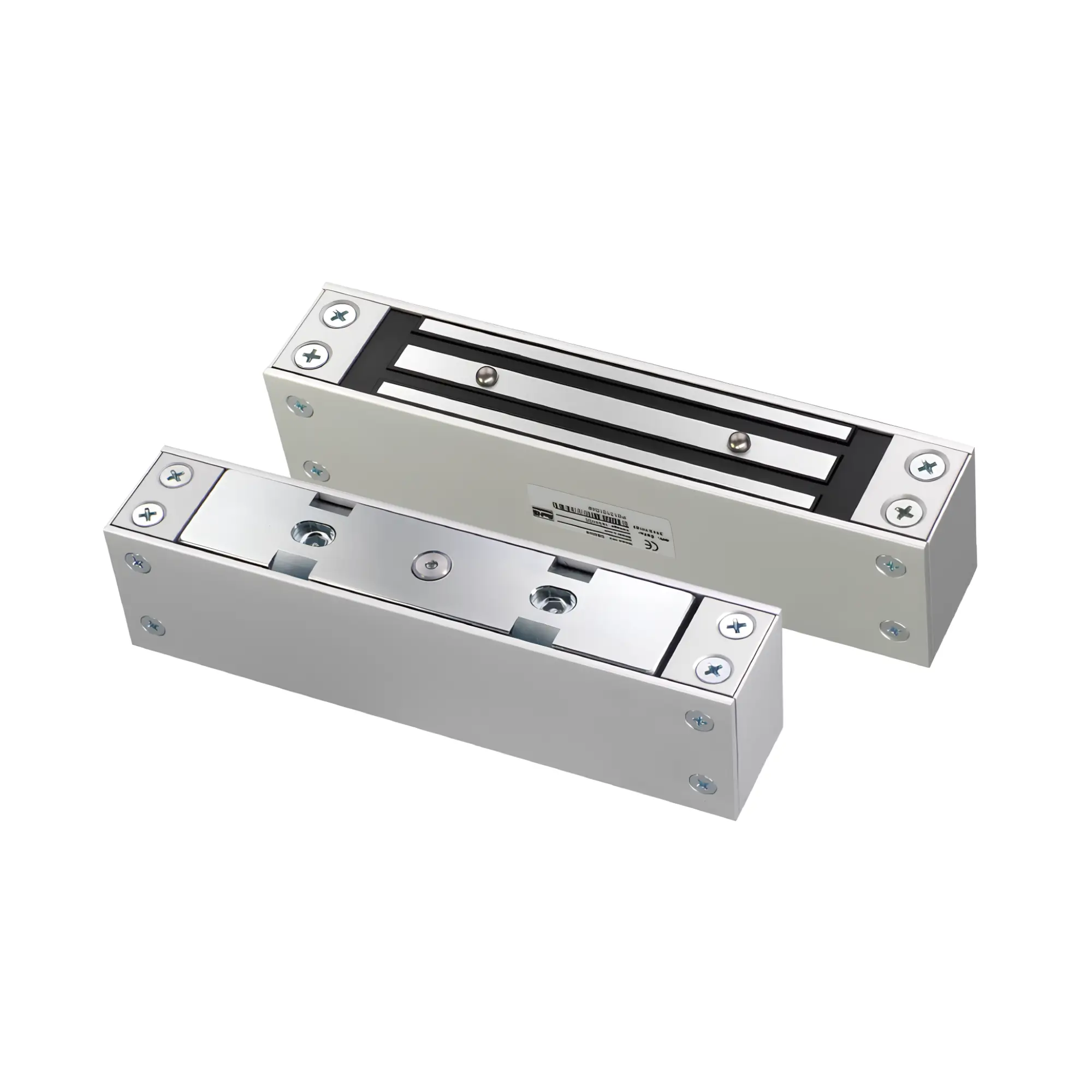

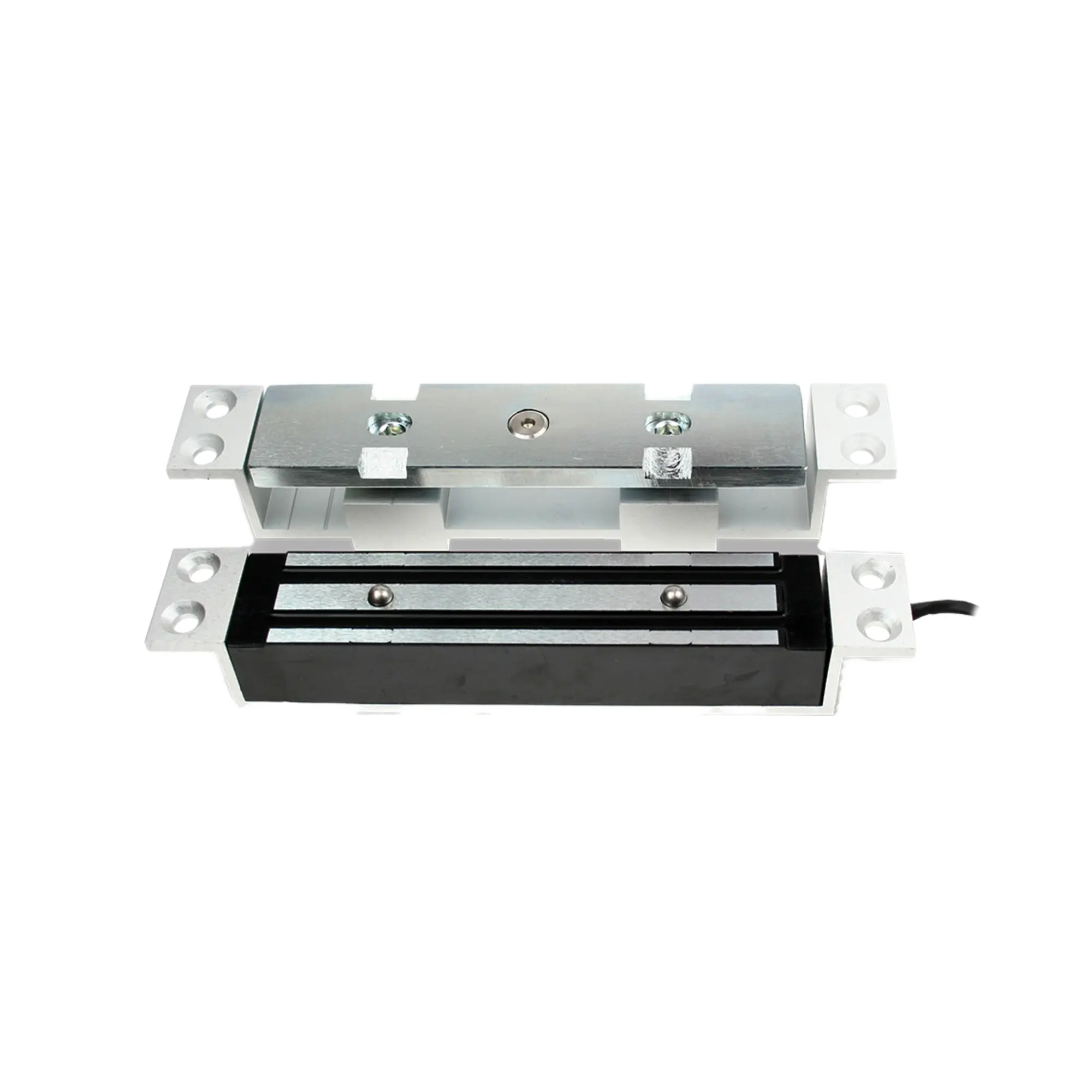

Gem GS200 Shear Lock With Optional Door Monitoring

The Gem GS200 Shear Lock is a powerful and versatile solution for securing various door types. This compact electromagnetic lock offers exceptional holding force, a concealed mechanism, and multiple mounting options for a clean and professional finish. With the additional benefit of optional door monitoring functionality available in the GS200M model, the Gem GS200 provides a comprehensive security solution to meet your specific needs.

Key Features:

  • Compact Design: The Gem GS200 provides a sleek and unobtrusive appearance that complements any architectural style.
  • Powerful Holding Force: Delivers a strong 1,200lbs of holding force for reliable door security.
  • Concealed Mechanism: Maintains a clean aesthetic as the lock is hidden within the door frame or surface mounted.
  • Suitable for Narrow Frames, Double Swing Doors, and Glass Doors: Offers exceptional versatility for various door types (additional brackets may be required).
  • Fail-Safe Operation: Ensures a safe exit as the lock automatically releases when power is lost.
  • Multiple Mounting Options: Available in mortise, semi-mortise, and surface mount configurations for flexible installation.
  • Door Status Monitoring (Optional): Provides real-time confirmation of door lock status (available with GS200M model).
  • Bond Sensor (*GS200M Only): Indicates proper armature contact and eliminates potential lock misalignment (available with GS200M model).
  • Adjustable Armature Screws: Accommodates wider door gaps for a secure fit.
  • Special Push-Off Device: Eliminates residual magnetism, ensuring smooth door opening.

Full Description

A Compact Electromagnetic Lock Offering Powerful Holding Force and Optional Monitoring

The Gem GS200 Shear Lock With Optional Door Monitoring is a versatile and discreet electromagnetic locking solution designed for various door applications. This compact lock boasts an impressive holding force, concealed mechanism, and multiple mounting options, making it ideal for securing single and double swing doors. The GS200 is available in two models, offering the option for door monitoring functionality.

Key Features:

  • Compact Design: The Gem GS200 provides a sleek and unobtrusive appearance that complements any architectural style.
  • Powerful Holding Force: Delivers a strong 1,200lbs of holding force for reliable door security.
  • Concealed Mechanism: Maintains a clean aesthetic as the lock is hidden within the door frame or surface mounted.
  • Suitable for Narrow Frames, Double Swing Doors, and Glass Doors: Offers exceptional versatility for various door types (additional brackets may be required).
  • Fail-Safe Operation: Ensures a safe exit as the lock automatically releases when power is lost.
  • Multiple Mounting Options: Available in mortise, semi-mortise, and surface mount configurations for flexible installation.
  • Door Status Monitoring (Optional): Provides real-time confirmation of door lock status (available with GS200M model).
  • Bond Sensor (Optional): Indicates proper armature contact and eliminates potential lock misalignment (available with GS200M model).
  • Adjustable Armature Screws: Accommodates wider door gaps for a secure fit.
  • Special Push-Off Device: Eliminates residual magnetism, ensuring smooth door opening.
  • See Full GS200 Data Sheet

Benefits of the Gem GS200:

  • Unobtrusive Security: The compact design and concealed mechanism offer a discreet yet powerful security solution.
  • Exceptional Versatility: Suitable for various door types, including narrow frames, double swing doors, and glass doors.
  • Reliable Operation: Provides strong holding force, fail-safe functionality, and optional door monitoring for enhanced security management.
  • Flexible Installation Options: Multiple mounting options allow for a clean and professional finish based on your specific needs.
  • Effortless Door Opening: Special push-off device eliminates residual magnetism for smooth operation.
  • Simplified Installation (Optional): Mounting brackets available for a simplified installation process (sold separately).

Ideal Applications:

  • Office Buildings: Secure high-traffic entrances, server rooms, and confidential areas.
  • Retail Stores: Control access to back offices, stockrooms, and high-value merchandise areas.
  • Educational Facilities: Restrict access to classrooms, laboratories, and restricted areas.
  • Hospitals and Healthcare Facilities: Safeguard patient care areas, pharmacies, and equipment storage.
  • Leisure and Hospitality Facilities: Secure building entrances, staff areas, and equipment storage.

Technical Specifications:

  • Voltage: Dual 12/24VDC
  • Holding Force: 1,200lbs (545kg)
  • Door Gap: 1/16″ (2mm)
  • Mount: Mortise, Semi-Mortise, Surface
  • Available Models:
    • GS200: Unmonitored
    • GS200M: Monitored

Product Specifications

Weight 2000 g

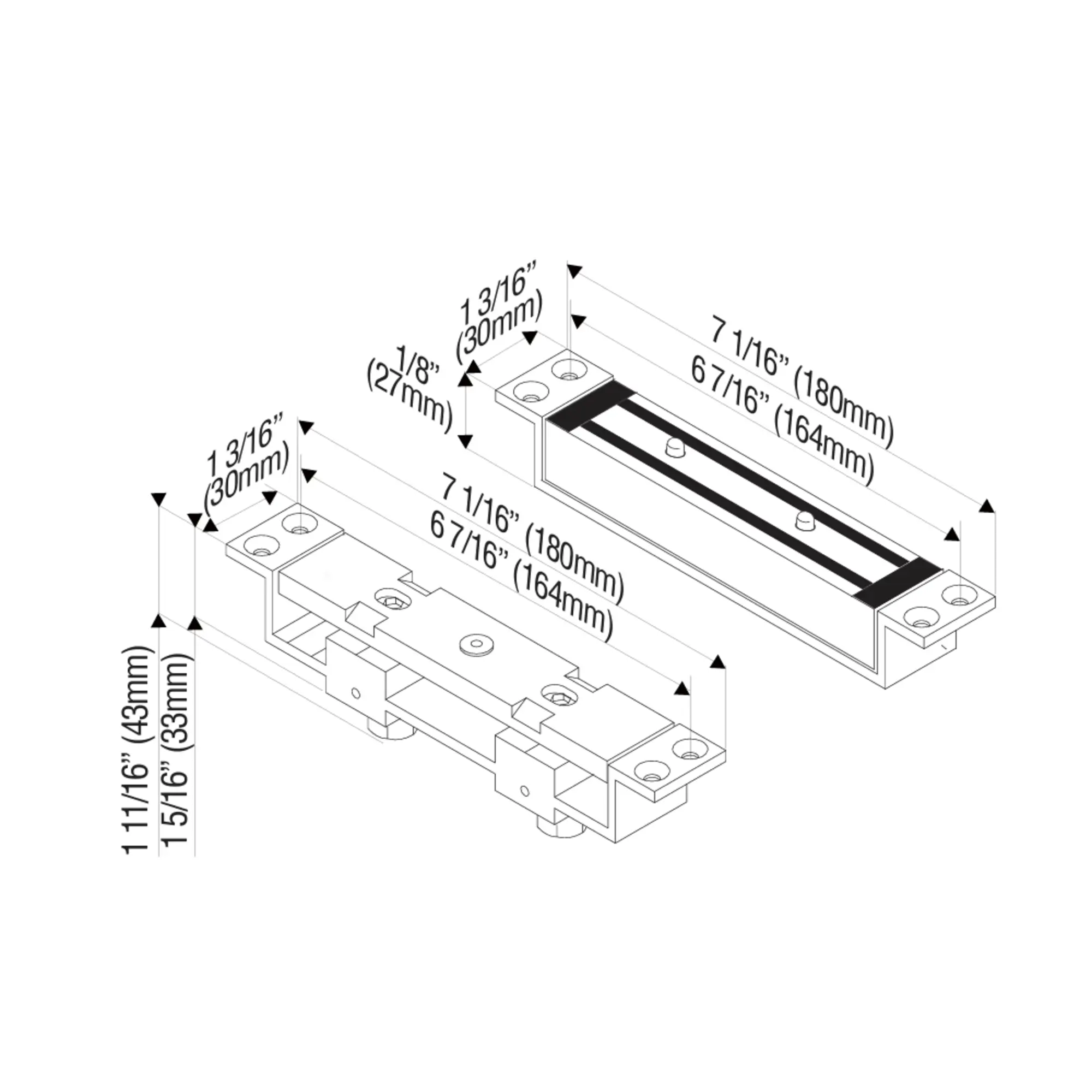

Dimensions 180 × 30 × 27 mm
Brand

GEM

Lock Options

Monitored, Unmonitored

Colours

Alloy

Holding Force

1200 Lbs

Mounting

Flush Mount, Horizontal, Vertical

Operating Temperature

-10°C to 55°C

Power Requirement

12-24 VDC

Safety Features

Fail-Safe

Form Factor

Shear Lock

SKU GS200, GS200M
