Monitored Double Mag Lock With Door Status Sensor (Optional)

The Monitored Double Mag Lock With Door Status Sensor (Optional) provides a dependable and feature-rich solution for double door access control. These maglocks offer exceptional holding force, easy installation, and a variety of monitoring options to suit your specific security needs. Choose the model that best fits your requirements for enhanced security and real-time control of your double door access points.

Key Features:

  • Double-Sided Locking: Provides a combined holding force of up to 545kg (1200lb) for exceptional security on double doors.
  • High Holding Force per Side: Delivers 545kg (1200lb) of holding force on each side of the door for reliable locking.
  • Dual Voltage Operation: Selectable for 12Vdc or 24Vdc power supply compatibility.
  • Surface Mount Installation: Simple and straightforward for efficient setup.
  • Silver Anodised Aluminium Finish: Offers a sleek and modern aesthetic.
  • MOV Surge Protection: Safeguards against electrical spikes and surges.
  • Fail-Safe Operation: Doors unlock when power is lost, ensuring safe egress.
  • Anti-Residual Magnetism Protection: Prevents lingering magnetism for reliable locking.
  • Top-Plate, Armature-Plate, and Fixings Included: Provides all necessary components for installation (excluding power supply).
  • Relay: COM/NO/NC (1A@24Vdc) per Side: Allows for integration with access control systems for signalling purposes.
  • LED Lock Status Indication: Provides visual indication of lock status (locked/unlocked) on each side.
  • Door Status Monitoring (SR1-MAG-12002DM Only): Includes reed switch contacts (one per side) to monitor door position (open or closed), ideal for integrating with access control systems for improved security and logging.

Full Description

Strengthen Your Double Door Security with Our Monitored Double Mag Lock

The Monitored Double Mag Lock series offers a comprehensive solution for securing double door access points. These electromagnetic locks provide exceptional holding force on both sides of the door, while the integrated monitoring features allow for real-time status updates, optimizing security and control. Choose between two models:

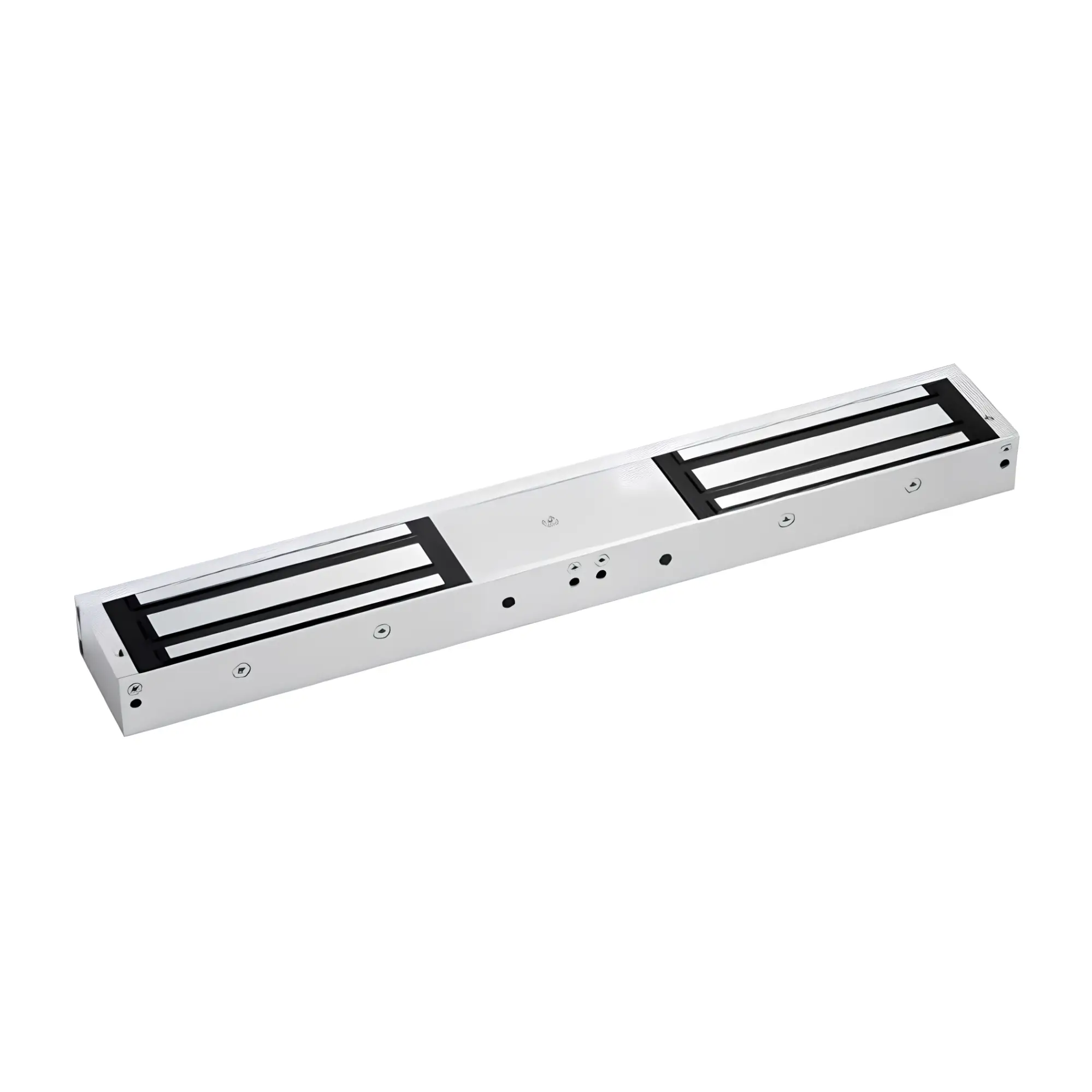

  • SR1-MAG-12002M: This Monitored Double Mag Lock provides lock monitoring with LED status indication and relay contacts.

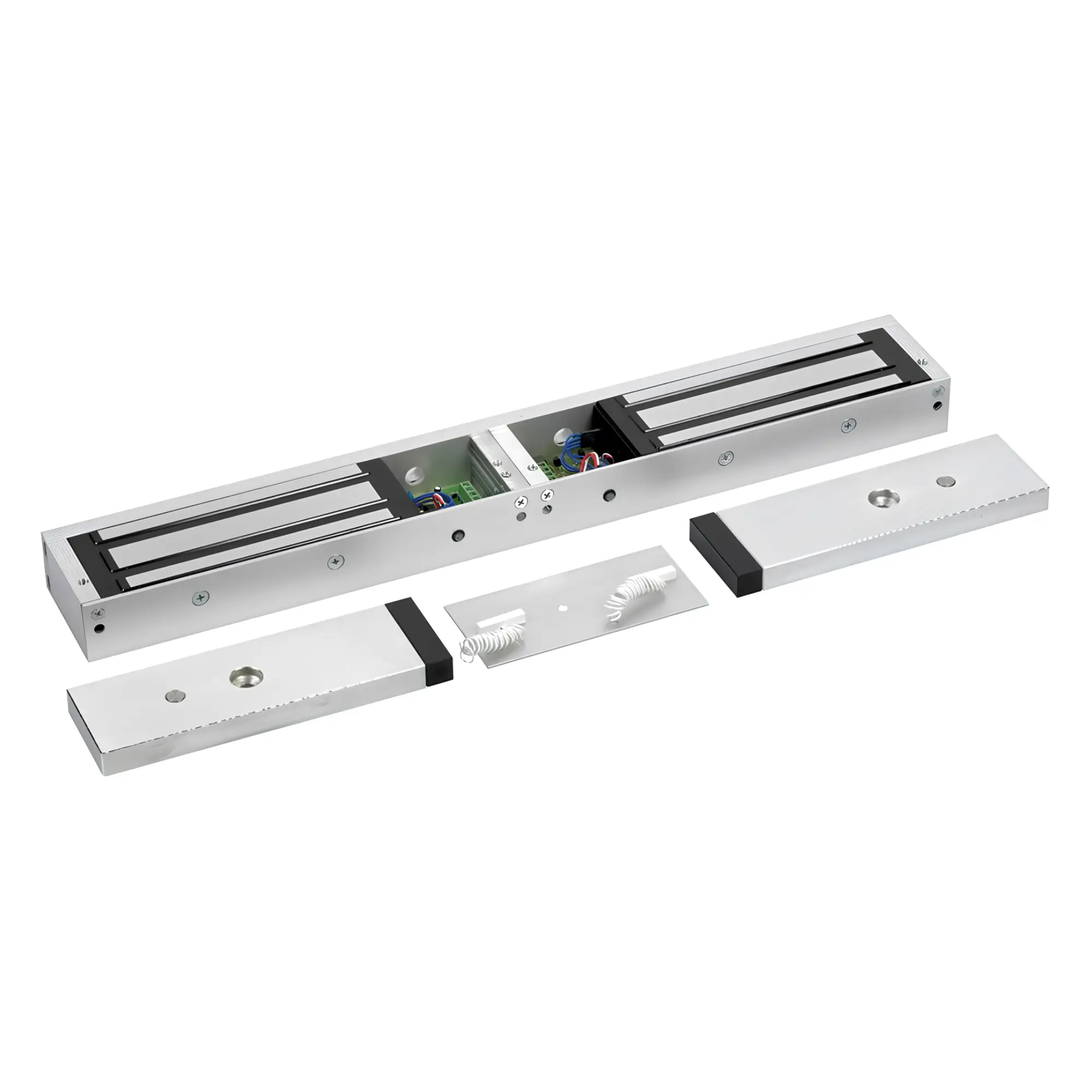

  • SR1-MAG-12002DM: Offers both lock monitoring and door status monitoring with reed switch contacts.

Key Features (Apply to Both Products):

  • Double-Sided Locking: Provides a combined holding force of up to 545kg (1200lb) for exceptional security on double doors.
  • High Holding Force per Side: Delivers 545kg (1200lb) of holding force on each side of the door for reliable locking.
  • Dual Voltage Operation: Selectable for 12Vdc or 24Vdc power supply compatibility.
  • Surface Mount Installation: Simple and straightforward for efficient setup.
  • Silver Anodised Aluminium Finish: Offers a sleek and modern aesthetic.
  • MOV Surge Protection: Safeguards against electrical spikes and surges.
  • Fail-Safe Operation: Doors unlock when power is lost, ensuring safe egress.
  • Anti-Residual Magnetism Protection: Prevents lingering magnetism for reliable locking.
  • Top-Plate, Armature-Plate, and Fixings Included: Provides all necessary components for installation (excluding power supply).
  • Relay: COM/NO/NC (1A@24Vdc) per Side: Allows for integration with access control systems for signalling purposes.
  • LED Lock Status Indication: Provides visual indication of lock status (locked/unlocked) on each side.

Additional Feature (SR1-MAG-12002DM Only):

  • Monitored Double Mag Lock With Door Status Monitoring: Includes reed switch contacts (one per side) to monitor door position (open or closed), ideal for integrating with access control systems for improved security and logging.

Benefits of Monitored Double Mag Locks:

  • Enhanced Security: Monitor lock status and, for the SR1-MAG-12002DM, door position in real-time for improved security awareness on double doors.
  • Superior Holding Force: Exceptional 1200lb holding force per side deters unauthorised access.
  • Improved Access Control Integration: Integrate a Monitored Double Mag Lock with access control systems for centralised management and monitoring of double doors.
  • Easy Installation: Surface mount design simplifies setup.
  • Visual Lock Status Indication: The LED indicators provide quick and clear lock status checks on both sides.

Choosing Between Monitored Double Mag Lock Models:

  • The SR1-MAG-12002M offers lock monitoring with LED status and relays for basic monitoring needs on double doors.
  • The SR1-MAG-12002DM provides both lock monitoring and door status monitoring for comprehensive real-time awareness on double entrances.

Ideal Applications:

  • Building Entrances: Securing main entry points with a robust double door locking mechanism and real-time monitoring capabilities.
  • Server Rooms and Data Centres: Ensuring high-level security for critical IT infrastructure, with the ability to monitor door status.
  • Emergency Exits: Providing secure double door access while maintaining safe egress, with the option for real-time monitoring.
  • Financial Institutions: Protecting vaults and secure areas with a powerful locking solution and the ability to monitor door position.
  • Luxury Retail Stores: Securing high-value merchandise displays and entrances with exceptional holding force and optional door status monitoring.

Product Specifications

Weight 9500 g

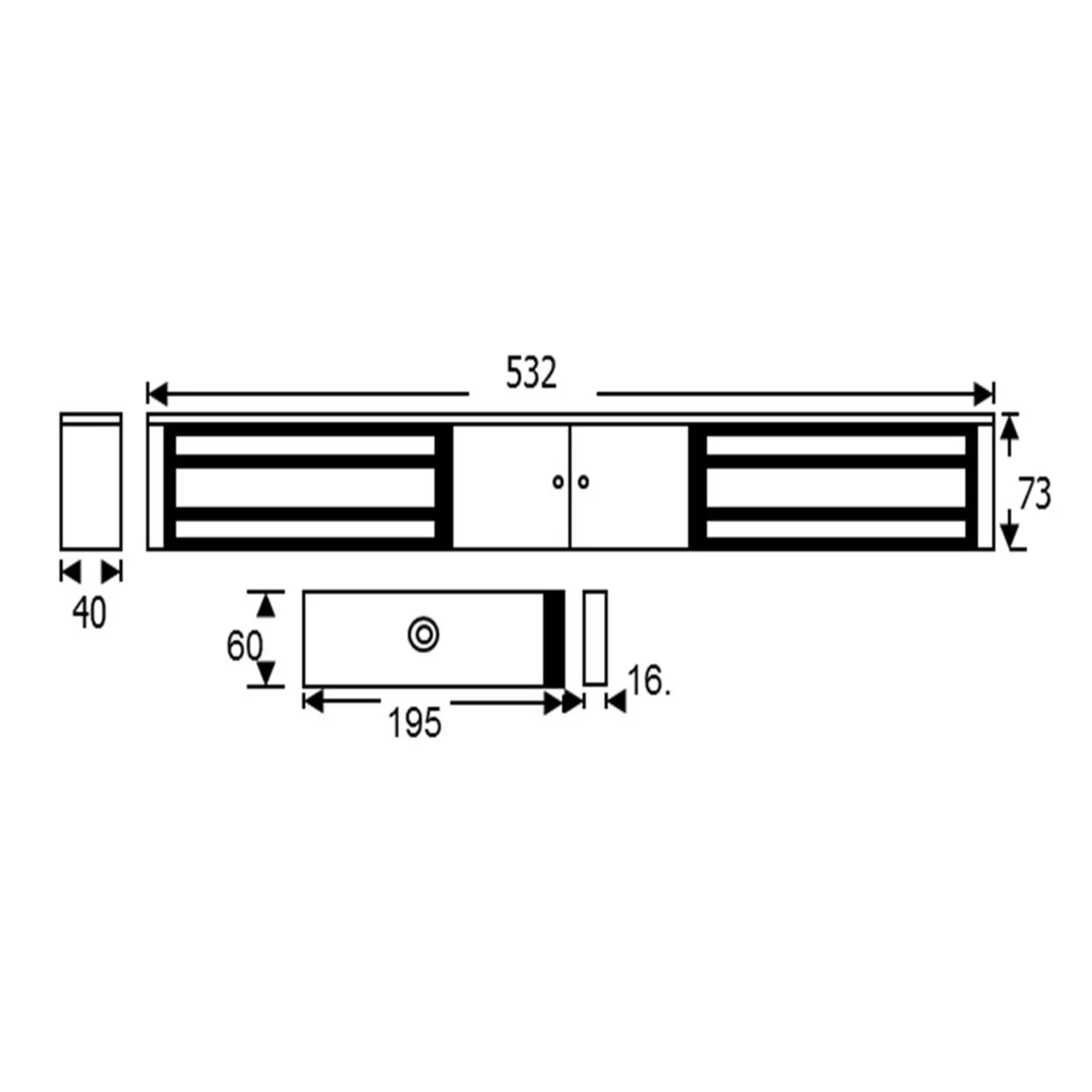

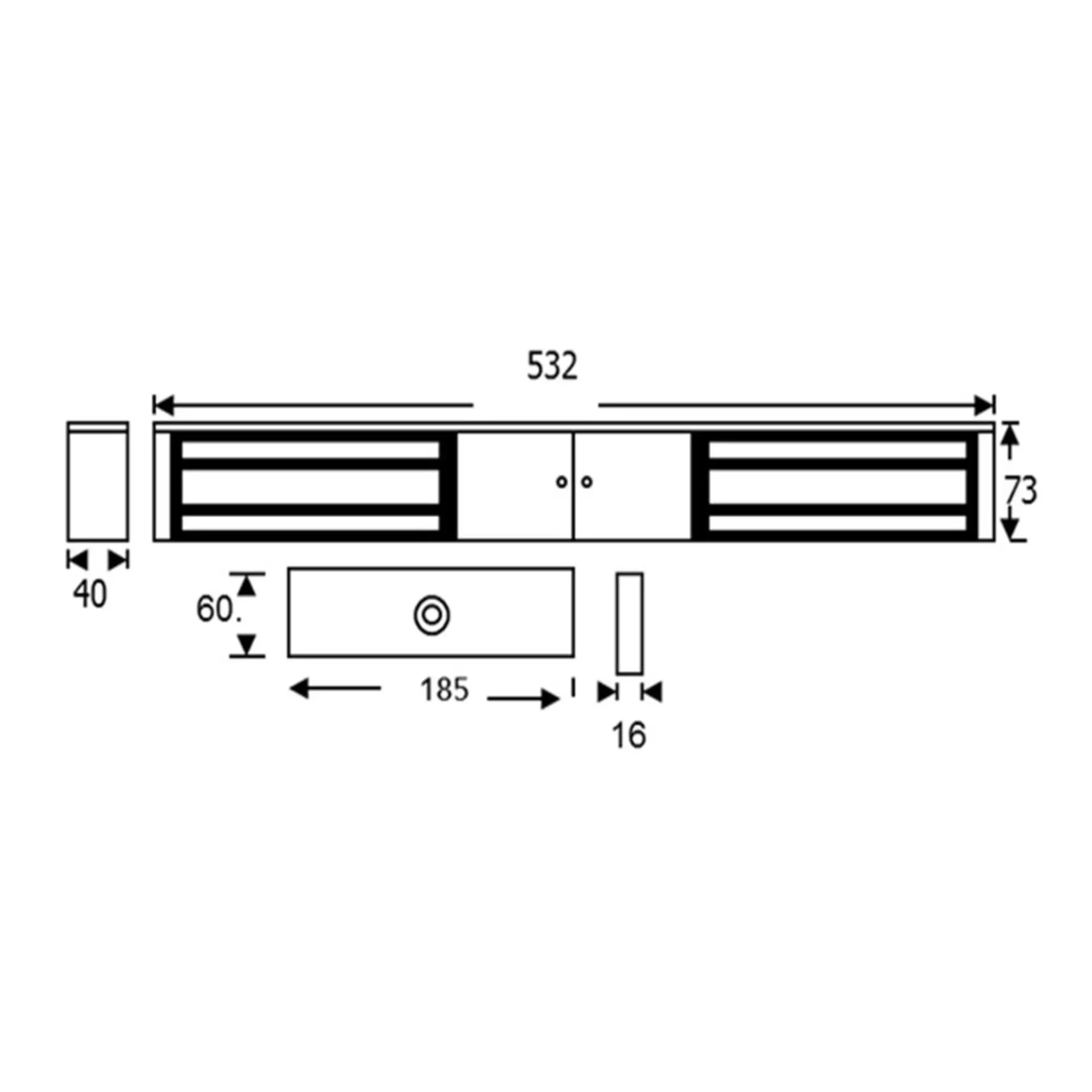

Dimensions 532 × 73 × 40 mm
Lock Options

Monitored, Monitored + Door Status Sensor

Connection type

Terminal connection

Construction

Aluminium Alloy

Holding Force

1200 Lbs x 2

Mounting

Surface Mount

Operating Temperature

-10°C to 55°C

Power Requirement

12 VAC, 12-24 VDC, 24 VDC

Brand

Smart R Distribution

Safety Features

Fail-Safe

Form Factor

Double Maglock

SKU SR1-MAG-12002M, SR1-MAG-12002DM
